Simpson Anchors | SKU:
1212HT

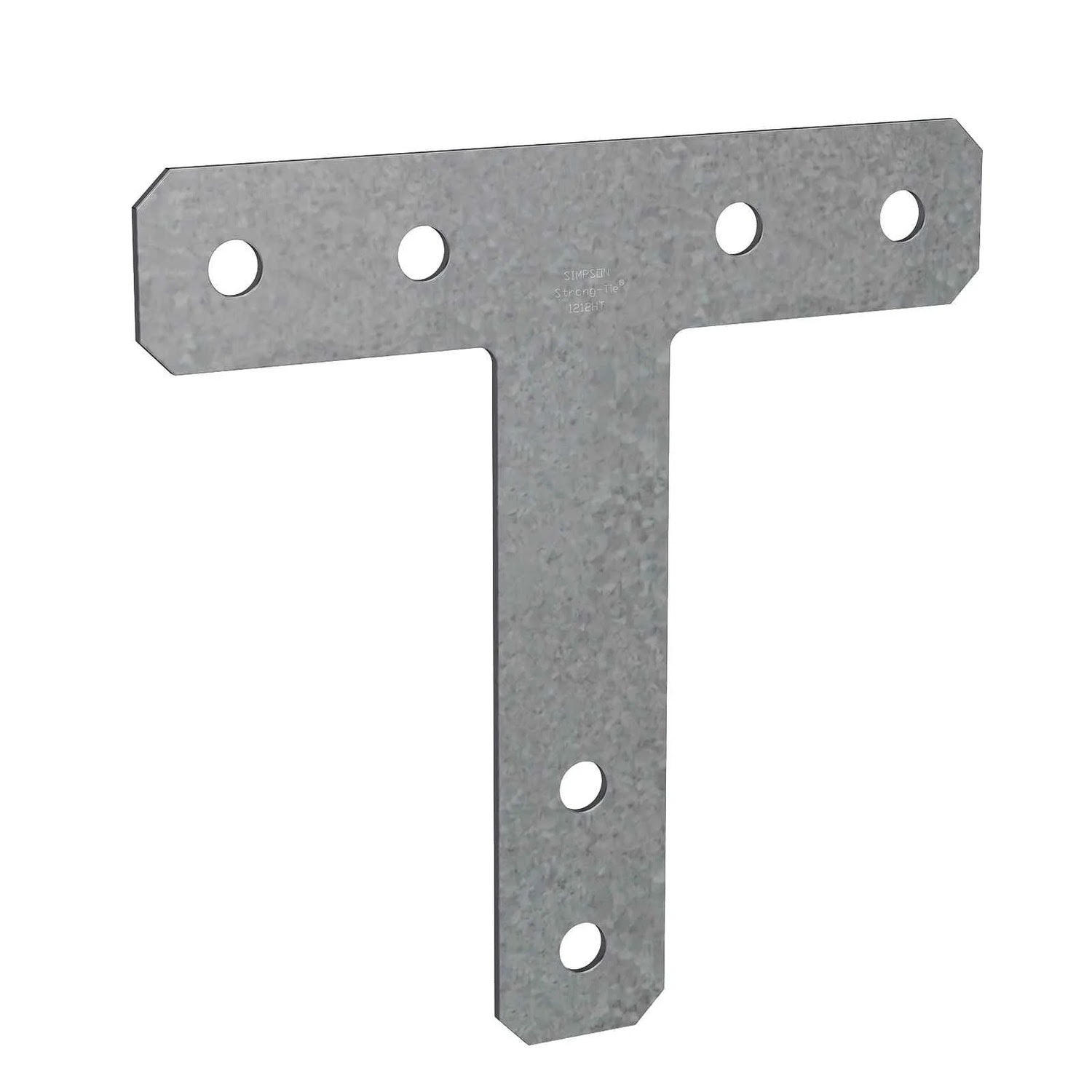

Simpson Strong-Tie 1212HT (12" x 12") 7-Gauge HT Galvanized Heavy T Strap
$48.40
$58.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie 1212HT Description
The Simpson 1212HT Heavy T Strap is designed to reinforce 90-degree connections in timber assemblies, offering enhanced strength and reliability for structural applications.
Simpson Strong-Tie 1212HT Includes
- (1) Heavy T Strap 12" x 12" G90 Galvanized Steel
Simpson Strong-Tie 1212HT Features
- Heavy-duty G90 galvanized steel for corrosion resistance
- 12" x 12" T-shape design for reinforcing 90-degree joints
- Pre-punched fastener holes for precise installation
- Load rated for structural applications
- Compatible with Simpson Strong-Tie fasteners
Simpson Strong-Tie 1212HT Applications
- Timber frame connections in pergolas, porches, and decks
- Post-to-beam or beam-to-beam reinforcement
- Restoration or retrofit projects requiring added joint strength

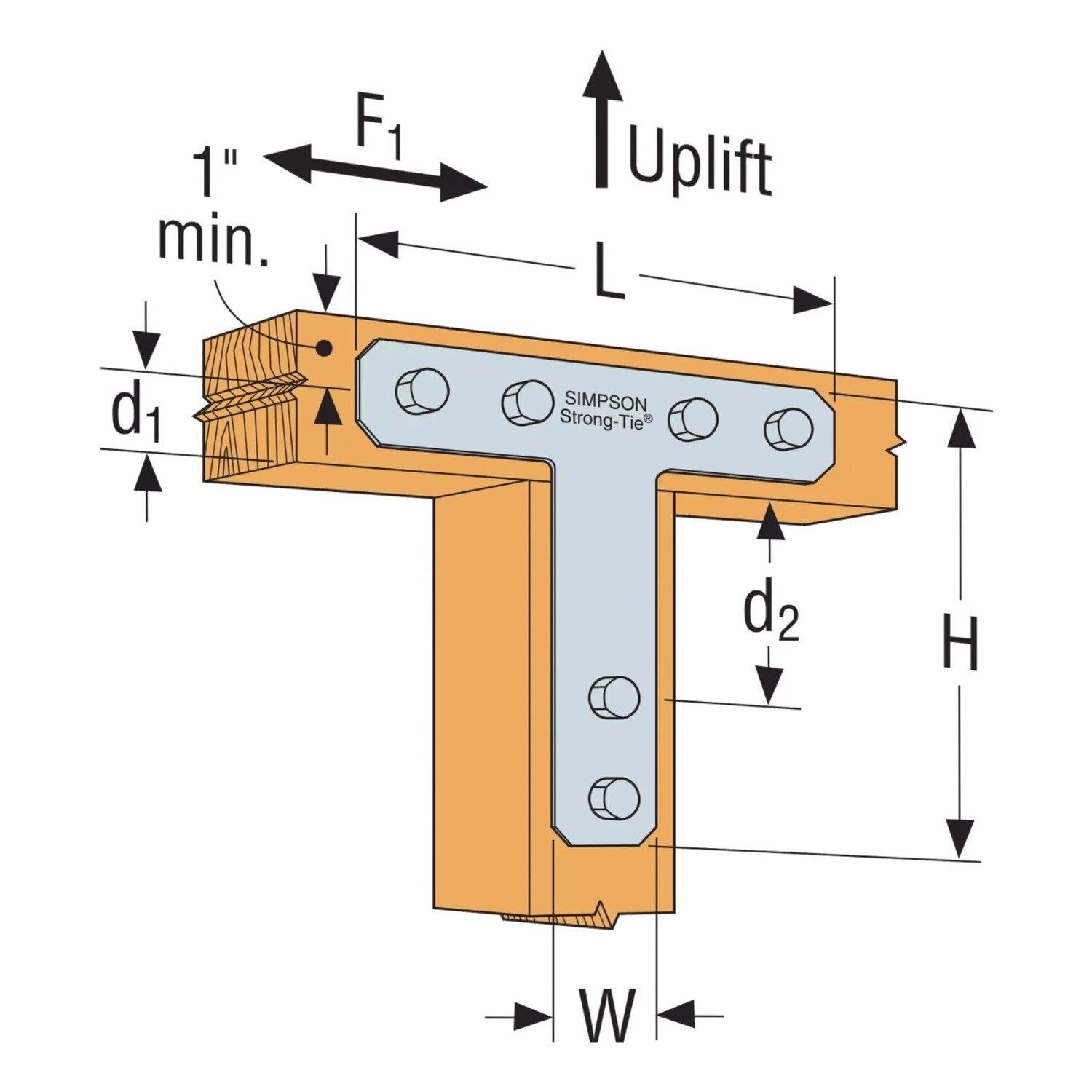

Simpson Strong-Tie 1212HT Installation Overview
- Position the strap flush across the joint for optimal load distribution.
- Secure using approved Simpson Strong-Tie fasteners to meet load requirements.
- For exterior applications, use corrosion-resistant fasteners compatible with G90 galvanized steel.

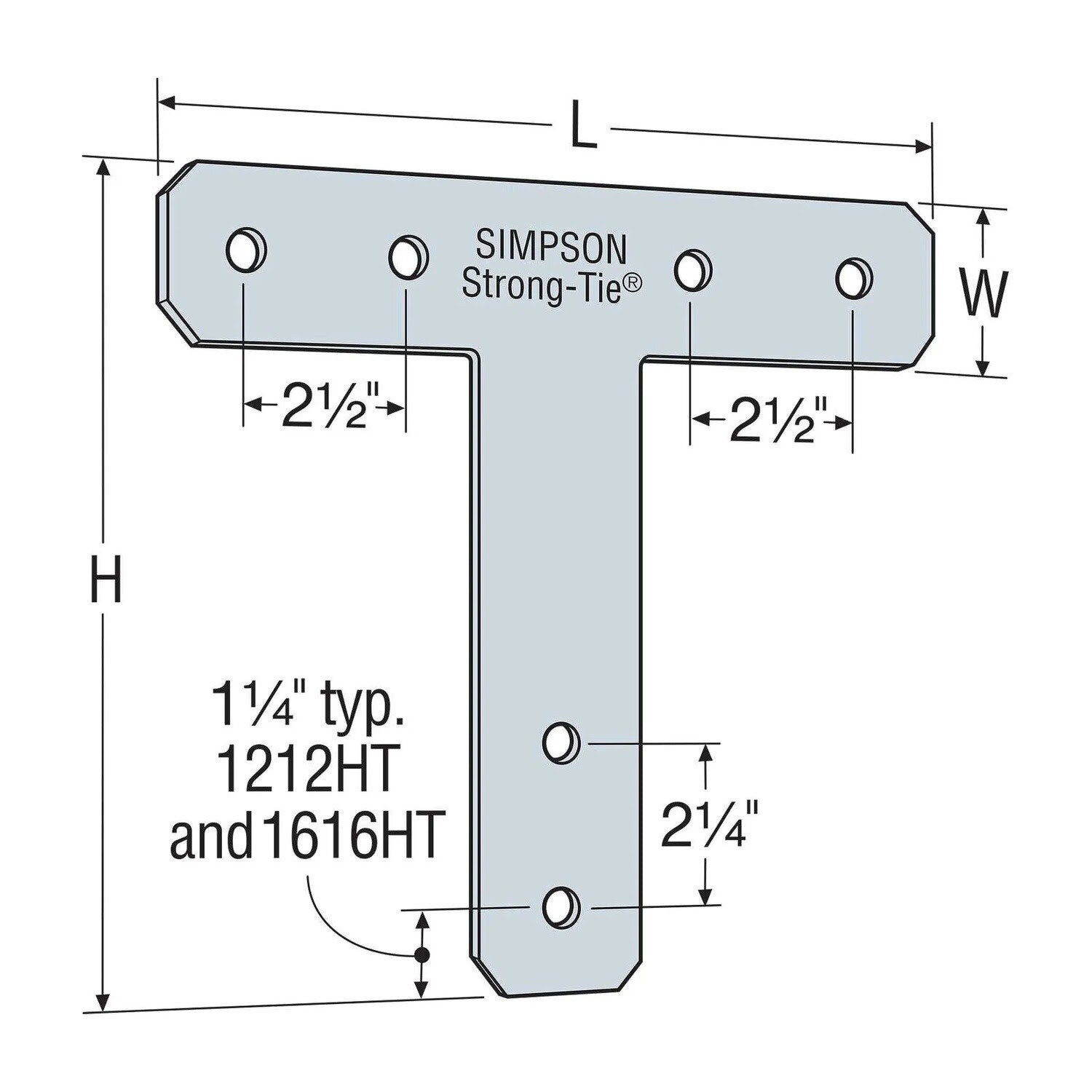

Simpson Strong-Tie 1212HT Specifications
| Finish | G90 Galvanized |
| Length | 12" |
| Material | Galvanized Steel |
| Fasteners required | Bolts - (6) 5/8" |
| Height | 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 7 Gauge |
| Width | 2-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
