Simpson Anchors | SKU:
1616HTHDG

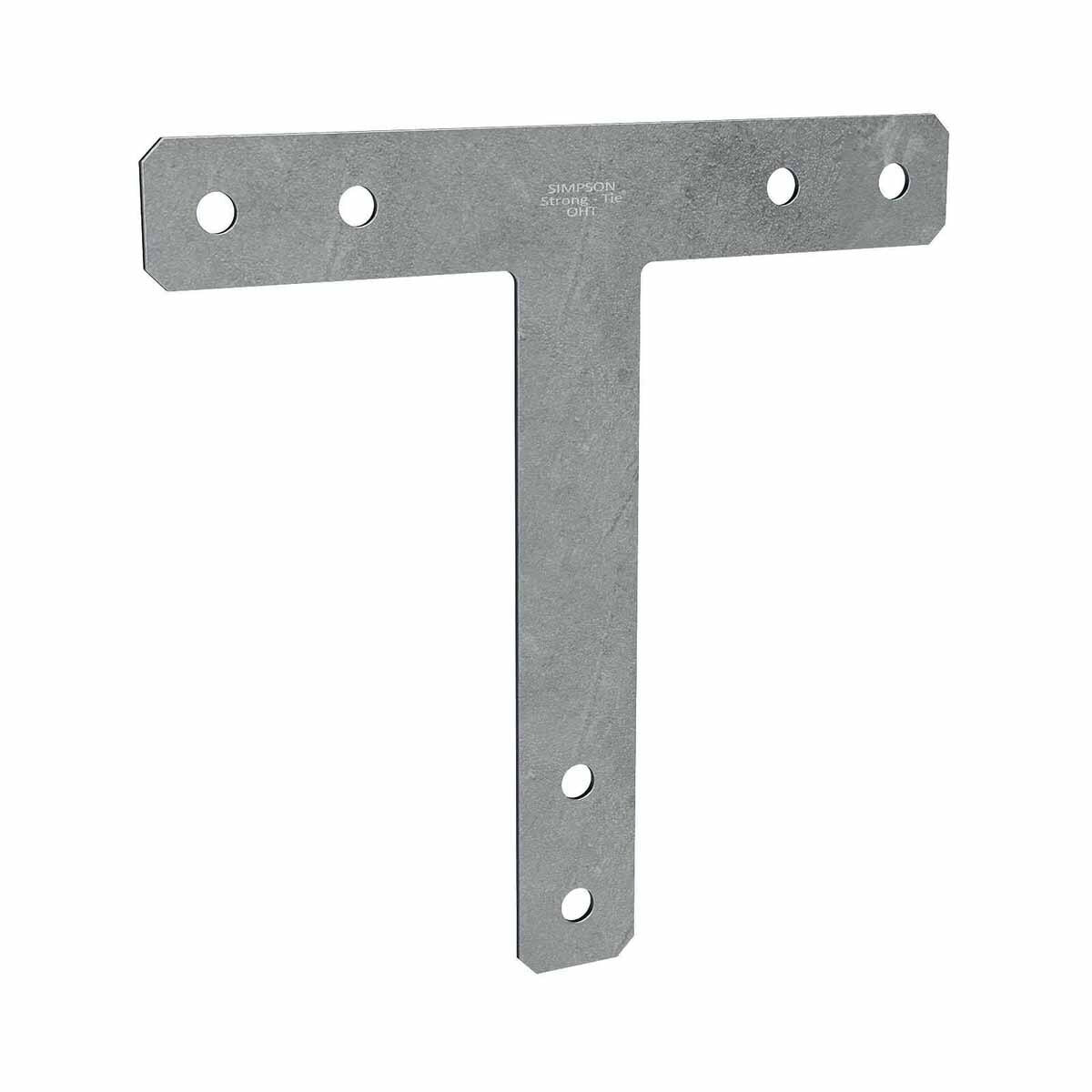

Simpson Strong-Tie 1616HTHDG (16" x 16") 7-Gauge HT Hot-Dip Galvanized Heavy T Strap
$96.23
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie 1616HTHDG Description
The Simpson HT Heavy T Strap is engineered for high-load transfer and structural stability, ideal for demanding wood-to-wood applications.
Simpson Strong-Tie 1616HTHDG Includes
- (1) Heavy-Duty 16 x 16" Hot-Dip Galvanized T Strap
Simpson Strong-Tie 1616HTHDG Features
- Heavy-Duty Construction: Made from robust steel for maximum load capacity and structural integrity.
- Galvanized Finish: Helps resist corrosion in outdoor or exposed environments.
- Versatile Fit: Available in multiple sizes to accommodate varied layouts and lumber dimensions.
- Pre-Punched Holes: Designed for use with Simpson Strong-Tie nails or structural screws.
- ICC-ES Code Compliant: Engineered and tested to meet IBC and IRC requirements.
Simpson Strong-Tie 1616HTHDG Applications
- Securing intersections of horizontal and vertical framing members.
- Reinforcing post-to-beam and beam-to-beam joints.
- Framing in agricultural buildings, pergolas, and covered porches.
- High-wind or seismic zones requiring enhanced lateral or uplift resistance.

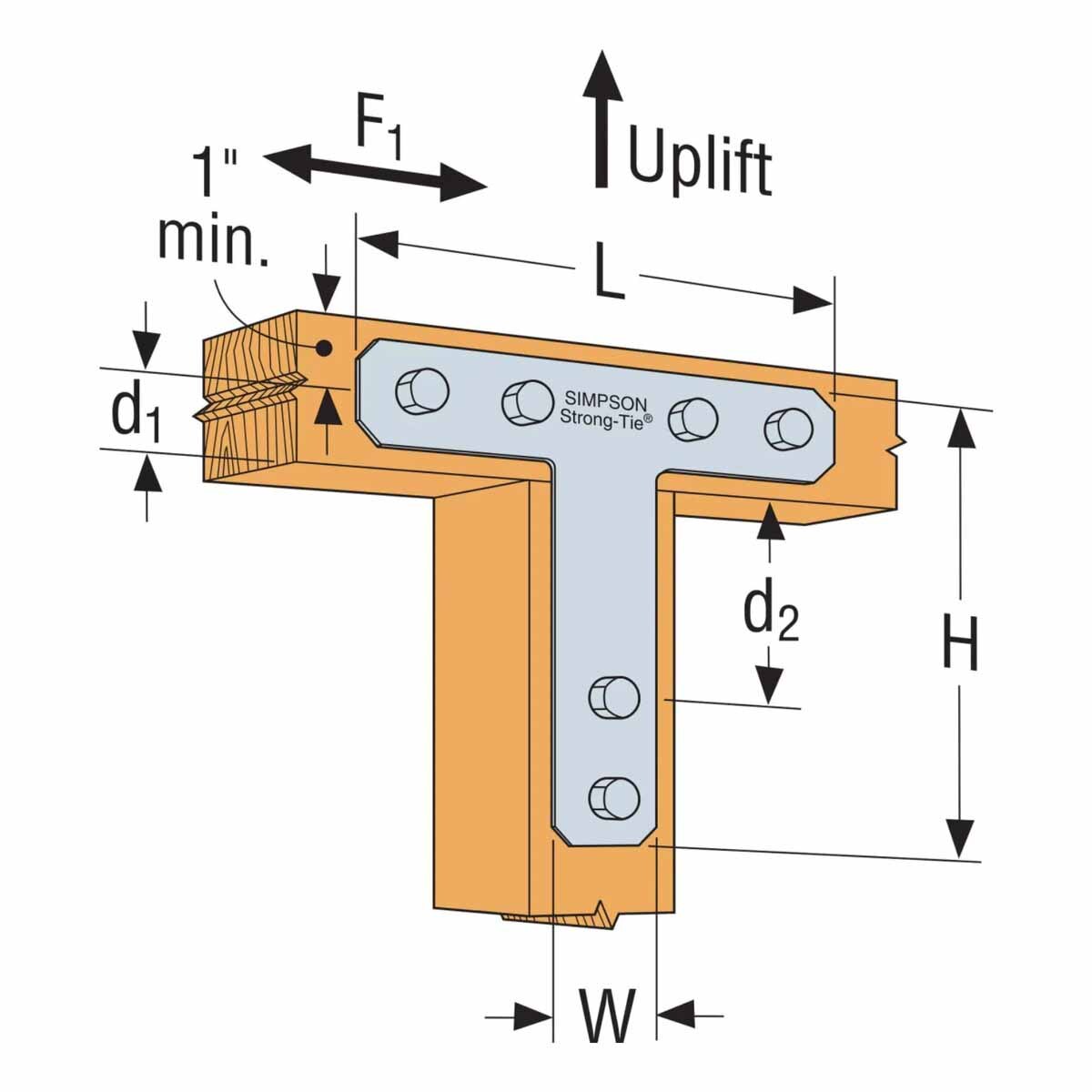

Simpson Strong-Tie 1616HTHDG Installation Overview
- Install with all specified fasteners to achieve listed load values.
- Position strap flush with framing members for optimal contact.
- Use with 16d common nails or approved Simpson Strong-Tie SD screws.
- Refer to Simpson Strong-Tie load tables and local code requirements for specific fastener spacing and load ratings.

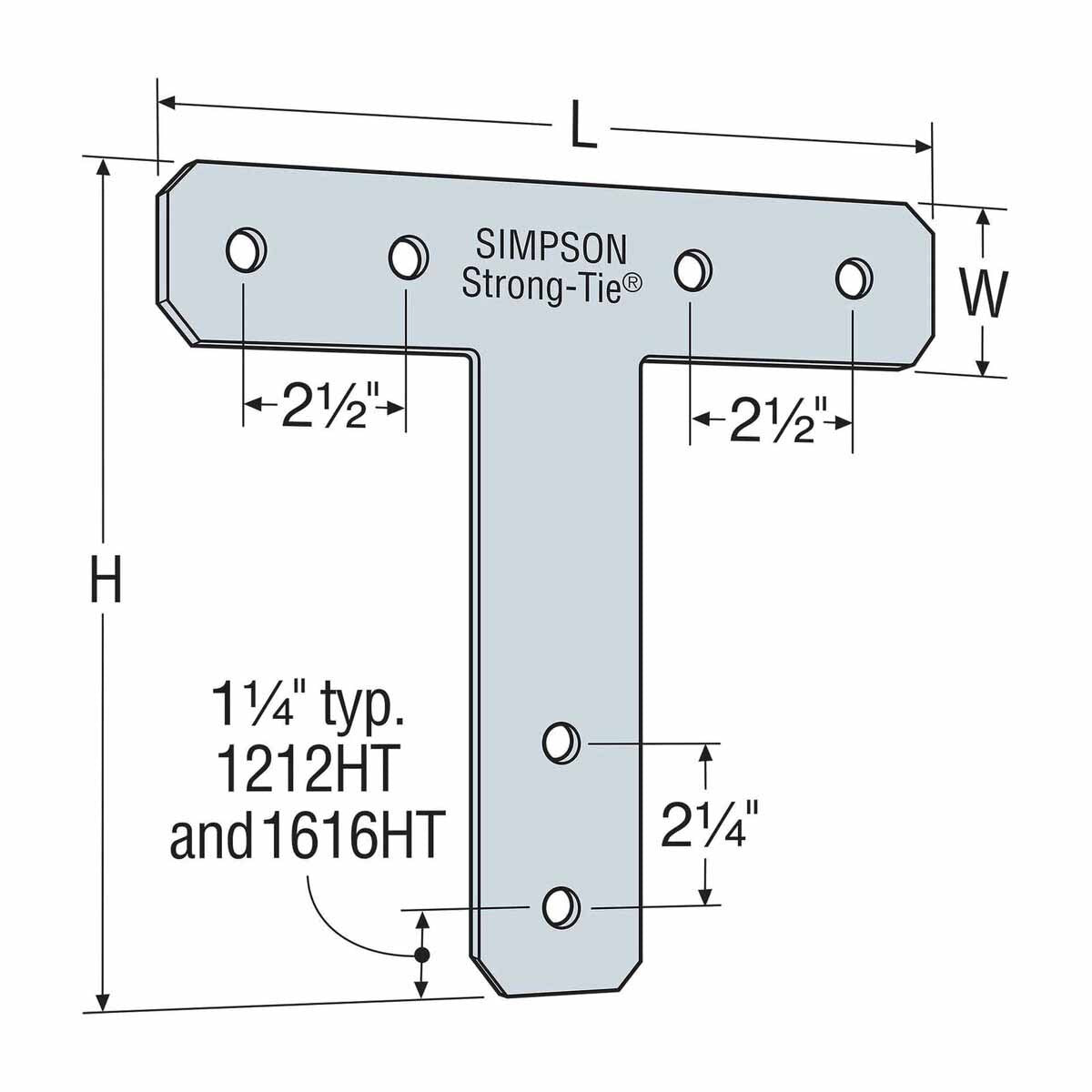

Simpson Strong-Tie 1616HTHDG Specifications
| Finish | Hot Dip Galvanized |
| Length | 16" |
| Material | Galvanized Steel |
| Fasteners required | Bolts - (6) 5/8" |
| Height | 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 7 Gauge |
| Width | 2-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
