Simpson Anchors | SKU:
55L
Simpson Strong-Tie 55L L-Shaped Strap for Beam-to-Column Applications
$3.30
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie 55L Description
The Simpson 55L L-Shaped Strap is a versatile utility strap designed for beam-to-column applications, featuring a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie 55L Includes
- (1) L-Shaped Strap
Simpson Strong-Tie 55L Features
- L-shaped design for beam-to-column applications
- G90 galvanized finish for corrosion resistance
- Pre-drilled holes for easy installation with nails or bolts
- Made from durable galvanized steel
- Compact size for versatile use
Simpson Strong-Tie 55L Applications

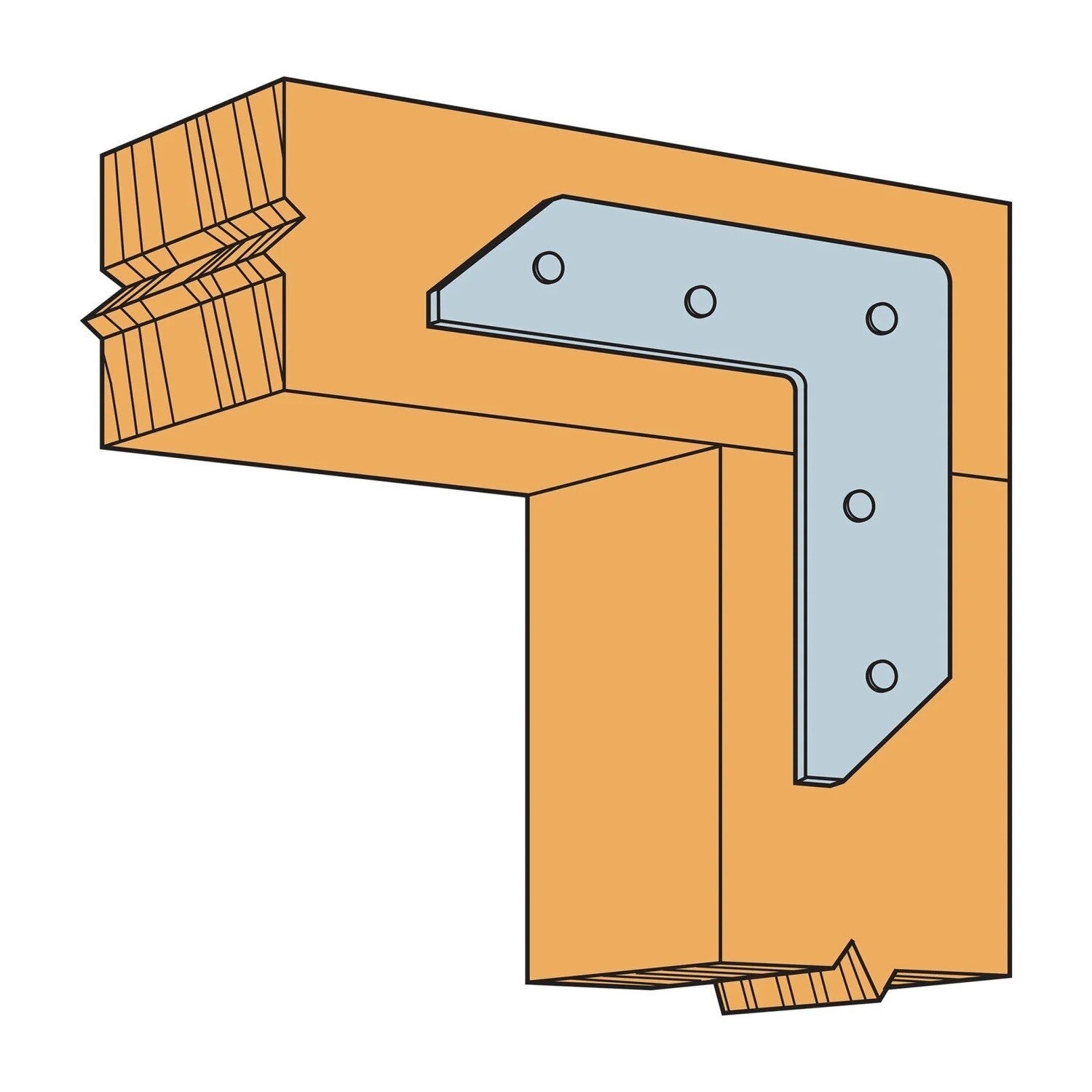

- Beam-to-column connections in construction
- Transferring tension loads in structural applications
- General utility strap for various projects
Simpson Strong-Tie 55L Installation Overview
- Align the strap with the beam and column surfaces.
- Secure the strap using the specified nails or bolts.
- Ensure all fasteners are properly installed for optimal load transfer.

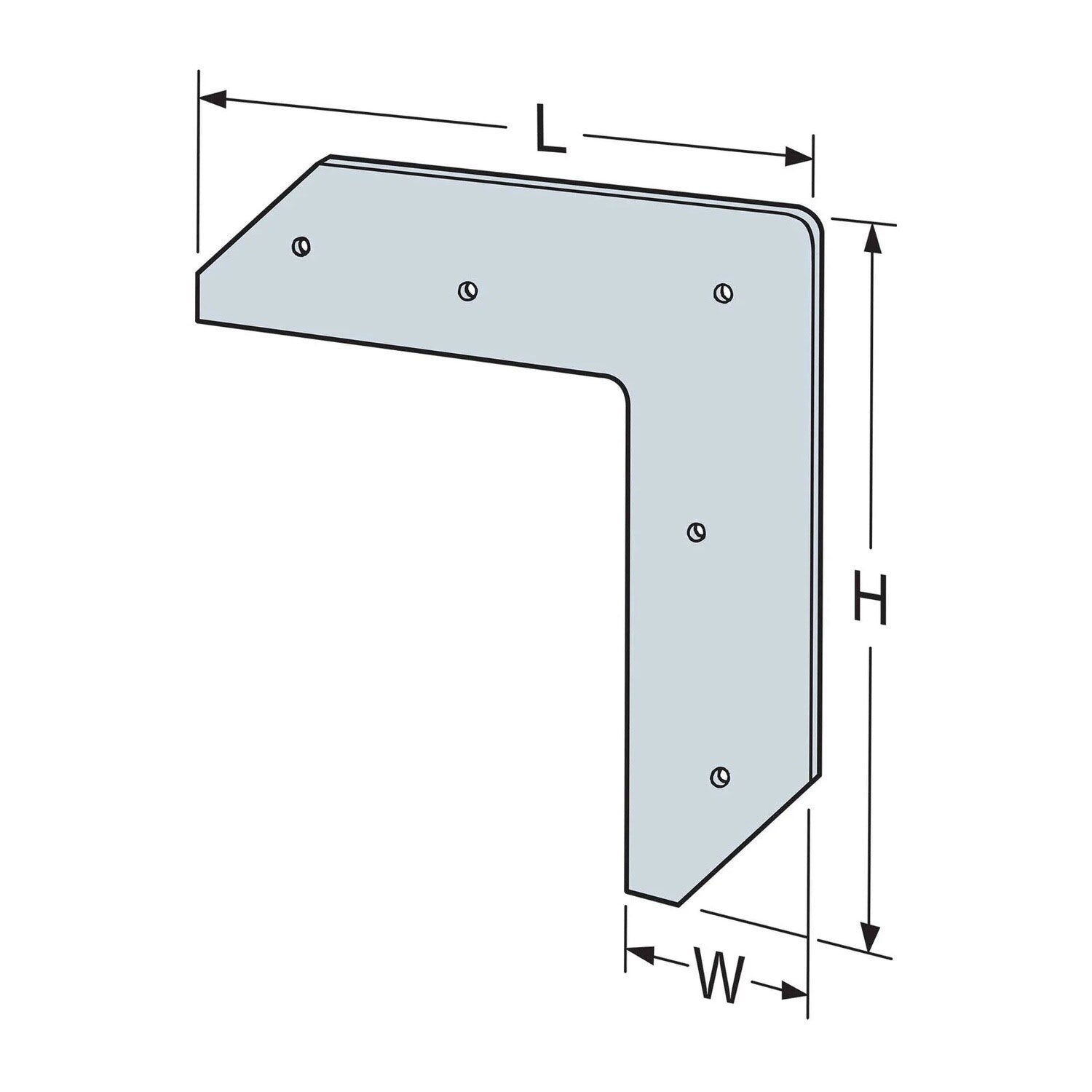

Simpson Strong-Tie 55L Specifications
| Finish | G90 Galvanized |
| Length | 4-3/4" |
| Material | Galvanized Steel |
| Fasteners required | (5) 0.148 in. x 2-1/2 in. nails |
| Height | 4-3/4" |
| Thickness | 16 Gauge |
| Width | 1-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
