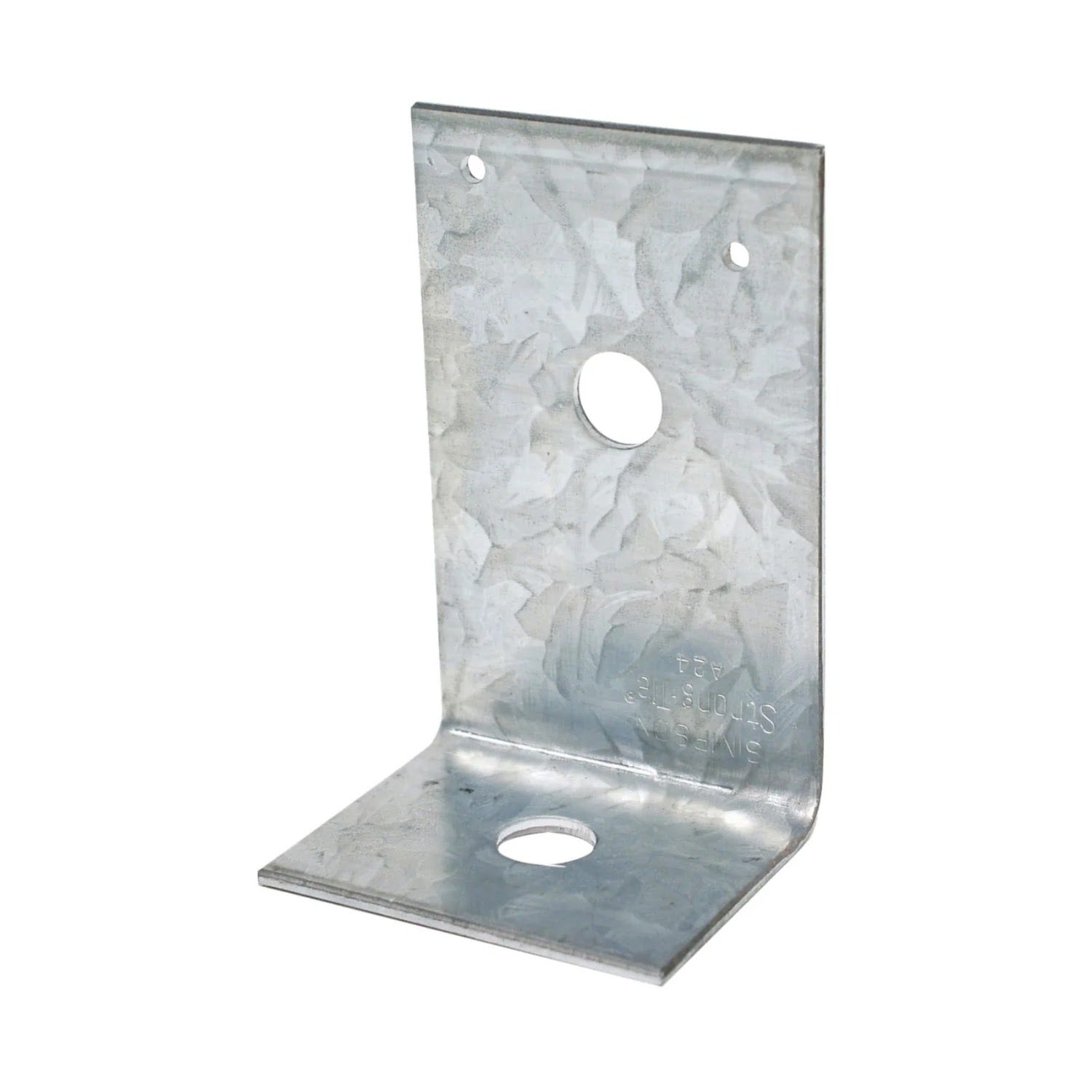

Simpson A24 Description
The Simpson A24 Angle is a durable and versatile connector designed for wood framing applications, featuring a G90 galvanized finish for corrosion resistance.
Simpson A24 Includes
- (1) 2" x 3-7/8" Angle - G90 Galvanized
Simpson A24 Features
- G90 galvanized finish for corrosion resistance
- Simple L-shape design for easy installation and versatility
- Pre-punched holes for consistent fastener spacing
- Available in multiple sizes to suit a wide range of projects
- Compatible with nails, structural screws, or bolts
Simpson A24 Applications

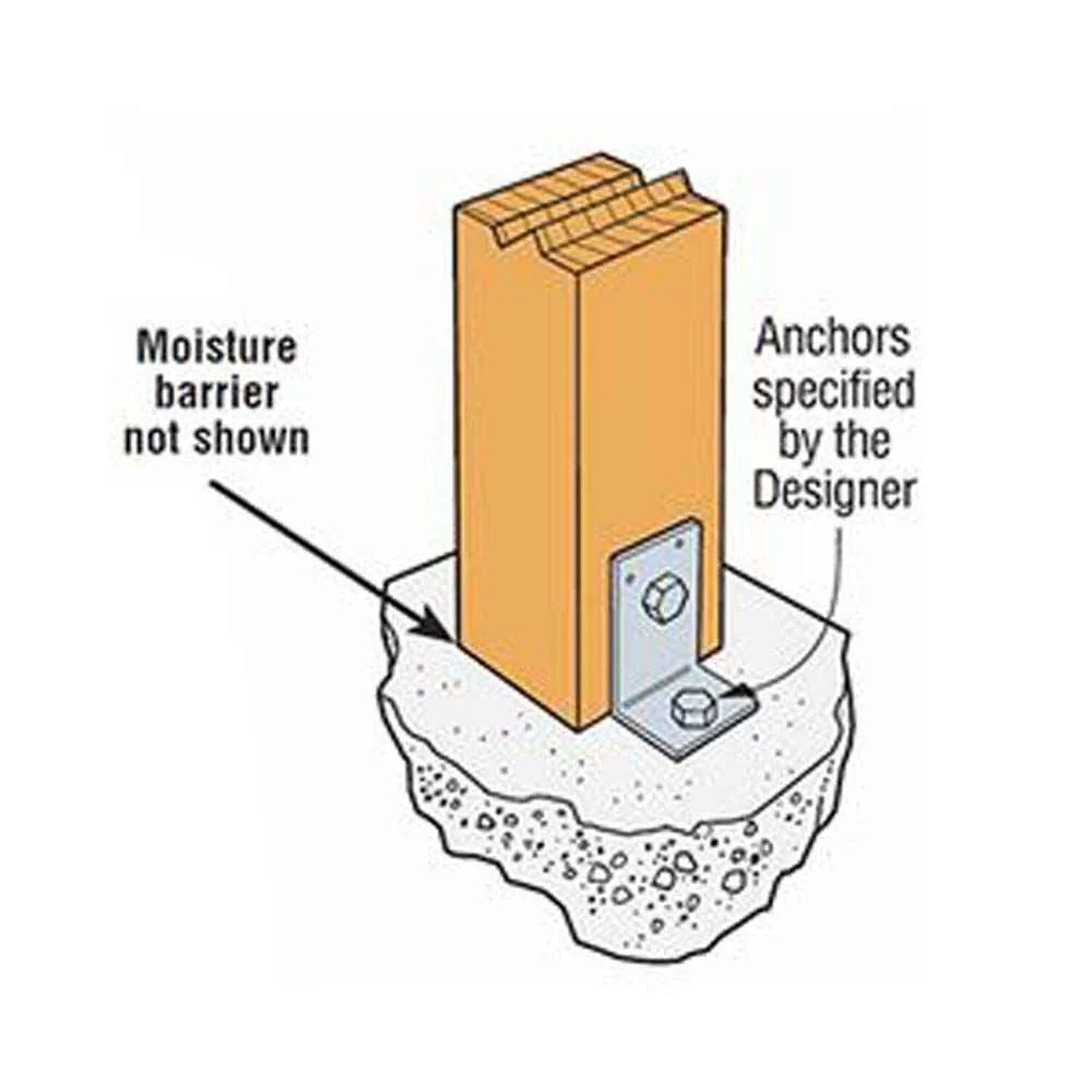

- Reinforcing post-to-beam or post-to-joist connections
- Framing support in light construction
- Shelving and cabinetry bracing
- Furniture and crate reinforcement
Simpson A24 Installation Overview
- Position the angle flush with the wood surface for full contact
- Fasten using the recommended hardware for the size and load
- For structural applications, follow local code and Simpson Strong-Tie load tables for proper fastening guidance
Simpson A24 Specifications
| Finish | G90 Galvanized |
| Length | 2-1/2" |
| Material | Carbon Steel |
| Additional Info | W1 = 3-7/8", W2 = 2" |
| Fasteners required | Base - (1) 1/2" Bolt, Post - (1) 1/2" Bolt and (2) 0.148 x 3" Nails |
| For Treated Lumber | No |
| Thickness | 12 Gauge |
Toolup Part # :
823254
