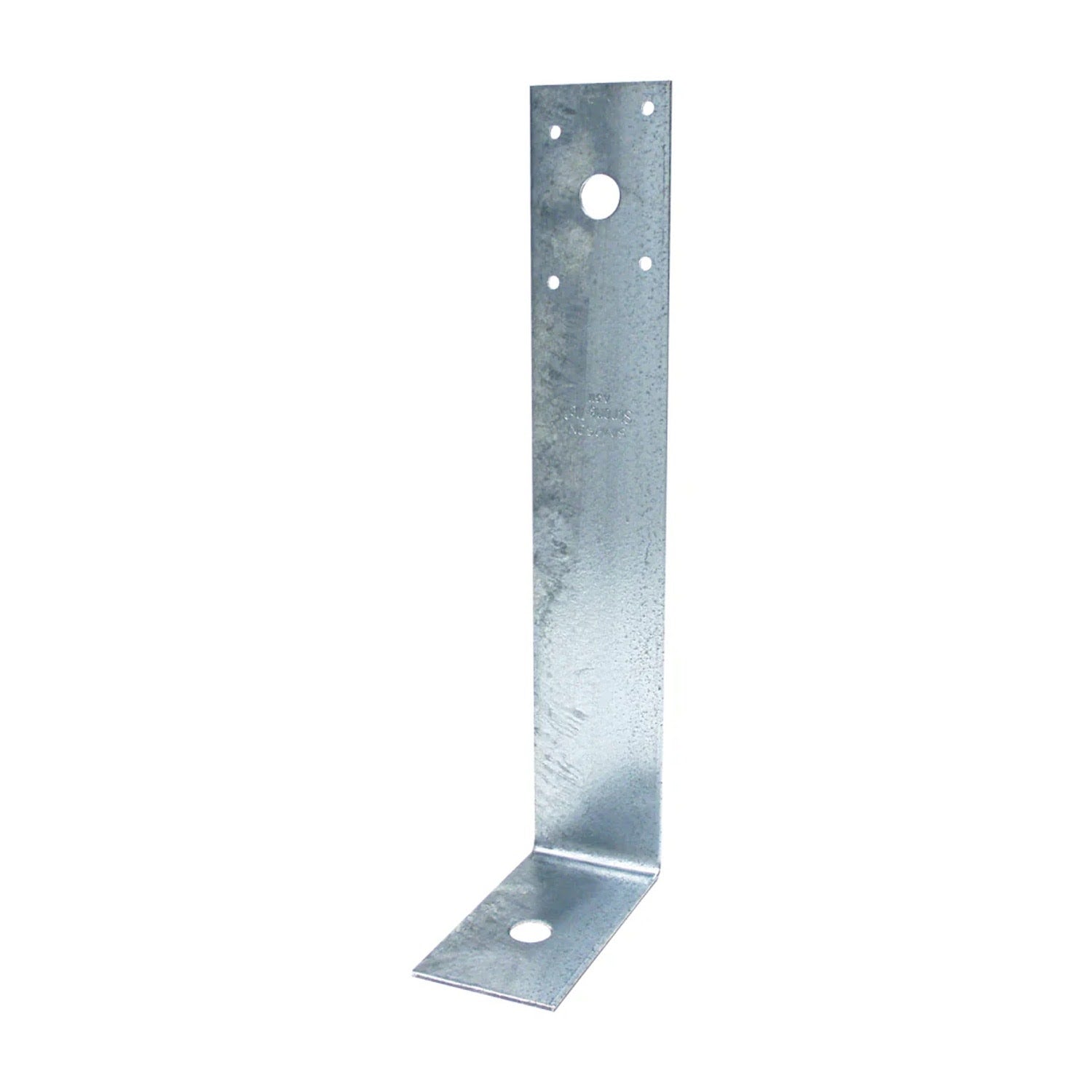

Simpson A311 Description
The Simpson A311 Galvanized Angle is designed for reliable wood framing applications, offering corrosion resistance and easy installation.
Simpson A311 Includes
- (1) Galvanized Angle for Wood Framing Applications
Simpson A311 Features
- G90 galvanized finish for corrosion resistance
- Simple L-shape design for easy installation
- Pre-punched holes for consistent fastener spacing
- Compatible with nails, screws, or bolts
- Durable carbon steel construction
Simpson A311 Applications
- Reinforcing post-to-beam or post-to-joist connections
- Framing support in light construction
- Shelving and cabinetry bracing
- Furniture and crate reinforcement

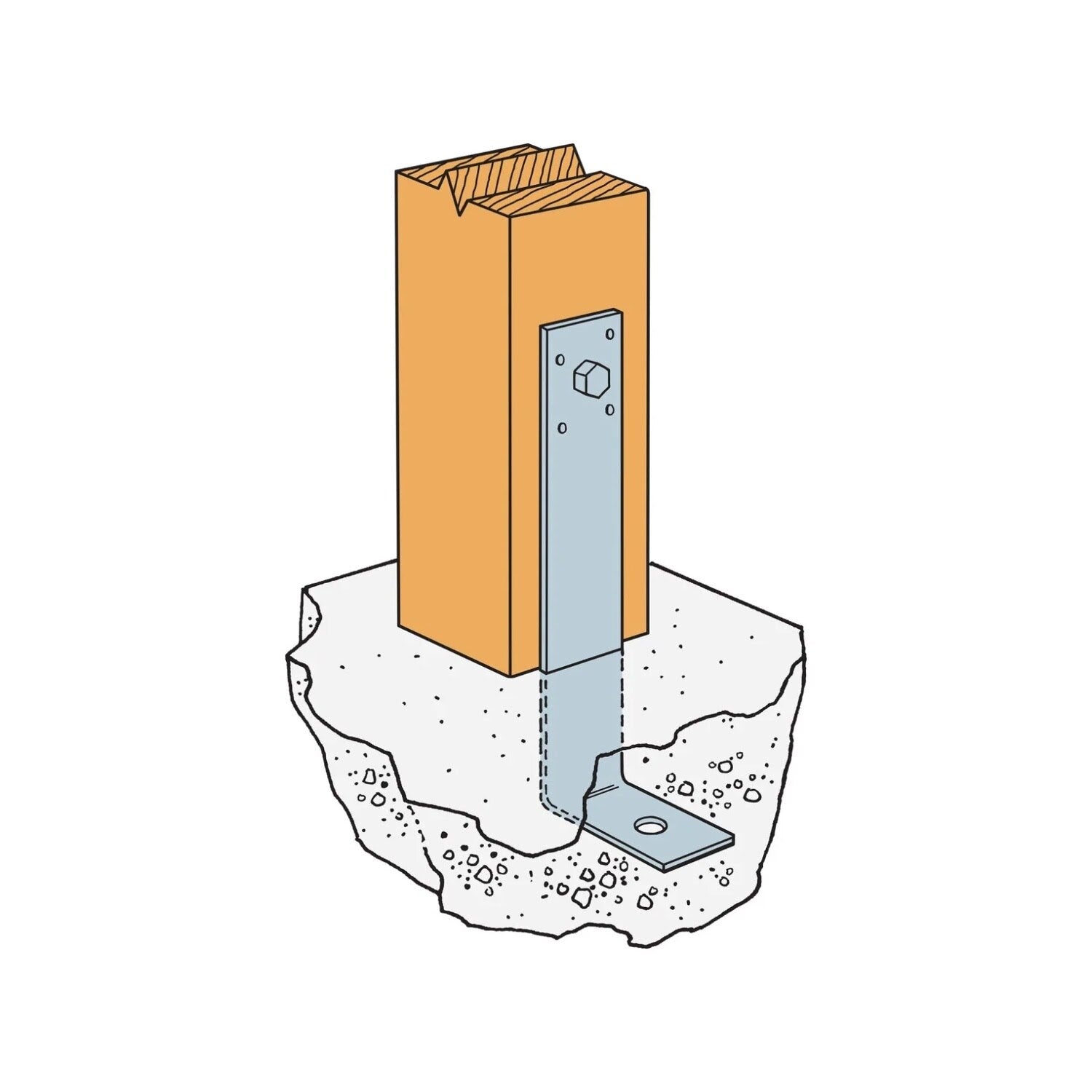

Simpson A311 Installation Overview
- Position the angle flush with the wood surface for full contact.
- Fasten using the recommended hardware for the size and load.
- Follow local code and Simpson Strong-Tie load tables for proper fastening guidance.
Simpson A311 Specifications
| Finish | G90 Galvanized |
| Length | 1-1/2" |
| Material | Carbon Steel |
| Additional Info | W1 = 3", W2 = 3" |
| Fasteners required | Base - (1) 1/2" Bolt, Post - (1) 1/2" Bolt and (4) 0.148 x 3" Nails |
| For Treated Lumber | No |
| Thickness | 12 Gauge |
Toolup Part # :
825302
