Simpson Strong-Tie ABL5-1 Description

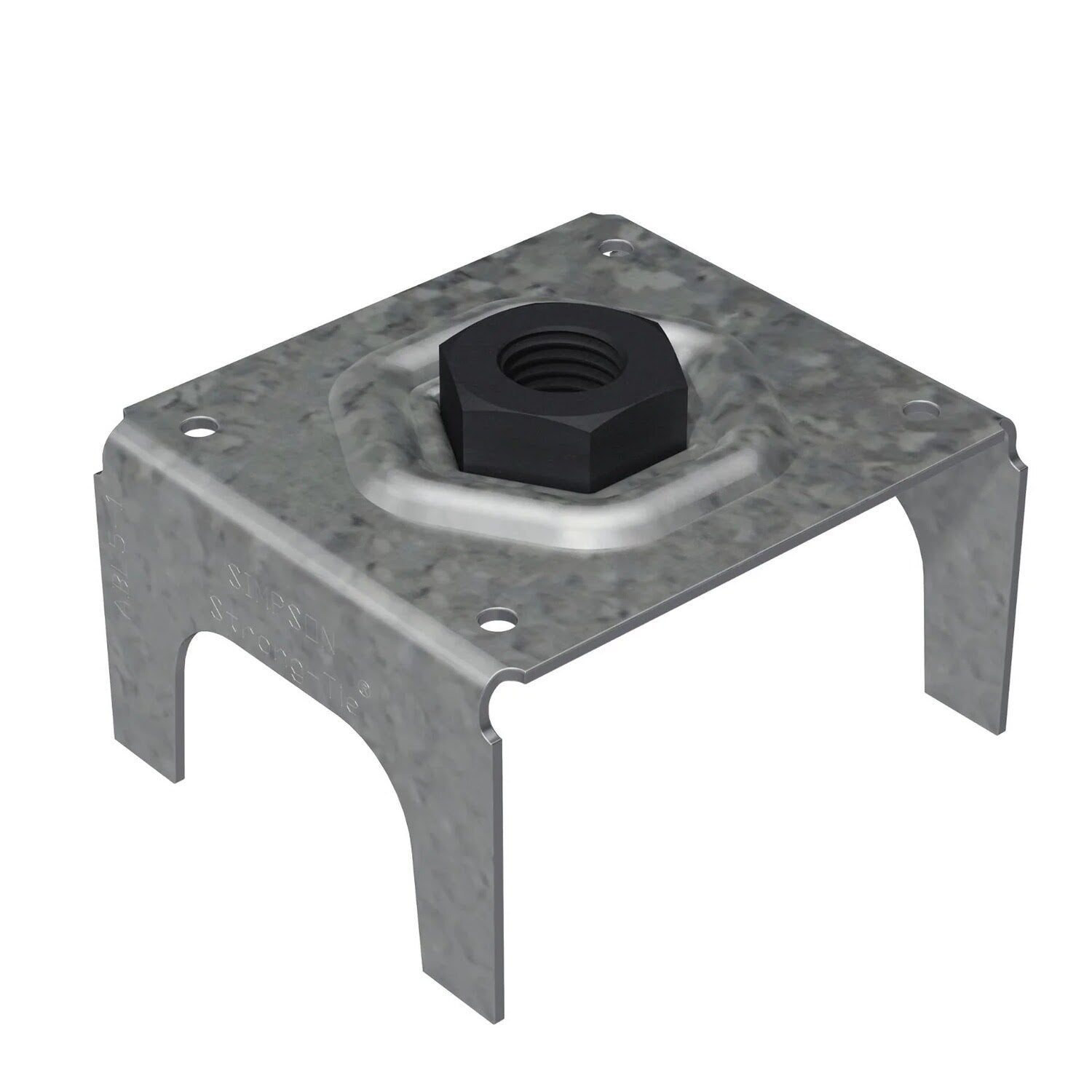

The Simpson Strong-Tie ABL5-1 Anchor Bolt Locator ensures precise and secure placement of anchor bolts on concrete-deck forms, featuring a preformed steel chair for optimal concrete flow.
Simpson Strong-Tie ABL5-1 Includes
- (1) Anchor Bolt Locator with 5/8" Nut
Simpson Strong-Tie ABL5-1 Features
- Accurate placement of anchor bolts on concrete-deck forms
- Preformed steel chair for optimal concrete flow
- Eliminates the need for an additional nut on the bottom of the anchor bolt
- Meets code requirement of 1"
Simpson Strong-Tie ABL5-1 Applications
- Concrete-deck form construction
- Anchor bolt placement in concrete
Simpson Strong-Tie ABL5-1 Installation Overview

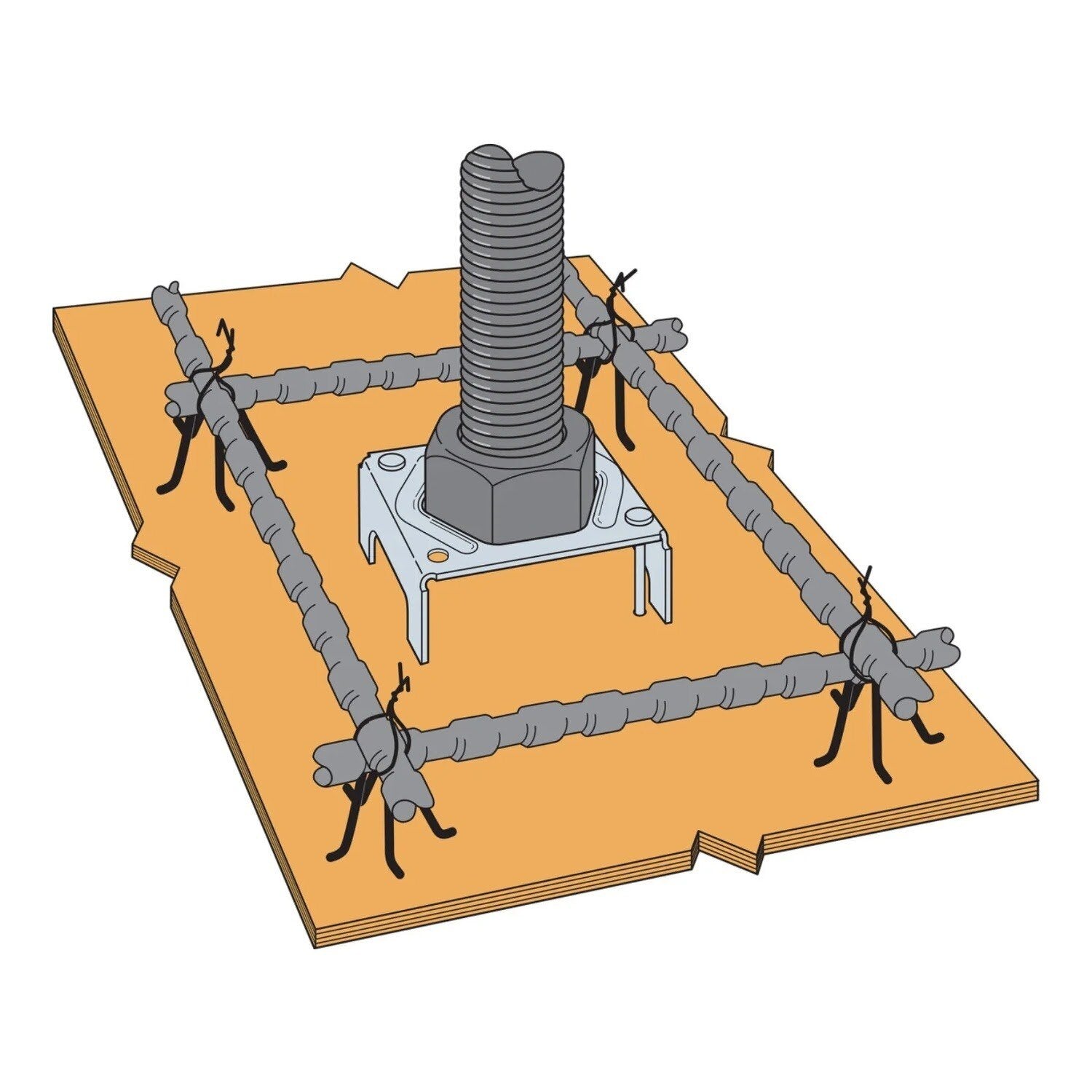

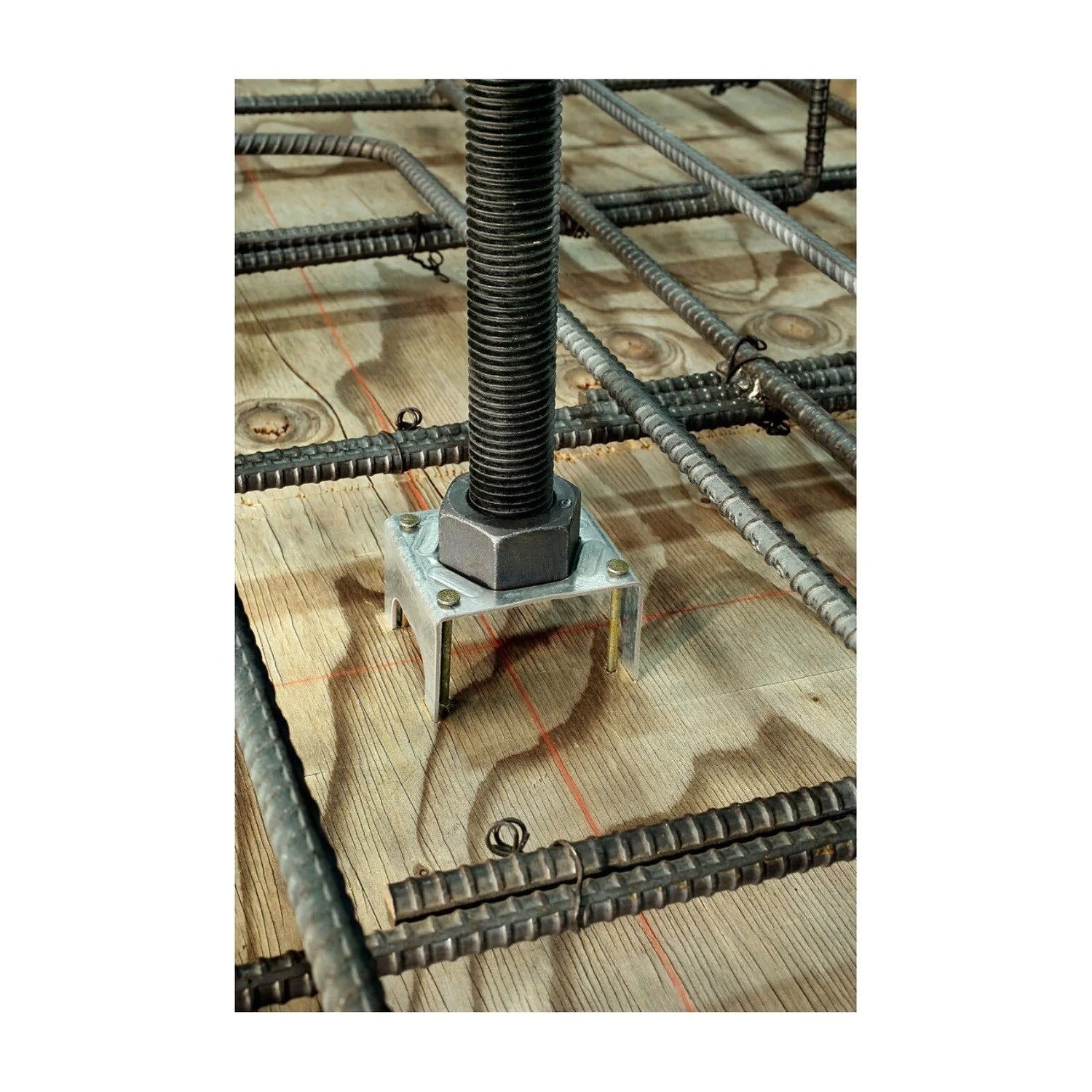

- Position the anchor bolt locator on the concrete-deck form.

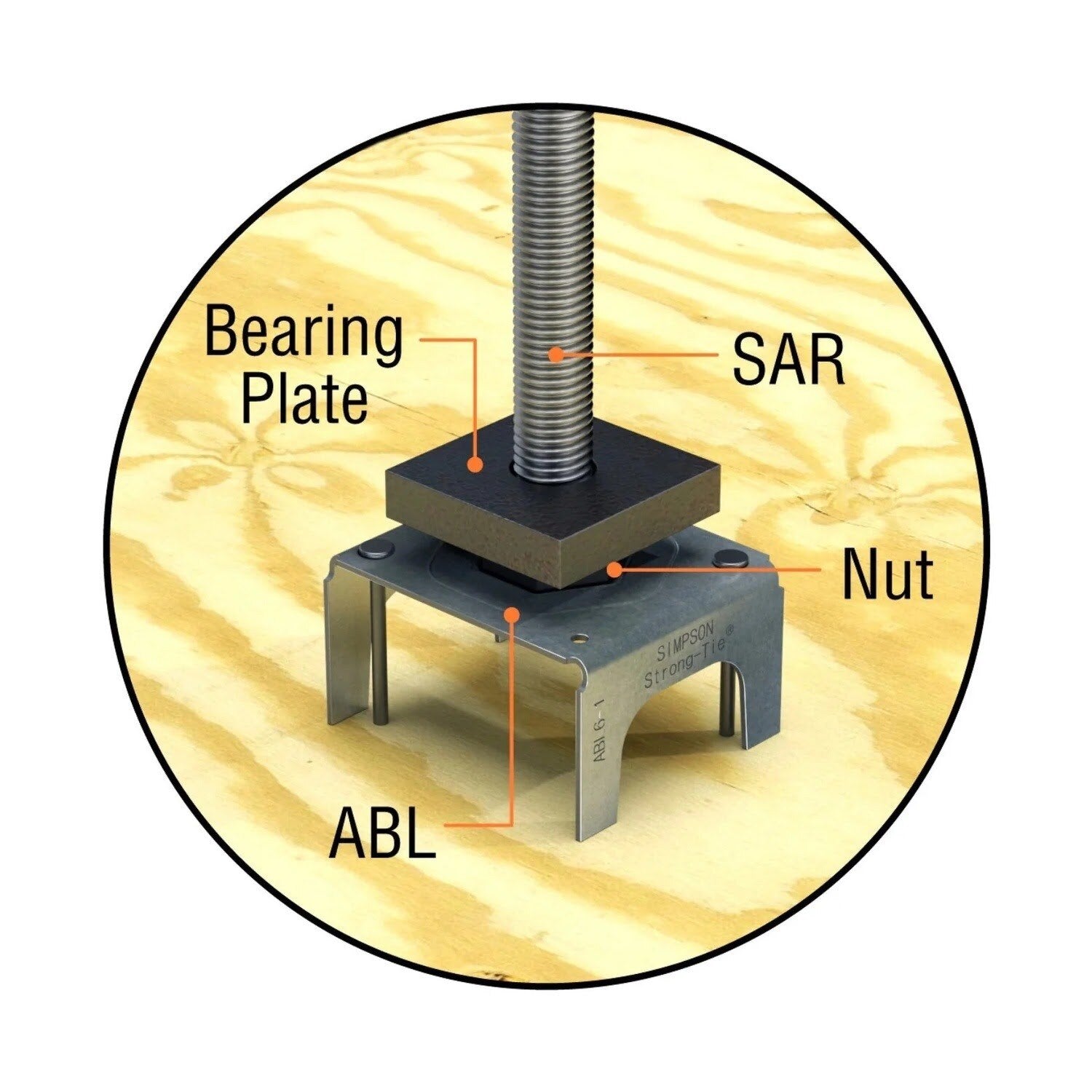

- Secure the anchor bolt in place using the attached heavy hex nut.
- Ensure proper alignment and spacing as per project requirements.
- Pour concrete around the locator, ensuring optimal flow through the chair design.
- Allow concrete to set before removing the form.
Simpson Strong-Tie ABL5-1 Specifications
| Material | Steel |
| For Treated Lumber | Yes |
| Hole diameter | 5/8" |
| Weight | 0.4 lb |
Toolup Part # :
823133
