Simpson Anchors | SKU:
ABR255

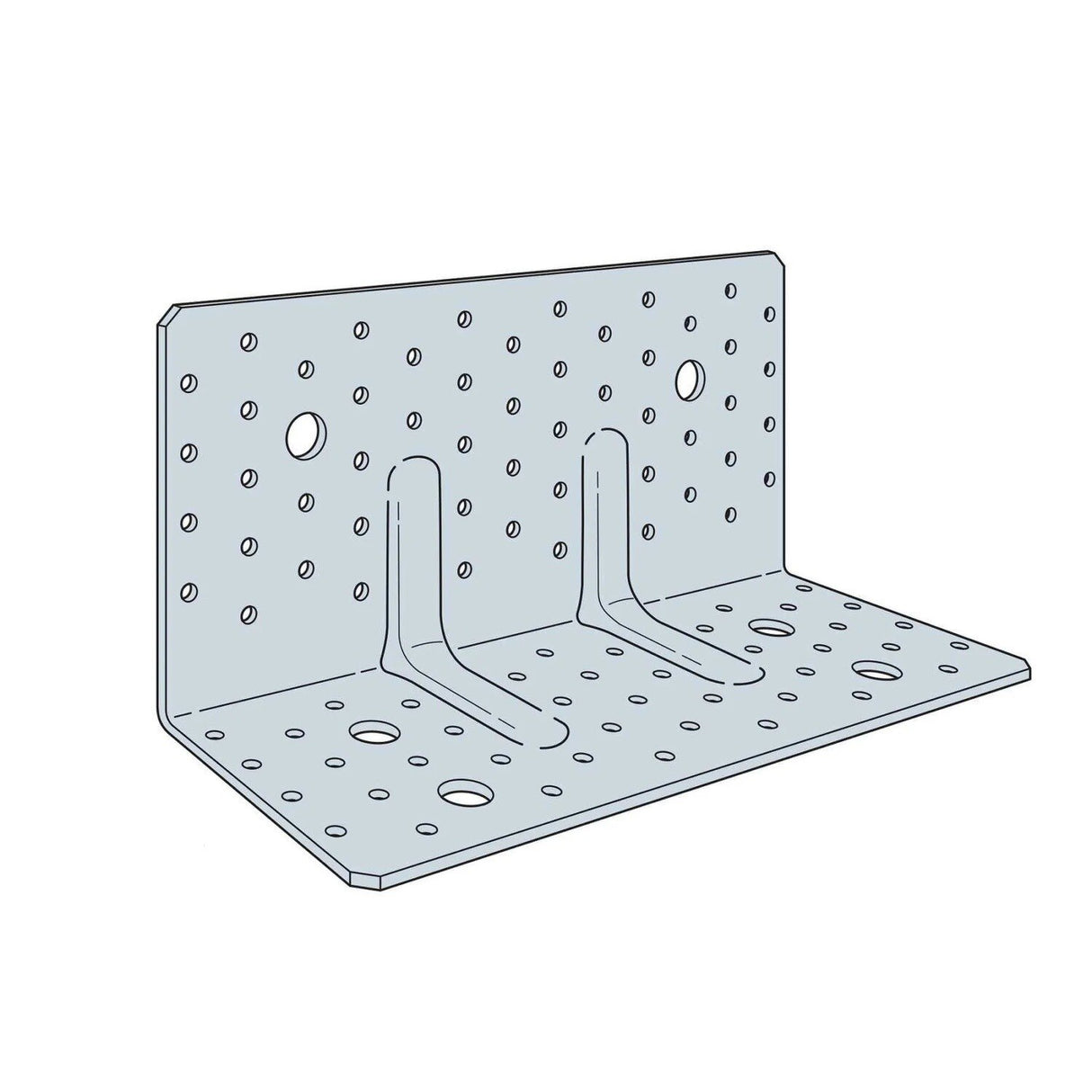

Simpson Strong-Tie ABR255 Heavy Duty Angle Bracket for CLT and Concrete Applications
$23.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ABR255 Description
The ABR255 is a heavy-duty angle bracket designed for connecting cross-laminated timber (CLT) wall panels to floors or concrete slabs. It features a G90 galvanized finish for dry interior use.
Simpson Strong-Tie ABR255 Includes
- (1) ABR255 Heavy Duty Angle Bracket
Simpson Strong-Tie ABR255 Features
- Loads provided for screws or nails
- All load directions addressed
- Heavy gauge provides high load capacity
- Allows anchorage to either CLT or concrete
Simpson Strong-Tie ABR255 Applications

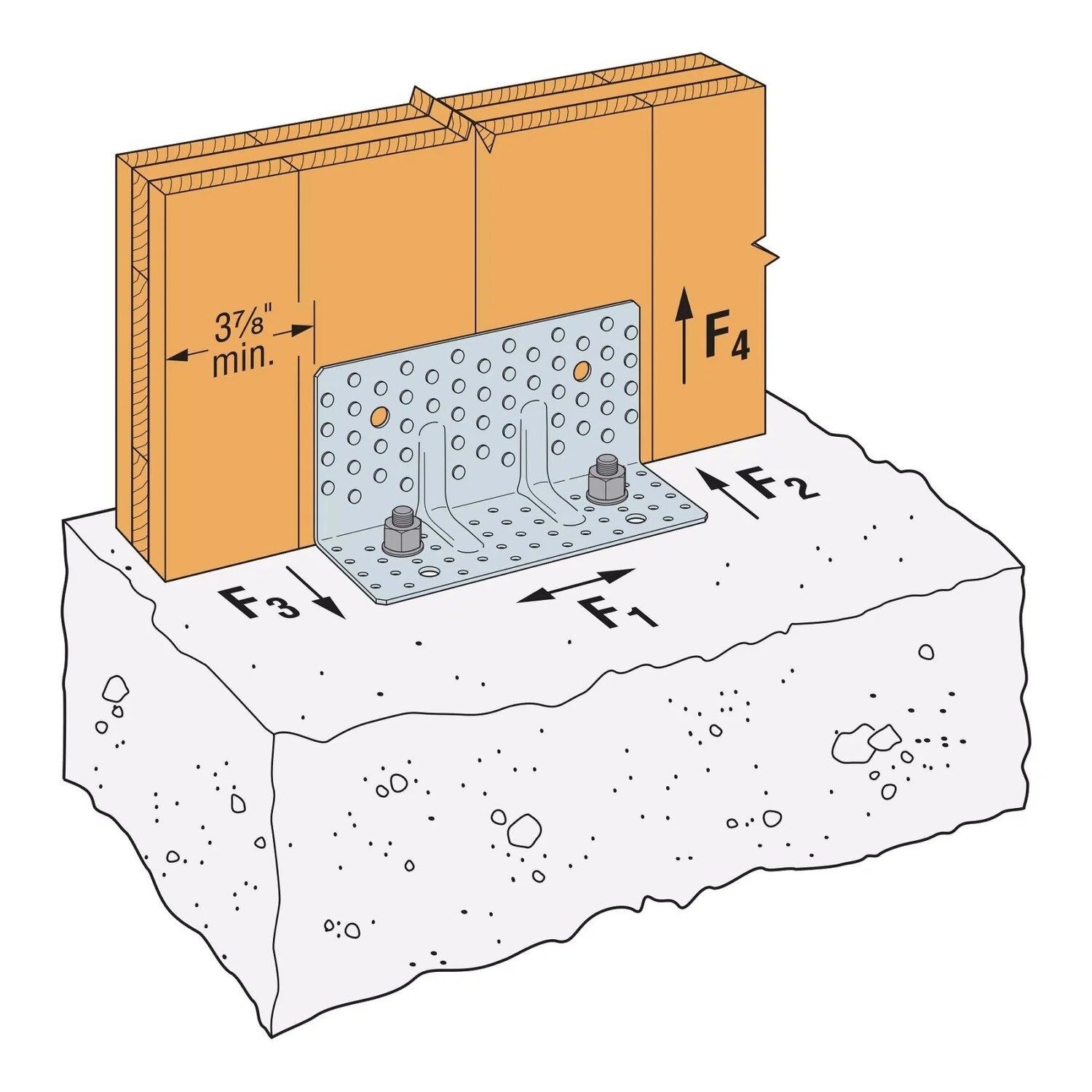

- Connecting CLT wall panels to CLT floors or concrete slabs
- Dry interior applications
Simpson Strong-Tie ABR255 Installation Overview
- Use all specified fasteners and anchors
- Follow installation images
Simpson Strong-Tie ABR255 Specifications
| Gauge | 11 |
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Dimensions (W1 x W2 x L) | 4.75 in. x 3.9375 in. x 10 in. |
| Weight | 1.6 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
