Simpson Anchors | SKU:
ABU44RZ

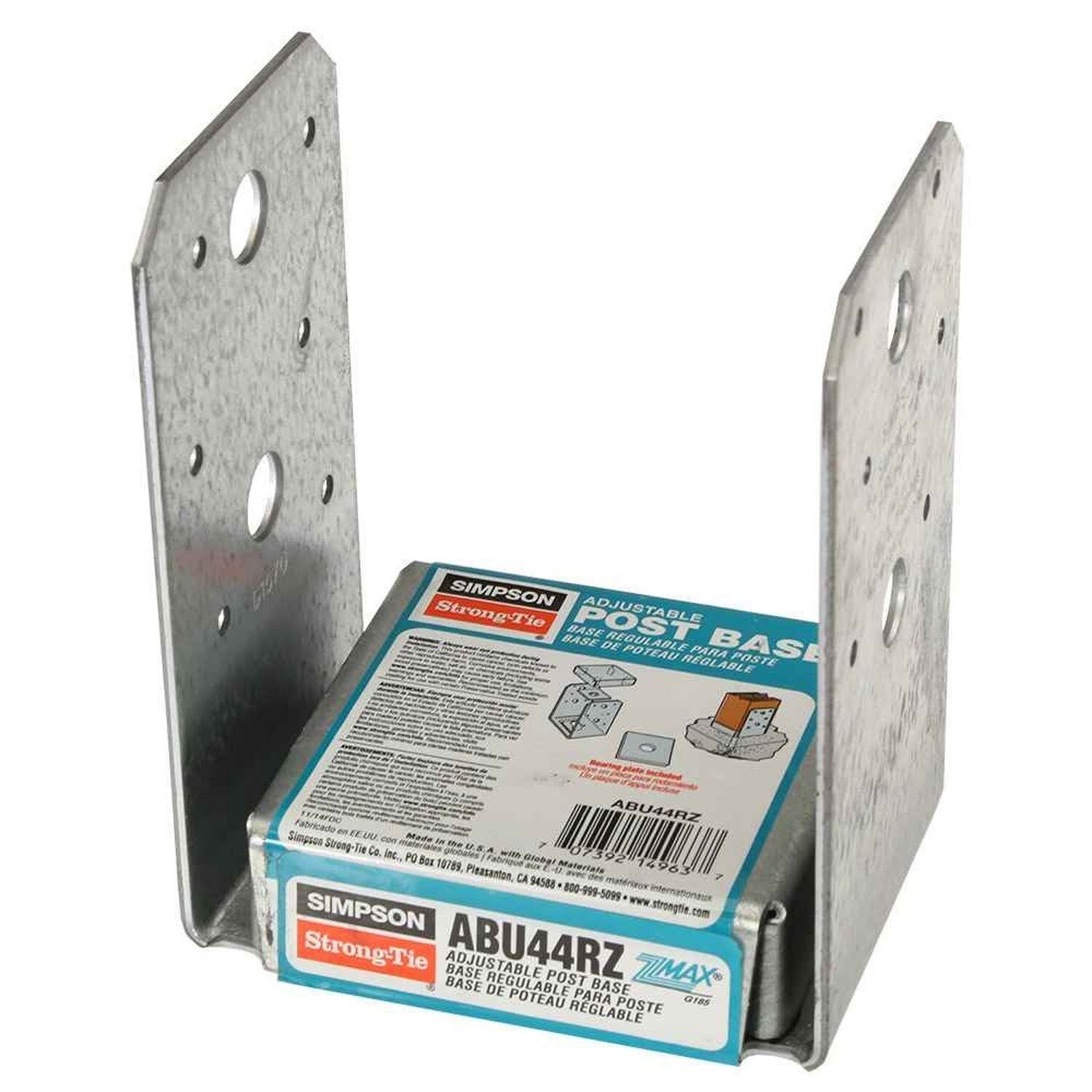

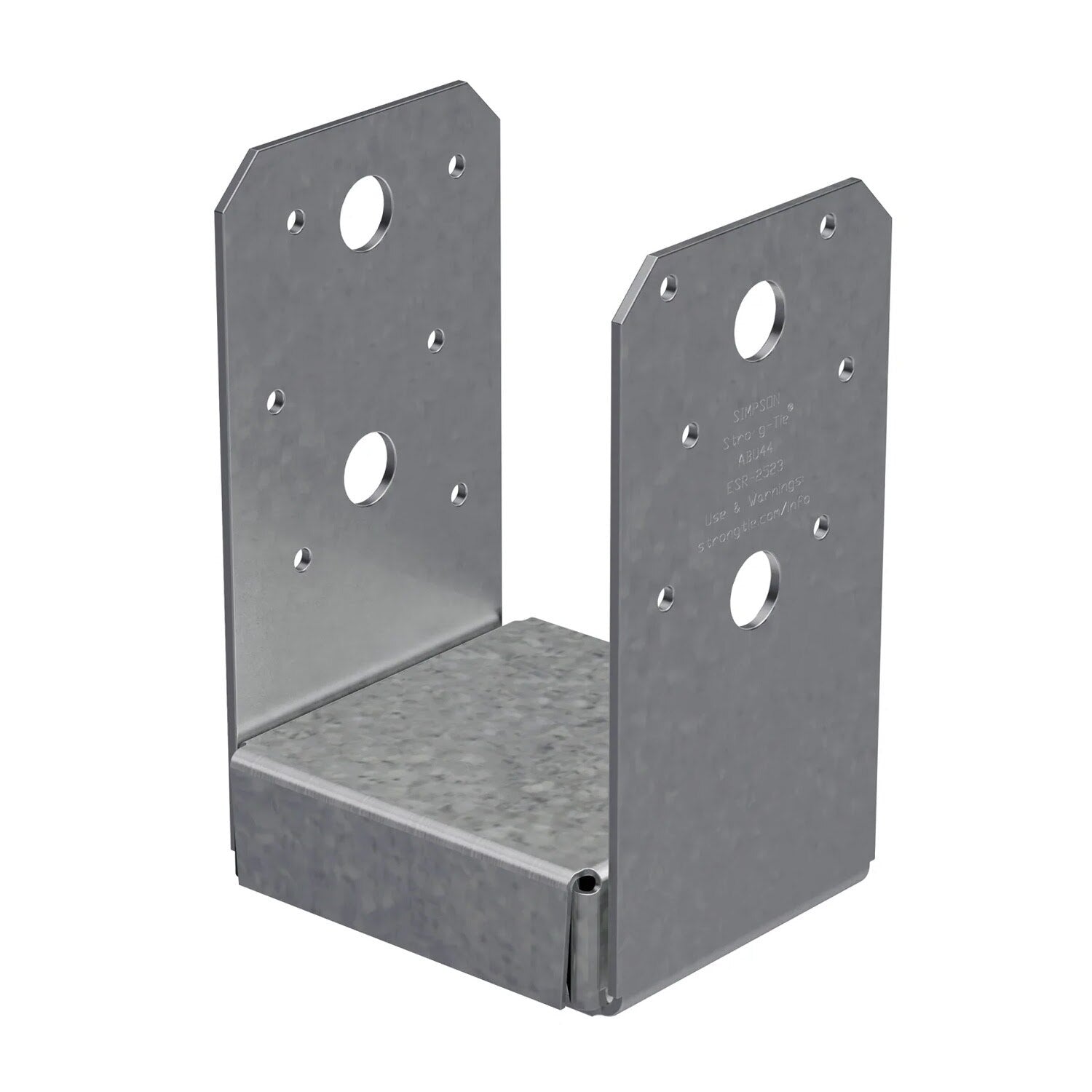

Simpson Strong-Tie ABU44RZ Adjustable Post Base for Rough Cut 4x4 Lumber
$27.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ABU44RZ Description

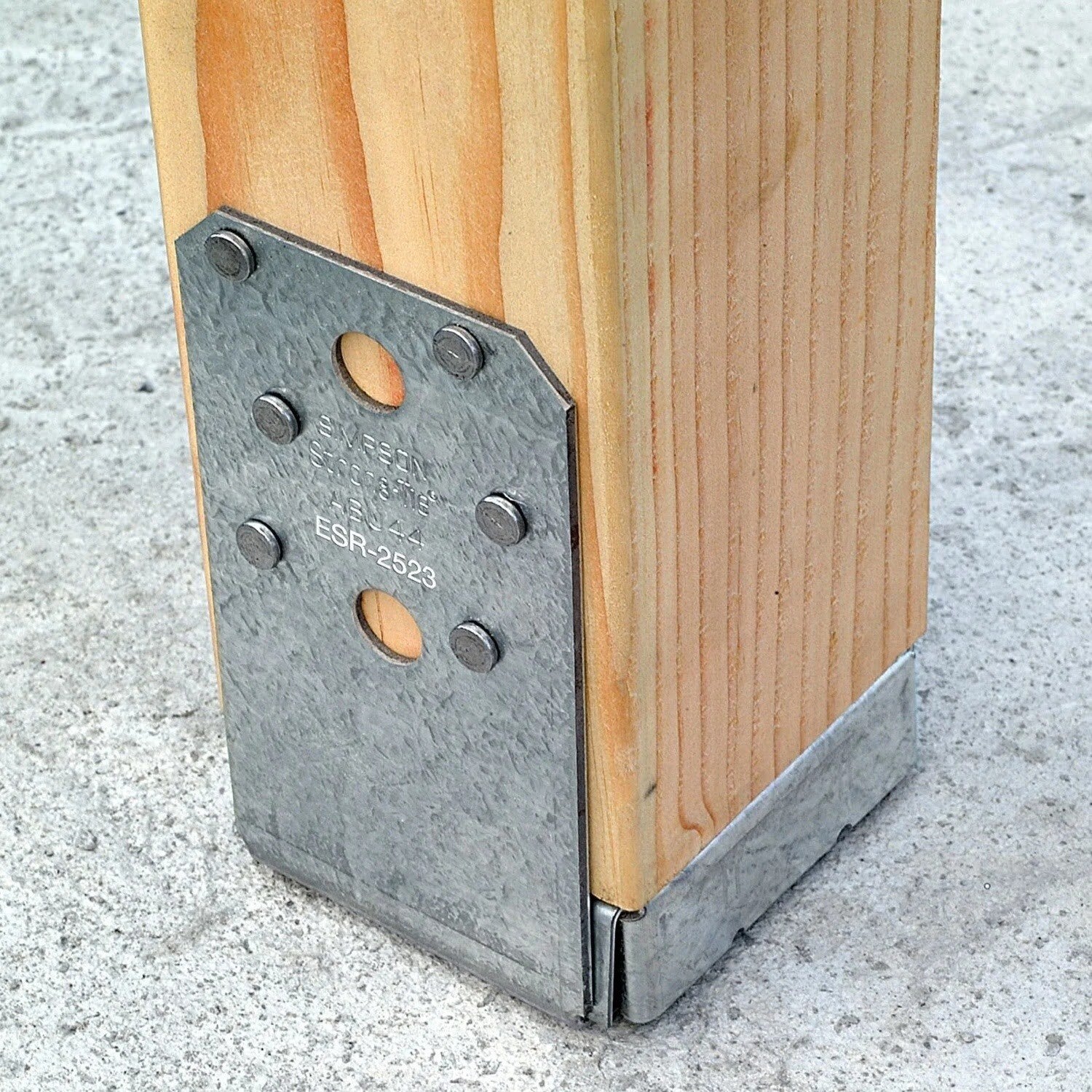

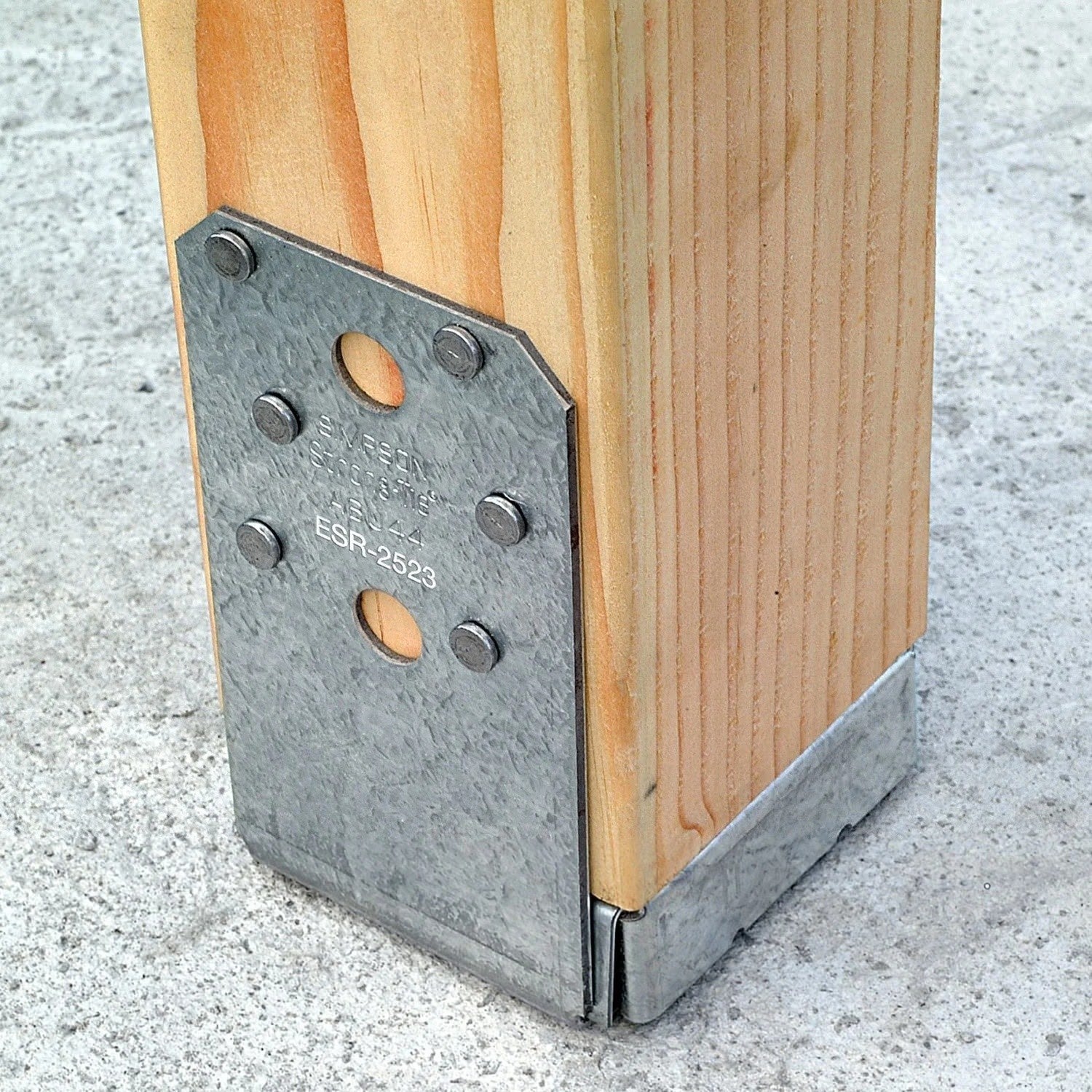

The Simpson ABU44RZ Adjustable Post Base is designed for Rough Cut 4x4 lumber, providing secure attachment to concrete with enhanced durability and corrosion resistance.
Simpson Strong-Tie ABU44RZ Includes
- (1) Adjustable Post Base
Simpson Strong-Tie ABU44RZ Features
- Increased Load Capacity: Engineered to withstand higher uplift loads.
- Versatile Application: Intended for use with Rough Cut 4x4 lumber.
- Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
- Light Corrosion Resistance: Proprietary ZMAX coating applied to the product provides protection against corrosion.
Simpson Strong-Tie ABU44RZ Applications
- Decks: Securely attaches wood posts to concrete.
- Construction Projects: Provides high capacity uplift support for earthquake or wind-prone areas.
Simpson Strong-Tie ABU44RZ Installation Overview
- Place the standoff base and then the post in the ABU.
- Fasten the post using nails or Strong-Drive SD Connector screws or bolts.
- Adjust post placement and tighten the nut securely on the anchor bolt.
Simpson Strong-Tie ABU44RZ Specifications
| Finish | ZMAX |
| Material | Steel |
| Fasteners required | (12) 0.162 x 3-1/2" Nails OR (2) 1/2" Bolts, (1) 5/8" Concrete Anchor |
| For Treated Lumber | Yes |
| Post size | Rough Cut 4x4 |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 4x4". If you have a nominal post measuring 3-1/2x3-1/2" you will need an ABU44Z Post base.
