Simpson Anchors | SKU:
ABU46RZ
Simpson Strong-Tie ABU46RZ Adjustable Post Base for Rough Cut 4x6 Lumber with ZMAX Finish
$43.86
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ABU46RZ Description

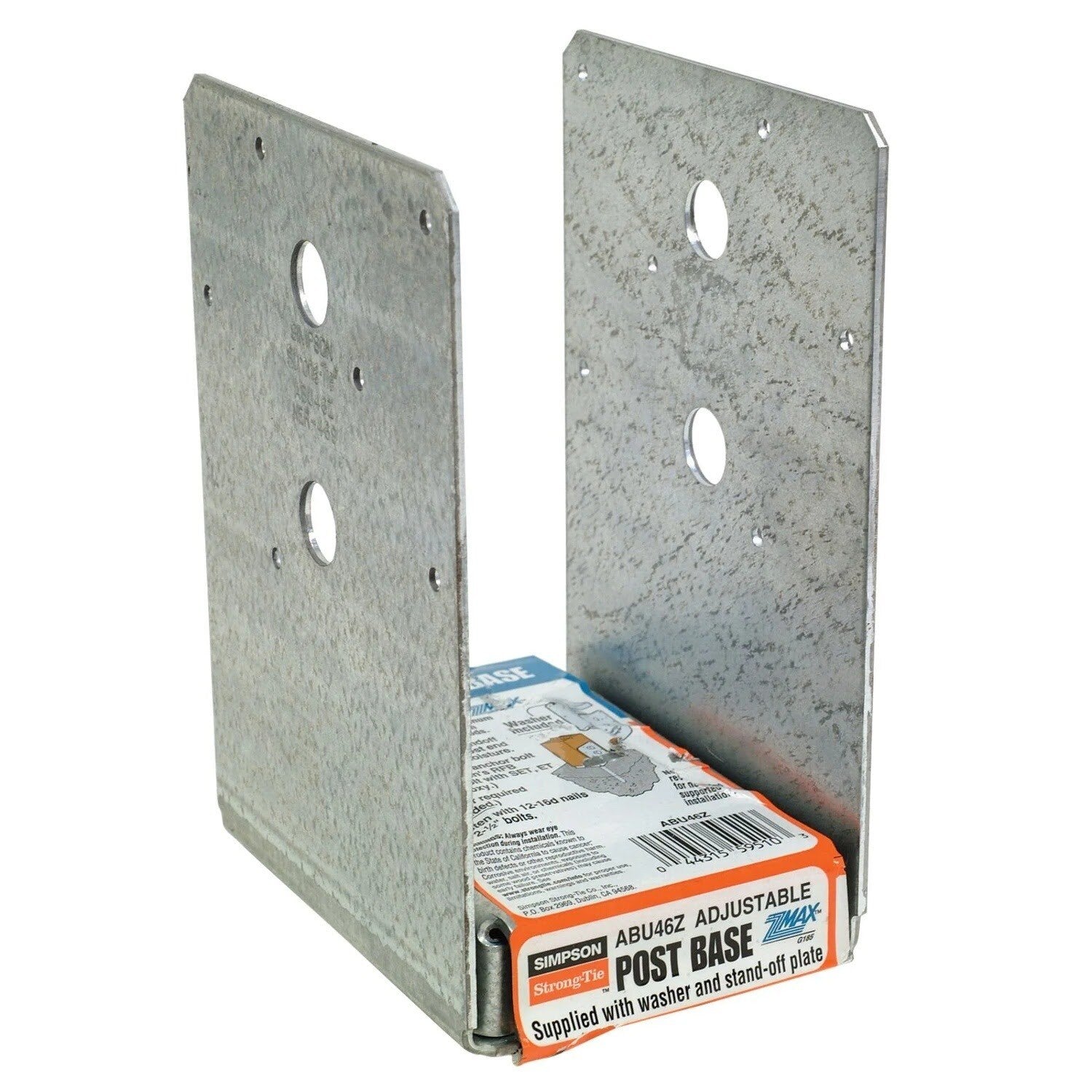

The Simpson ABU46RZ Adjustable Post Base is designed for Rough Cut 4x6 lumber, featuring a ZMAX finish for corrosion resistance and a 1-inch standoff to prevent post rot.
Simpson Strong-Tie ABU46RZ Includes
- (1) Adjustable Post Base for Rough Cut 4x6 Lumber with ZMAX Finish
Simpson Strong-Tie ABU46RZ Features
- Increased Load Capacity: Engineered to withstand higher uplift loads, making it ideal for areas prone to earthquakes or high winds.
- Versatile Application: Intended for use with Rough Cut 4x6 lumber with a slotted base for adjustable installation.
- Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
- Light Corrosion Resistance: Proprietary ZMAX coating applied to the product provides protection against corrosion in most environments.
Simpson Strong-Tie ABU46RZ Applications
- Attaching wood posts to existing concrete for construction projects.
- Providing high capacity uplift support in areas prone to earthquakes or high winds.
- Preventing post rot with a 1-inch standoff design.

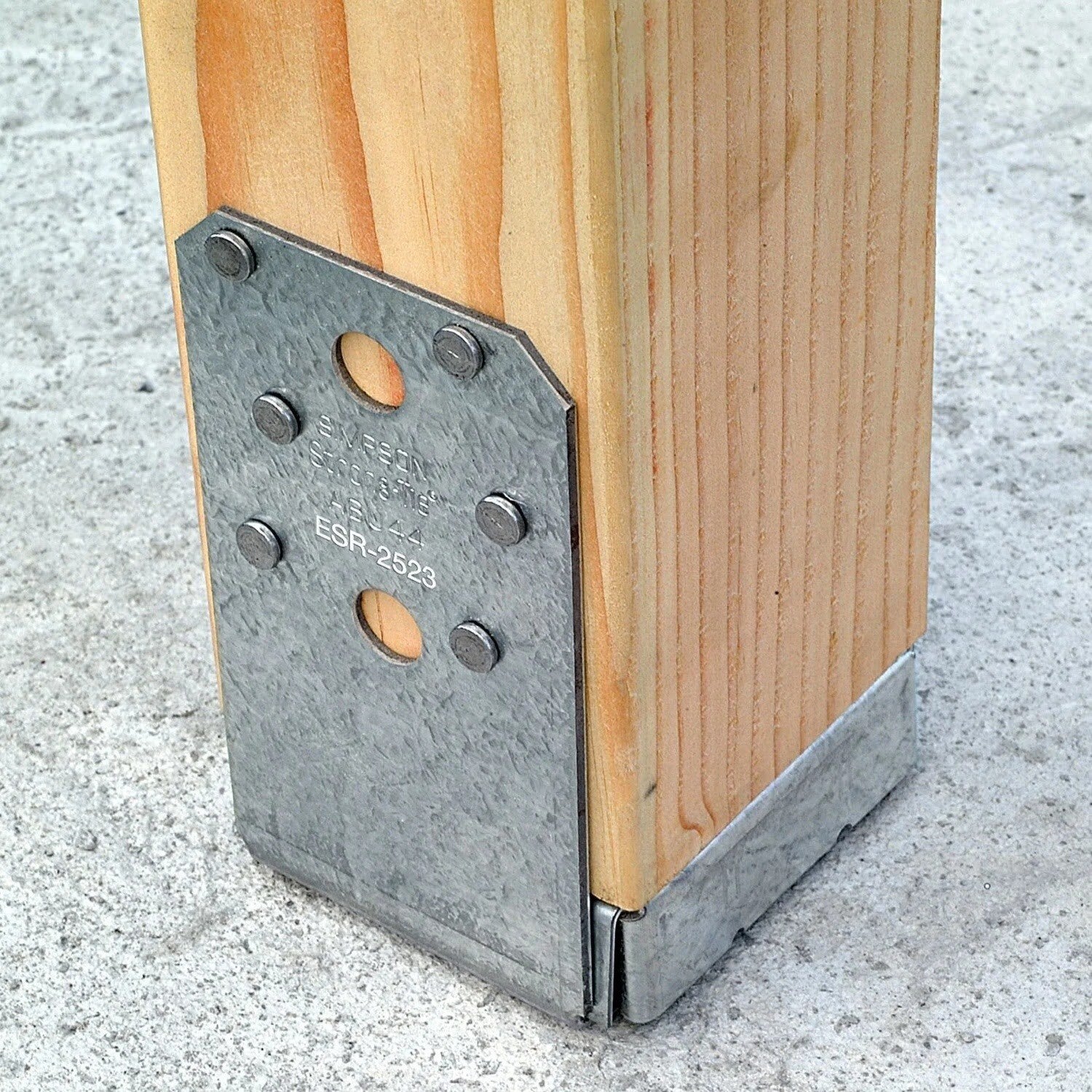

Simpson Strong-Tie ABU46RZ Installation Overview
- Align the post base with the concrete surface.
- Secure the base using the specified fasteners: nails, bolts, or concrete anchors.
- Ensure the post is properly seated and aligned within the base.
Simpson Strong-Tie ABU46RZ Specifications
| Finish | ZMAX |
| Material | Steel |
| Fasteners required | - (12) 0.162 x 3-1/2" Nails OR - (2) 1/2" Bolts - (1) 5/8" Concrete Anchor |
| For Treated Lumber | Yes |
| Post size | Rough Cut 4x6 |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 4x6".
