Simpson Anchors | SKU:
ABU5-5Z
Simpson Strong-Tie ABU5-5Z (5-1/8" x 5-1/8") ABU Adjustable Post Base with Uplift - ZMAX Finish
$61.16
Unit price
/
Unavailable
Description
Description

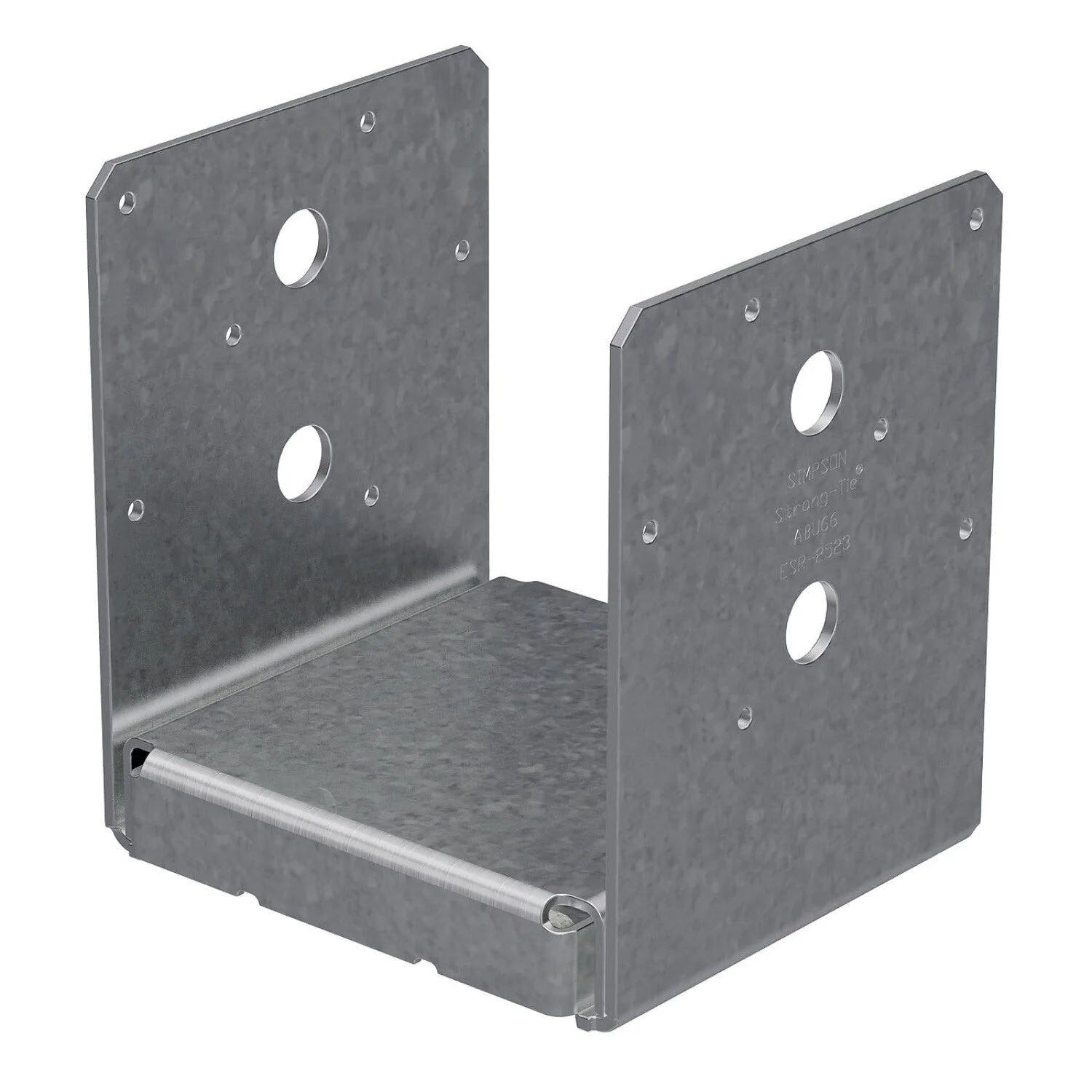

Simpson Strong-Tie ABU5-5Z Description
The Simpson ABU5-5Z Adjustable Post Base with Uplift - ZMAX is designed to securely attach wood posts to existing concrete, featuring a 1-inch standoff design to prevent rot and a slotted anchor hole for precise placement.
Simpson Strong-Tie ABU5-5Z Includes
- (1) Adjustable Post Base with Uplift - ZMAX
Simpson Strong-Tie ABU5-5Z Features
- Increased Load Capacity: Engineered to withstand higher uplift loads, making it ideal for areas prone to earthquakes or high winds.
- Versatile Application: Intended for use with 5x5 lumber with a slotted base for adjustable installation.

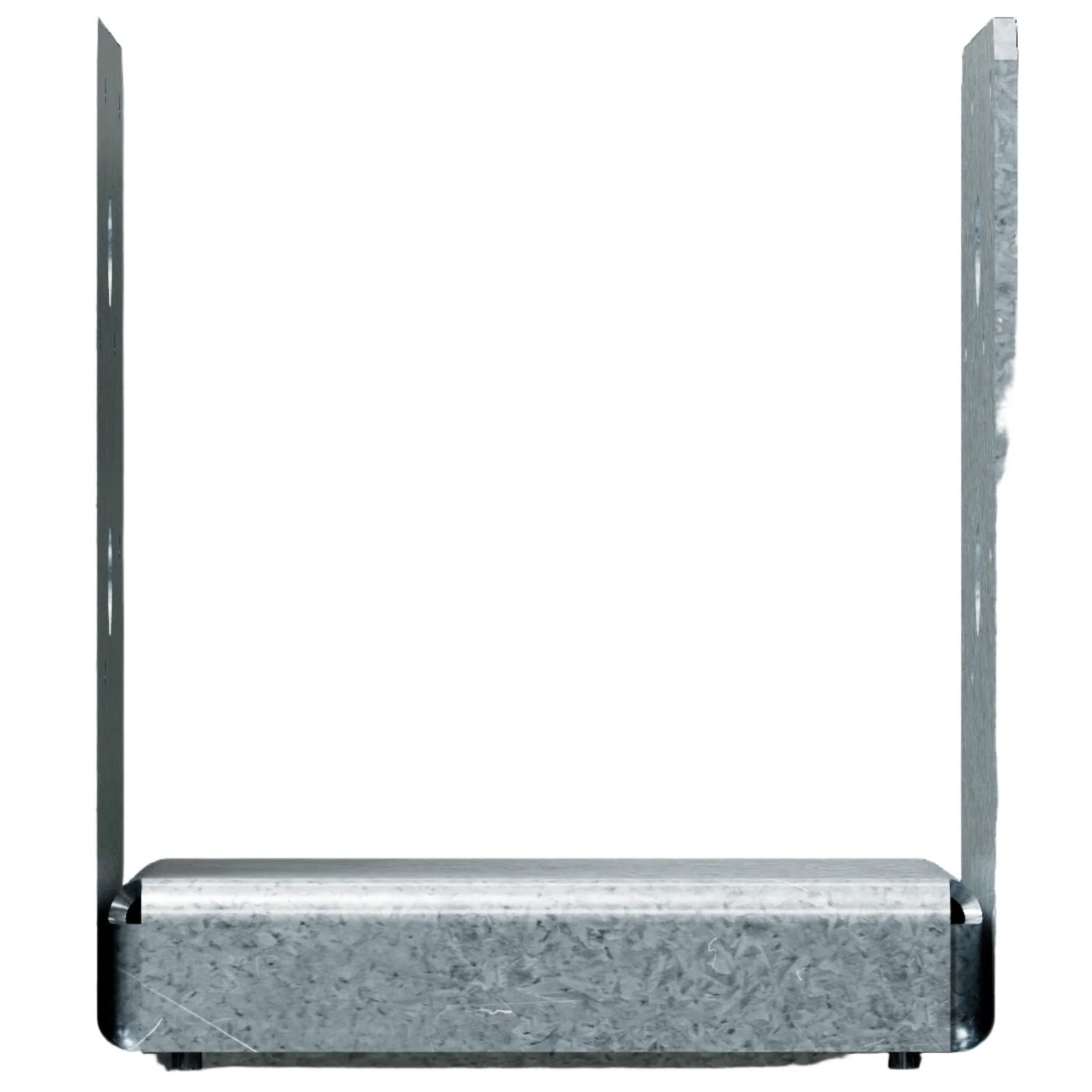

- Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
- Light Corrosion Resistance: Proprietary ZMAX coating applied to the product provides protection against corrosion in most environments.
Simpson Strong-Tie ABU5-5Z Applications

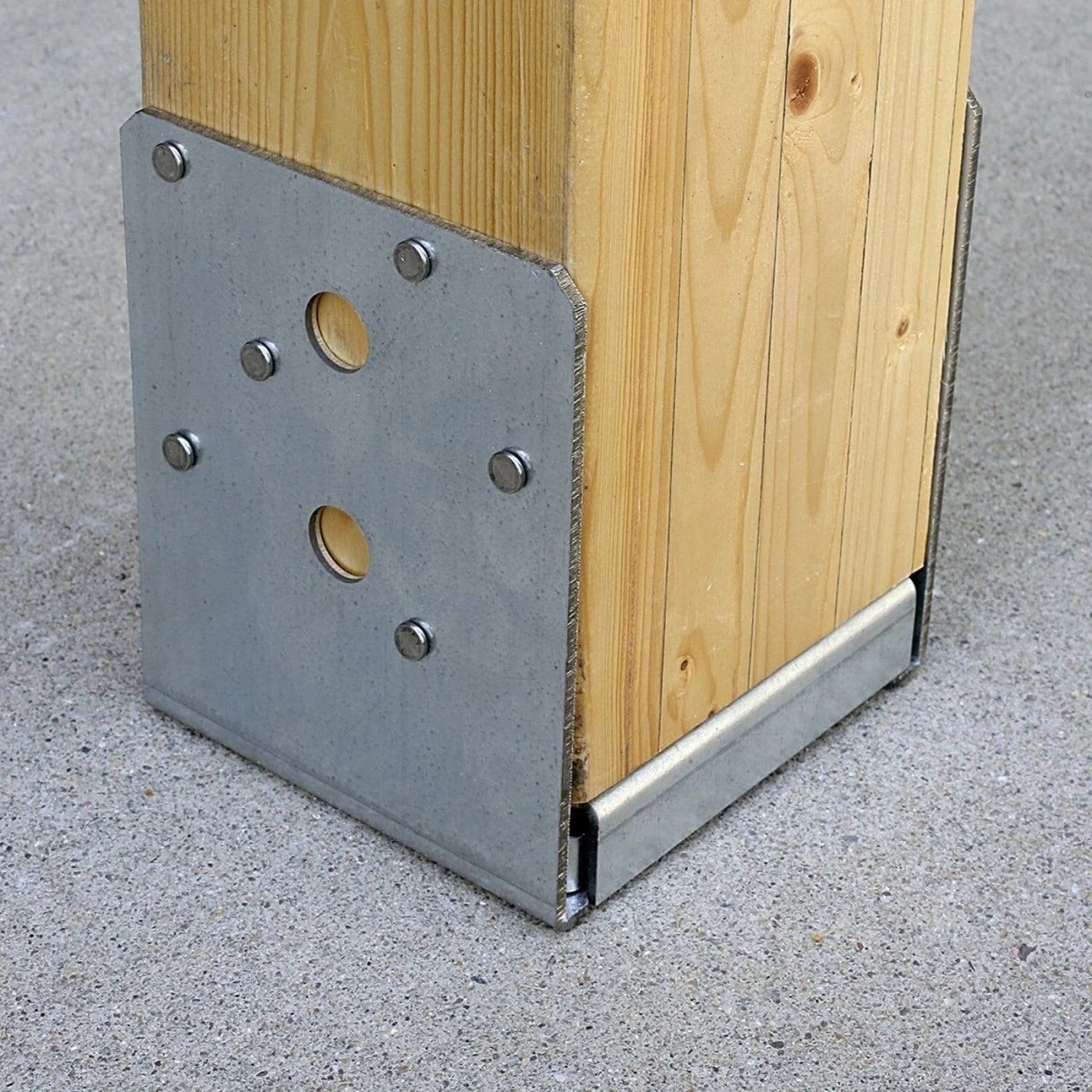

- Attaching wood posts to existing concrete in construction projects.
- Providing uplift support in areas prone to earthquakes or high winds.
- Ensuring durability and longevity in outdoor structures.

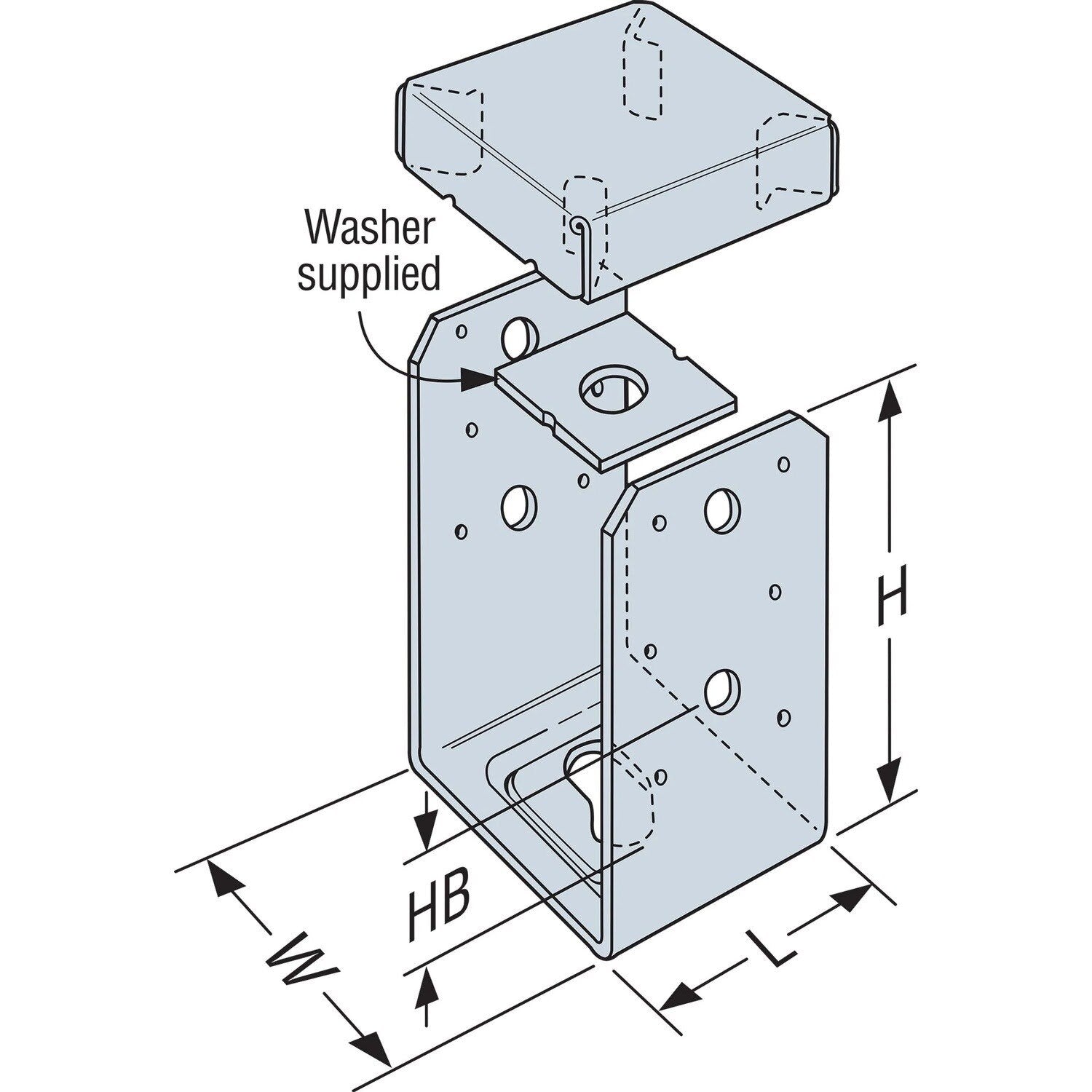

Simpson Strong-Tie ABU5-5Z Specifications
| Finish | ZMAX |
| Length | 5" |
| Material | Steel |
| Fasteners required | Strong-Drive SD Connector screws or bolts |
| Height | 6-1/16" |
| Post size | 5x5 |
| Width | 5-1/4" |
