Simpson Anchors | SKU:
ABU65Z
Simpson Strong-Tie ABU65Z (6" x 5") ABU Adjustable Post Base with Uplift - ZMAX Finish
$49.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ABU65Z Description

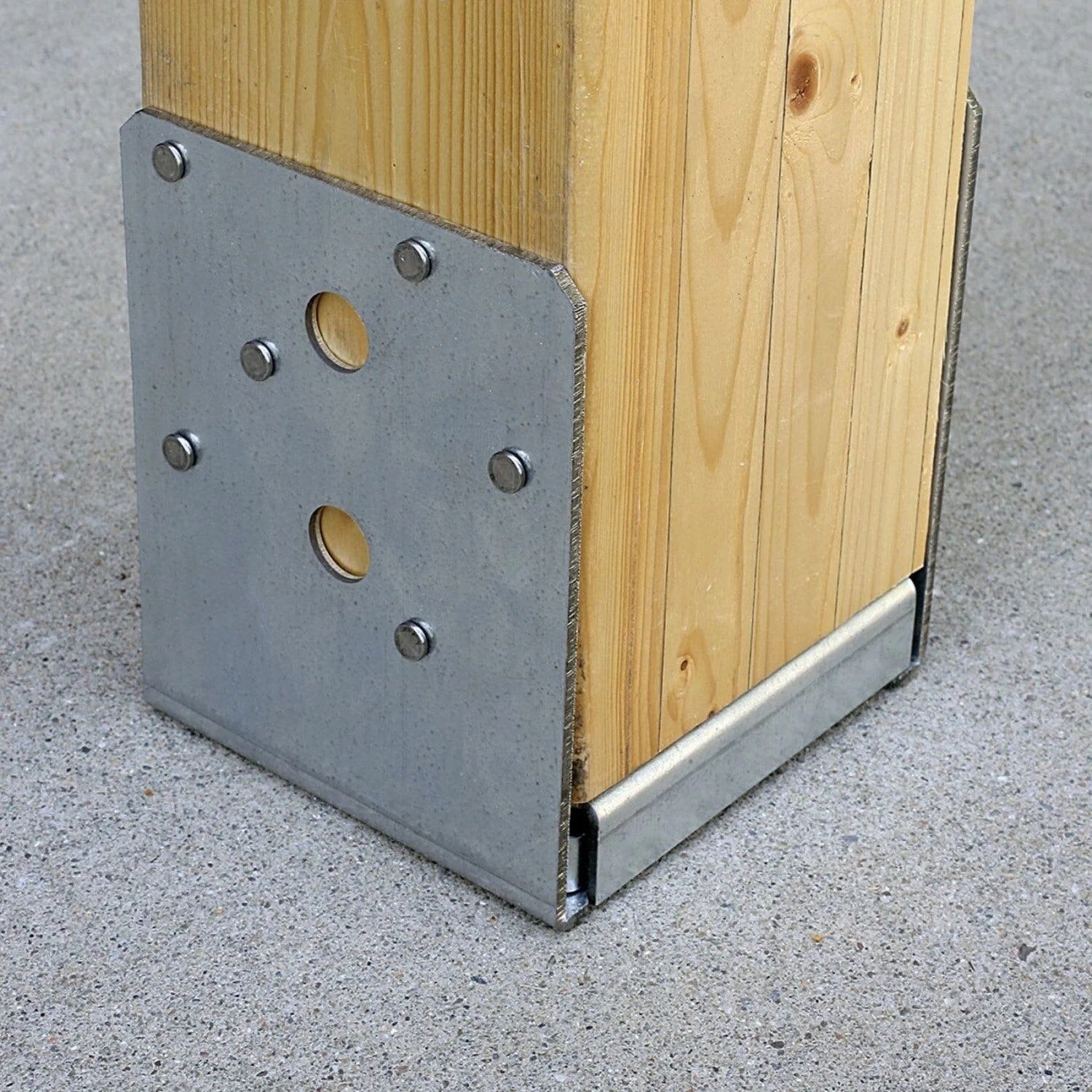

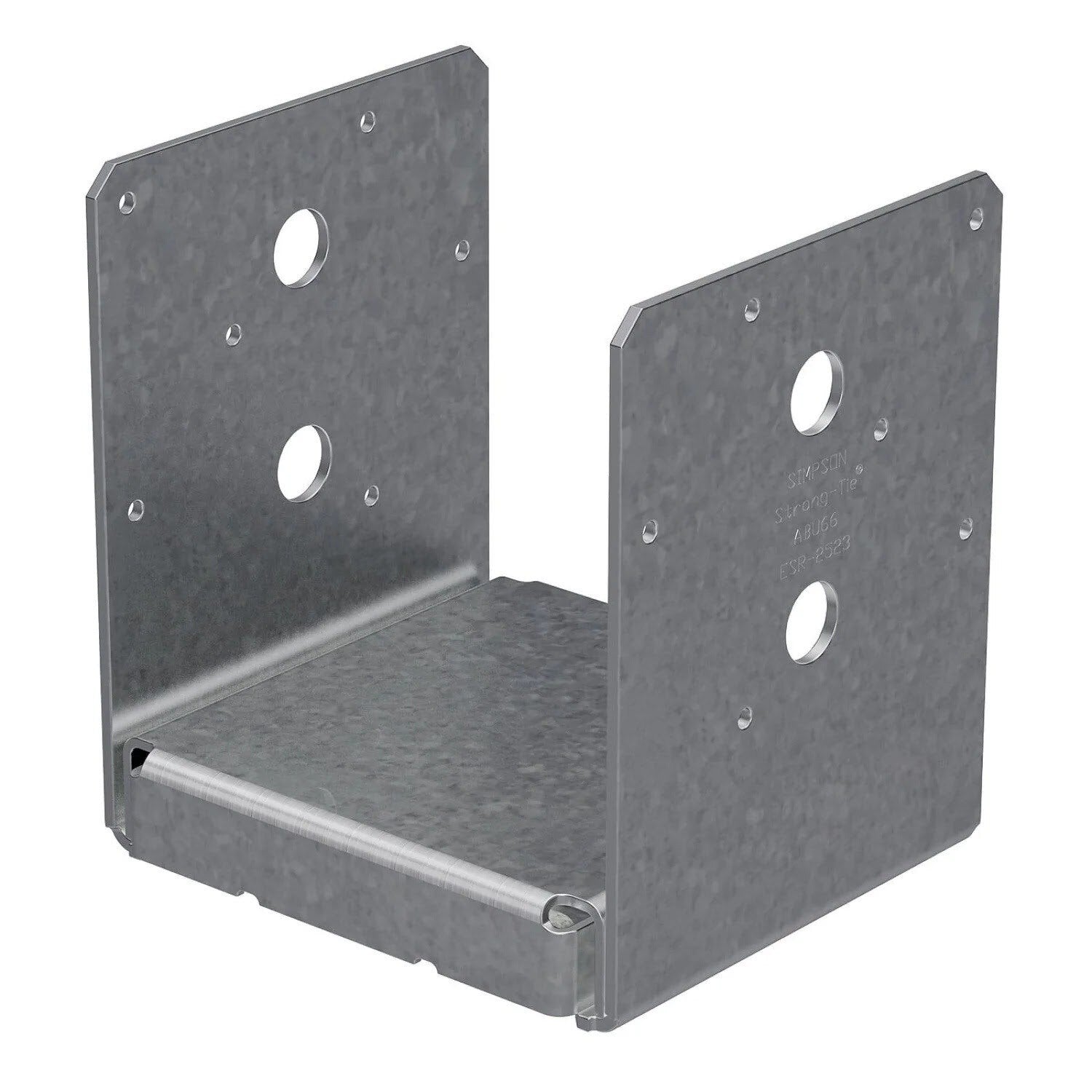

The Simpson ABU65Z Adjustable Post Base with Uplift - ZMAX is designed to securely attach wood posts to existing concrete, offering high capacity uplift support and durability.
Simpson Strong-Tie ABU65Z Includes
- (1) Adjustable Post Base with Uplift - ZMAX
Simpson Strong-Tie ABU65Z Features
- Increased Load Capacity: Engineered to withstand higher uplift loads, making it ideal for areas prone to earthquakes or high winds.
- Versatile Application: Intended for use with 6x5 lumber with a slotted base for adjustable installation.
- Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
- Light Corrosion Resistance: Proprietary ZMAX coating applied to the product provides protection against corrosion in most environments.
Simpson Strong-Tie ABU65Z Applications
- Attaching wood posts to existing concrete in construction projects.
- Providing high capacity uplift support in areas prone to earthquakes or high winds.
- Ensuring durability and longevity in outdoor structural applications.
Simpson Strong-Tie ABU65Z Installation Overview
- Position the post base on the concrete surface.
- Align the slotted anchor hole for precise post placement.
- Secure the base using nails or Strong-Drive SD Connector screws.
- Insert the wood post into the base and ensure proper alignment.

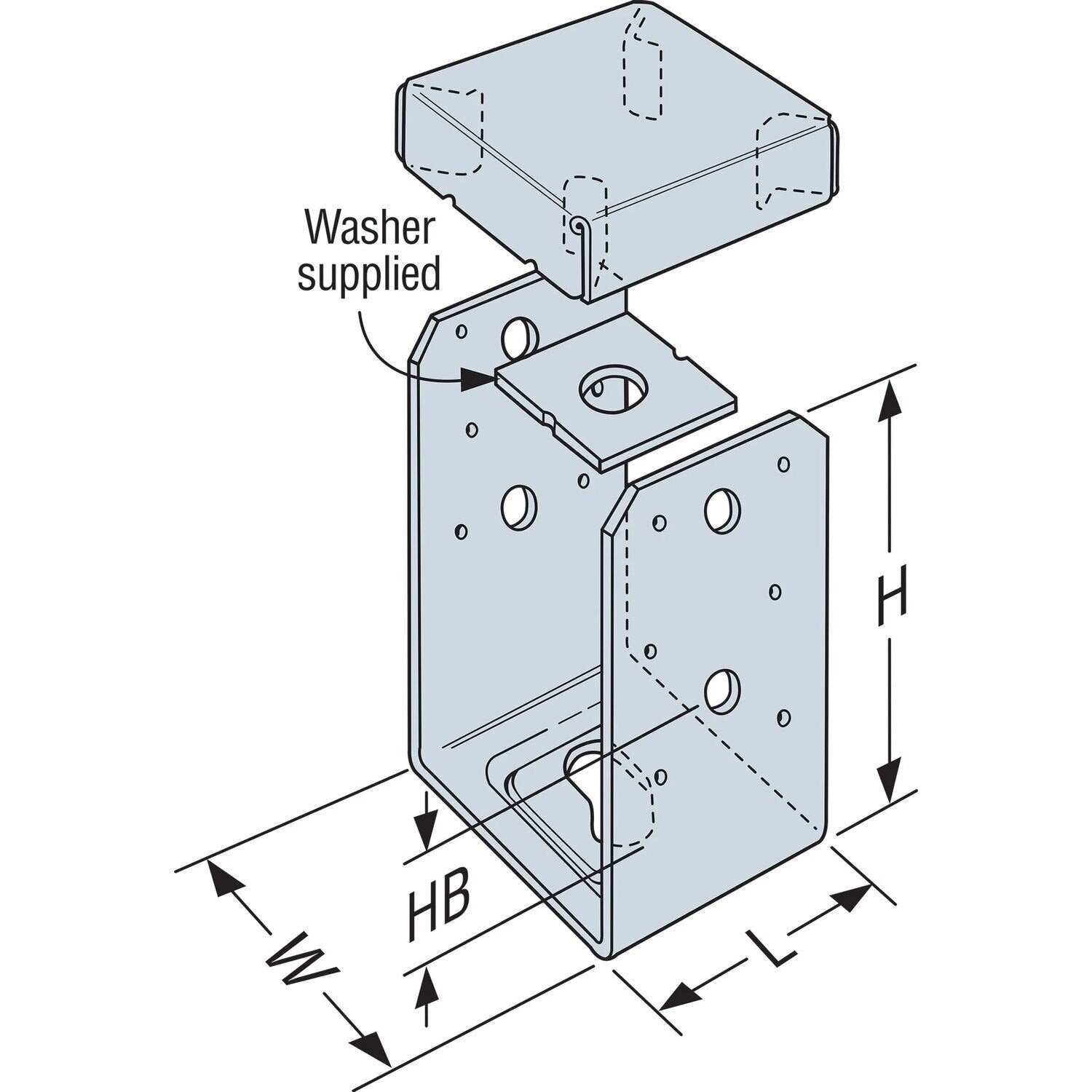

Simpson Strong-Tie ABU65Z Specifications
| Finish | ZMAX |
| Length | 5" |
| Material | Steel |
| Fasteners required | Strong-Drive SD Connector screws or bolts |
| Height | 6-1/16" |
| Post size | 6x5 |
| Width | 5-1/2" |
