Simpson Anchors | SKU:
ABW44RZ
Simpson Strong-Tie ABW44RZ (4" x 4") ABU Adjustable Post Base for Rough Lumber with ZMAX Coating
$21.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ABW44RZ Description

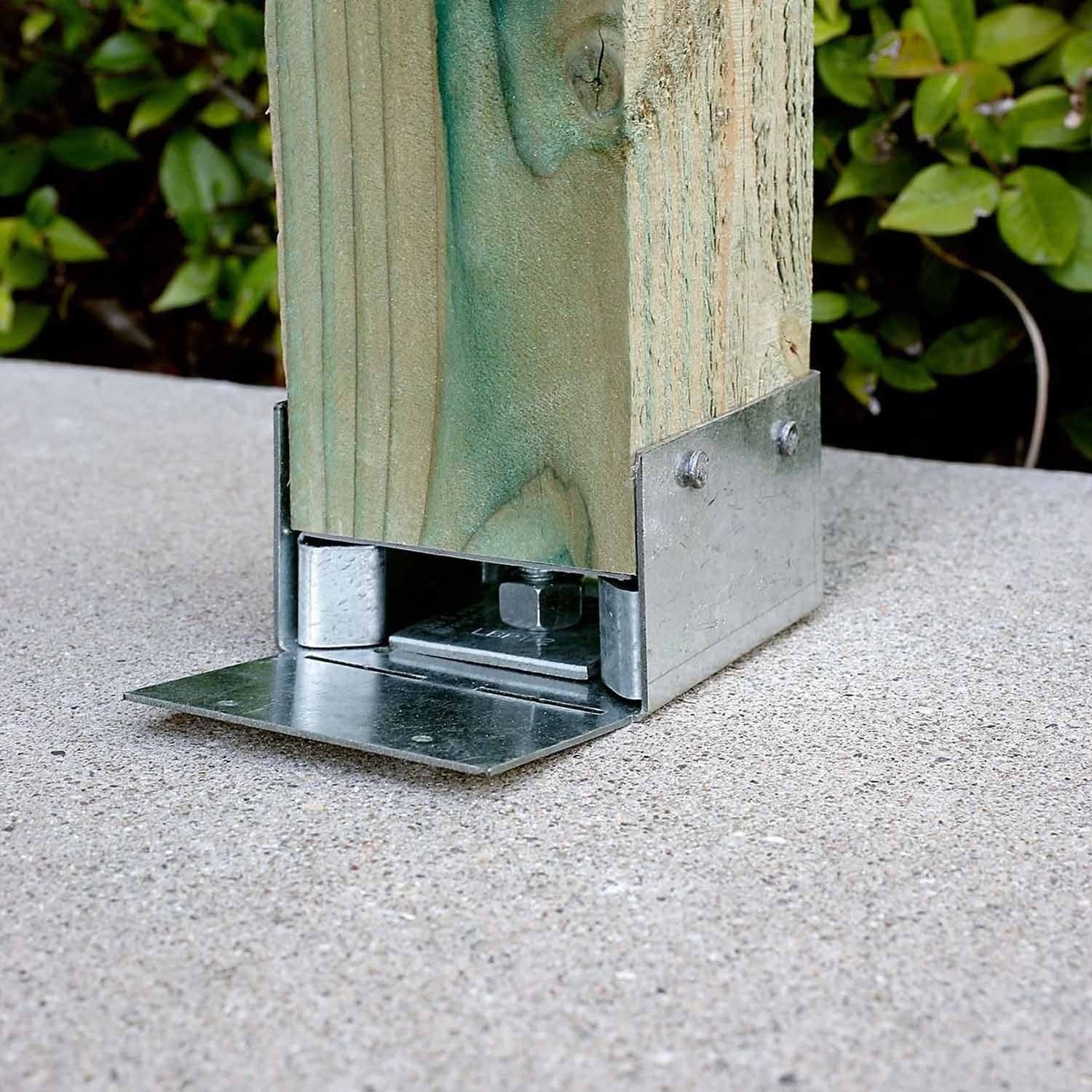

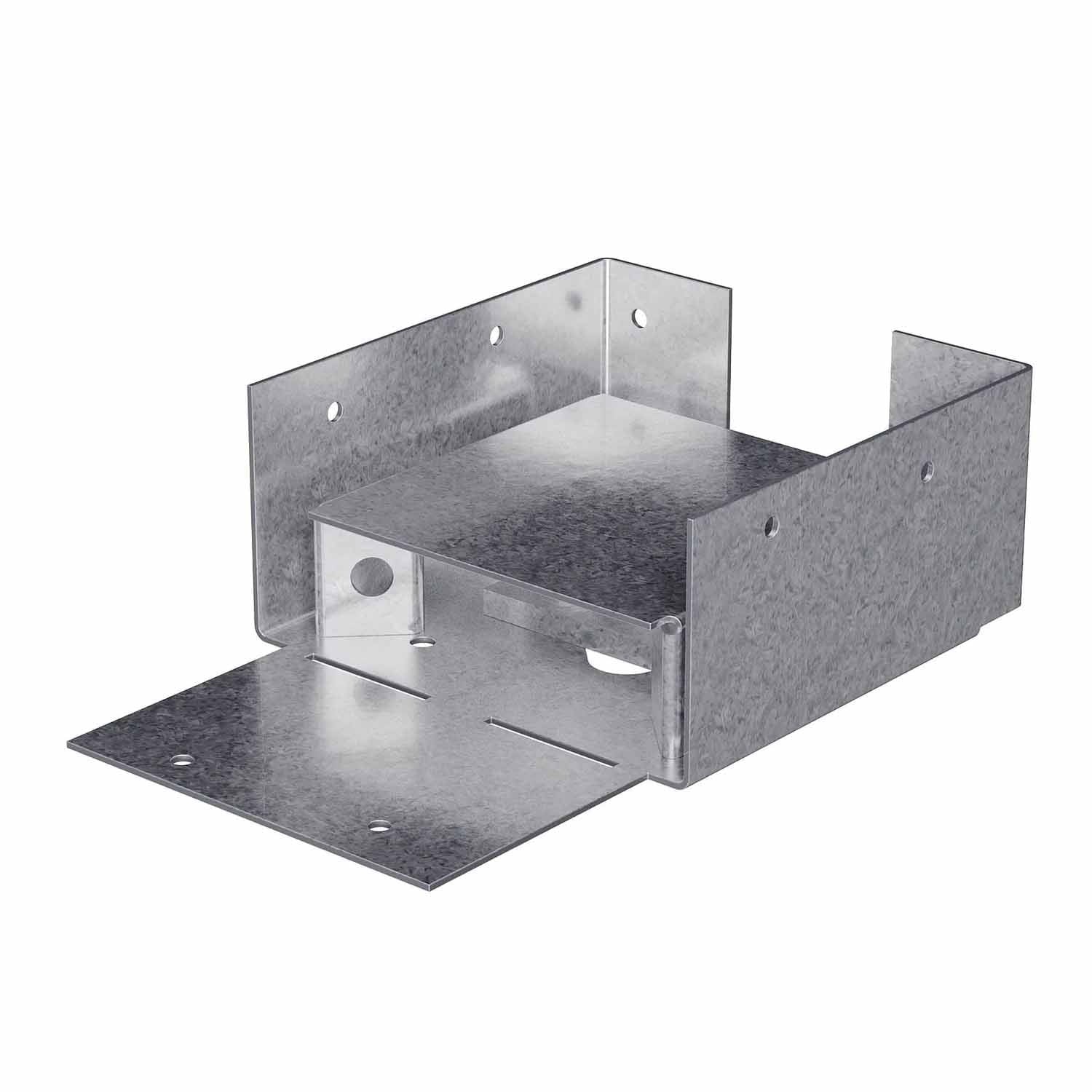

The ZMAX Galvanized Adjustable Post Base for Rough 4x4 Lumber is designed to securely attach wood posts to existing concrete, making it ideal for decks, patio covers, and other top-supported structures. Its 1-inch standoff helps prevent post-end rot, while the slotted design allows for adjustability and optimal post placement.
Simpson Strong-Tie ABW44RZ Includes
- (1) ZMAX Galvanized Adjustable Post Base for Rough 4x4 Lumber
Simpson Strong-Tie ABW44RZ Features
- Attaches a post to existing concrete for decks, patio covers, and other top-supported structures
- 1-inch standoff design helps prevent rot at the post end
- Slotted base allows for adjustability and precise post placement
- Engineered for versatility, cost-effectiveness, and maximum uplift performance
- Made from 16-gauge steel for strength and durability
- ZMAX galvanization provides extra corrosion resistance for exterior and treated-wood applications
- Designed for use with rough cut 4x4 lumber
Simpson Strong-Tie ABW44RZ Applications
- Securing wood posts to existing concrete surfaces
- Deck construction and patio cover installations
- Pergolas, gazebos, and other outdoor structures requiring lateral and uplift resistance
- Projects needing adjustable post placement for optimal alignment

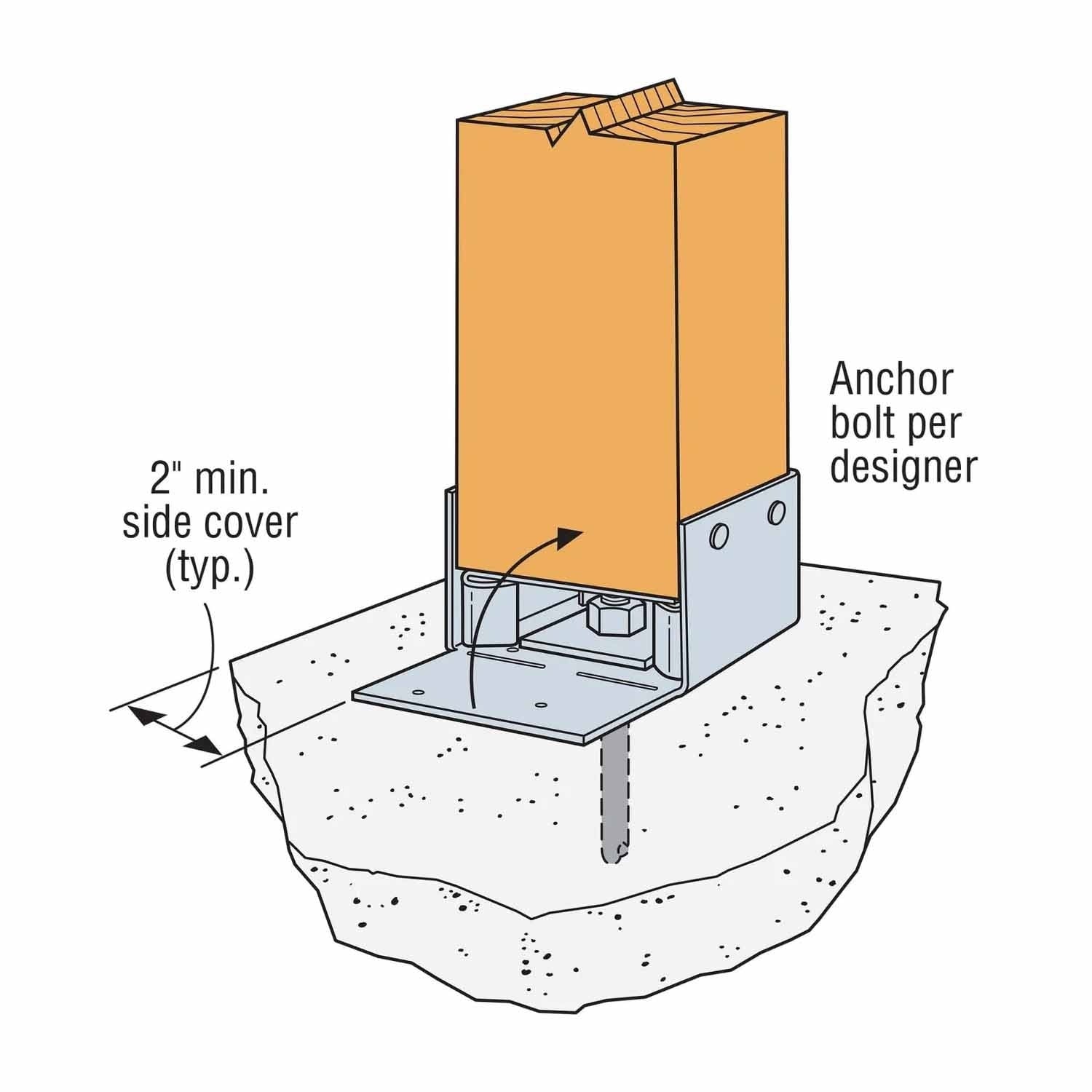

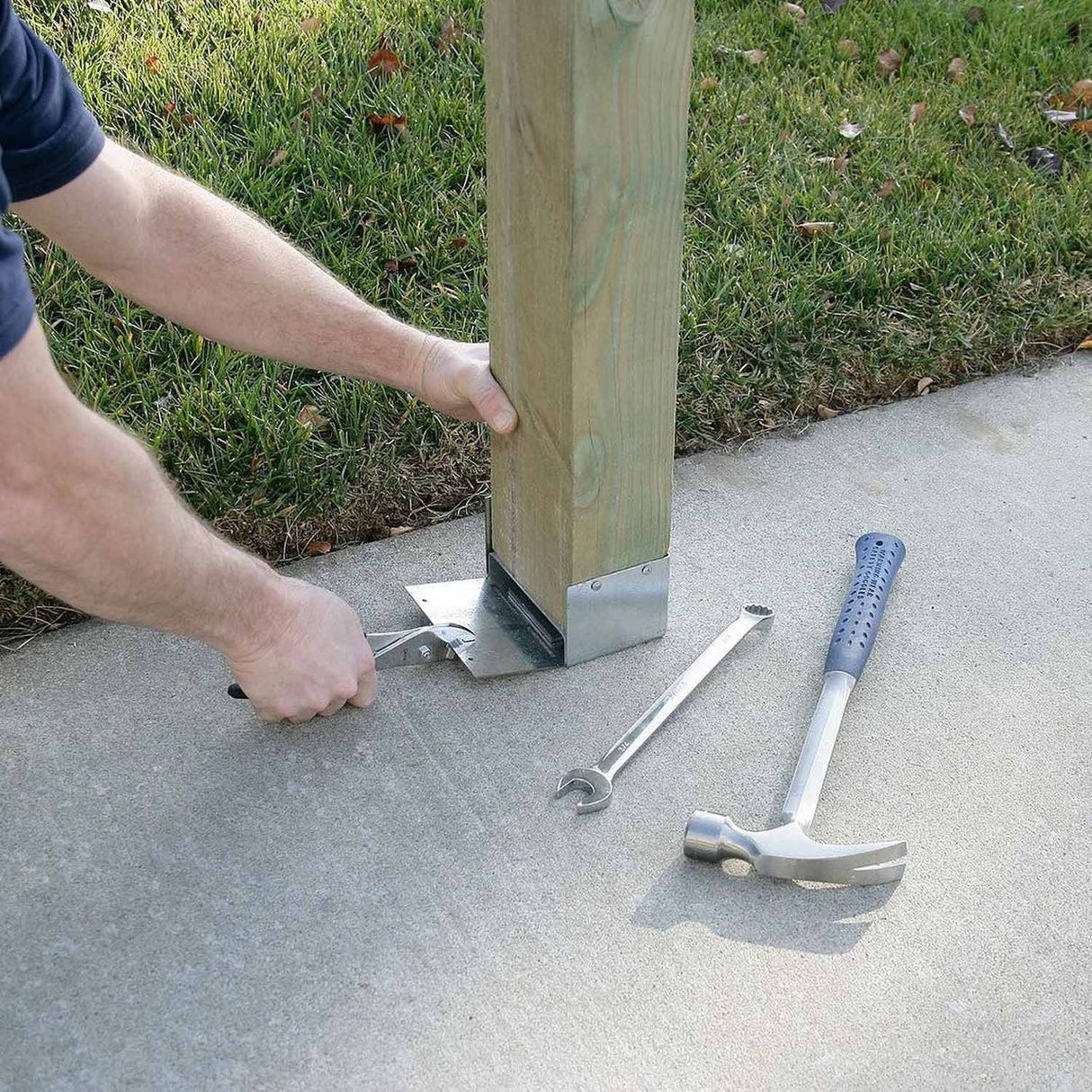

Simpson Strong-Tie ABW44RZ Installation Overview
- Position the post base on the concrete surface where the post will be installed.
- Align the slotted anchor hole for precise post placement.
- Attach the base to the concrete using a 1/2-inch concrete anchor (not included).
- Secure the post to the base using 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws.
- Ensure the 1-inch standoff is maintained to prevent post-end rot.
Simpson Strong-Tie ABW44RZ Specifications
| Finish | ZMAX Galvanized |
| Material | 16-Gauge Steel |
| Post Size | Rough 4x4 |
| For Treated Lumber | Yes |
| Fasteners Required | (8) 0.148 x 3" Nails, (1) 1/2" Concrete Anchor |
| Country of Origin | US |
| UPC | 707392303305 |
| Weight | 1.4 lb |
| Width | 4.25 in. |
| Height | 6.75 in. |
NOTE: This connector is designed for rough cut lumber only and will not fit nominal 4x4 posts. For nominal posts, use the ABW44Z Post Base.
