Simpson Anchors | SKU:
ABW46RZ
Simpson Strong-Tie ABW46RZ (Rough 4" x 6") Adjustable Post Base for Rough Lumber with ZMAX Finish
$36.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ABW46RZ Description

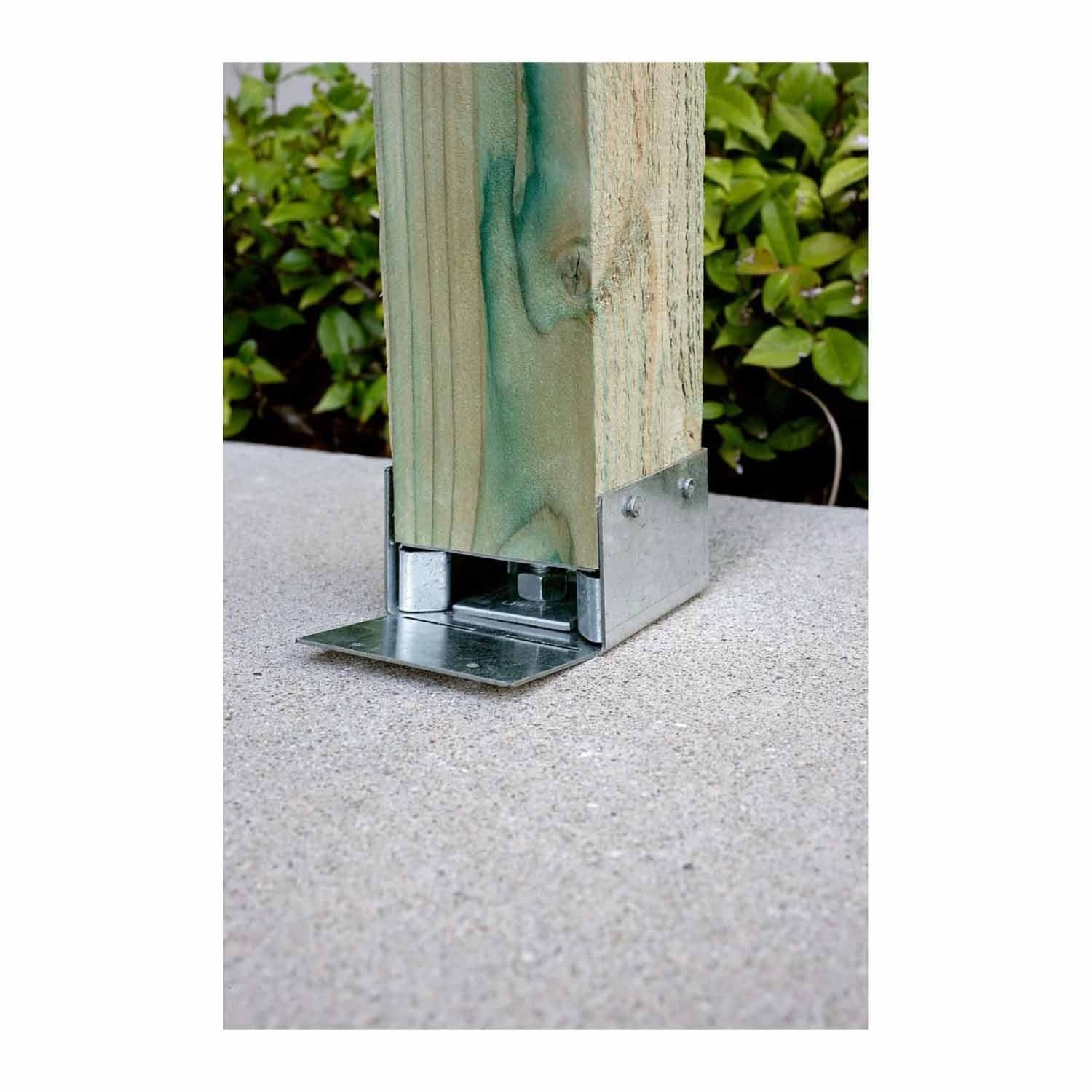

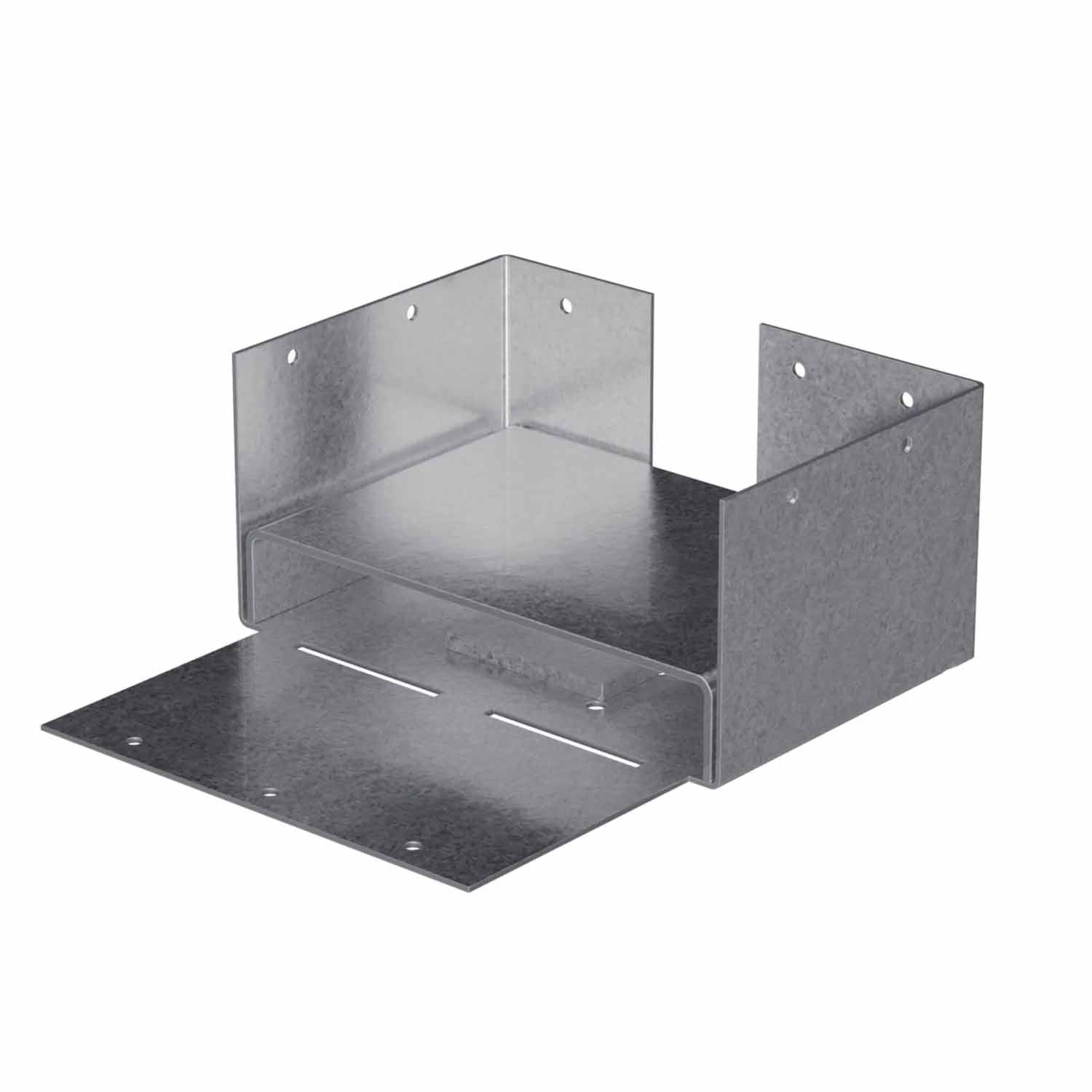

The Simpson ABW46RZ Adjustable Post Base is designed for securely attaching wood posts to concrete, featuring a ZMAX finish for corrosion resistance and a 1-inch standoff to prevent rot.
Simpson Strong-Tie ABW46RZ Includes

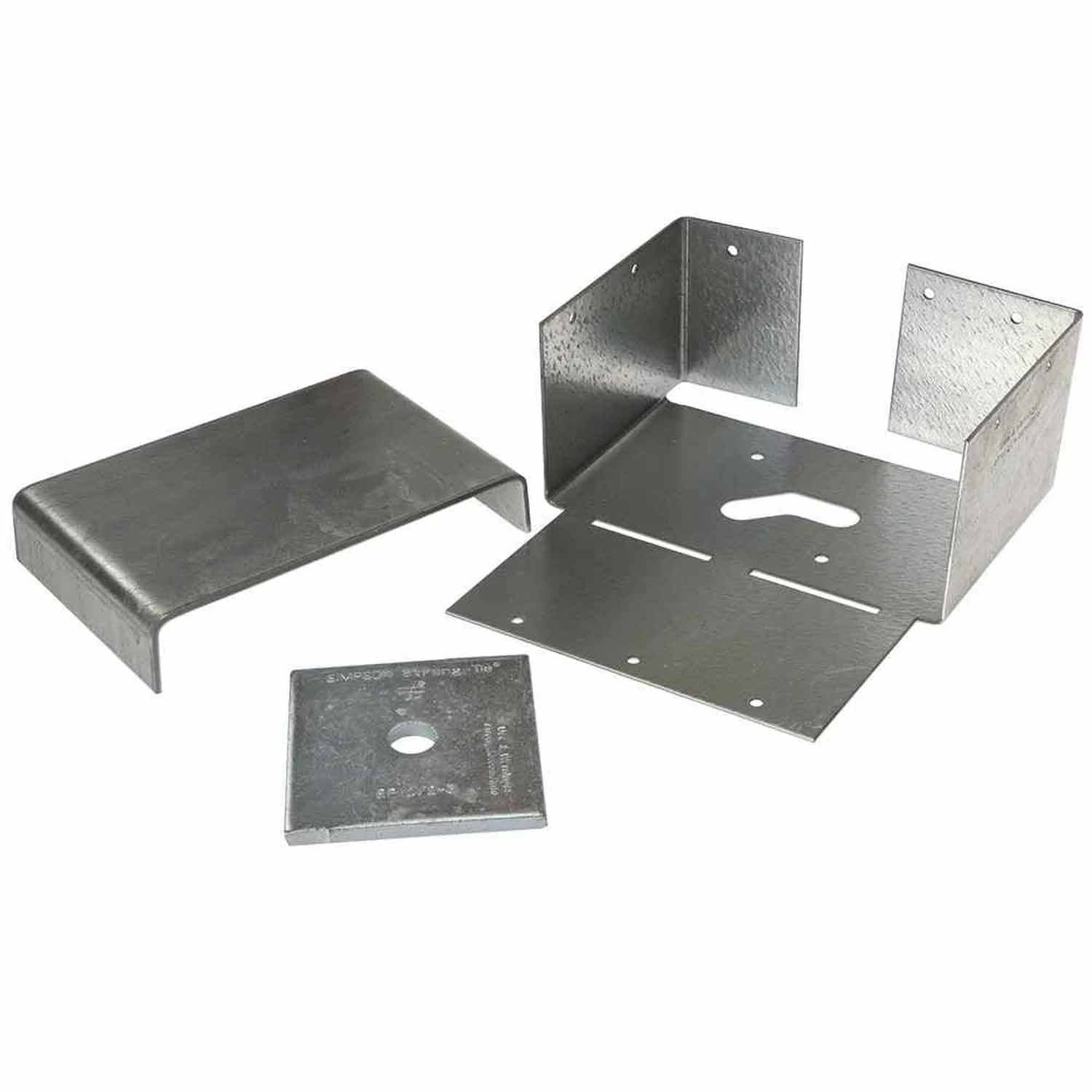

- (1) Adjustable Post Base for Rough 4x6 Lumber
Simpson Strong-Tie ABW46RZ Features
- 1-inch standoff design prevents post rot
- ZMAX finish for corrosion resistance
- Slotted anchor hole for precise post placement
- Compatible with nails or Strong-Drive SD Connector screws
- Designed for Rough Cut 4x6 lumber
Simpson Strong-Tie ABW46RZ Applications
- Decks: Securely attaches posts to concrete footings
- Pergolas: Provides stability and resistance to wind uplift
- Gazebos: Ensures structural integrity with enhanced load capacity

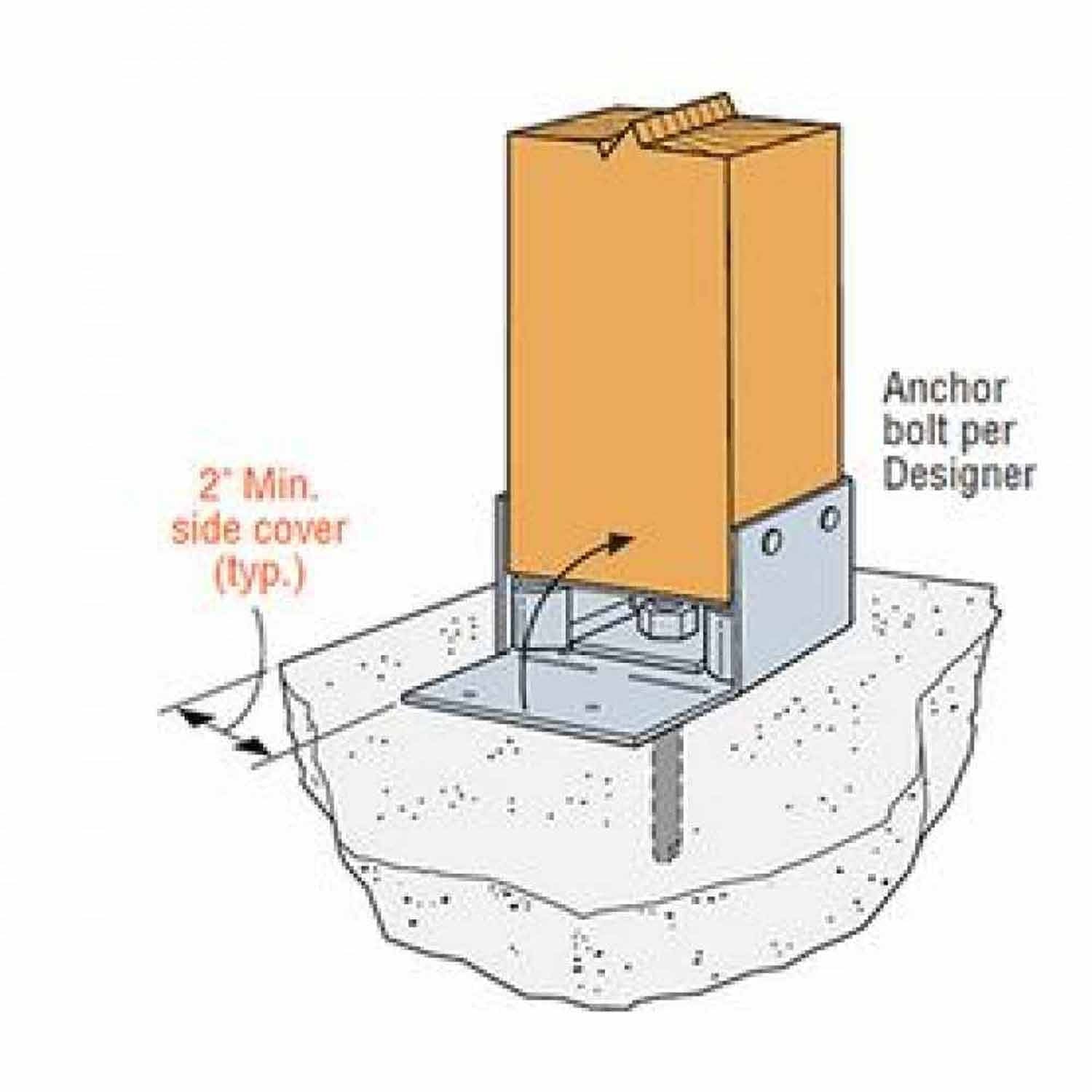

Simpson Strong-Tie ABW46RZ Installation Overview
- Place the base on the anchor bolt and adjust for post placement
- Secure the base using specified fasteners
- Insert the post into the base and fasten on three sides
- Bend up the fourth side and fasten securely
Simpson Strong-Tie ABW46RZ Specifications
| Finish | ZMAX |
| Material | Steel |
| Post Size | Rough Cut 4x6 |
| Fasteners Required | (10) 0.148 x 3" Nails, (1) 1/2" Concrete Anchor |
NOTE: This connector is designed for Rough Cut lumber, not nominal lumber. Ensure the post measures an actual 4x6" for compatibility.
