Simpson Anchors | SKU:
ABW66RZ
Simpson Strong-Tie ABW66RZ (6" x 6") Adjustable Standoff Post Base for Rough Lumber with ZMAX Coating
$40.29
Unit price
/
Unavailable
Description
Description
Simpson ABW66RZ Description

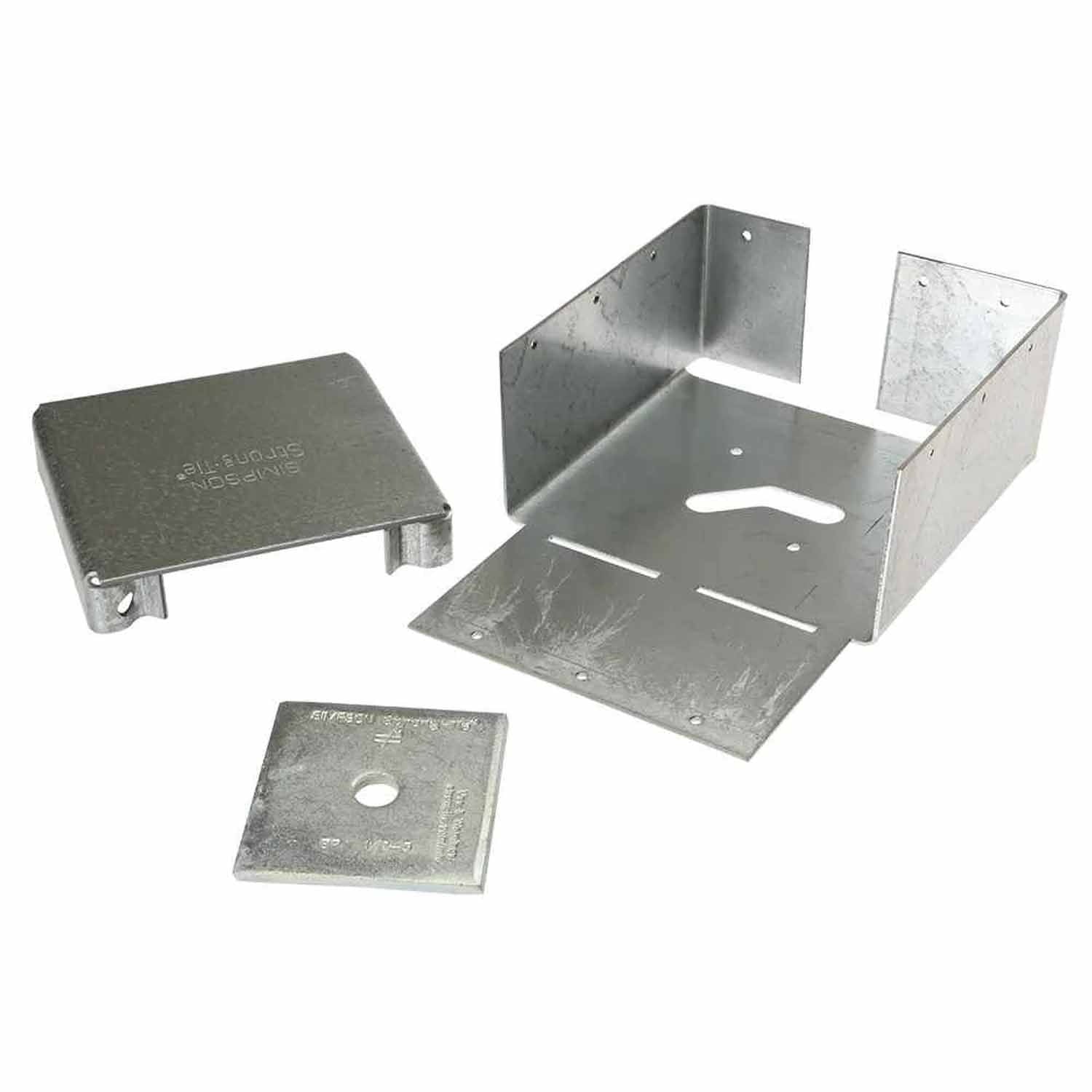

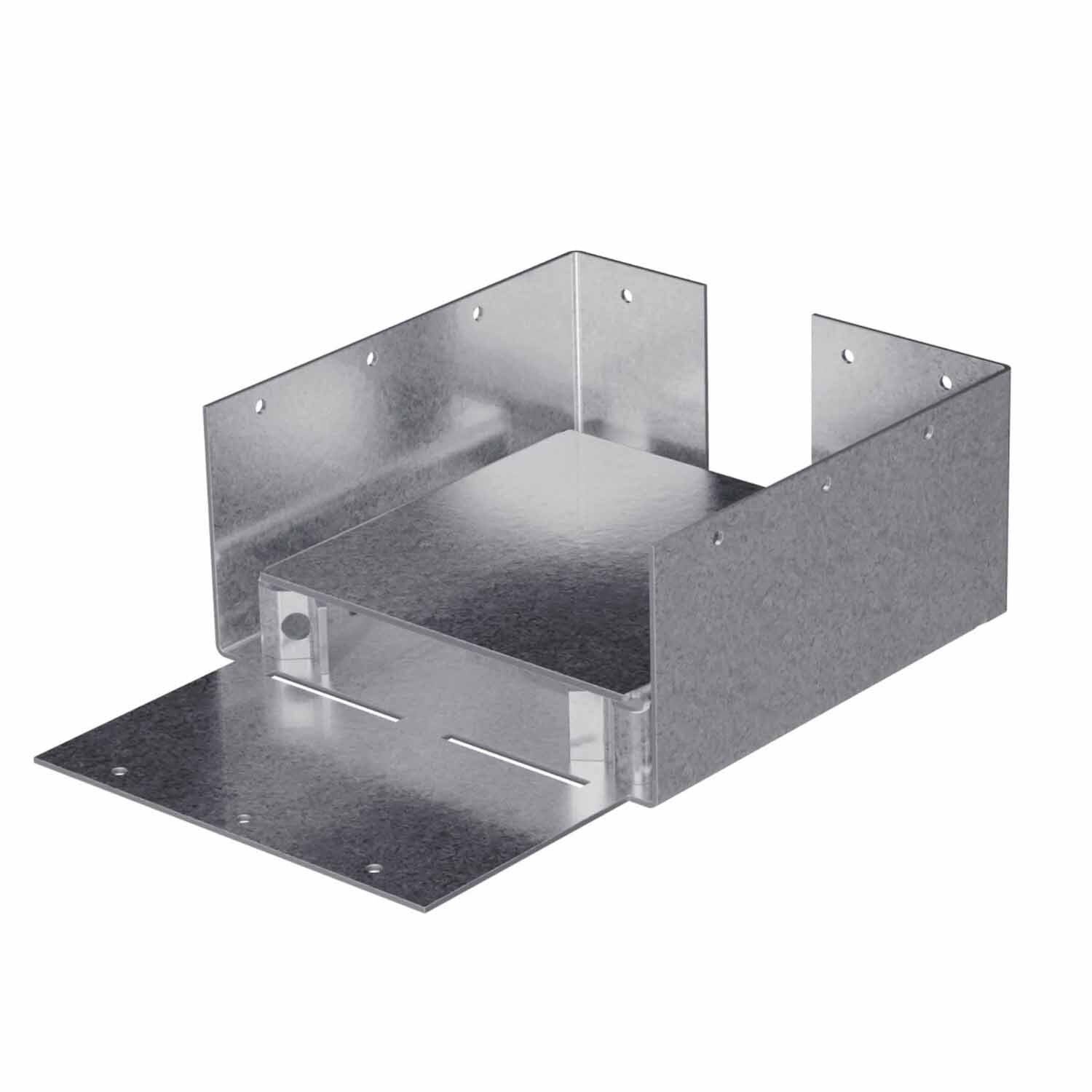

The Simpson ABW66RZ Adjustable Standoff Post Base is designed for Rough Cut 6x6 lumber, featuring a ZMAX finish for corrosion resistance and a 1-inch standoff design to prevent rot.
Simpson ABW66RZ Includes
- (1) Adjustable Standoff Post Base for Rough 6x6
Simpson ABW66RZ Features
- 1-inch standoff design prevents post rot
- ZMAX finish provides corrosion resistance
- Designed for Rough Cut 6x6 lumber
- Slotted anchor hole for precise post placement
- Supports higher lateral and uplift loads
Simpson ABW66RZ Applications

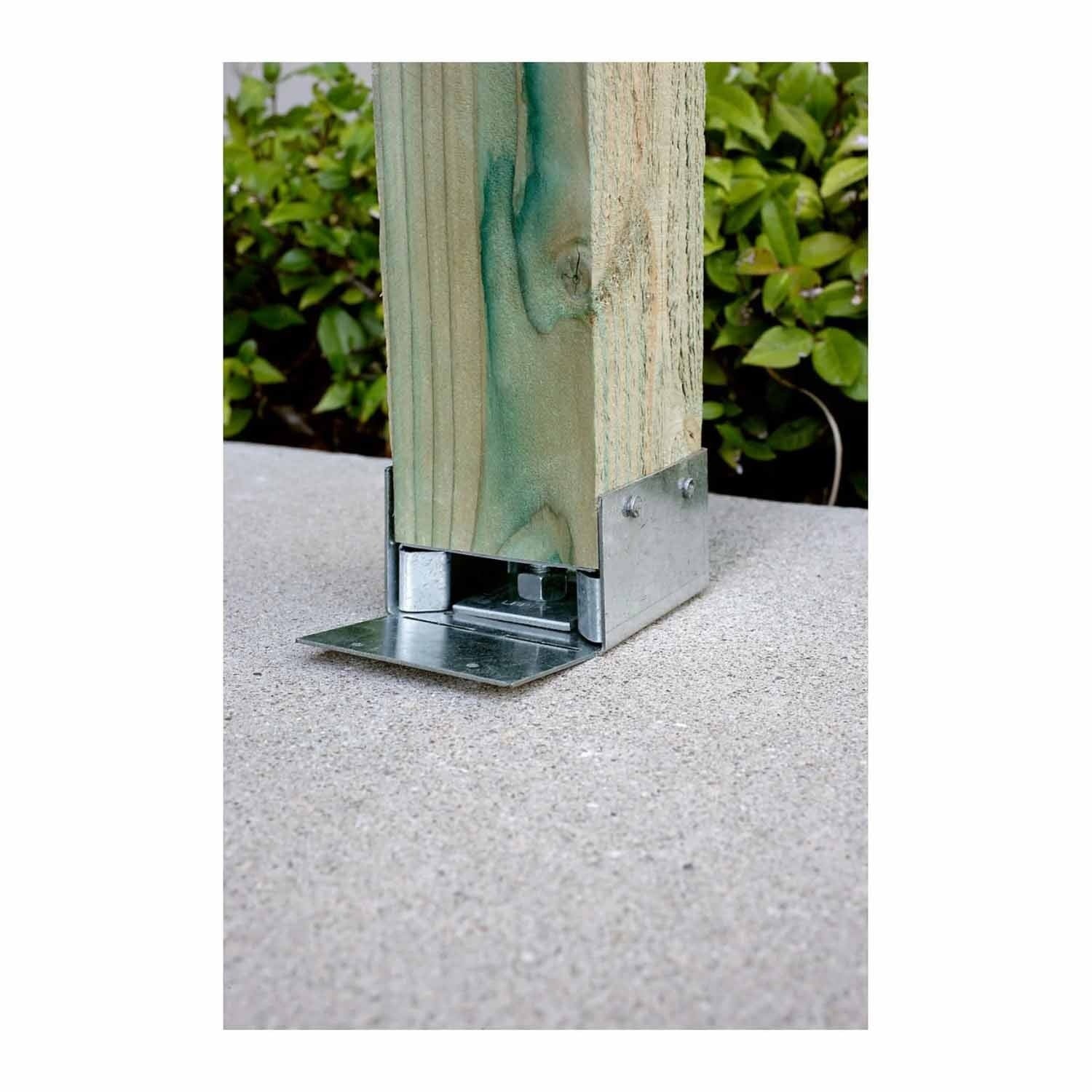

- Decks: Securely attaches wood posts to existing concrete
- Pergolas: Provides stability and resistance to wind uplift
- Gazebos: Ensures structural integrity with enhanced load capacity
Simpson ABW66RZ Installation Overview
- Place the base on the anchor bolt and adjust post placement
- Secure the post using nails or Strong-Drive SD Connector screws
- Bend up the fourth side and fasten using specified fasteners
Simpson ABW66RZ Specifications
| Finish | ZMAX |
| Material | Steel |
| Post Size | Rough Cut 6x6 |
| Fasteners Required | (12) 0.148 x 3" Nails, (1) 1/2" Concrete Anchor |
NOTE: Ensure the correct fasteners are used and installed in the specified positions to achieve the published load values
