Simpson Anchors | SKU:
ABW66Z
Simpson Strong-Tie ABW66Z (6" x 6") ABU Adjustable Post Base with Uplift - ZMAX Finish
$32.02
Unit price
/
Unavailable
Description
Description
Simpson ABW66Z Description

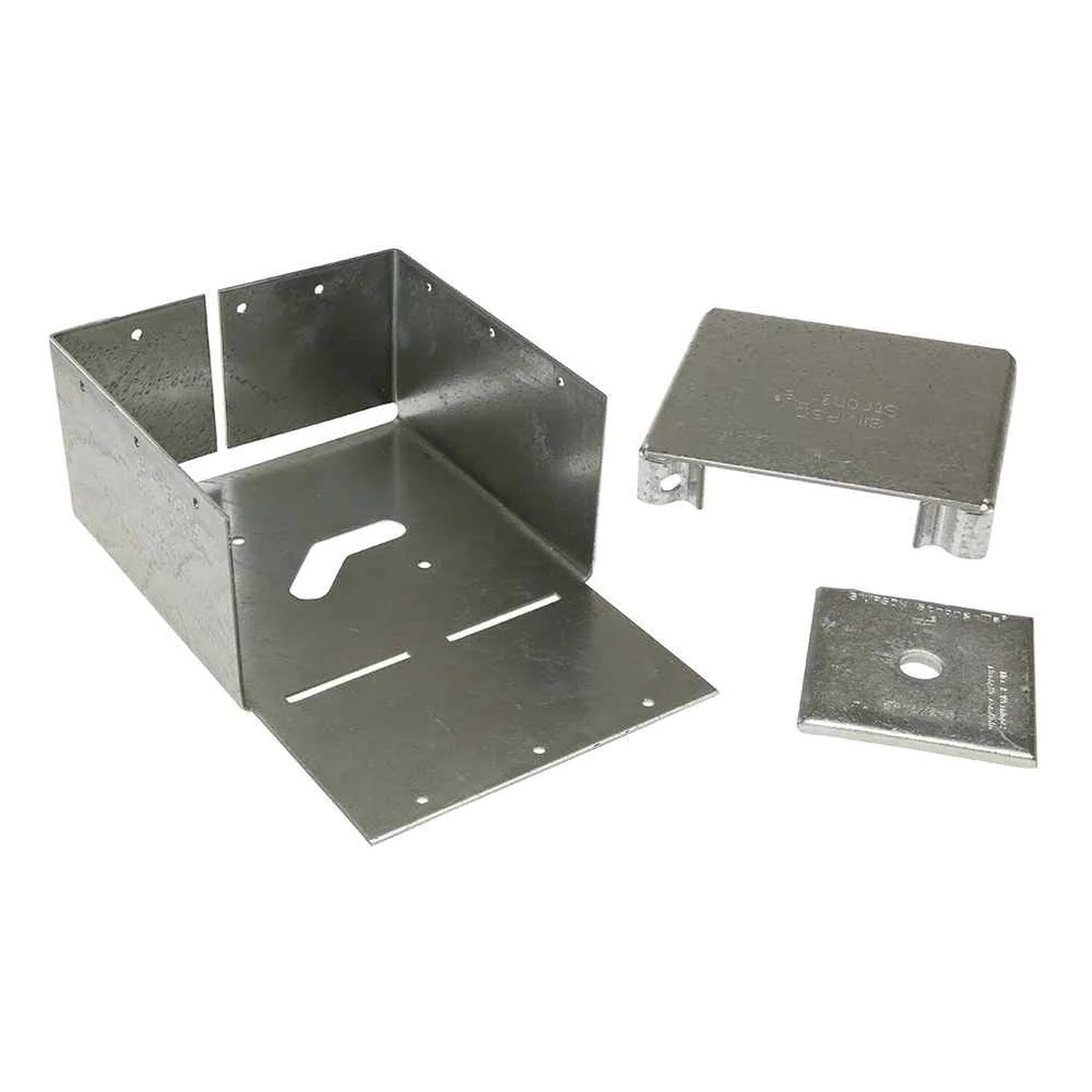

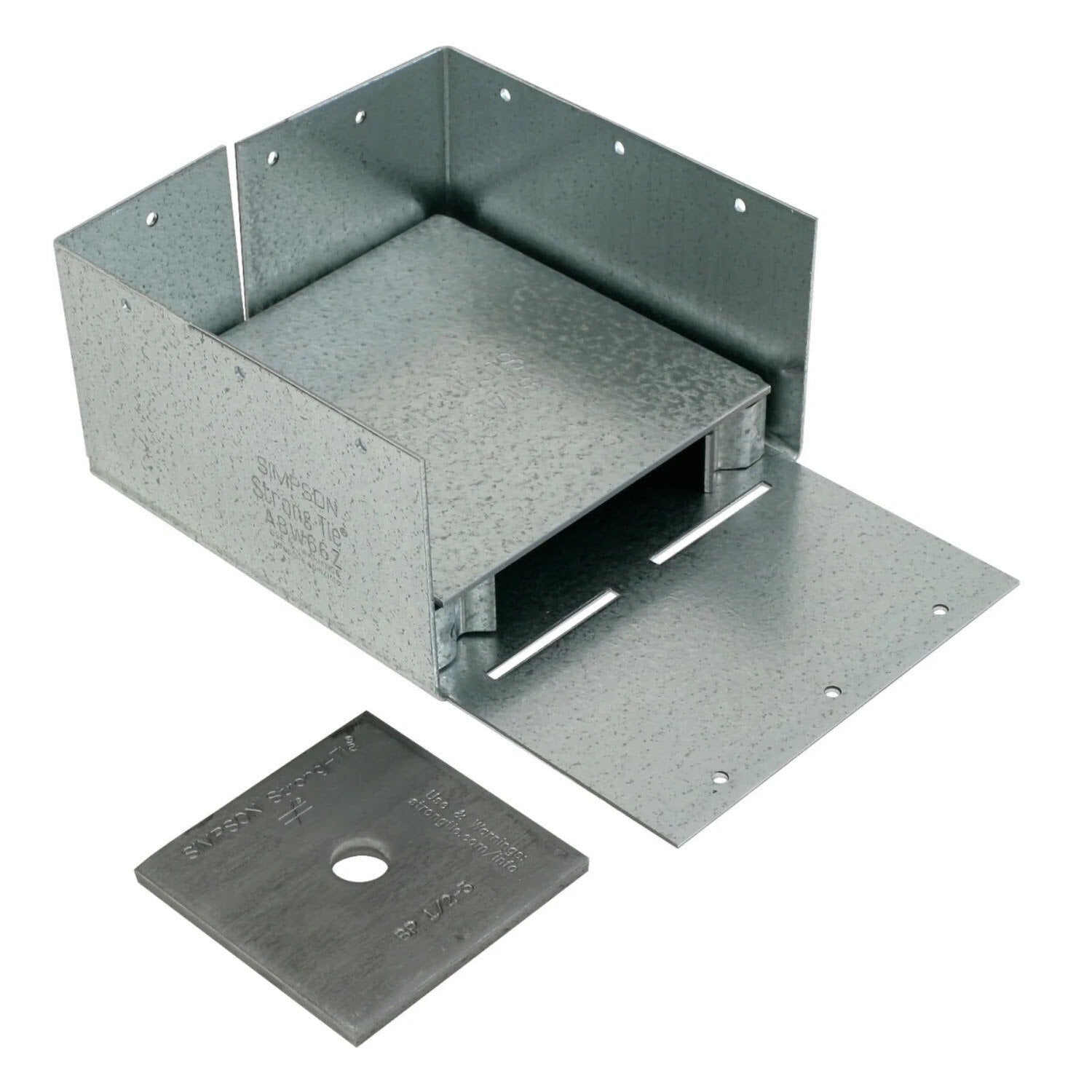

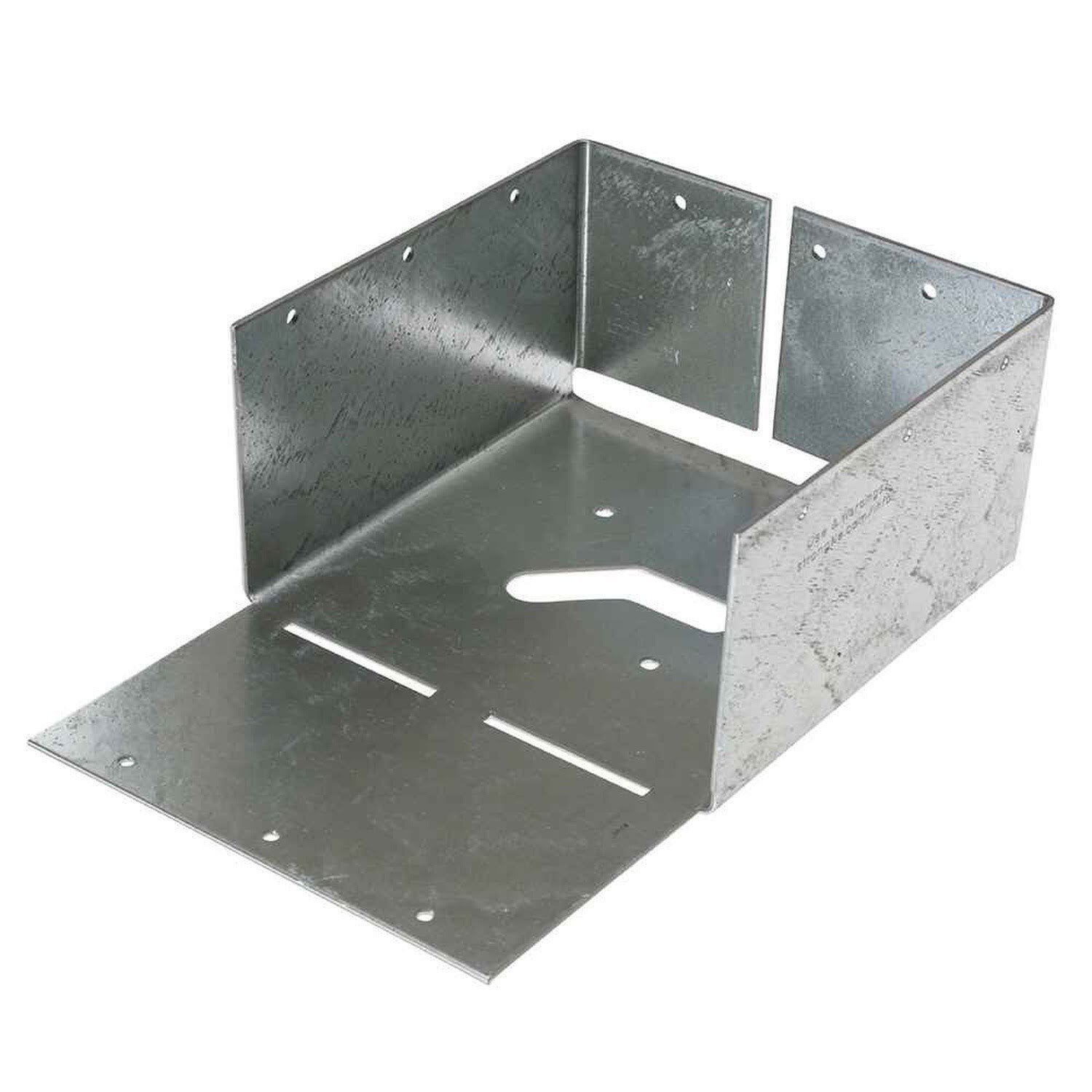

The Simpson ABW66Z Adjustable Post Base is designed for securely attaching wood posts to concrete, featuring a ZMAX finish for corrosion resistance and a 1-inch standoff to prevent rot.
Simpson ABW66Z Includes
- (1) Adjustable Post Base for 6x6 Lumber with ZMAX Finish
Simpson ABW66Z Features
- Increased Load Capacity: Engineered to withstand higher lateral and uplift loads.
- Versatile Application: Designed for use with 6x6 lumber and features a slotted base for adjustable installation.
- Enhanced Durability: Includes a 1-inch standoff design to prevent post rot.
- Light Corrosion Resistance: ZMAX coating provides protection against corrosion.
Simpson ABW66Z Applications
- Deck Framing: Securely attaches wood posts to concrete for stable deck construction.
- Pergolas and Gazebos: Provides additional stability for structures requiring lateral and uplift resistance.
- General Construction: Suitable for various wood post applications requiring durability and corrosion resistance.

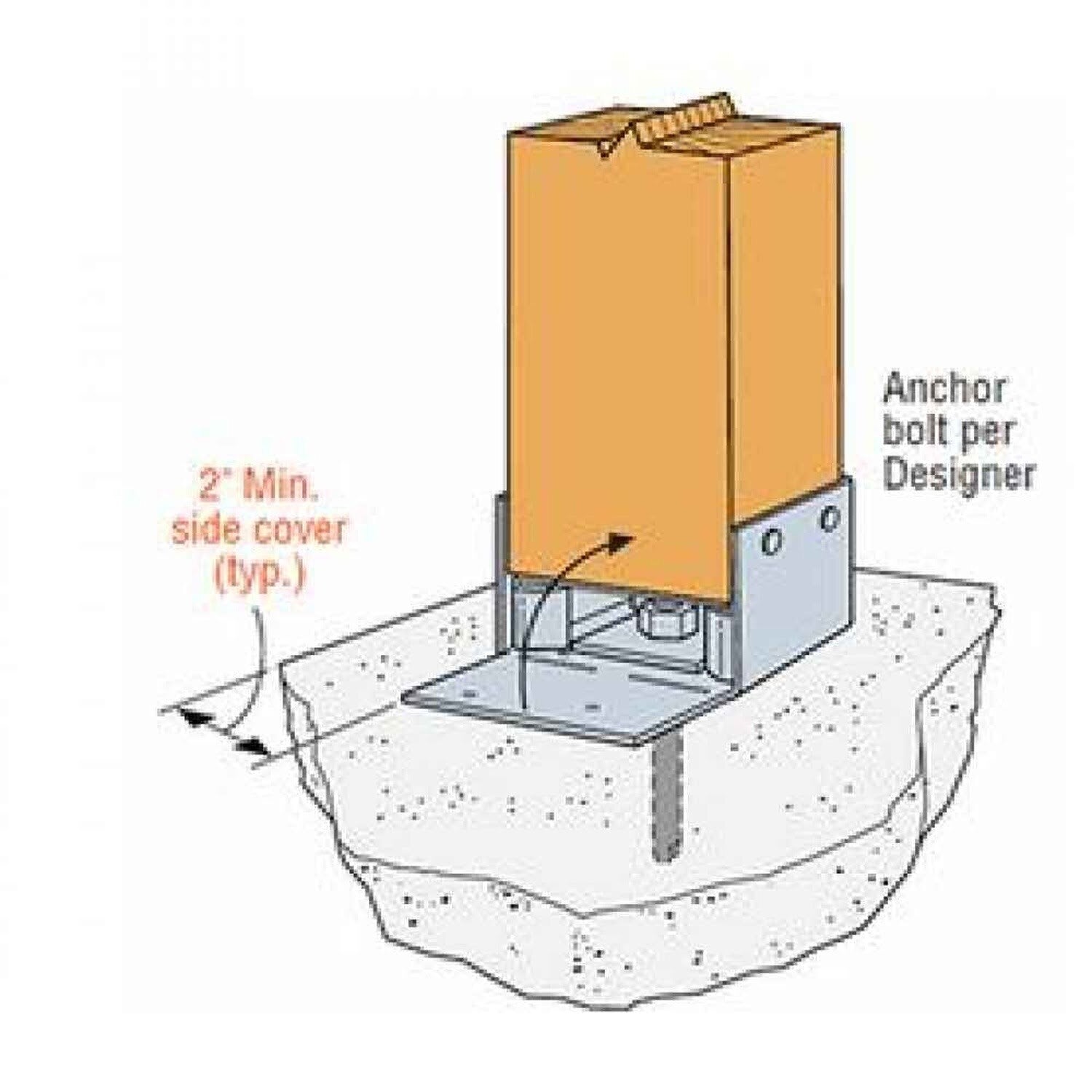

Simpson ABW66Z Installation Overview
- Prepare the concrete surface and ensure it is clean and level.
- Position the post base and align it with the desired location.
- Secure the base using the specified concrete anchor and nails.
- Insert the wood post into the base and adjust as needed.
- Verify all fasteners are properly installed and the post is stable.
Simpson ABW66Z Specifications
| Finish | ZMAX |
| Material | Steel |
| Fasteners required | (12) 0.148 x 3" Nails, (1) 1/2" Concrete Anchor |
| For Treated Lumber | Yes |
| Post size | 6x6 |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values
