Simpson Strong-Tie ABW7-7Z Description

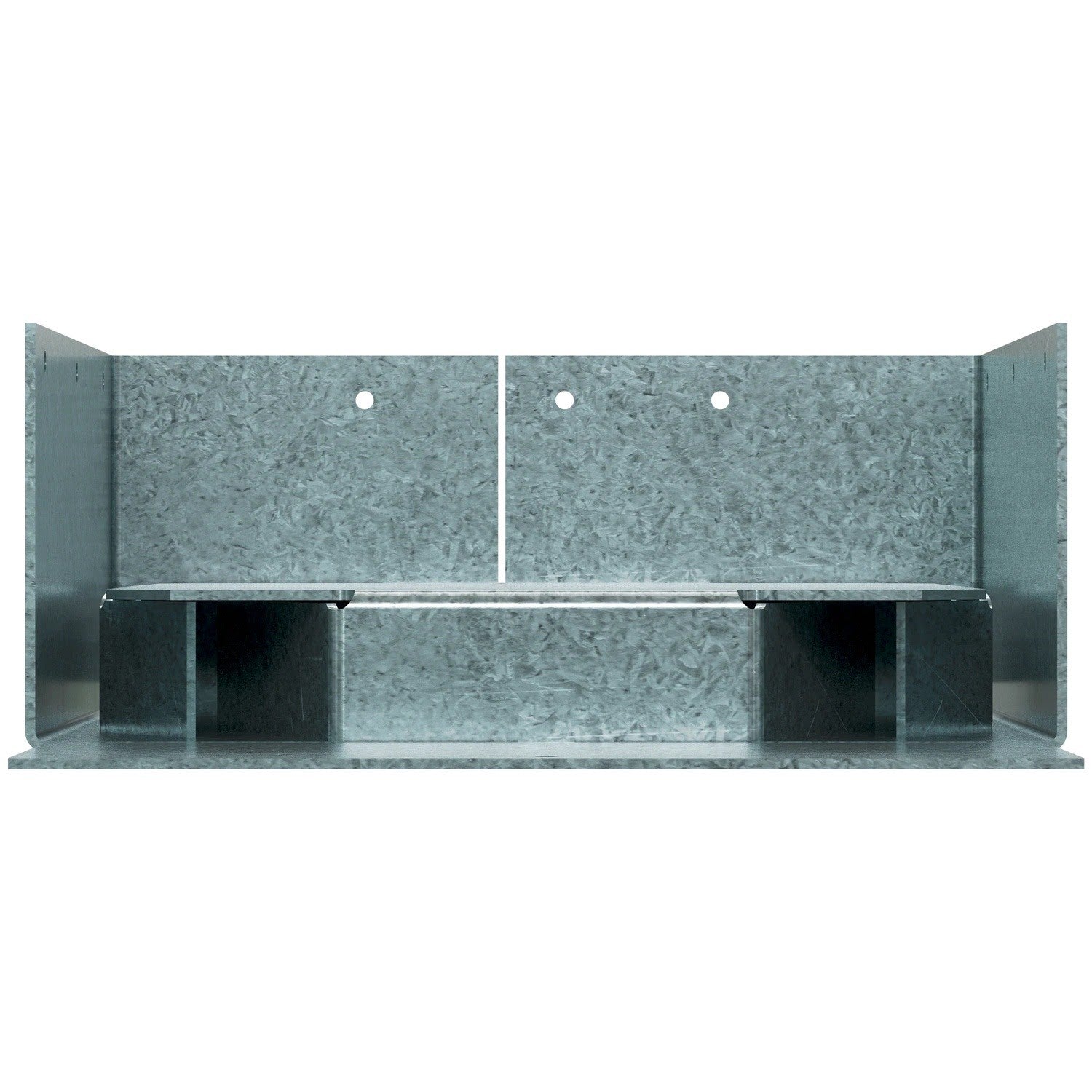

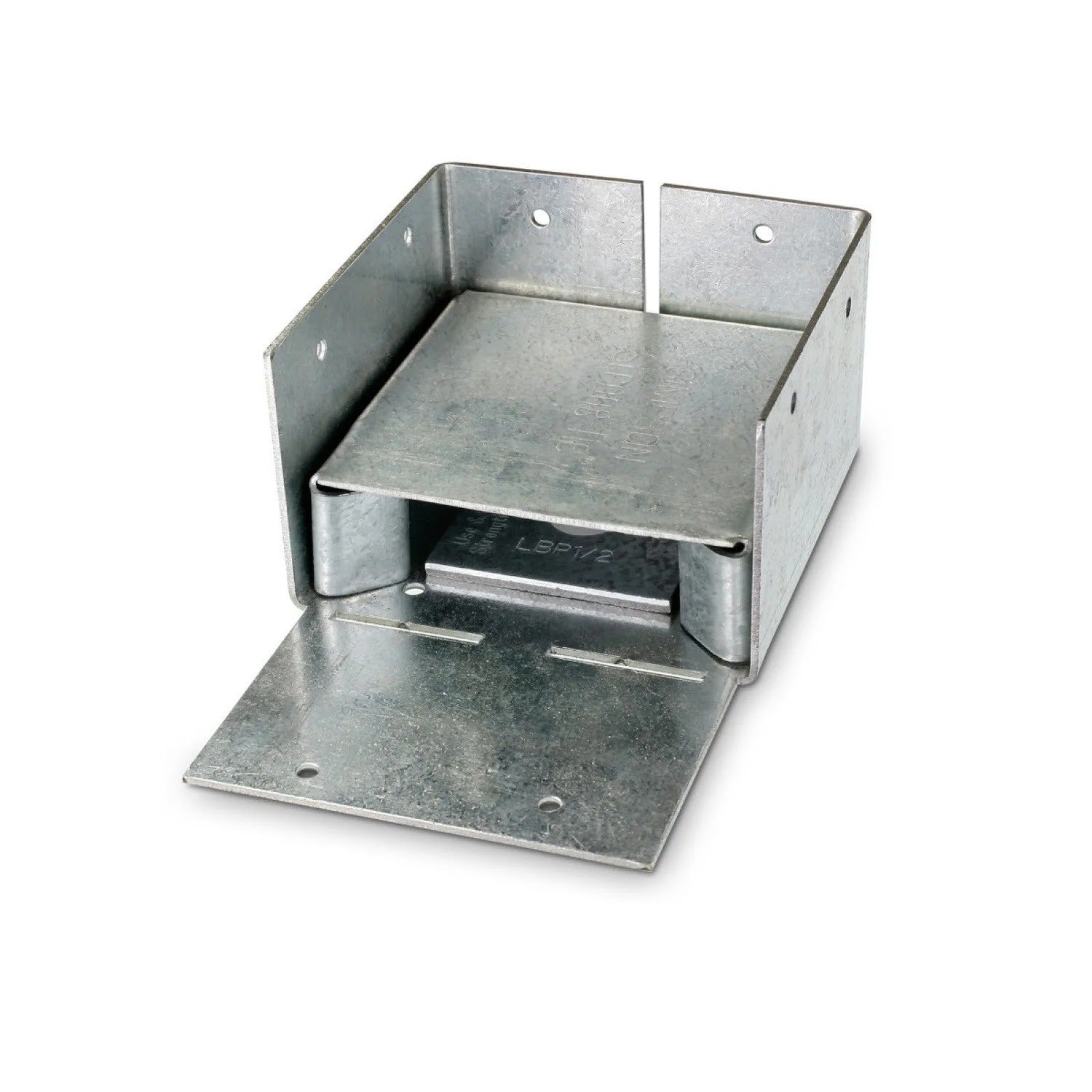

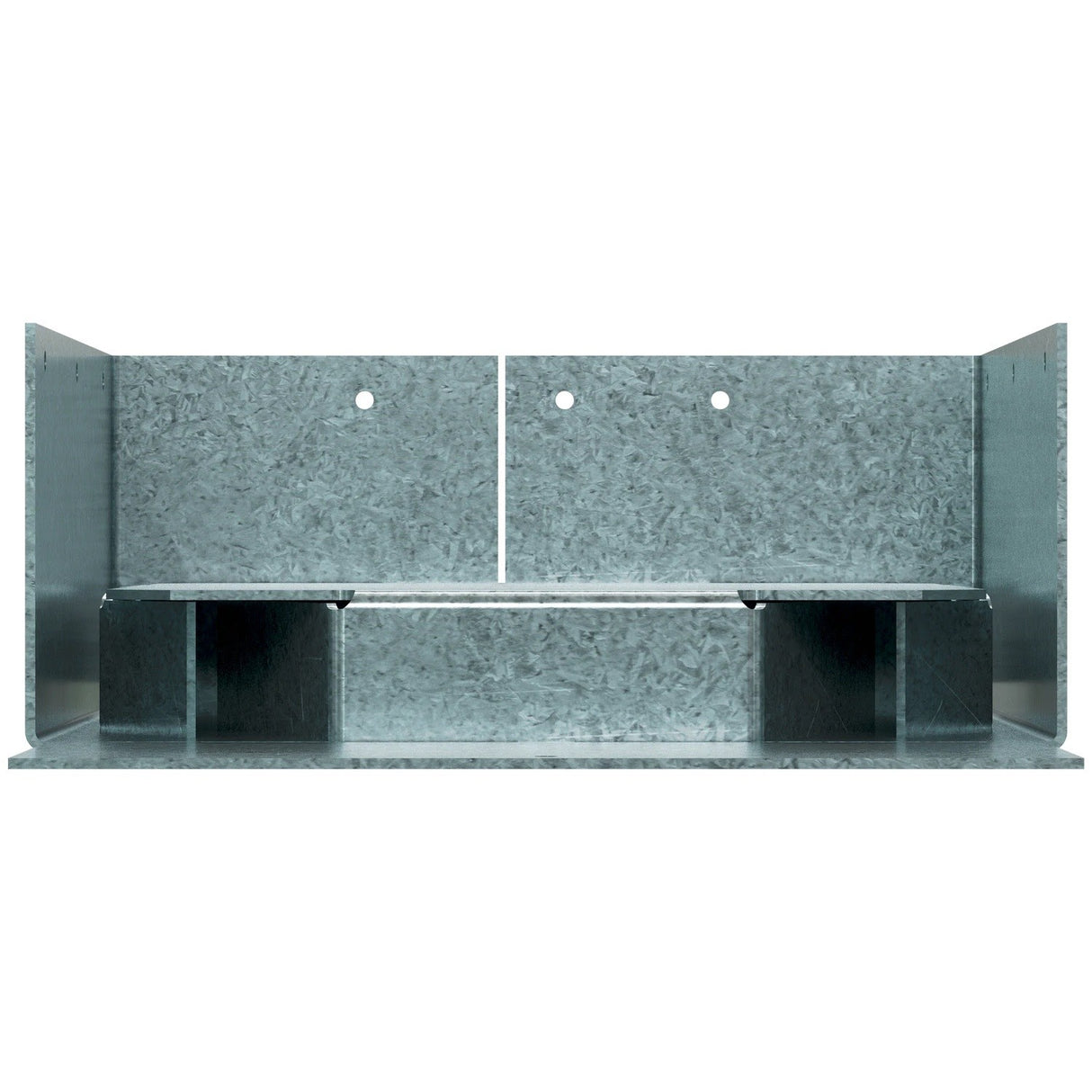

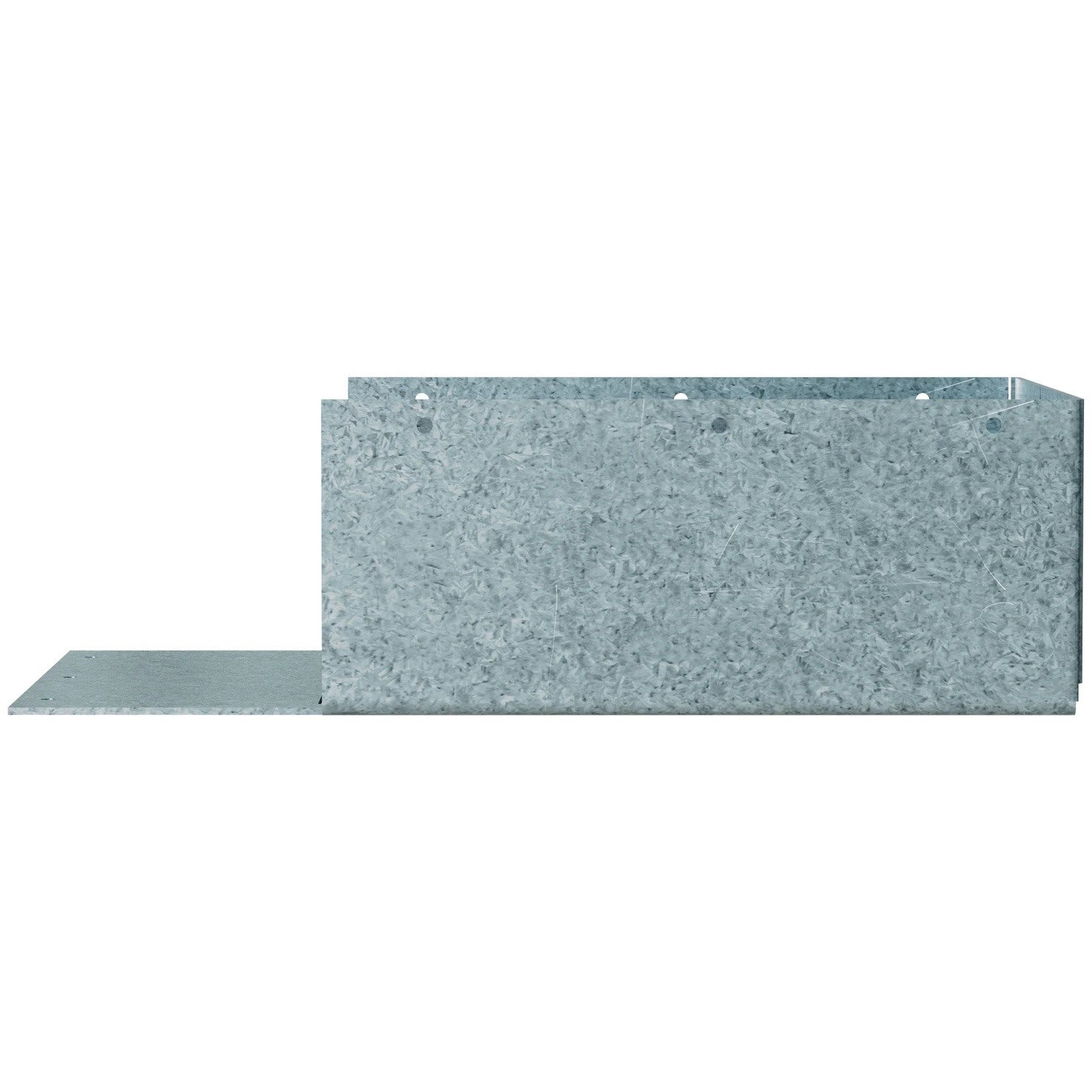

The Simpson ABW7-7Z Adjustable Post Base is designed to securely attach wood posts to existing concrete, featuring wind uplift support and a 1-inch standoff design for durability.
Simpson Strong-Tie ABW7-7Z Includes
- (1) Adjustable Standoff Post Base for 7-1/8" x 7-1/8" Post
Simpson Strong-Tie ABW7-7Z Features
- Increased Load Capacity: Engineered to withstand higher lateral and uplift loads.
- Versatile Application: Designed for use with 7-1/8" x 7-1/8" lumber.
- Enhanced Durability: 1-inch standoff design prevents post rot.
- Light Corrosion Resistance: ZMAX coating provides protection against corrosion.
Simpson Strong-Tie ABW7-7Z Applications
- Securing wood posts to concrete surfaces.
- Providing lateral and uplift resistance for structures like pergolas and gazebos.
- Ensuring durability and stability in construction projects.
Simpson Strong-Tie ABW7-7Z Installation Overview
- Position the post base on the concrete surface.
- Secure the base using appropriate fasteners.
- Align the wood post within the base and fasten securely.
Simpson Strong-Tie ABW7-7Z Specifications
| Finish | ZMAX |
| Length | 7-5/16" |
| Material | Steel |
| Fasteners required | (12) 0.148 x 3" |
| Height | 3" |
| Post size | 7-1/8" x 7-1/8" |
| Thickness | Base - 12 Gauge; Strap - 14 Gauge |
| Width | 7-5/16" |
Toolup Part # :
822601
