Simpson Anchors | SKU:
ACH4Z
Simpson Strong-Tie ACH4Z (3-9/16" x 6-1/2") 18Ga Adjustable Post Cap - ZMAX Finish
$20.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ACH4Z Description

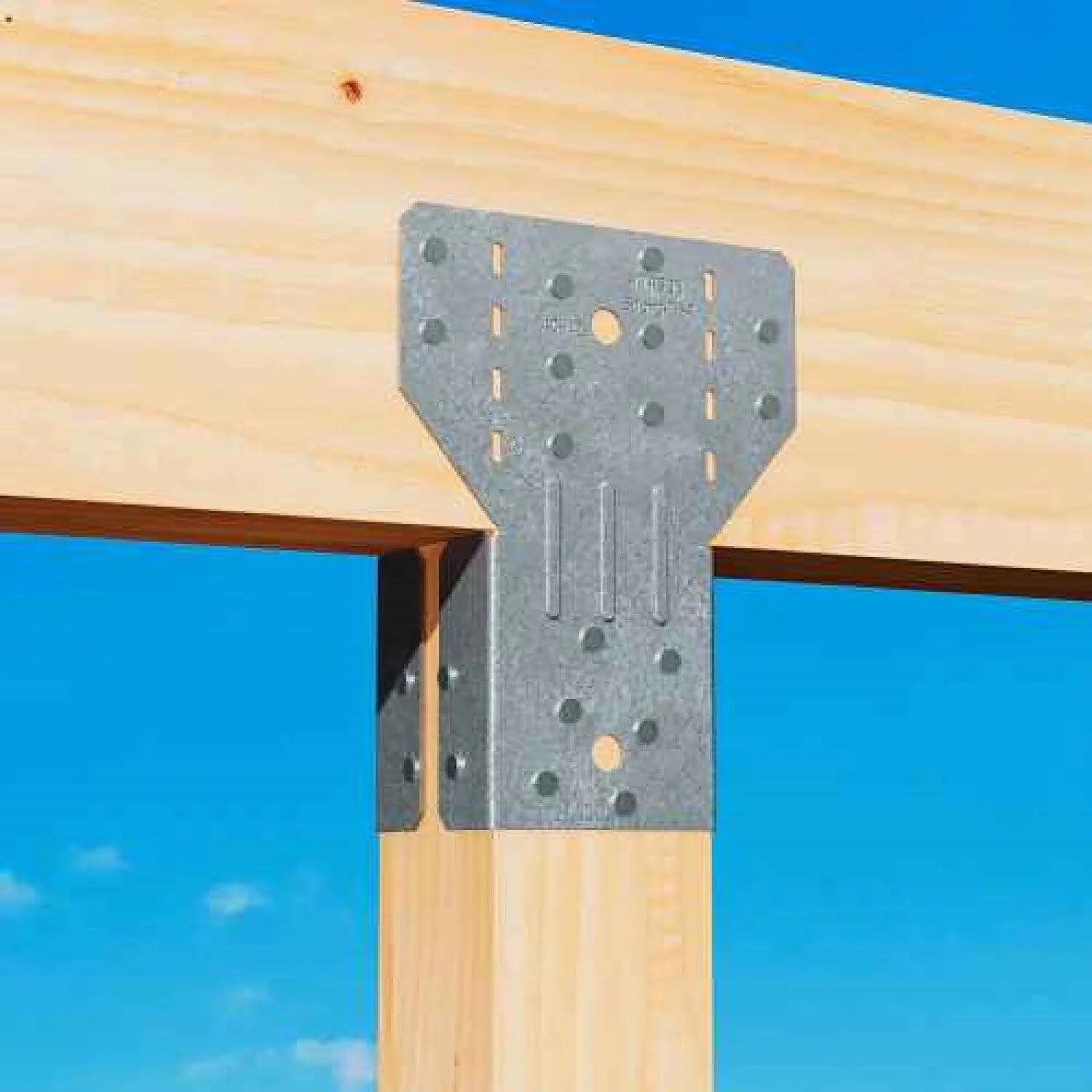

The Simpson Strong-Tie ACH4Z is a heavy-duty post cap designed for 4x nominal posts, providing secure connections between beams and posts. It features a ZMAX finish for durability and is suitable for both new and retrofit applications.
Simpson Strong-Tie ACH4Z Includes

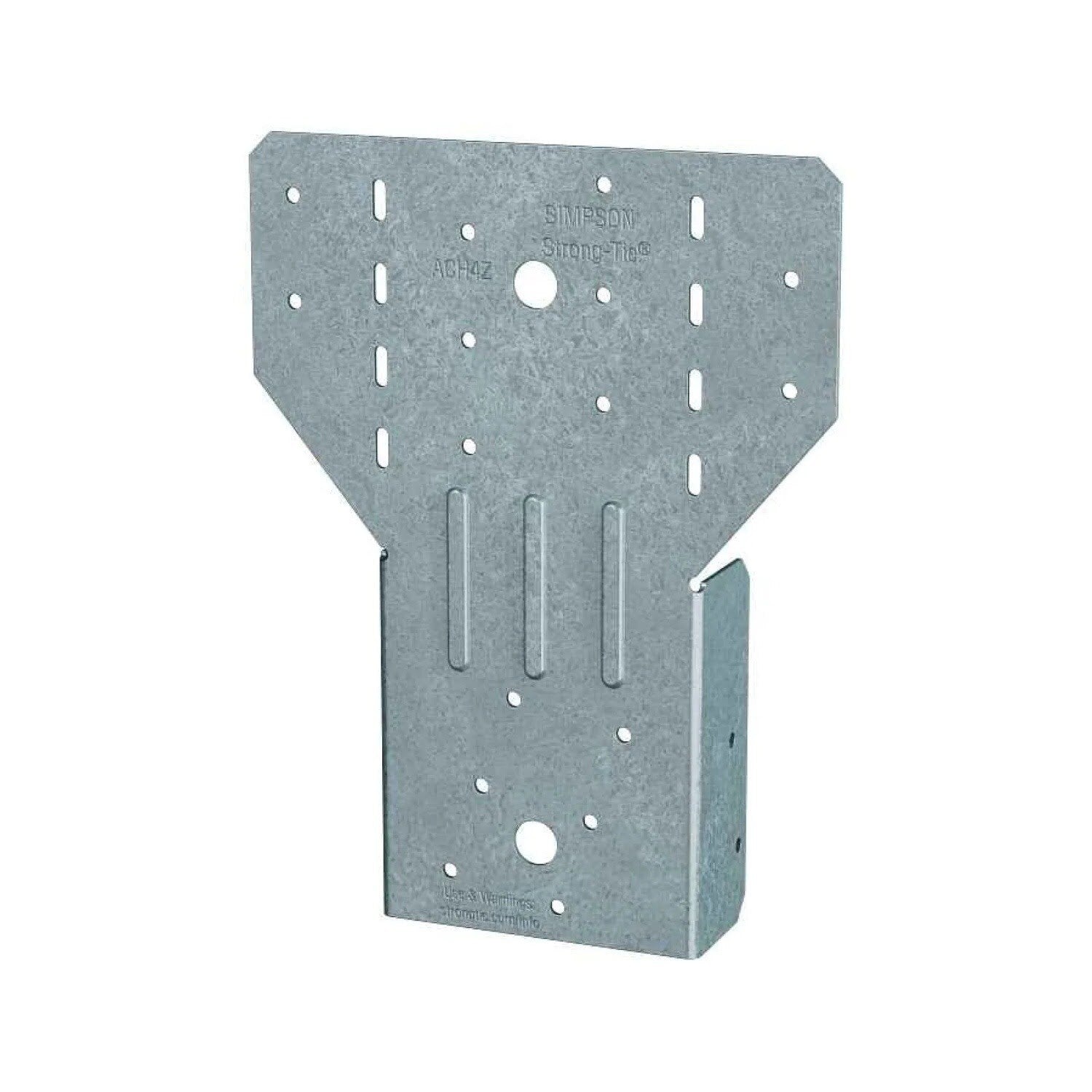

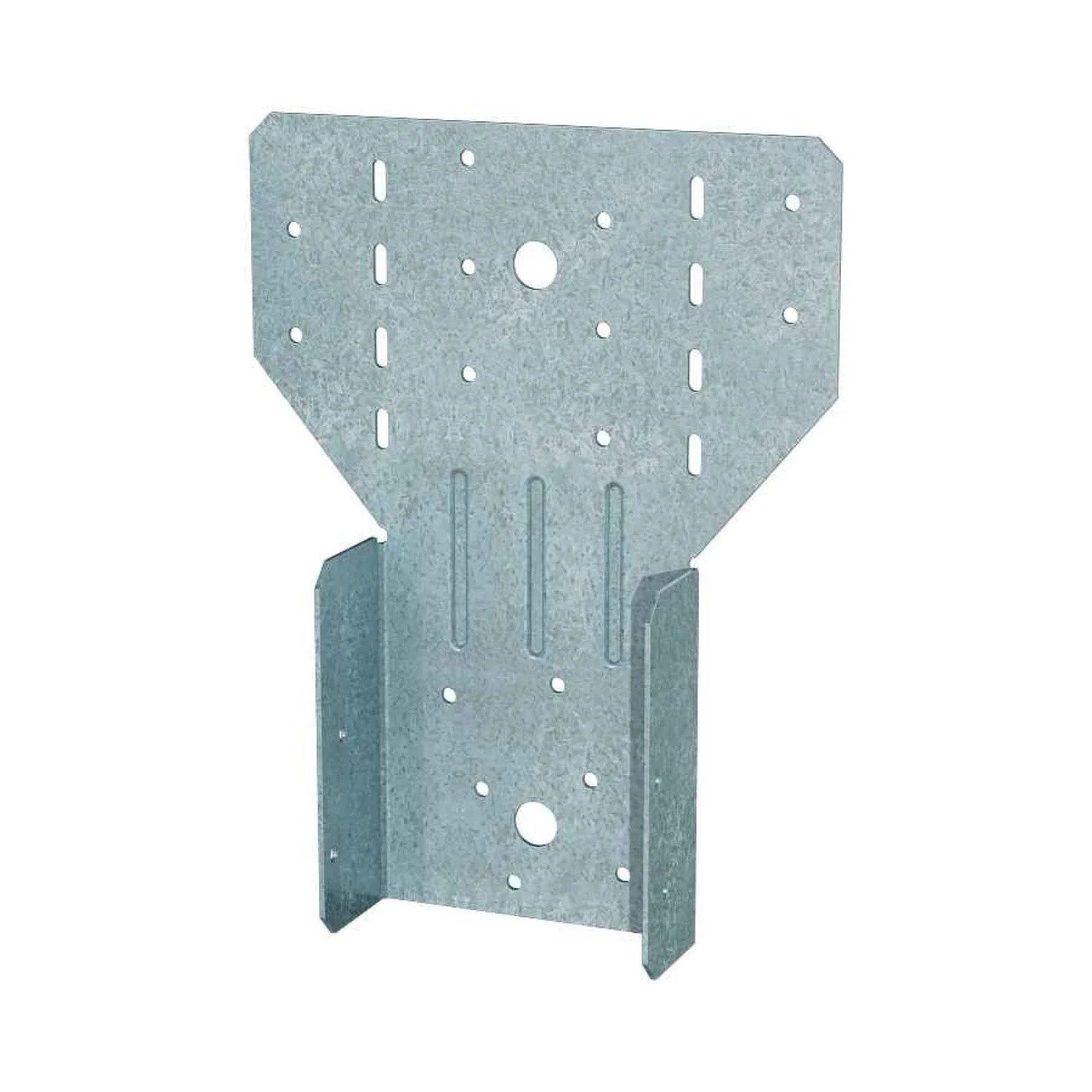

- (1) Adjustable Post Cap for 4x Nominal Post with ZMAX Finish
Simpson Strong-Tie ACH4Z Features
- ZMAX finish for enhanced corrosion resistance
- Two-piece design for flexibility in installation
- Supports medium- to high-capacity uplift loads

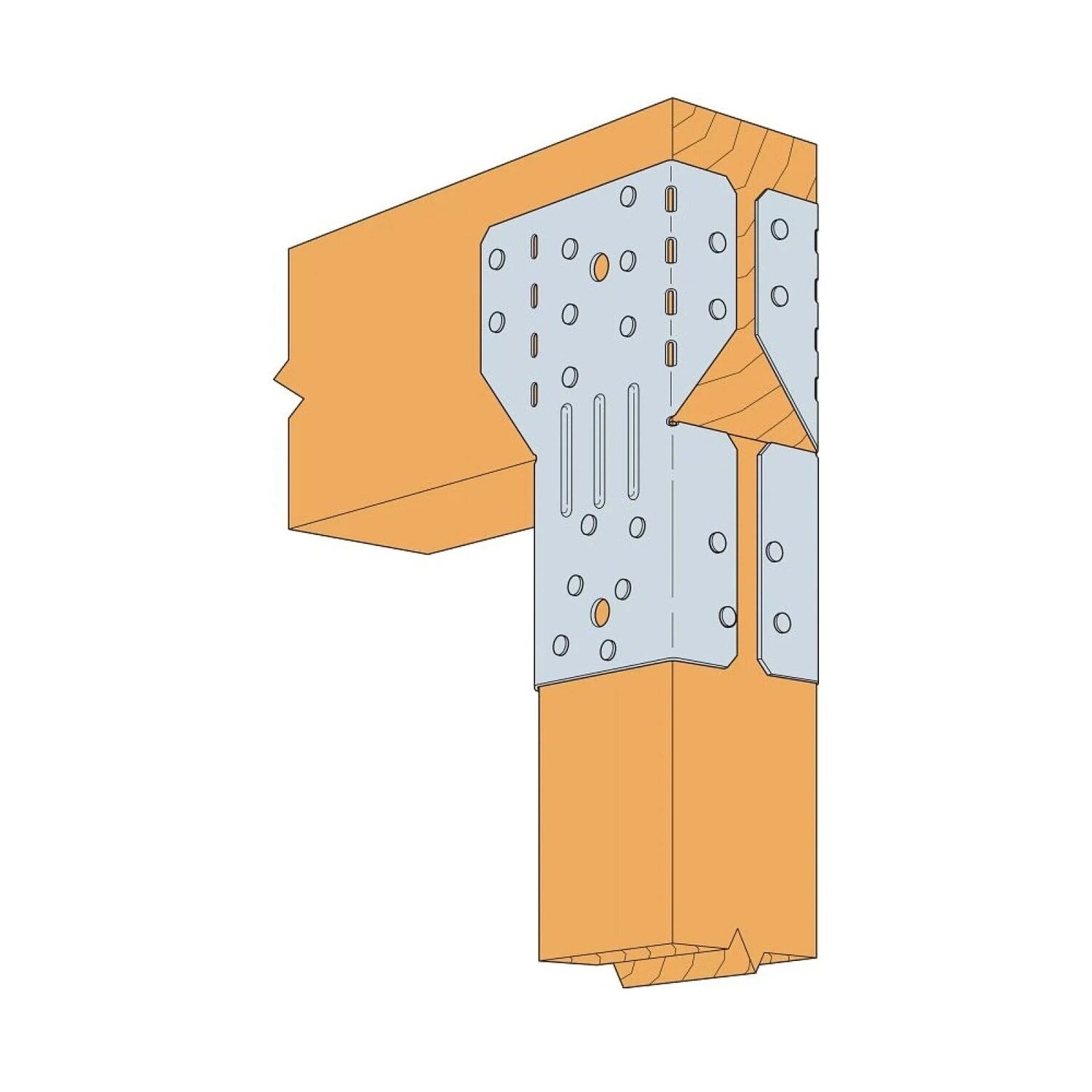

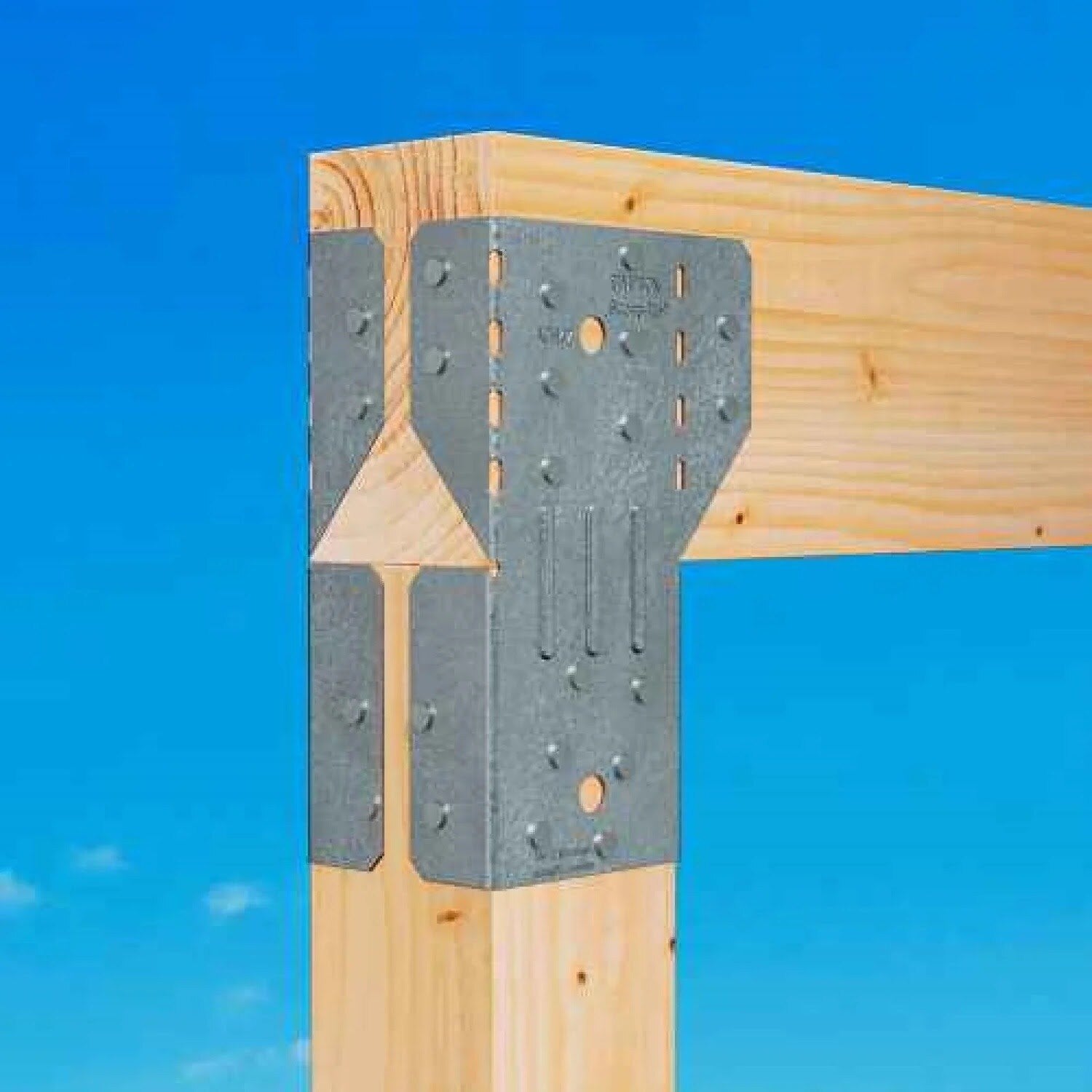

- Field-bendable flanges for end-beam conditions
- Compatible with Strong-Drive SD Connector screws for increased load capacity
Simpson Strong-Tie ACH4Z Applications

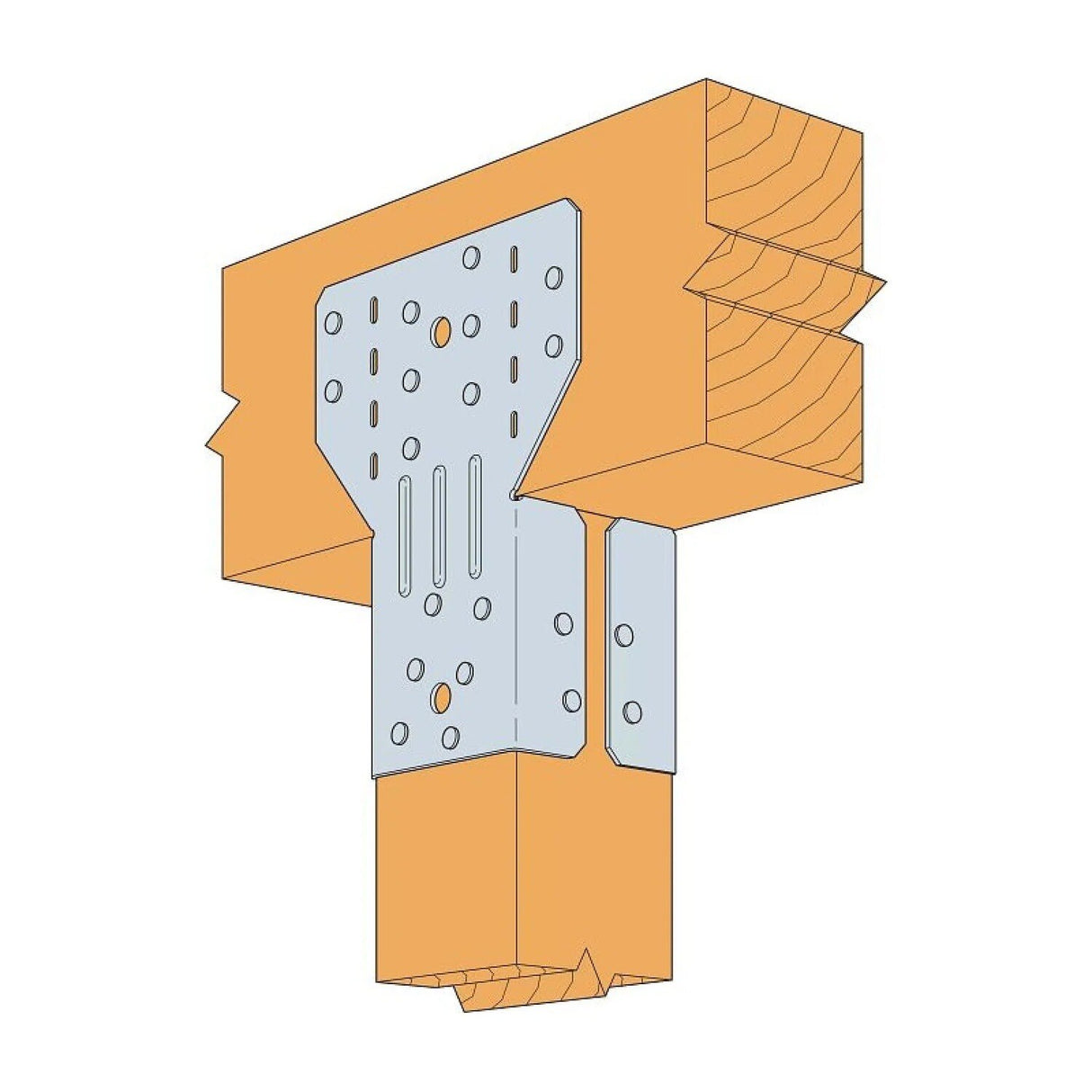

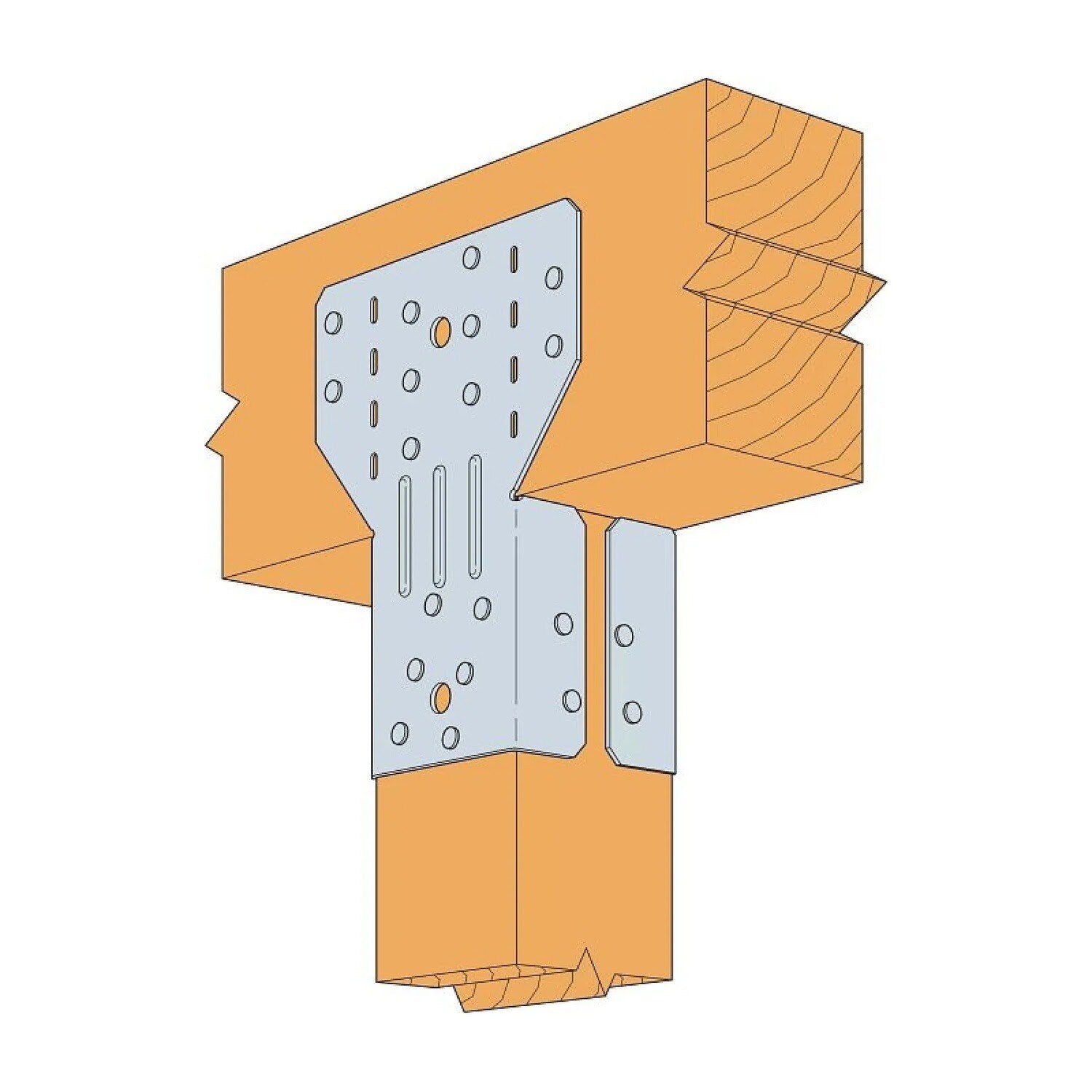

- Structural support for beams and posts in construction
- New or retrofit applications requiring secure post-to-beam connections
- Projects needing medium- to high-capacity uplift load support
Simpson Strong-Tie ACH4Z Installation Overview
- Align the post cap with the 4x nominal post.
- Secure the cap using (40) 0.162 in. x 2-1/2 in. nails or (40) #10 x 2-1/2 in. Strong-Drive SD screws.
- Field bend the flanges if required for end-beam conditions.
- Ensure the cap is properly seated and fastened for optimal performance.
Simpson Strong-Tie ACH4Z Specifications
| Finish | ZMAX |
| Material | Steel |
| Post size | 4x |

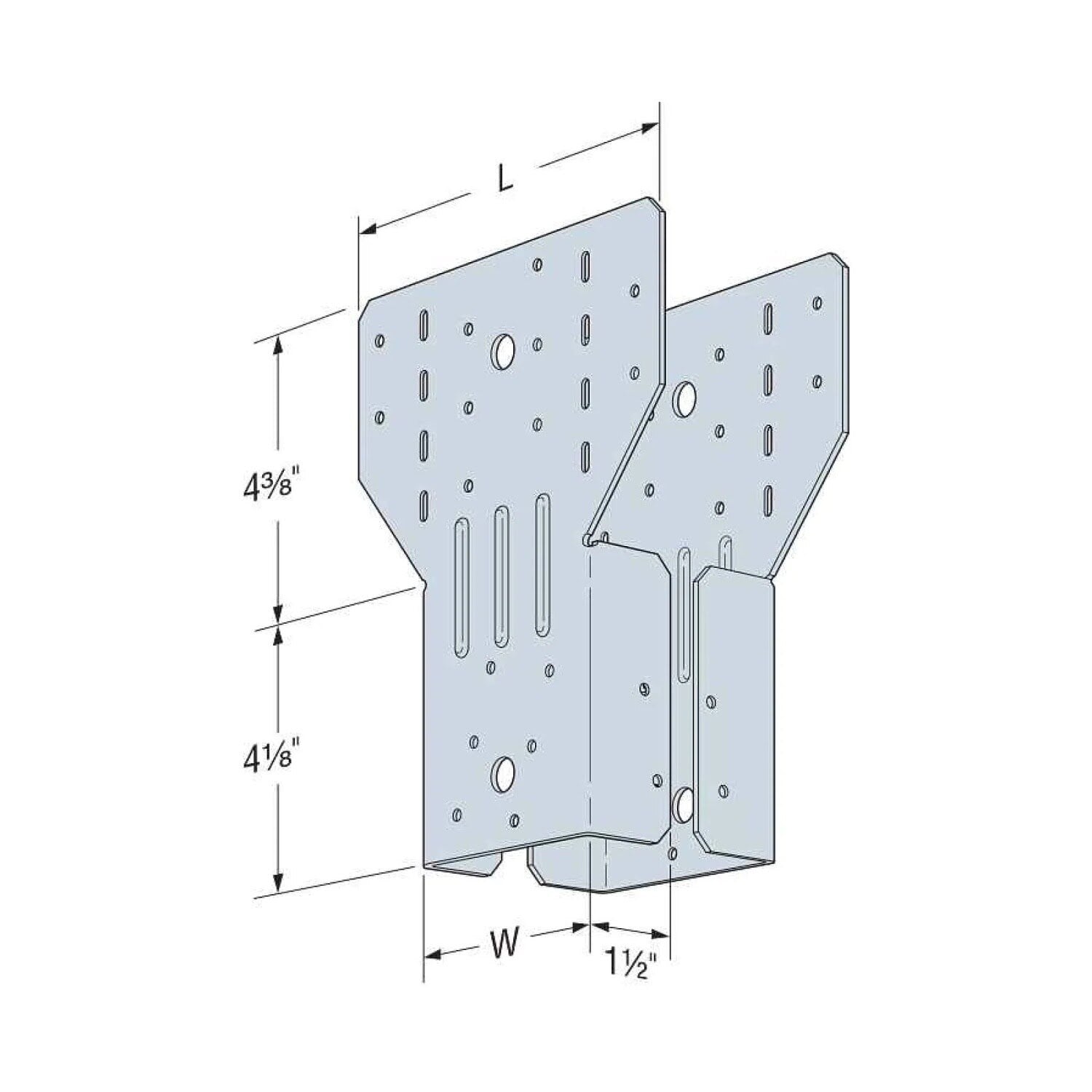

| Width | Post-cap inner width: 3-9/16 in. |
