Simpson Strong-Tie DIAB50 Description

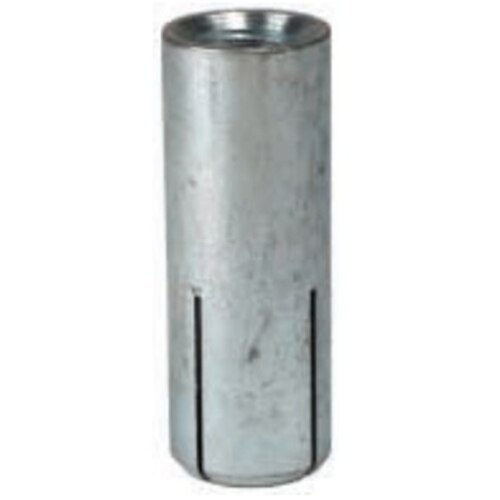

The Simpson Strong-Tie DIAB Drop-In Internally Threaded Anchor is designed for 1/2-in. rods and features a zinc-plated carbon steel construction for durability and ease of installation.
Simpson Strong-Tie DIAB50 Includes
- (50) Drop-In Internally Threaded Anchors
Simpson Strong-Tie DIAB50 Features
- Faster installation with 40% fewer hammer hits
- Positive-set marking system for proper setting
- Zinc-plated carbon steel construction
- Length: 2 in.
- Drill bit diameter: 5/8 in.
- Rod diameter: 1/2 in.
- Quantity: 50
Simpson Strong-Tie DIAB50 Applications
- Mechanical installations requiring secure anchoring
- Electrical installations in concrete
- Plumbing systems anchoring in base materials
Simpson Strong-Tie DIAB50 Installation Overview
- Drill a hole using the specified drill bit diameter
- Insert the anchor into the hole and tap flush
- Use the designated setting tool to drive the expander plug
- Ensure proper setting with visible indentations
- Insert bolt or threaded rod for engagement
Simpson Strong-Tie DIAB50 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Length | 2 in. |
| Drill Bit Diameter | 5/8 in. |
| Rod Diameter | 1/2 in. |
| Thread Length | 3/4 in. |
| TPI | 13 |
NOTE: Oversized holes will reduce the anchor's load capacity
Toolup Part # :
41806
