Simpson Anchors | SKU:
STB2-75512

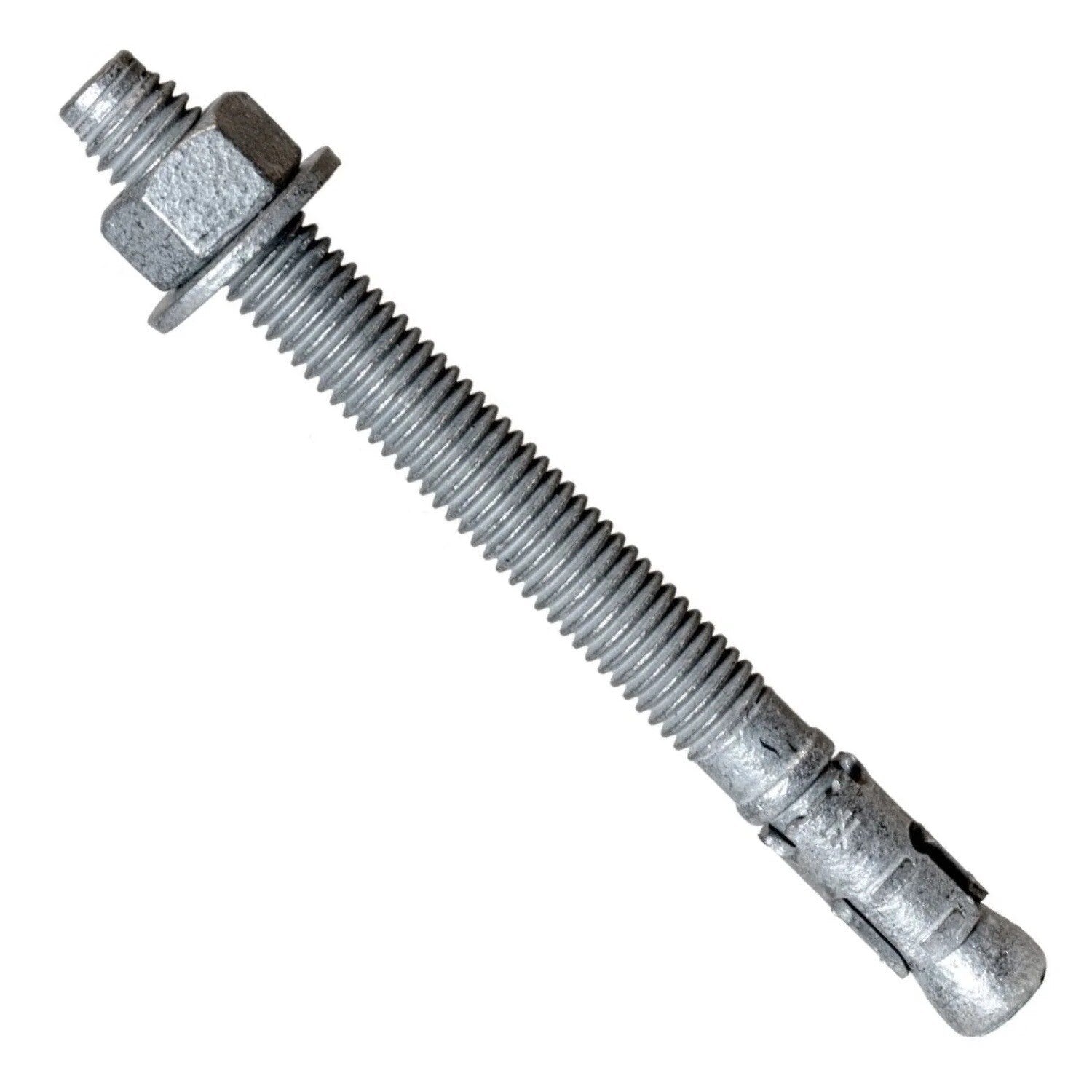

Simpson Anchors STB2-75512 Strong Bolt 2 3/4" X 5-1/2"
$20.90
$28.60
Unit price
/
Unavailable
Description
Description
Simpson Anchors STB2-75512 Description
Simpson Strong-Tie Stands Apart From The Rest In Quality And Reliability. Every Production Run Goes Through Rigorous Testing To Ensure All Products Can Handle Higher Loads, Resist Corrosion And Make Installation More Efficient. Simpson Offers A Wide Variety Of Fasteners, Accessories And Tools Under Strong-Drive Structural Fasteners, Deck-Drive Premium Fasteners And Quik-Drive Auto-Feed Screw Driving Systems.
Simpson Anchors STB2-75512 Includes
- (10) Anchors
Simpson Anchors STB2-75512 Features
- The Strong-Bolt 2 Anchor Received Classification As A Category 1
- Each Segment Adjusts Independently
- Enables Clip To Undercut Into The Concrete

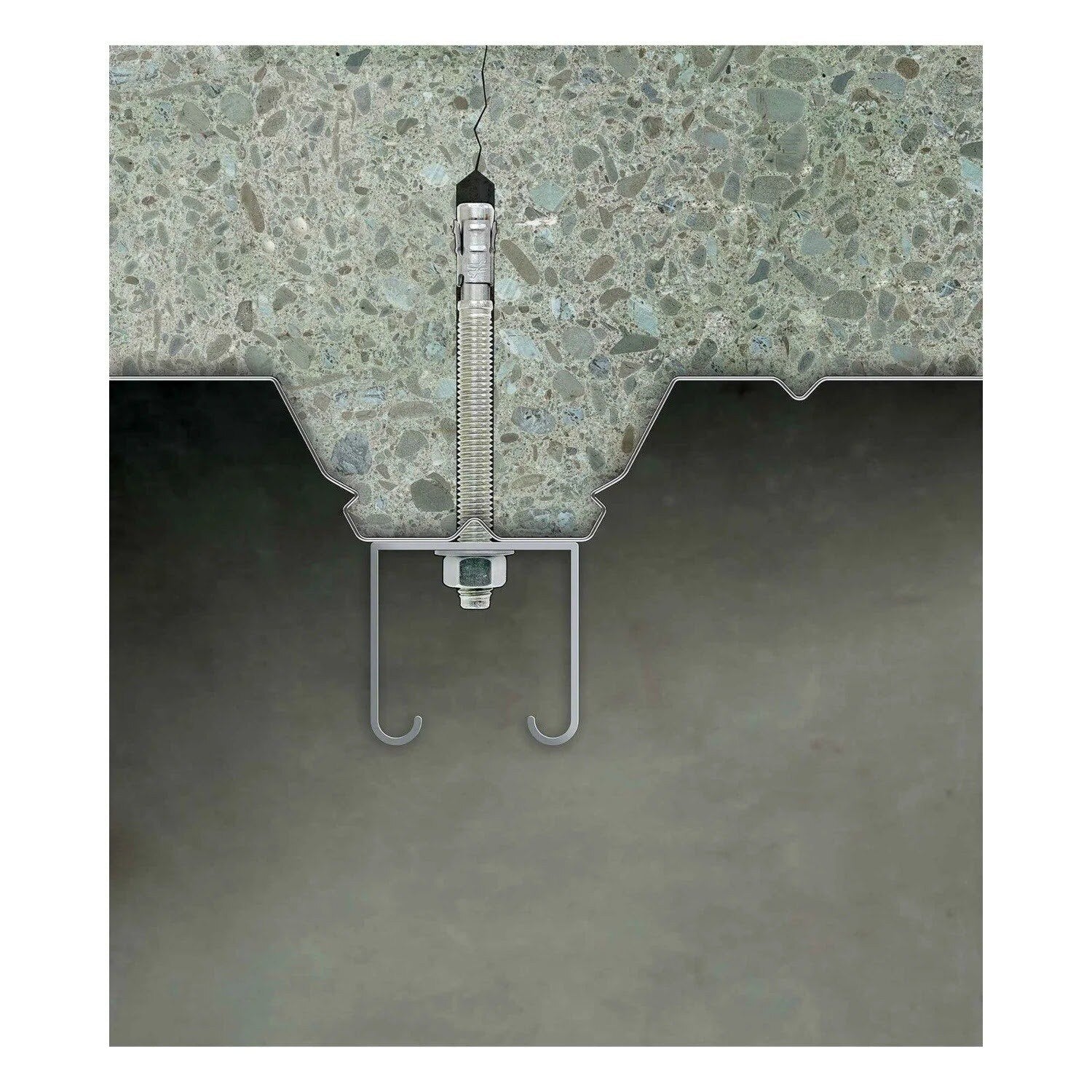

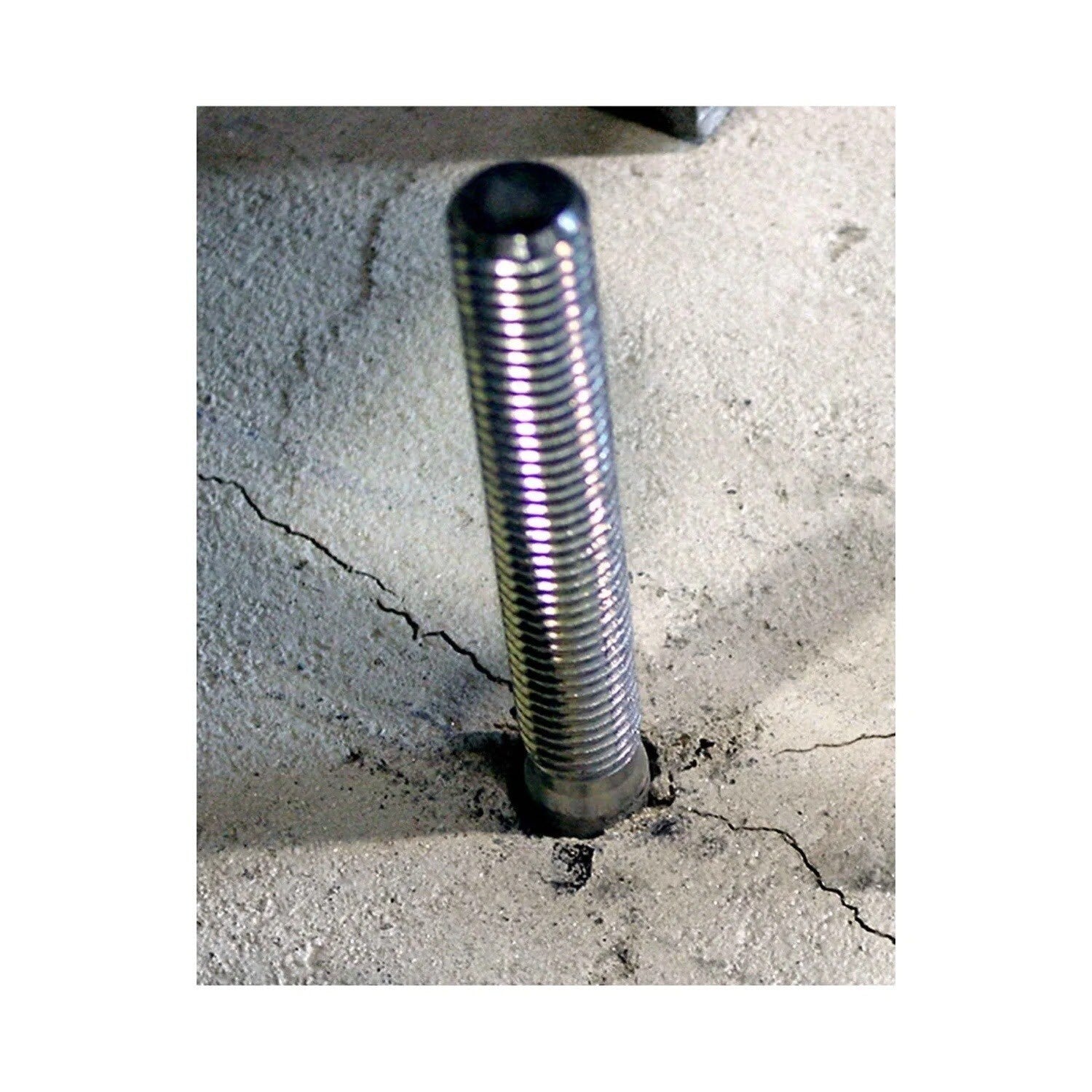

- The Strong-Bolt 2 Anchor Can Be Installed In Cracked Concrete With A Minimum Thickness Of 3 1/4"
- This Special Alloy Clip Offers Improved Performance
- Standard (Ansi) Fractional Sizes: Fits Standard Fixtures And Installs With Common Drill Bit And Tool Sizes
- Tested Per Aci355.2 And Ac193
Simpson Anchors STB2-75512 Specifications
| Bit Size | 3/4" |
| Minimum Embedment | 3-1/4" |
| Thread Length | 3-1/4" |
| Thread Type | 3/4" - 10 |
| Diameter | 3/4" |
| Length | 5-1/2" |
| Material | Carbon Steel Zinc Plated |
| Maximum Torque | 150 - 175 ft./lbs. |
| Wrench Size For Nu | 1-1/8" |
