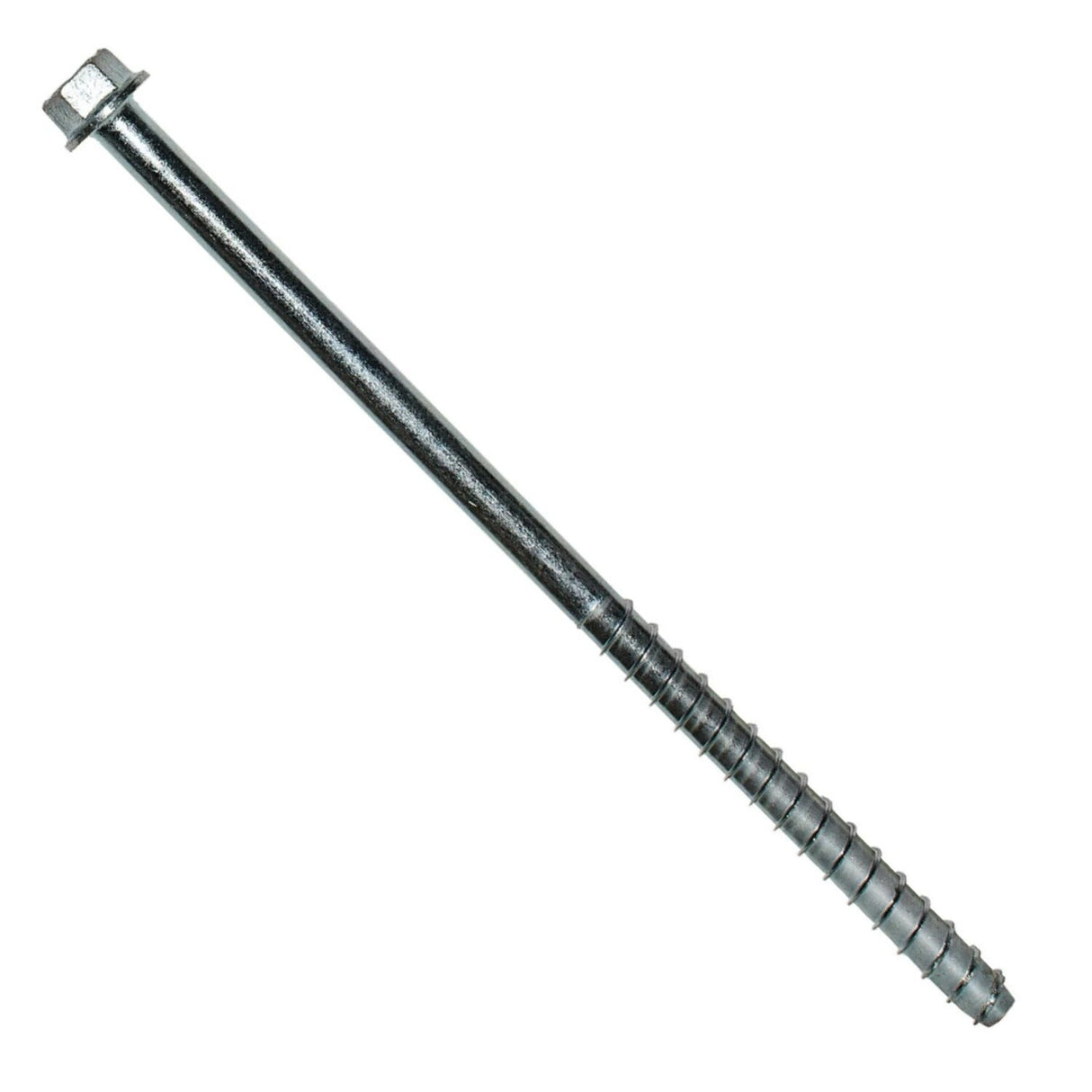

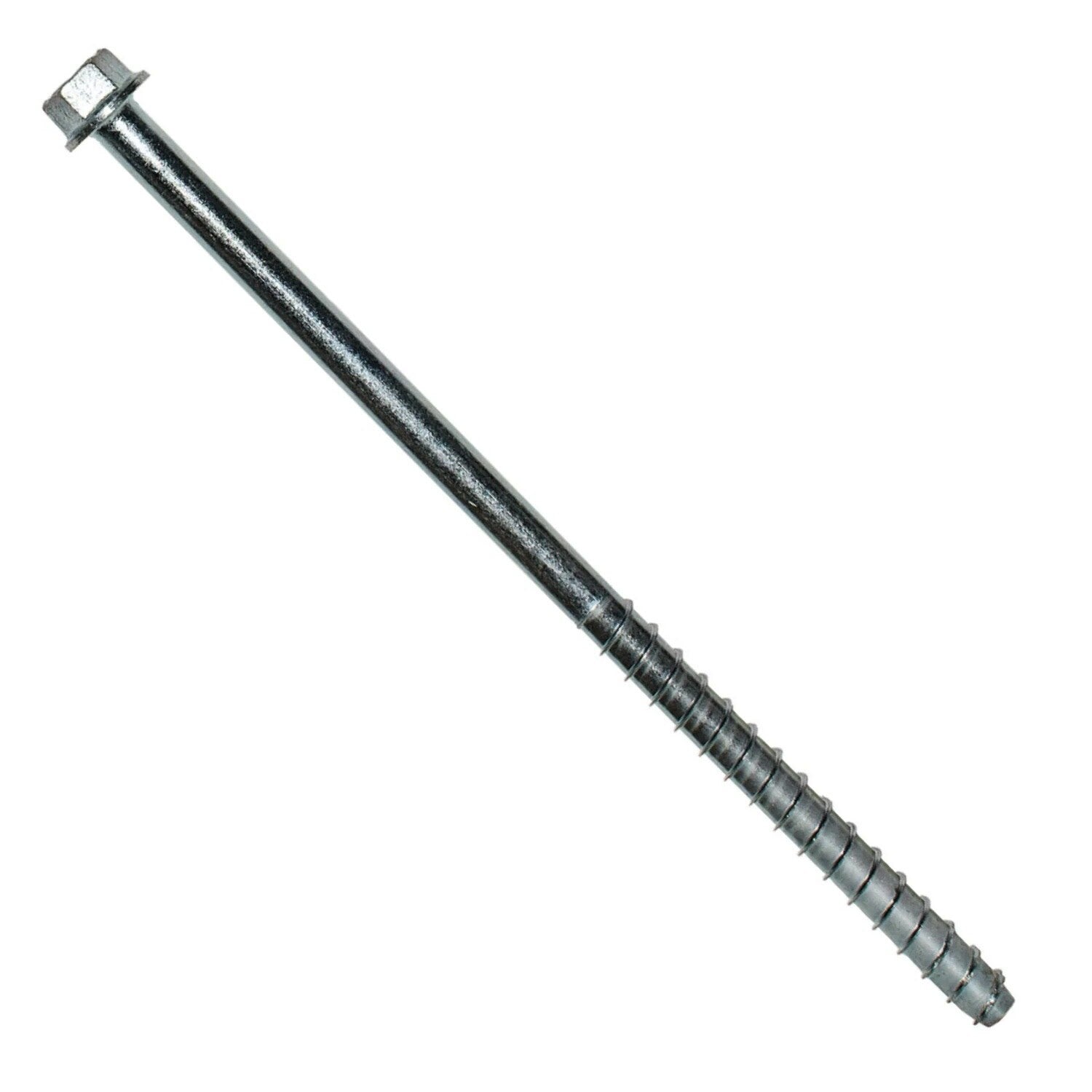

Simpson Anchors THD501200H 1/2" X 12" Titen HD Heavy-Duty Zinc Plated Screw Anchor, 5Pk
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Anchors THD501200H Description
Titen HD® Heavy-Duty Screw Anchor. The original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions. The stainless-steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. See Stainless-Steel Titen HD for more information.
Simpson Anchors THD501200H Includes
- (5) Anchors
Simpson Anchors THD501200H Features
- Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713
- Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
- Reuse of the anchor to achieve listed load values is not recommended
Simpson Anchors THD501200H Specifications
| Coating/Material | Zinc Plated Carbon Steel |
| Size (in) | 1/2 x 12 |
| Drill Bit Dia. (in) | 1/2 |
| Wrench size (in) | 3/4 |
| Recommended Fixture Hole Size (in) | 5/8 to 11/16 |
| Finish | Zinc plated or mechanically galvanized |
