Simpson Anchors THD50500H 1/2" x 5" Titen HD Heavy Duty Screw Anchors 20/pk
Description
Description
Simpson Anchors THD50500H Description

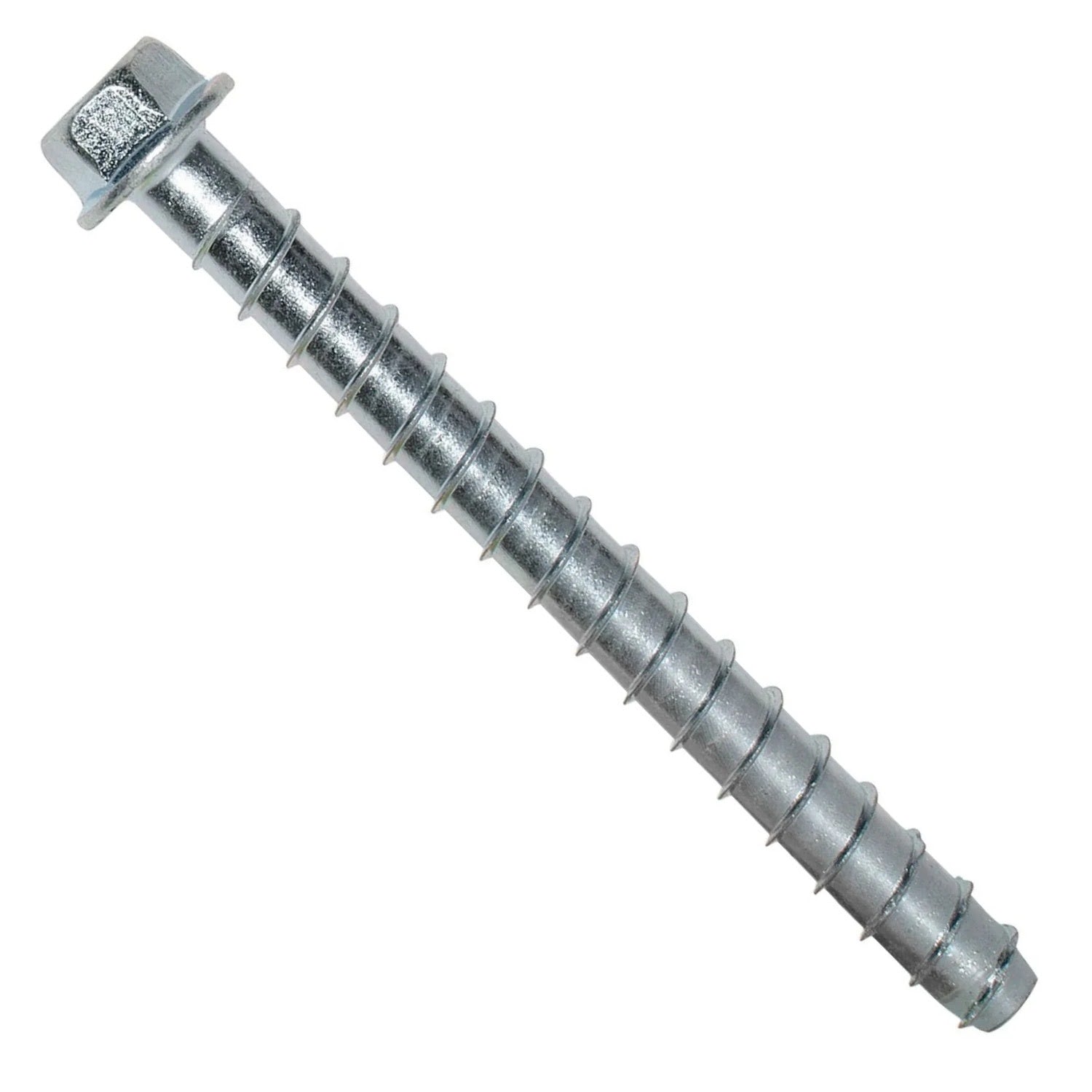

The Titen HD anchor is a patented, high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete; a requirement that the 2006 IBC places on post-installed anchors. The high strength, easy to install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
Simpson Anchors THD50500H Includes
- (20) 1/2" x 5" Titen HD Heavy Duty Screw Anchors
Simpson Anchors THD50500H Features
- Tested per AC193 to ensure outstanding performance in both cracked and uncracked concrete
- Higher load capacity and vibration resistance: Threads along the length of the anchor under-cut the concrete and efficiently transfer the load to the base material
- Vibration and Shock Resistance: The mechanical interlock of the threads and the ratchet teeth on the underside of the head help prevent the anchor from loosening in vibratory conditions. The Titen HD anchor has been tested to 12.6 million vibratory cycles with no performance reductions.
- Specialized Heat Treating Process: Creates superior surface hardness at the tip to facilitate cutting, while at the same time not compromising ductility within the anchor body
- Less spacing and edge distance required: The anchor does not exert expansion forces on the base material
Simpson Anchors THD50500H Specifications
| Size | 1/2" x 5" |
| Drill Bit Diamter | 1/2" |
| Wrench Size | 3/4" |
| Finish | Zinc Plated |
