Simpson Anchors THDB25400H Titen Hd Screw Anchor 1/4" X 4"
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Anchors THDB25400H Description

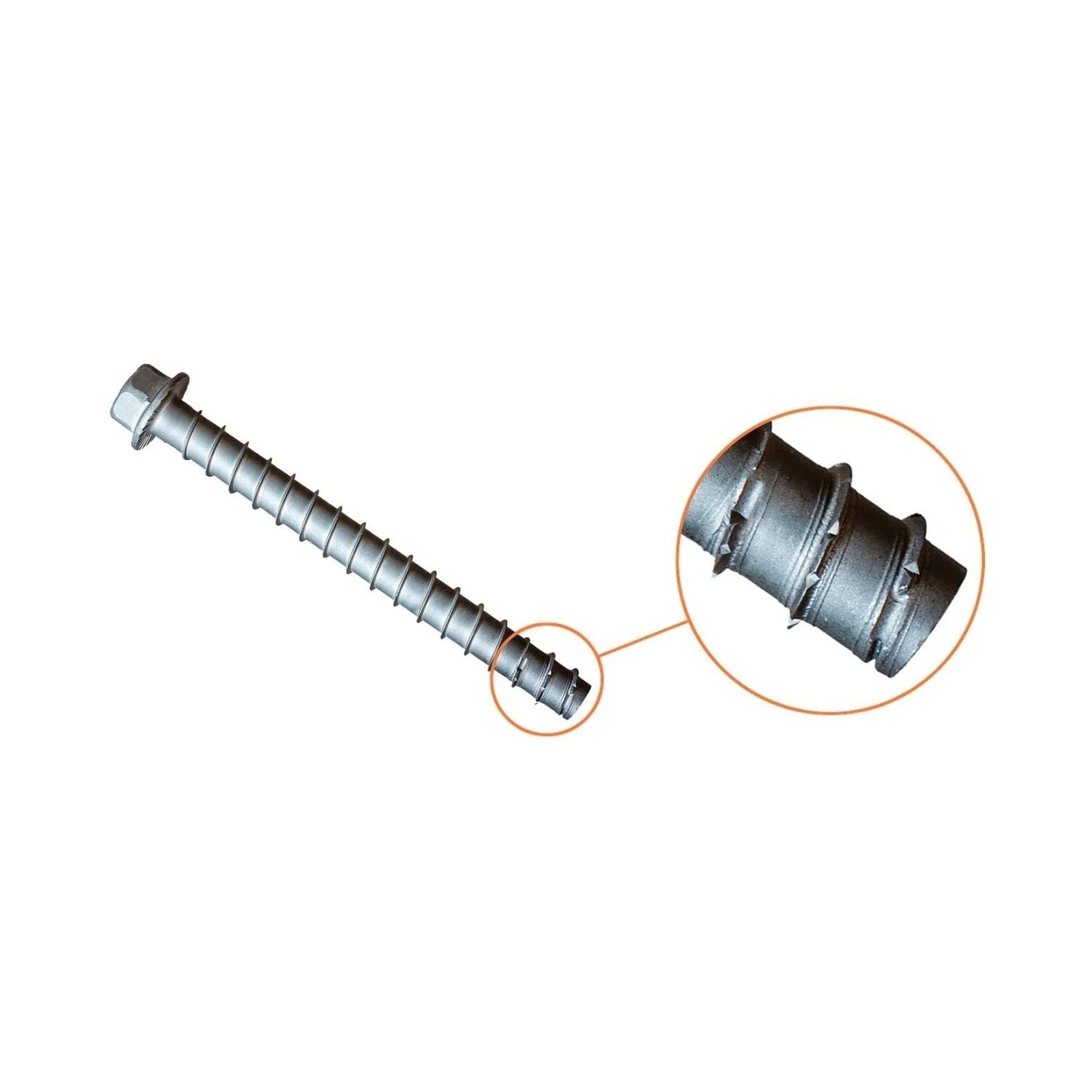

The Thdb25400H 1/4" X 4" Titen Hd Is A Patented, High-Strength Screw Anchor For Concrete And Masonry. The Self-Undercutting, Non-Expansion Characteristics Of The Titen Hd Makes It The Ideal Anchor For Structural Applications, Even At Minimum Edge Distances And Under Reduced Spacing Conditions. The Proprietary Cutting Teeth Enable The Titen Hd To Be Installed In One Eighth Of The Time When Compared To Traditional Expansion Anchors, And At Significantly Reduced Installation Torques. The Anchor Can Be Installed With A Standard Ansi Tolerance Drill Bit And Is Removable. Recommended For Permanent Dry, Interior Non-Corrosive Environments Or Temporary Outdoor Applications.
Simpson Anchors THDB25400H Includes
- (50) Anchors
Simpson Anchors THDB25400H Features
- Higher Load Capacity And Vibration Resistance
- Specialized Heat Treating Process
- Less Spacing And Edge Distance Required
- Easy Post-Installation Inspection
- No Special Drill Bit Needed
- Installs With 50% Less Torque
- Less Installation Time
- Hex-Washer Head
- Removable
- Zinc Plated Carbon Steel
Simpson Anchors THDB25400H Specifications
| Material | Zinc Plated Carbon Steel |
| Size | 1/4" x 4" |
| Drill Bit Diameter | 1/4" |
| Wrench Size | 3/8" |
| Minimum Spacing | 6" |
| Minimum Edge Distance | 3" |
| Head Type | Hex Washer Serrated |
