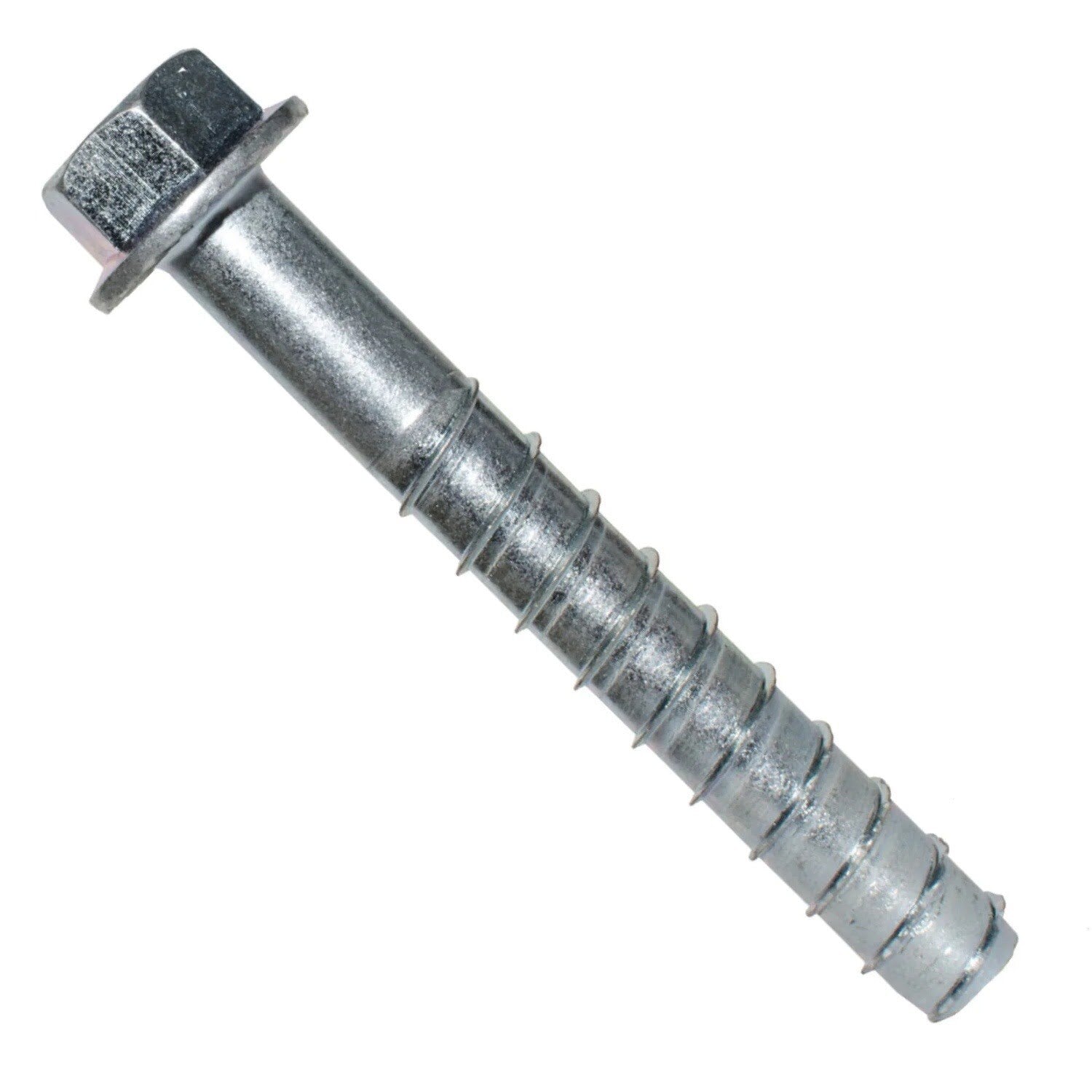

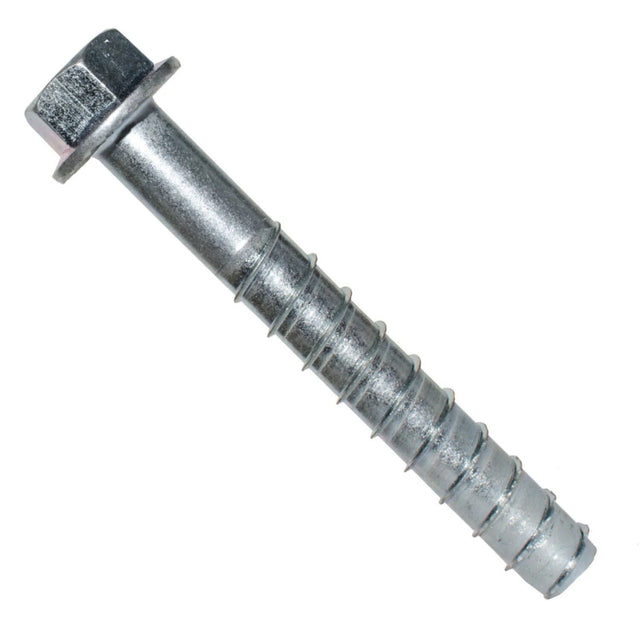

Simpson Anchors THDT75600H 3/4" x 6" Titen HD Anchor
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Anchors THDT75600H Description

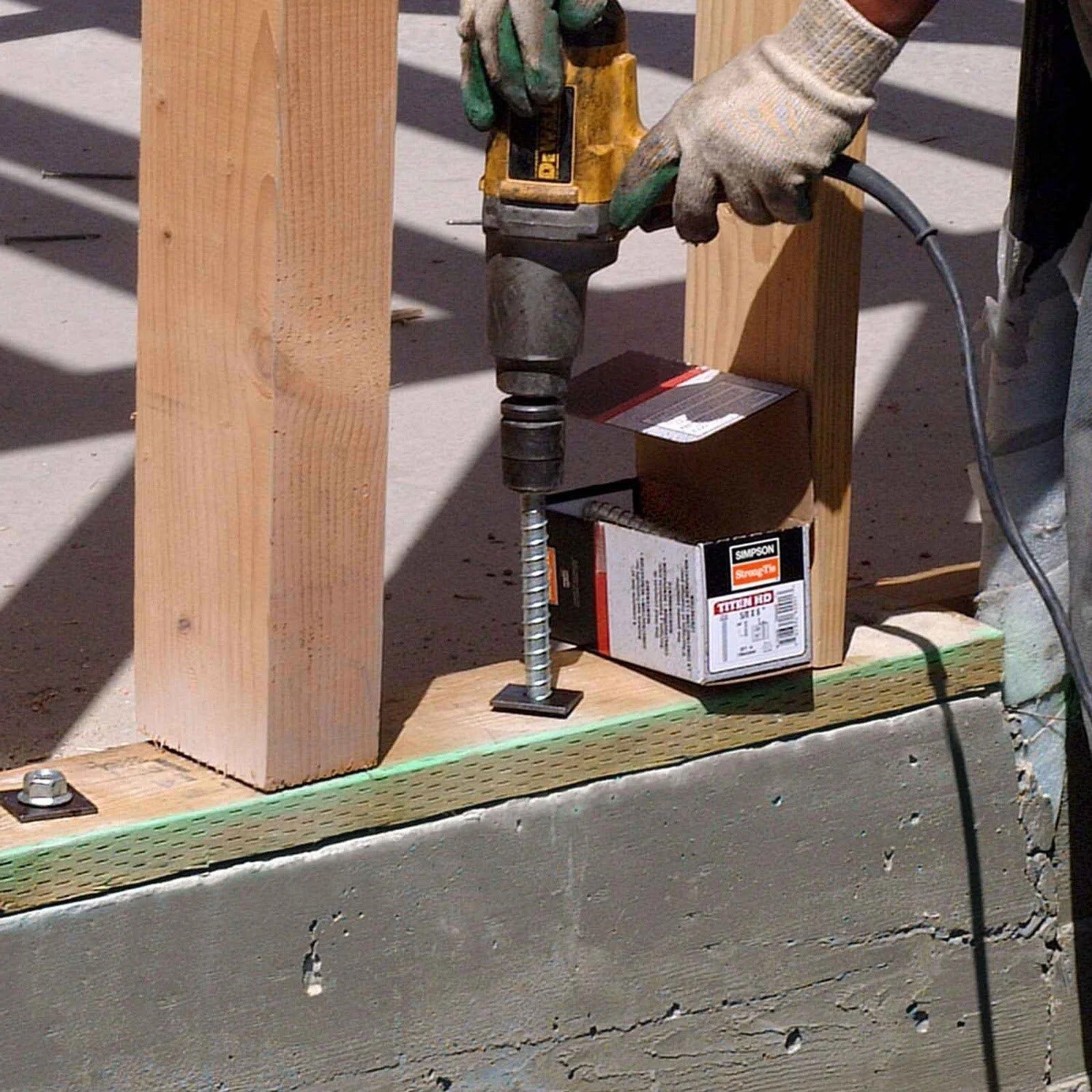

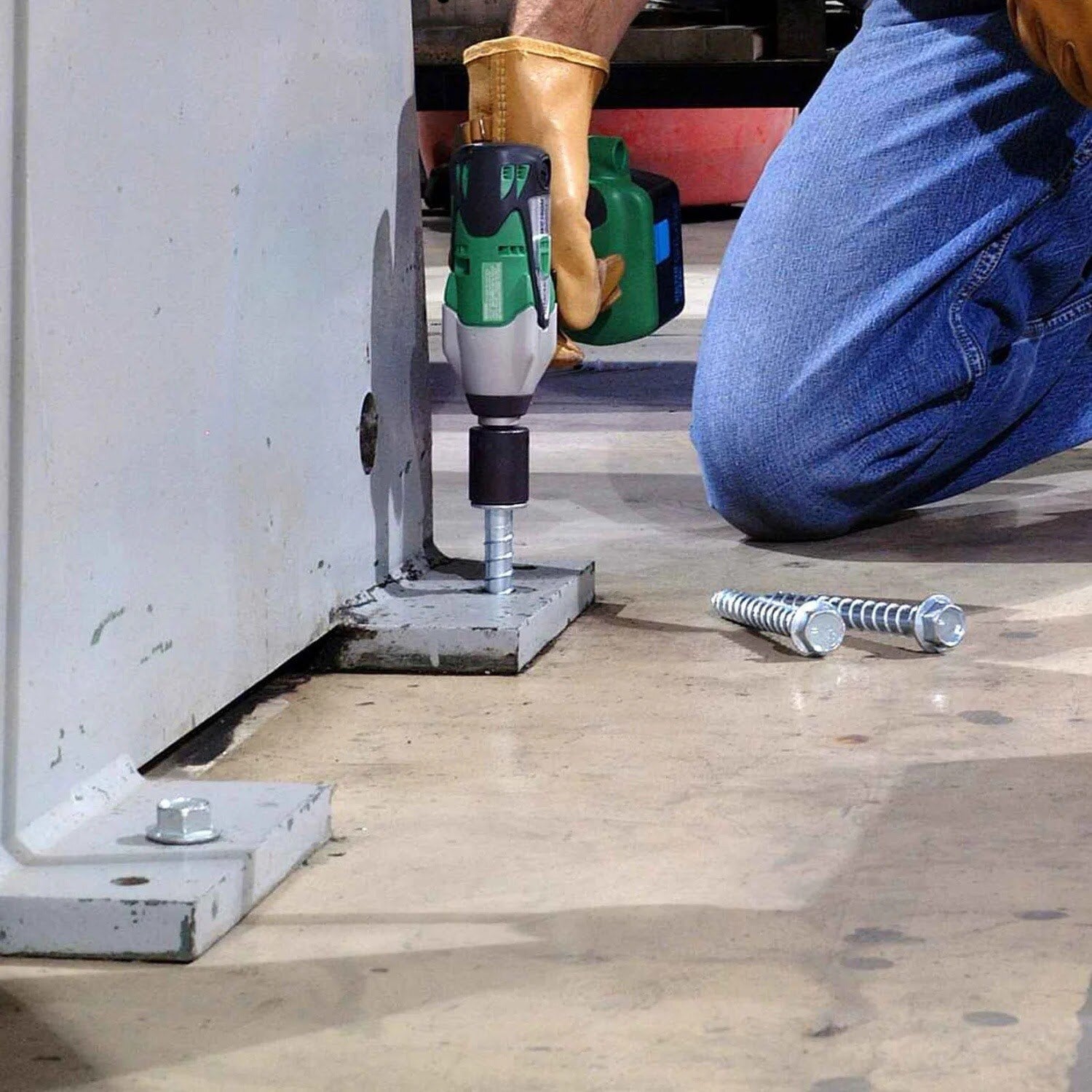

The THDT75600H 3/4" x 6" Titen HD is a patented, high-strength screw anchor for concrete and masonry. The self-undercutting, non-expansion characteristics of the Titen HD makes it the ideal anchor for structural applications, even at minimum edge distances and under reduced spacing conditions. The proprietary cutting teeth enable the Titen HD to be installed in one eighth of the time when compared to traditional expansion anchors, and at significantly reduced installation torques. The anchor can be installed with a standard ANSI tolerance drill bit and is removable. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
Simpson Anchors THDT75600H Includes
- (1) Screw Anchor
Simpson Anchors THDT75600H Features
- Higher load capacity and vibration resistance
- Specialized Heat Treating Process
- Less spacing and edge distance required
- Easy post-installation inspection
- No special drill bit needed
- Installs with 50% less torque
- Less installation time
- Hex-washer head
- Removable
- Zinc Plated Carbon Steel
Simpson Anchors THDT75600H Specifications
Material | Carbon steel |
Anchor Diameter | 3/4" |
Anchor Length | 6" |
Anchor Material | Zinc |
Anchor Head Type | Hex |
Wrench Size (in.) | 1-1/8 |
Recommended Fixture Hole Size (in.) | 7/8 to 15/16 |
