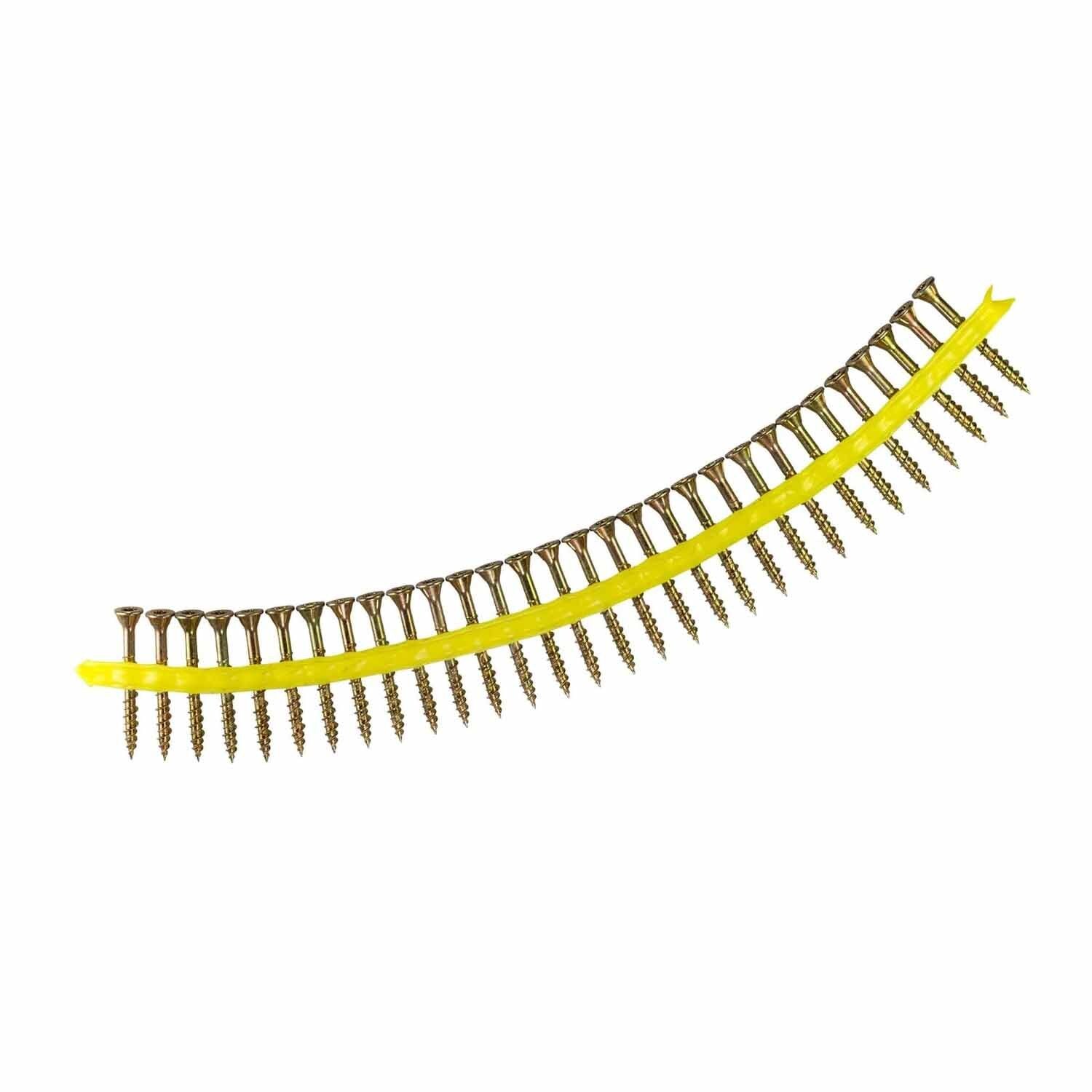

Simpson Anchors WSV2S Strong-Drive #9 x 2" WSV SUBFLOOR Screw (Collated), 2000 Pk
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Anchors WSV2S Description

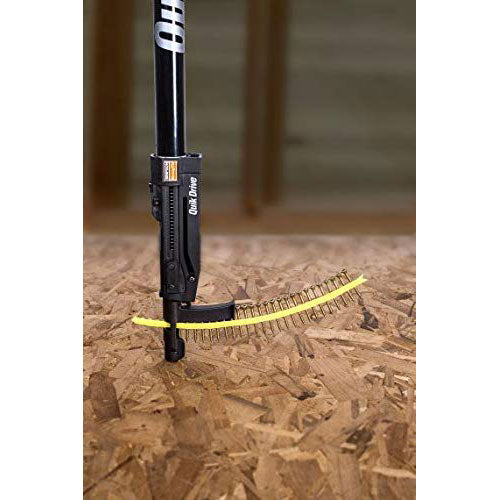

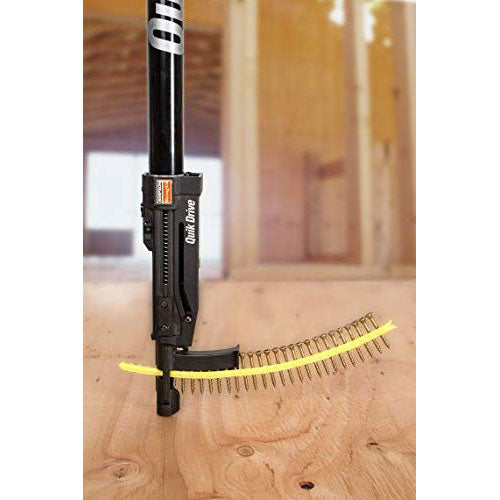

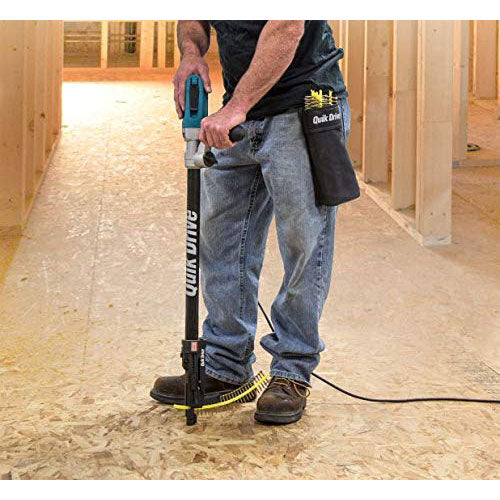

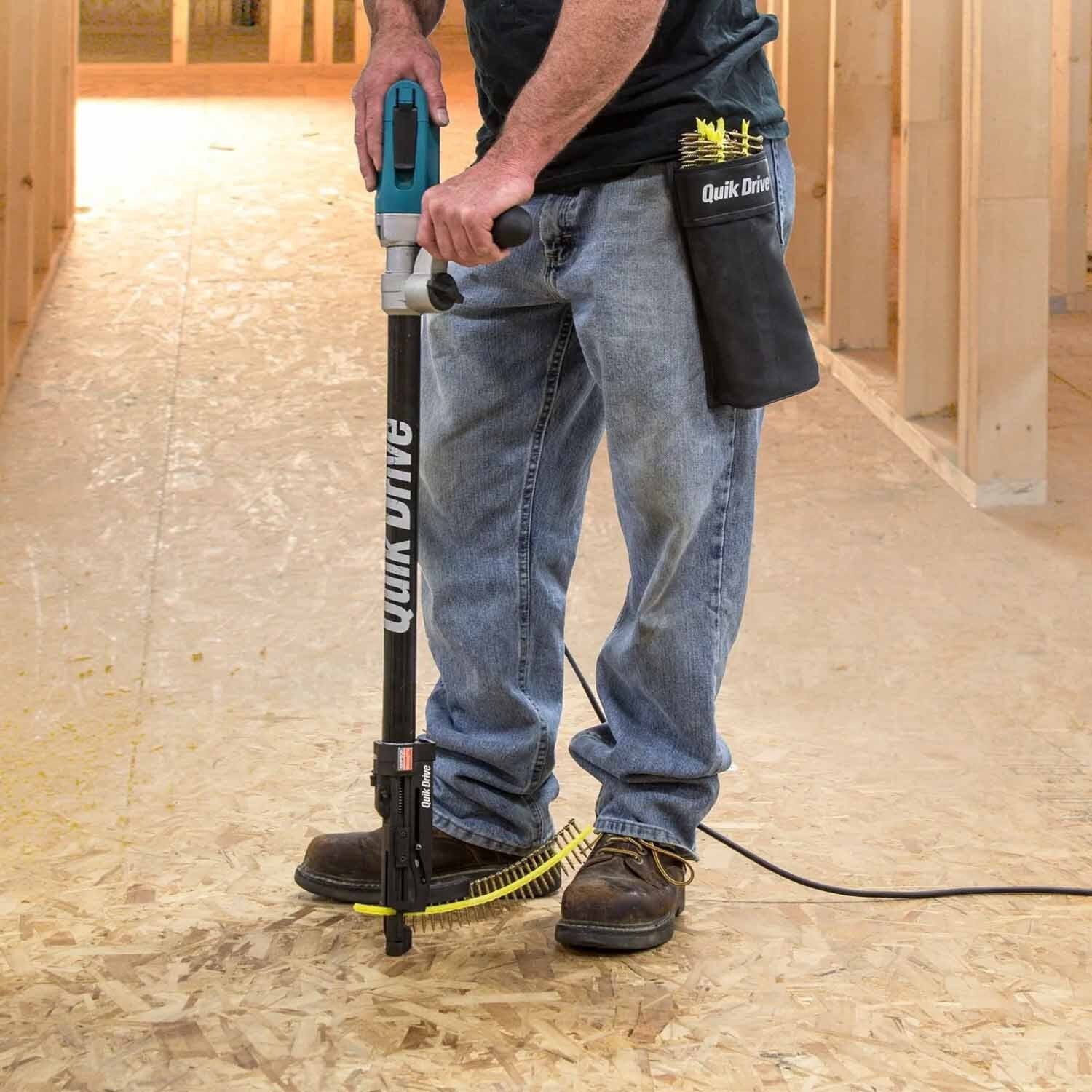

Strong-Drive® WSV SUBFLOOR Screw (Collated) Simpson Strong-Tie has re-engineered its popular subfloor screw to reduce driving force and increase installation speed. The new Strong-Drive WSV Subfloor screw has been developed for fastening subfloor sheathing using the Quik Drive® auto-feed screw driving system. The Strong-Drive WSV Subfloor screw is the only fastener to be dual-evaluated under ICC-ES AC233 and AC120 for wood-frame subfloor fastening. This testing indicates that the WSV Subfloor screws have lateral, shear and withdrawal values that exceed those of 10d common nails, and diaphragms built with WSV Subfloor screws meet or exceed the strength and stiffness of wood frame diaphragms built with 10d nails.
Simpson Anchors WSV2S Includes
- (2000) Screws
Simpson Anchors WSV2S Features
- Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving1 — makes for up to 20% faster driving
- Less installation torque also means less wear on tools

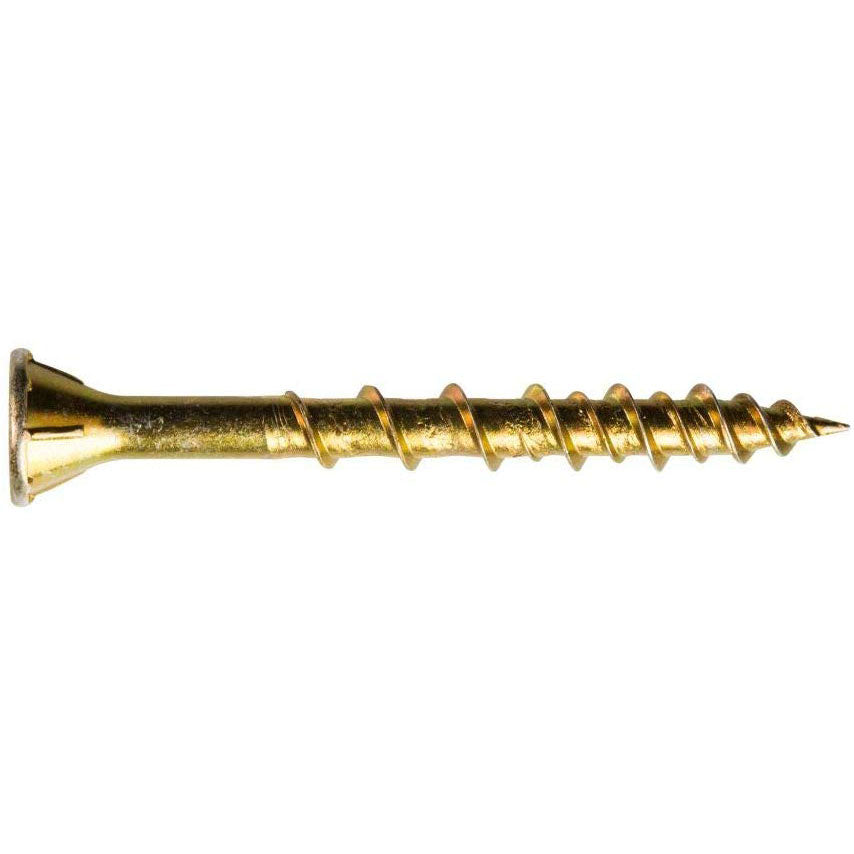

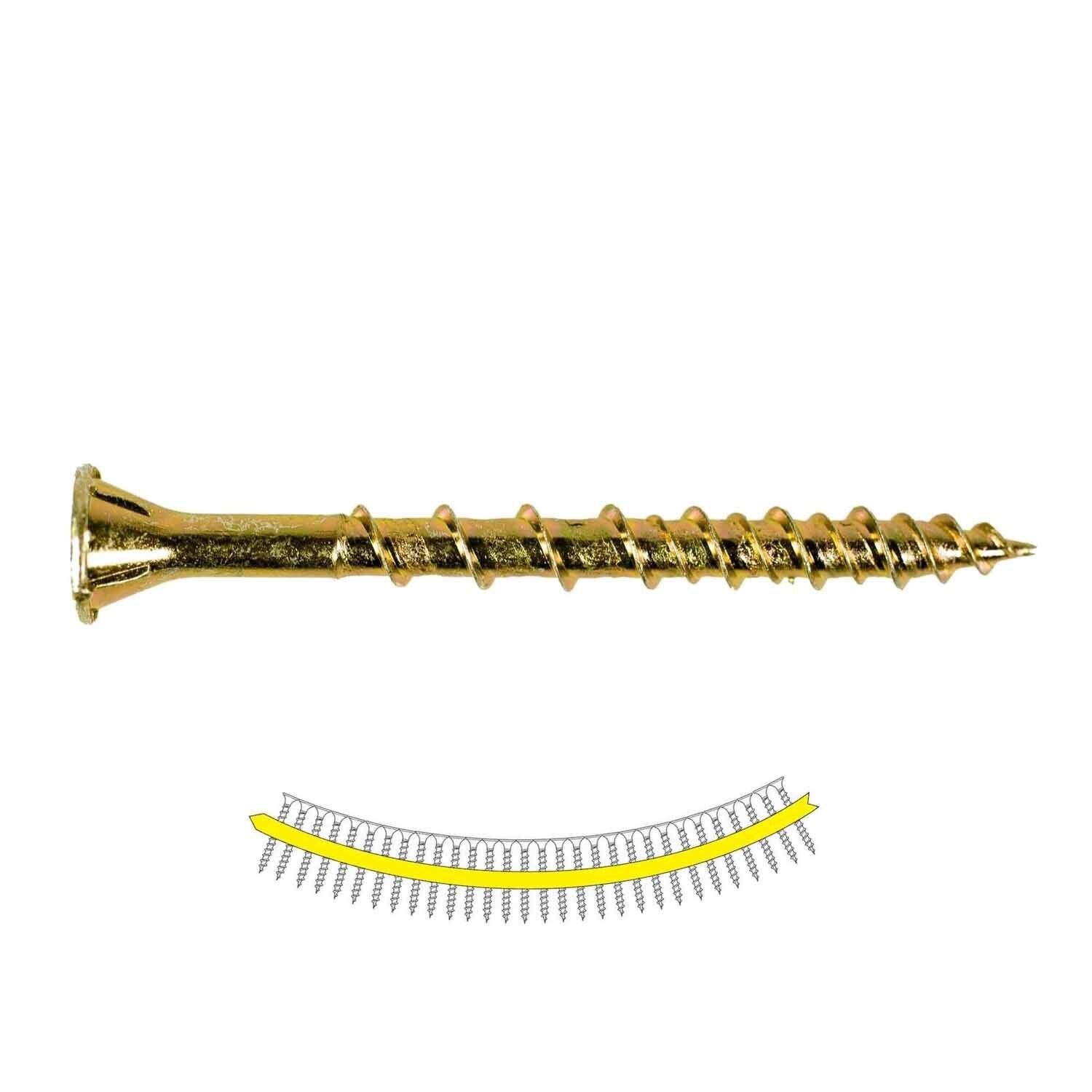

- Deep 6-lobe recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
- The holding power of WSV screws reduces the gaps between the joist and subfloor that cause floor squeaks
- WSV screws can be easily backed out, allowing for future access to floor cavities
- 6-lobe T25 drive bit (replacement bit BITTX25)
Simpson Anchors WSV2S Specifications
| Model No. | WSV2S |
| Coating/Material | Yellow-Zinc Coated |
| Screw size | #9 |
| Lenght (in) | 2 |
| Head Diameter (in) | 0.333 |
| Drive Type | T25 6-Lobe |
| Head Type | Rimmed Flat Head with Nibs |
| Shank Type | 2/3-Threaded Shank |
| Thread Type | Variable Thread Design |
| Point Type | High-Low Threaded Tip |
| Compatible Tools | Quik Drive® PRO200S, Quik Drive® PRO250G2, Quik Drive® PRO300S |
| Packaging Quantity | 2000 |
| UPC | 746056000150 |
