Simpson Anchors | SKU:
APHH46
Simpson Strong-Tie APHH46 (5-1/2") 12Ga Concealed-Flange Heavy Joist Hanger for 4x6 Beams
$26.14
Unit price
/
Unavailable
Description
Description
Simpson APHH46 Description

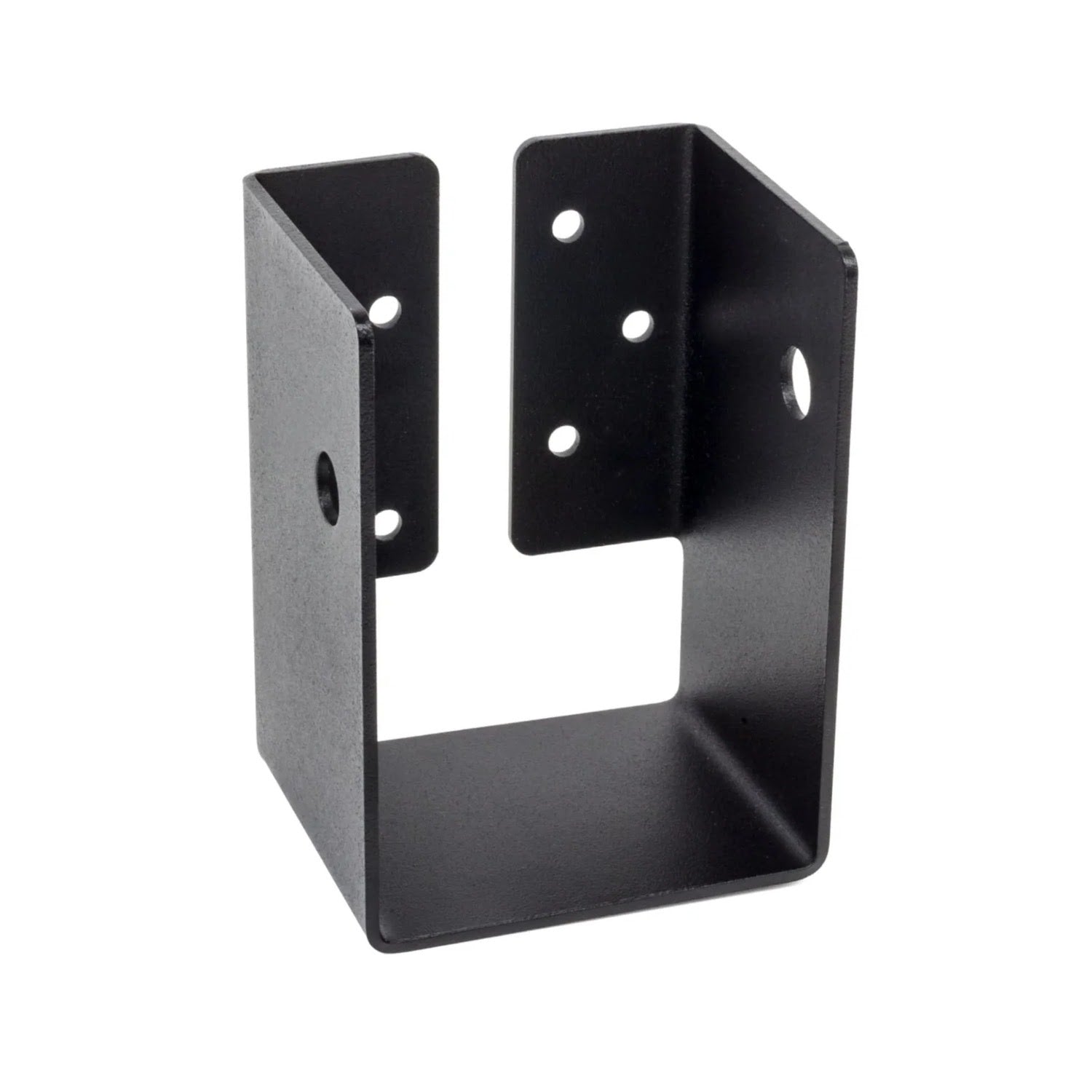

The Simpson APHH46 ZMAX Black Heavy Joist Hanger is designed for nominal 4x6 lumber, featuring concealed flanges for a clean look and a durable black powder-coated finish.
Simpson APHH46 Includes
- (1) ZMAX Black Heavy Joist Hanger for 4x6
Simpson APHH46 Features
- Concealed Flanges for a clean, finished look
- Durable ZMAX galvanized steel construction
- Black powder-coated finish for superior corrosion resistance
- Simple installation with Outdoor Accents structural wood screws and hex-head washers
- Versatile applications for pergolas, patio covers, and other wood-to-wood connections
Simpson APHH46 Applications

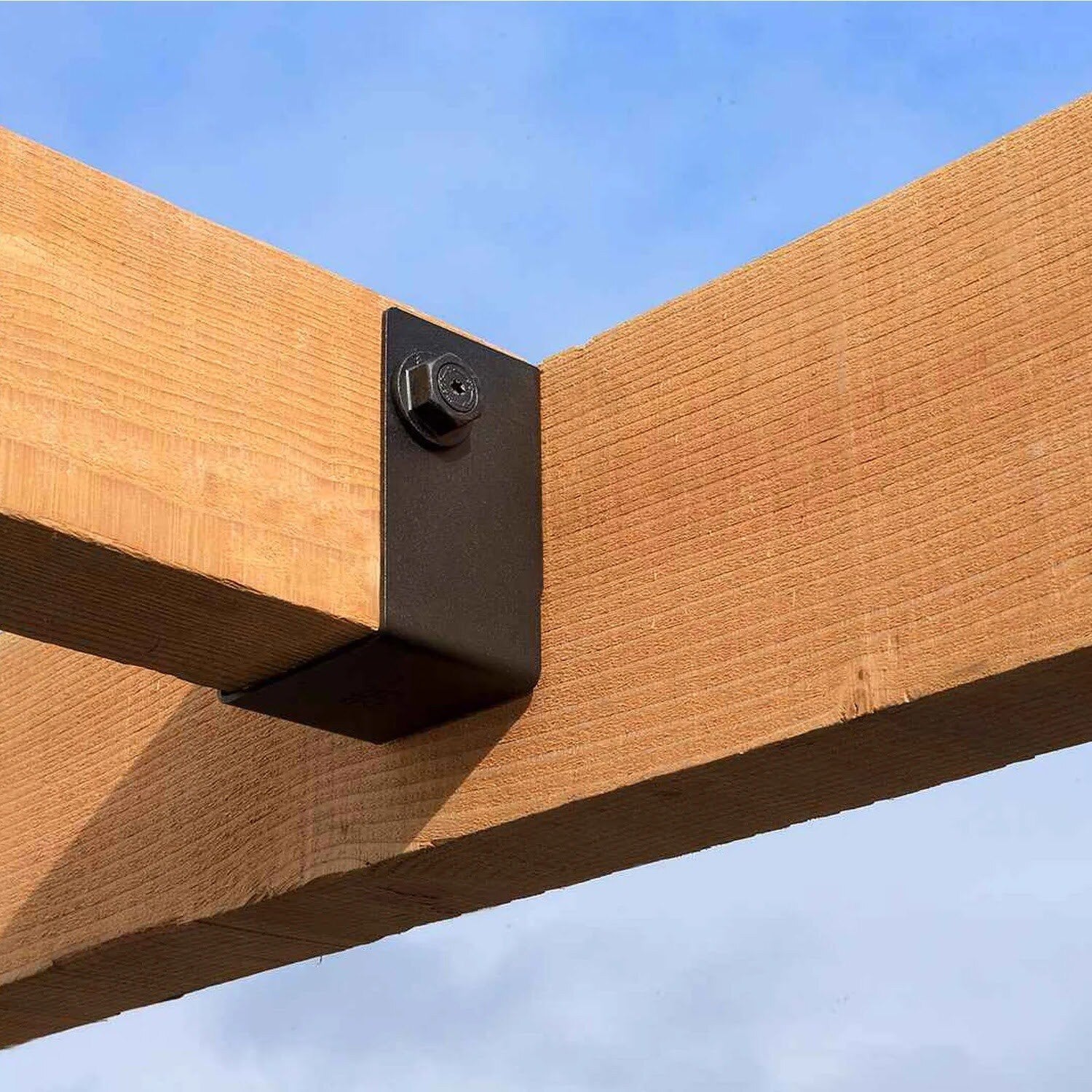

- Pergolas: Provides secure and concealed support for beams and joists
- Patio Covers: Ensures structural integrity while maintaining aesthetic appeal
- Wood-to-Wood Connections: Ideal for various outdoor projects requiring strong and durable joist hangers

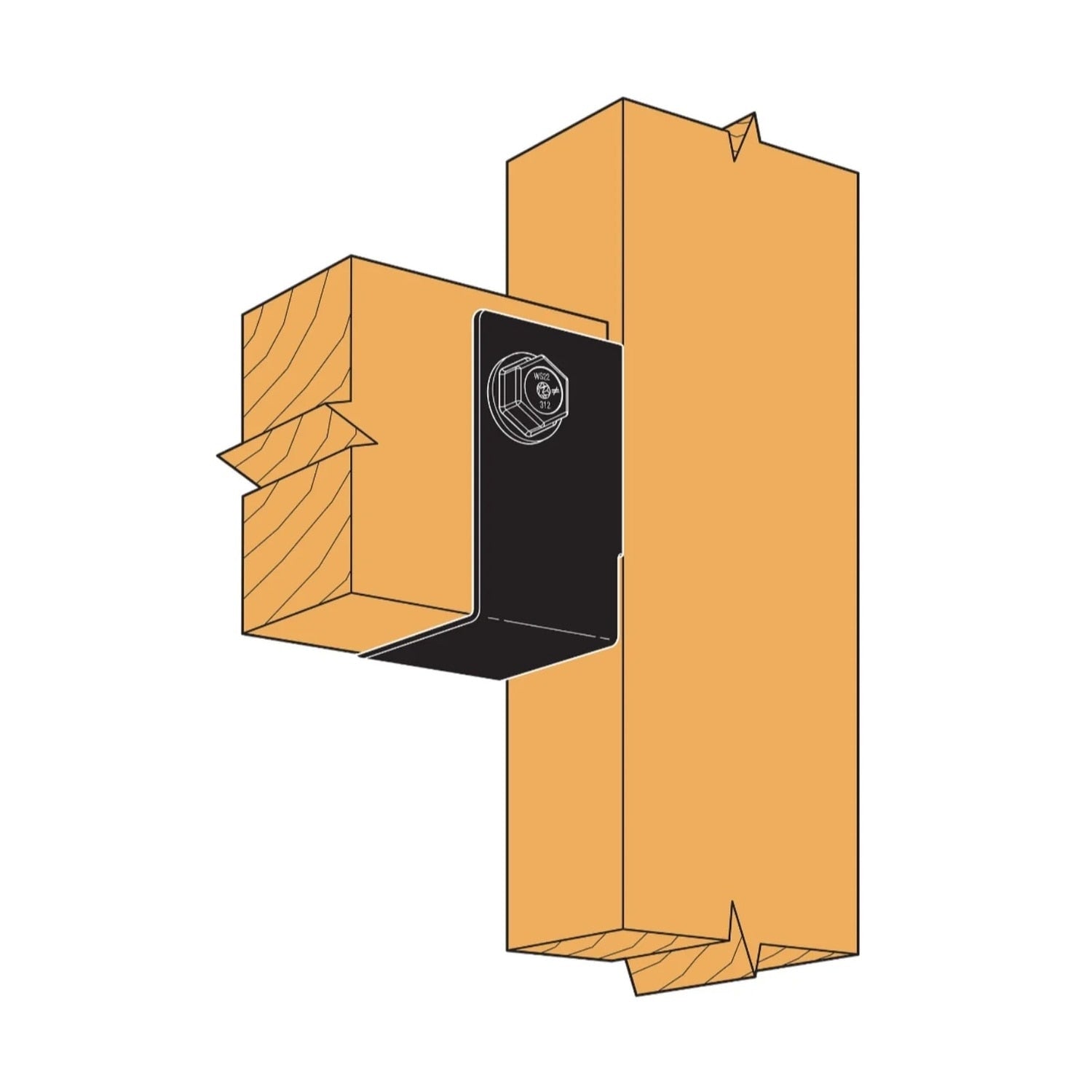

Simpson APHH46 Installation Overview
- Prepare the lumber and ensure dimensions match the hanger specifications
- Align the hanger to the supporting member as per the design plans
- Fasten the hanger using the specified screws and washers
- Insert the joist into the hanger pocket
- Verify all connections are secure and properly aligned

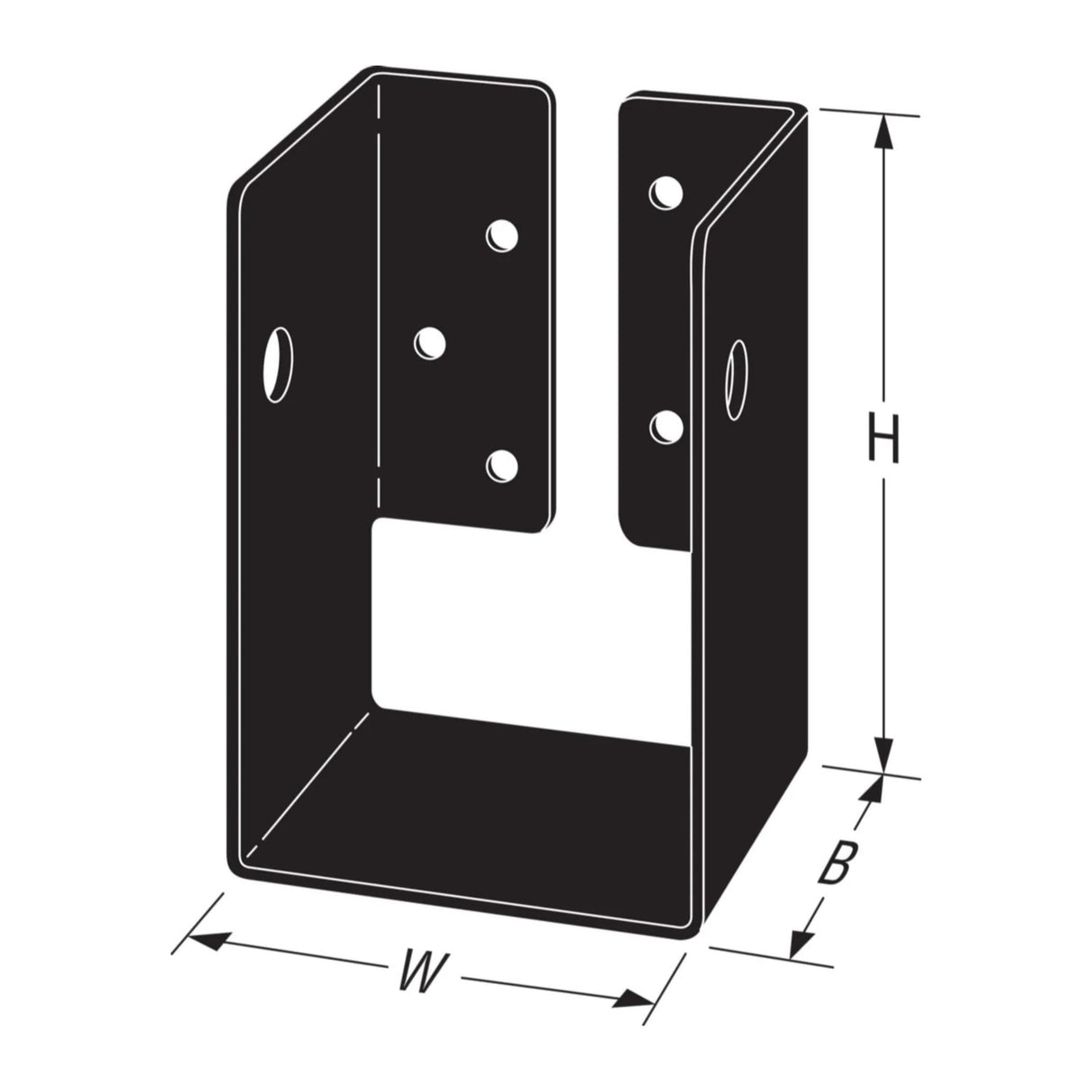

Simpson APHH46 Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | Header: (6) SDS25300 Connector screws Joist: (2) SDWS22312DBB Structural wood screws, (2) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Height | 5-1/8" |
| Joist size | 4" X 6" or 4" X 8" |
| Thickness | 12 Gauge |
| Type | Applicable with Mission Collection and Avant Collection |
| Width | 3-9/16" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
