Simpson Anchors | SKU:
APHH46R
Simpson Strong-Tie APHH46R (4-7/8") 12Ga Concealed-Flange Heavy Joist Hanger for 4x6 Beams Rough
$26.14
Unit price
/
Unavailable
Description
Description
Simpson APHH46R Description

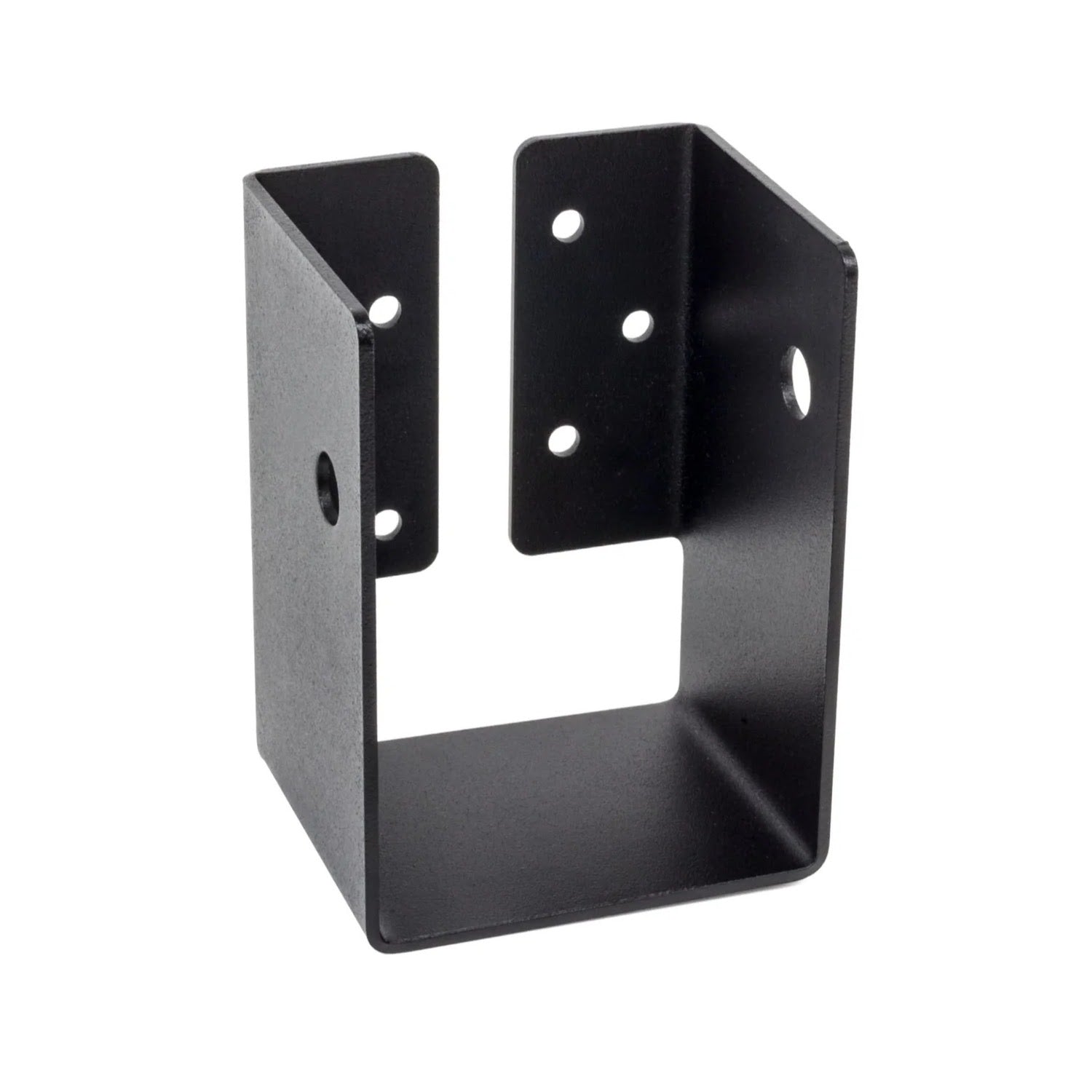

The Simpson Strong-Tie APHH46R Heavy Joist Hanger is designed for rough-cut 4x6 lumber, featuring a black powder-coated ZMAX galvanized steel finish for enhanced corrosion resistance and a refined look.
Simpson APHH46R Includes
- (1) Heavy Joist Hanger for 4x6 Rough Lumber
Simpson APHH46R Features
- Designed for rough-cut 4x6 lumber
- Black powder-coated ZMAX galvanized steel finish
- Concealed flange design for a polished appearance
- Compatible with SD heavy-duty connector screws and SDWS structural wood screws
- Provides secure and concealed support
Simpson APHH46R Applications

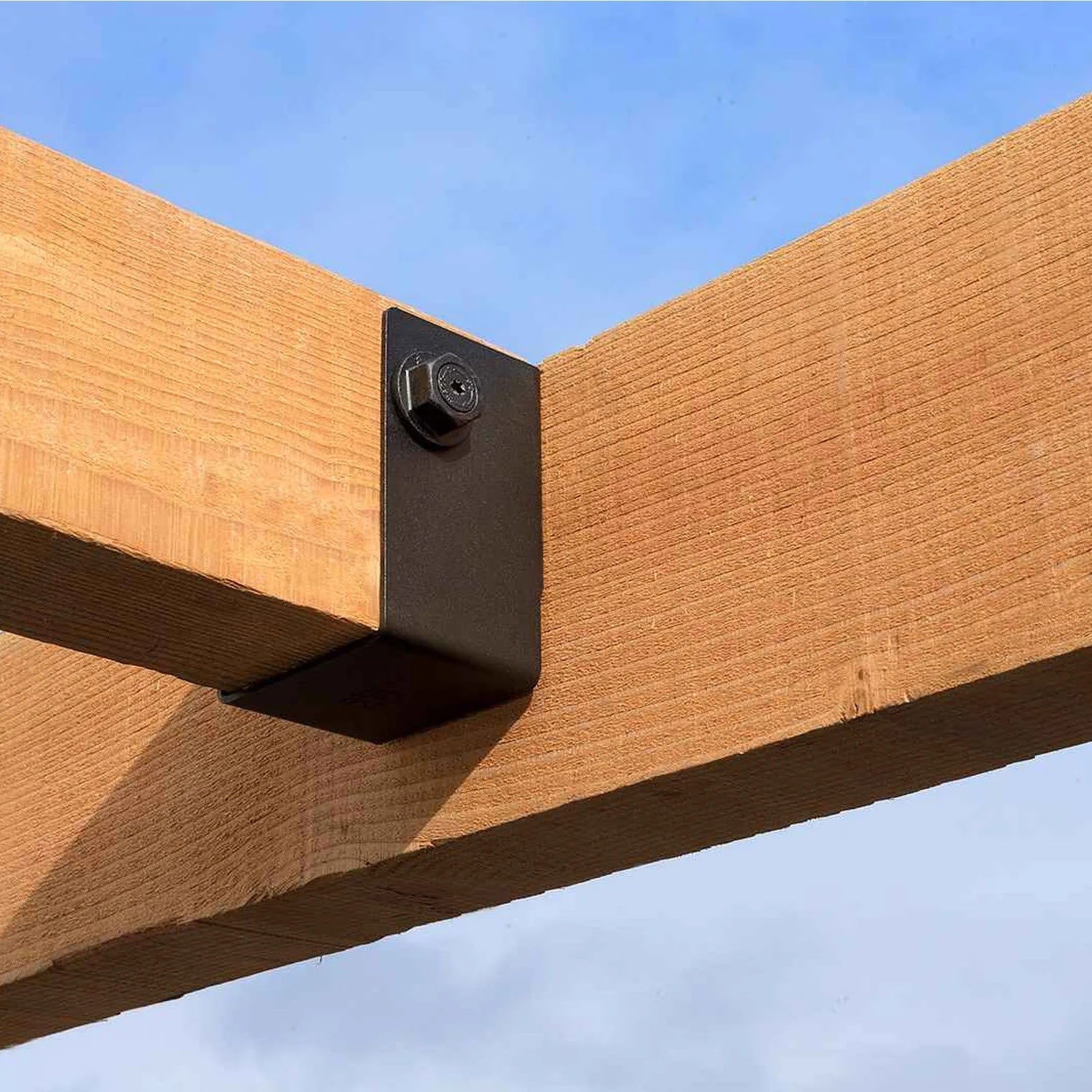

- Pergolas: Provides structural support for rough-cut lumber
- Patio covers: Ensures secure wood-to-wood connections
- Outdoor wood structures: Enhances aesthetics and structural integrity

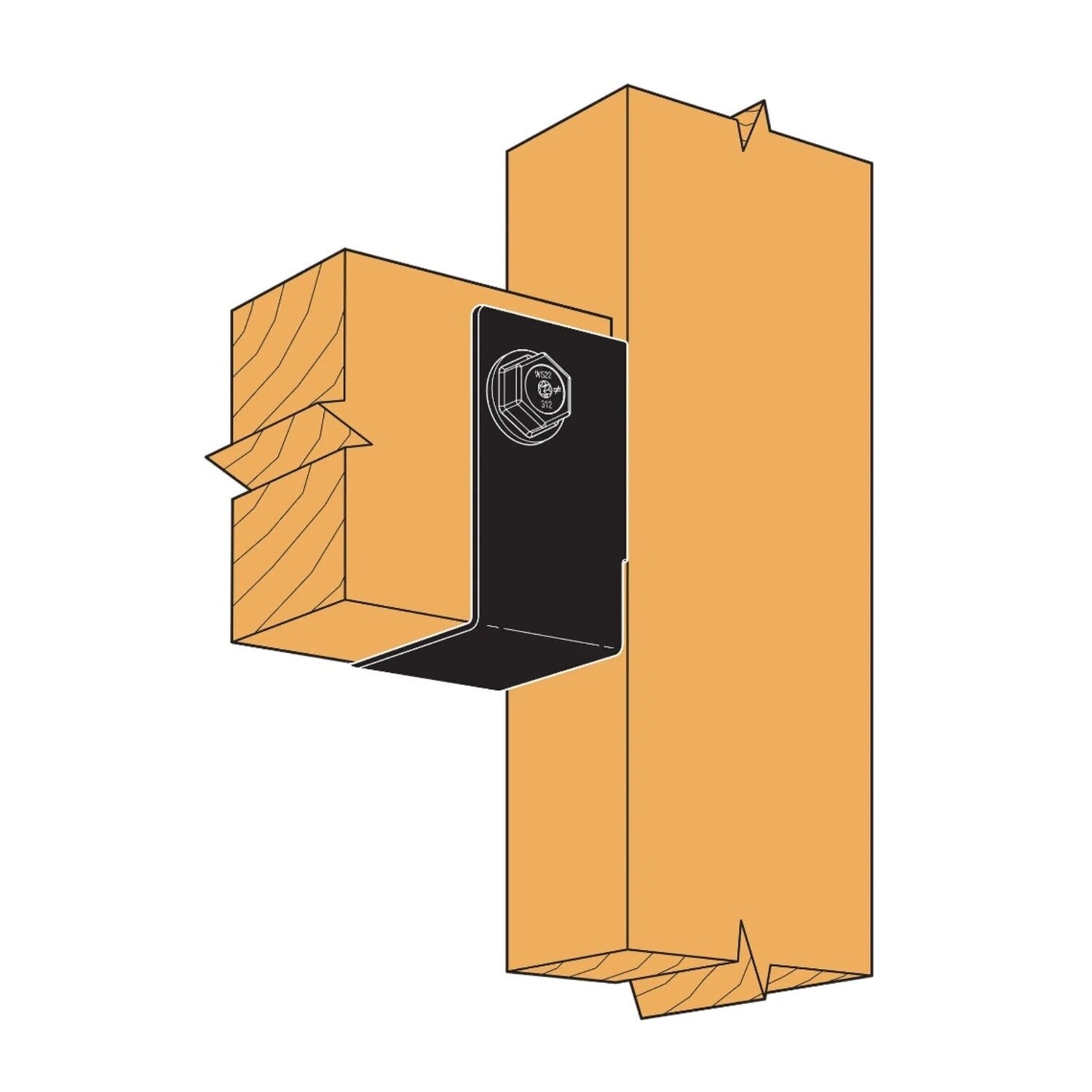

Simpson APHH46R Installation Overview
- Verify the dimensions of the rough-cut lumber
- Align the hanger with the joist and header
- Secure using specified screws and washers
- Ensure all connections are tight and properly seated

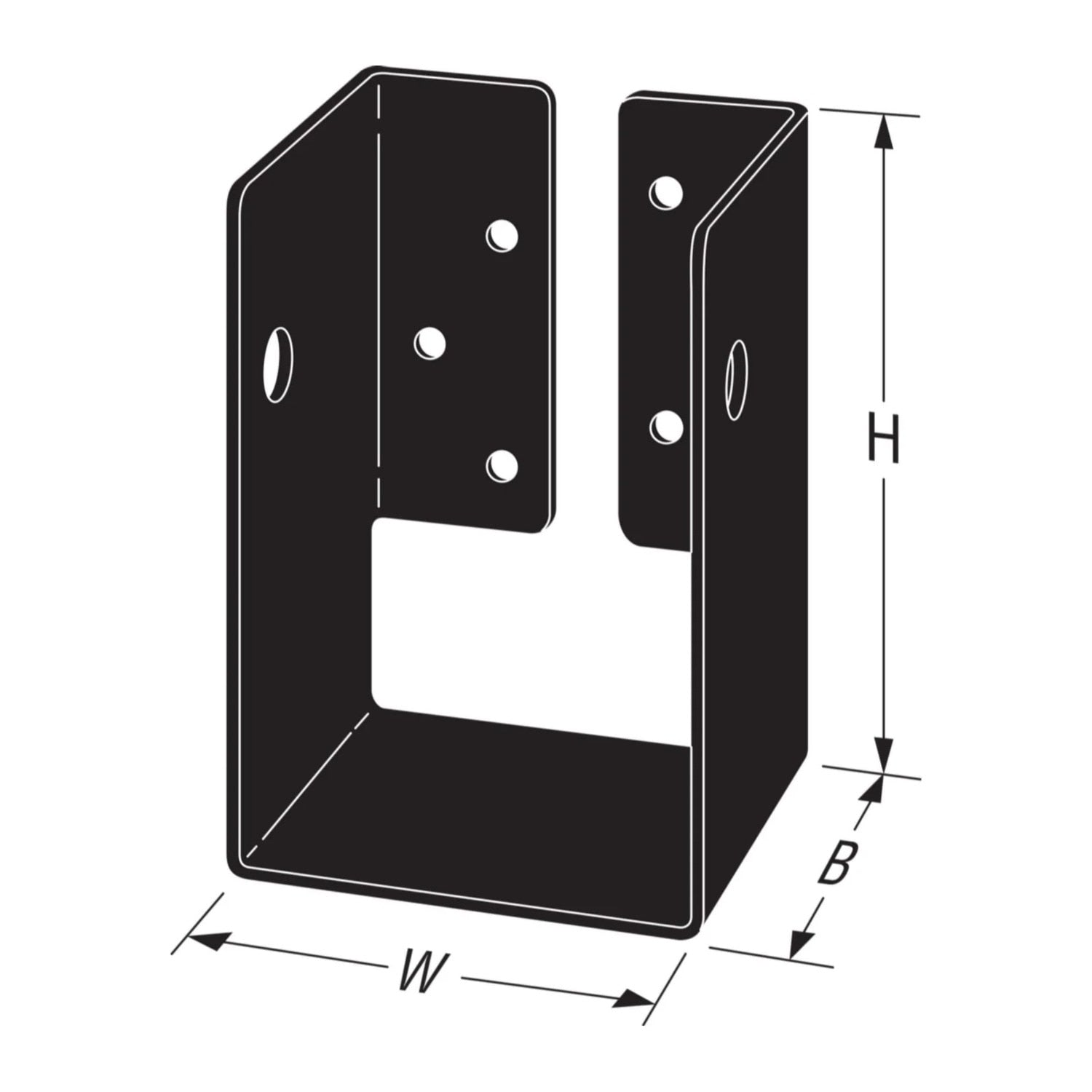

Simpson APHH46R Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | Header: (6) SDS25300 Connector screws Joist: (2) SDWS22312DBB Structural wood screws, (2) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Height | 4-7/8" |
| Joist size | 4" X 6" Rough or 4" X 8" Rough |
| Thickness | 12 Gauge |
| Type | Applicable with Mission Collection and Avant Collection |
| Width | 4-1/16" |
NOTE: This connector is designed for rough-cut lumber, not nominal lumber. Ensure the joist measures an actual 4"x6" for compatibility.
