Simpson Anchors | SKU:
APHH610
Simpson Strong-Tie APHH610 (8-1/2") 12Ga Concealed-Flange Heavy Joist Hanger for 6x10
$53.72
Unit price
/
Unavailable
Description
Description
Simpson APHH610 Description

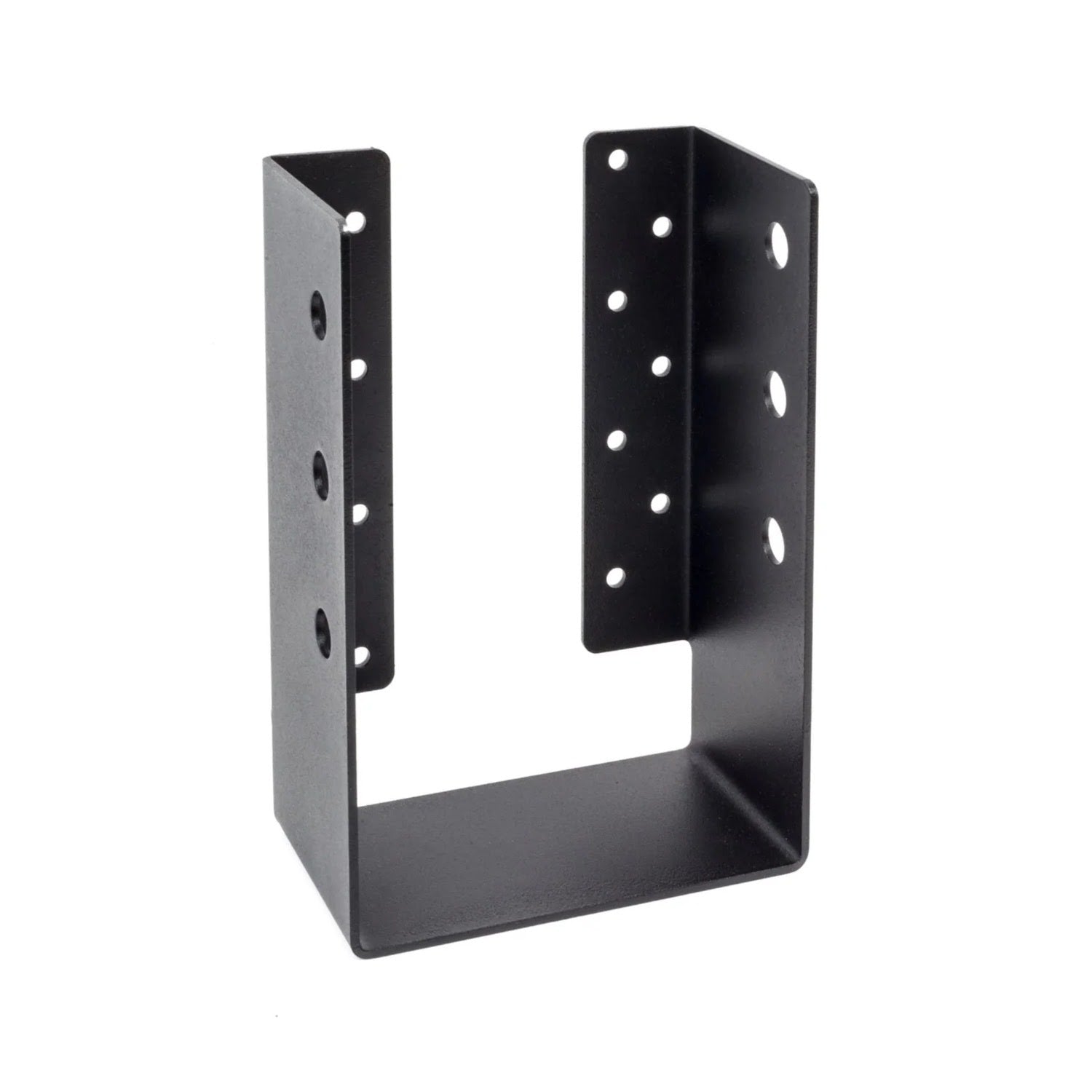

The Simpson APHH610 Concealed Flange Heavy Joist Hanger is designed for connecting 6x10 beams to headers and ledgers, featuring a durable 12-gauge steel construction with ZMAX galvanized coating and black powder coat finish.
Simpson APHH610 Includes
- (1) Heavy-Duty Concealed Flange Joist Hanger for 6x10 Beams
Simpson APHH610 Features
- Heavy-Duty Construction: Made from 12-gauge steel with ZMAX and black powder-coat finish for enhanced durability.
- Concealed Flanges: Flanges are hidden inside the beam for a cleaner, more attractive look.

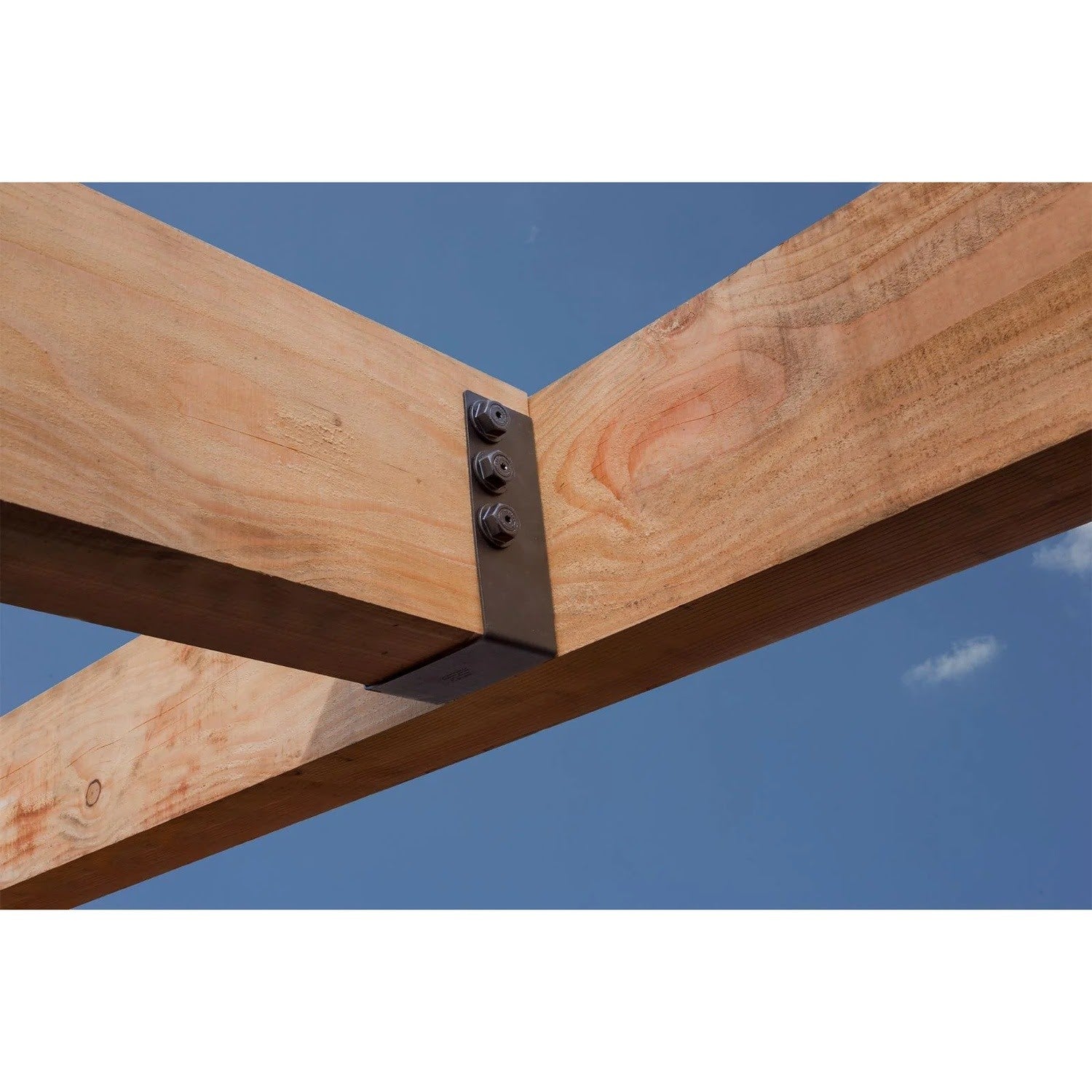

- Outdoor Rated: Ideal for decks, pergolas, patio covers, and other outdoor structures.
- Easy Installation: Designed for use with Outdoor Accents SDWS structural wood screws and STN22 hex-head washers.
- Corrosion Resistant: Suitable for exterior environments exposed to the elements.
Simpson APHH610 Applications
- Deck Framing: Securely connects beams to headers and ledgers.
- Pergolas: Provides structural support for outdoor pergola designs.
- Patio Covers: Ensures strong and durable connections for patio cover structures.
- Outdoor Structures: Suitable for various outdoor construction projects.

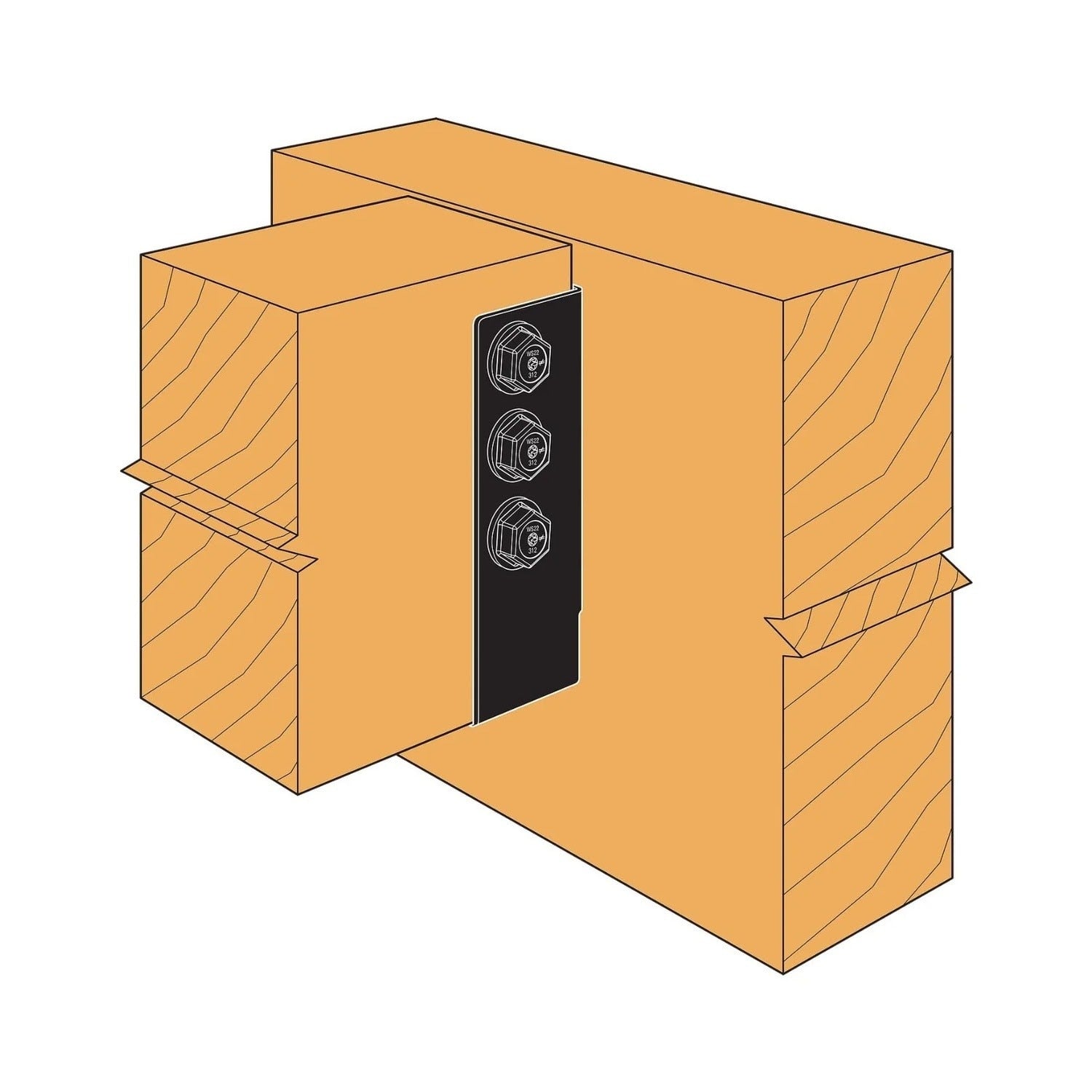

Simpson APHH610 Installation Overview
- Prepare the beam and header surfaces for installation.
- Align the joist hanger with the beam and header as per the design.
- Secure the hanger using the specified screws and washers.
- Verify the alignment and tightness of all fasteners.
- Ensure the beam is properly seated within the hanger.

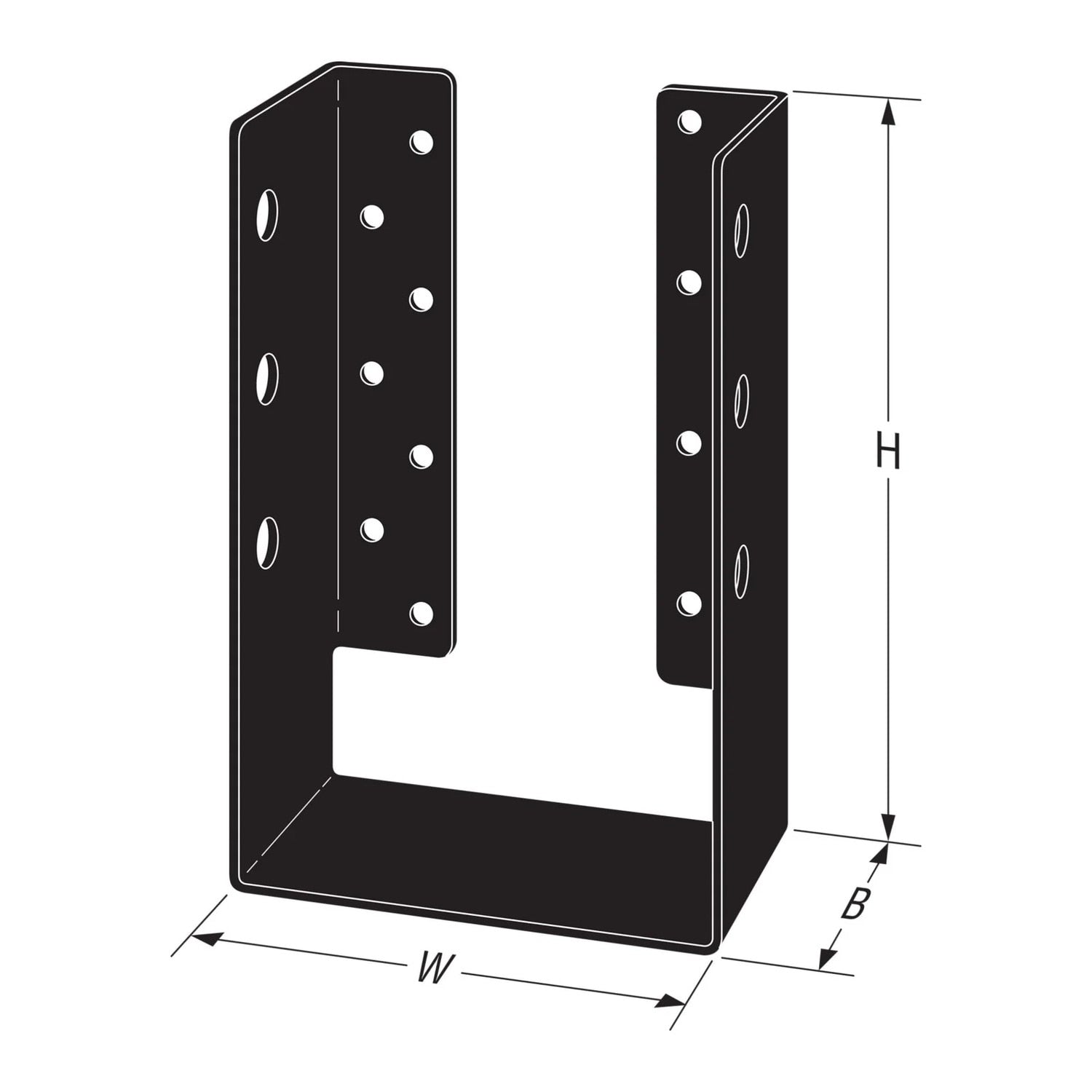

Simpson APHH610 Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | Header: (14) SDS25300 Connector screws Joist: (6) SDWS22312DBB Structural wood screws, (6) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Height | 8-1/2" |
| Joist size | 6" X 10" or 6" X 12" |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
