Simpson Anchors | SKU:
APHH610R
Simpson Strong-Tie APHH610R 8-1/4") 12Ga Concealed-Flange Heavy Joist Hanger for 6x10 Rough
$53.72
Unit price
/
Unavailable
Description
Description
Simpson APHH610R Description

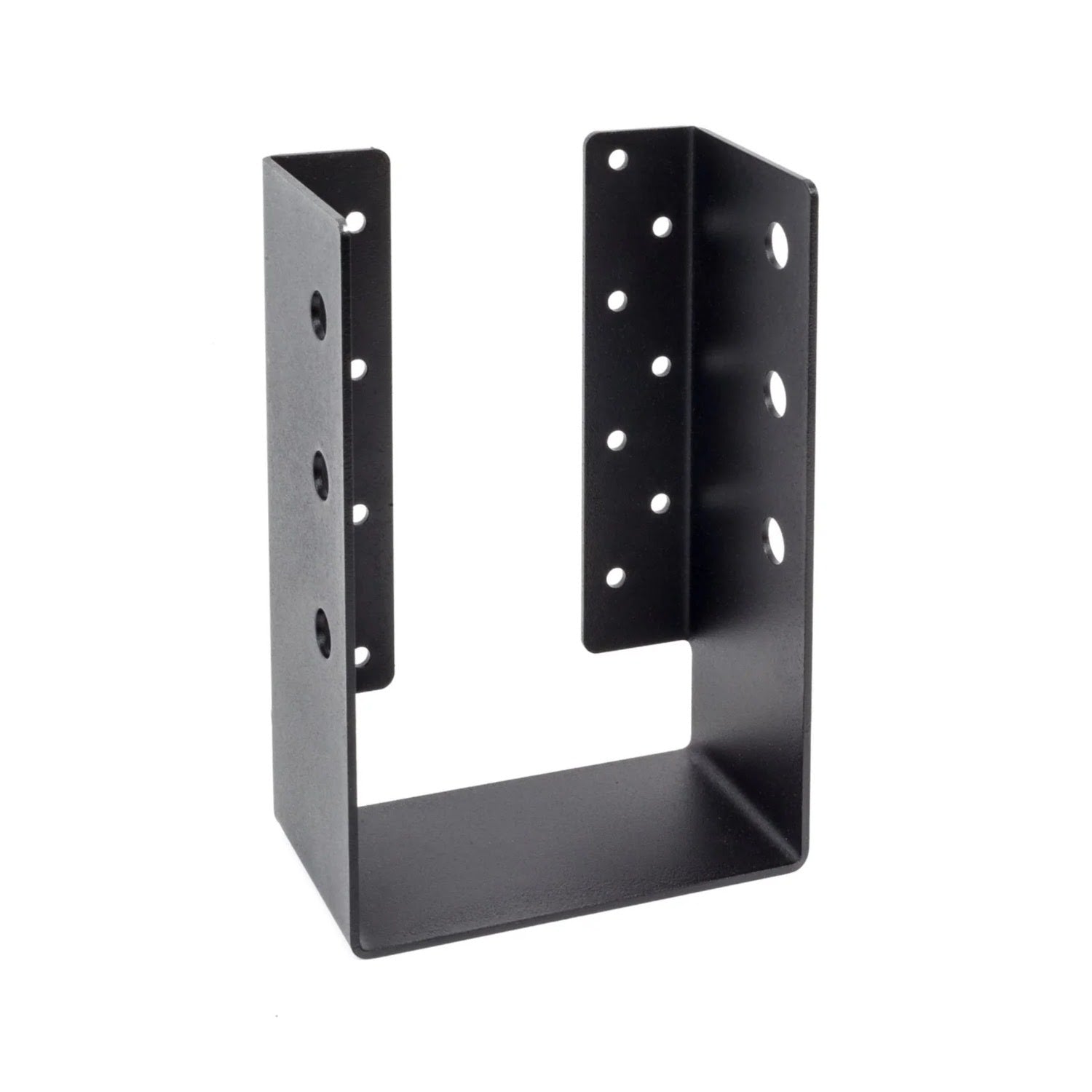

The Simpson APHH610R Heavy Joist Hanger is designed for 6x10 rough cut lumber, featuring concealed flanges and a durable black powder coat finish.
Simpson APHH610R Includes
- (1) Heavy Joist Hanger for 6x10 Rough Cut Lumber
Simpson APHH610R Features
- Heavy-duty construction with 12-gauge steel
- Concealed flanges for a clean appearance
- Outdoor-rated for decks, pergolas, and patio covers
- Easy installation with compatible screws and washers
Simpson APHH610R Applications

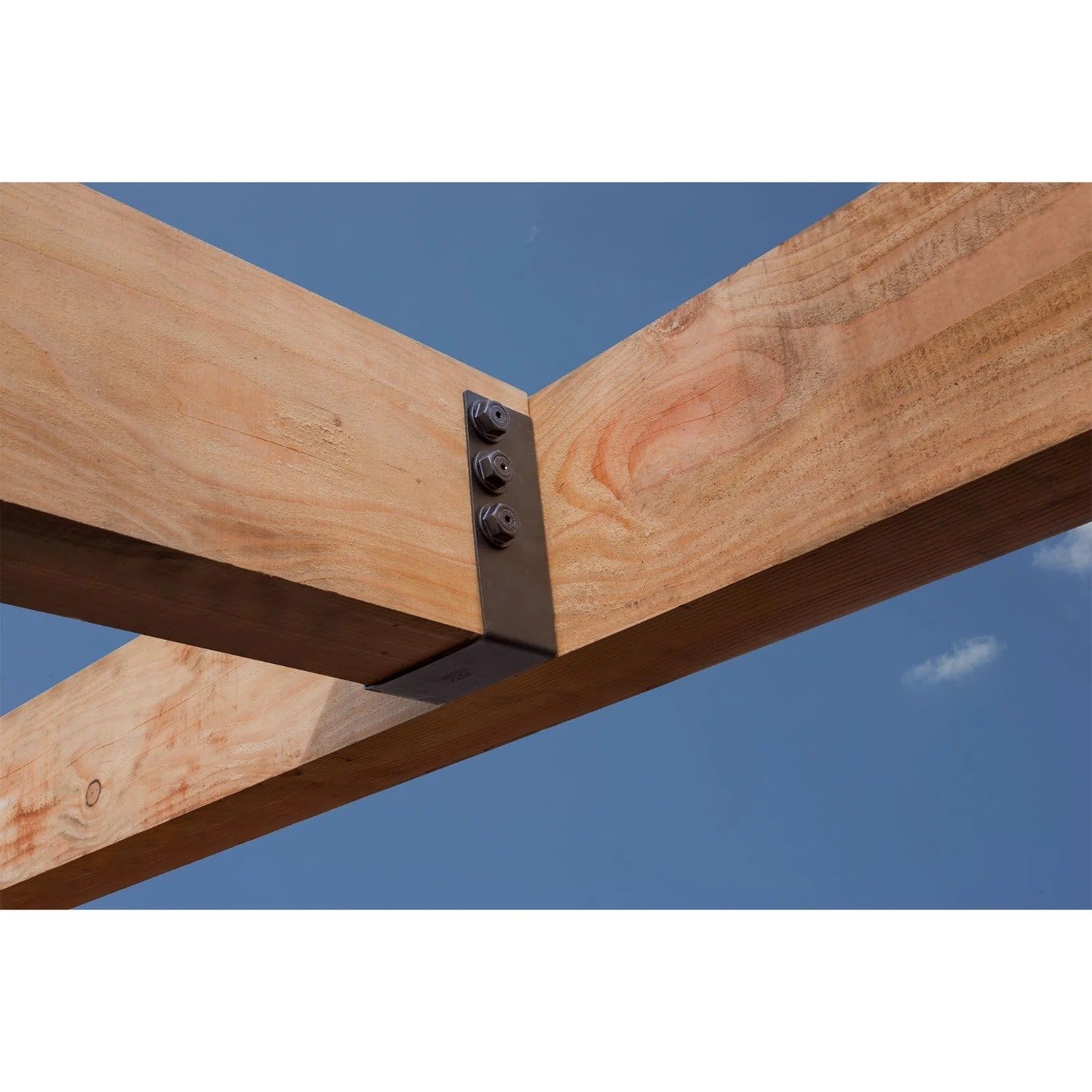

- Deck framing: Securely connects 6x10 rough cut beams to headers and ledgers
- Pergola construction: Provides strong and concealed support for beams
- Patio covers: Ensures durable and attractive beam connections

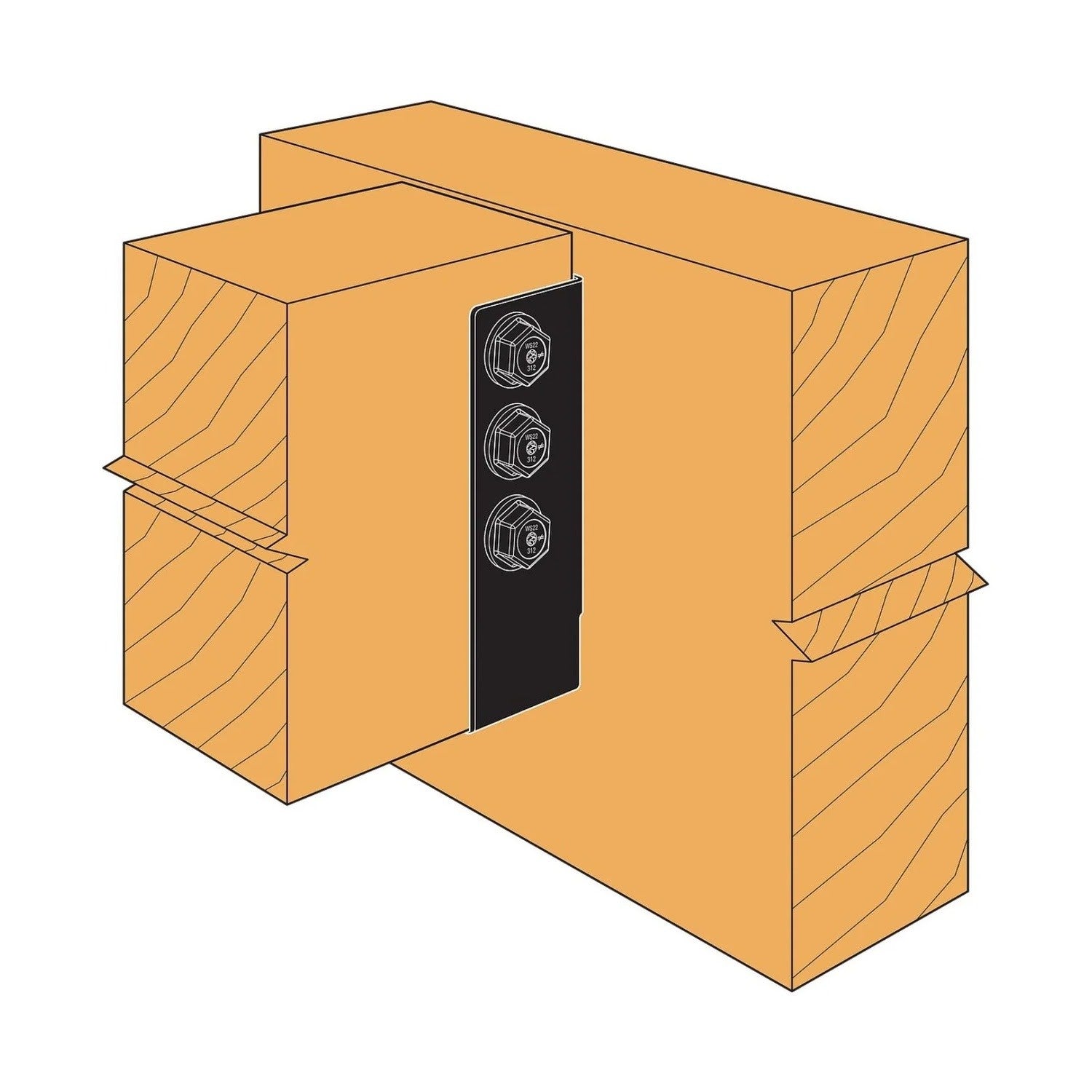

Simpson APHH610R Installation Overview
- Prepare the joist and header for installation
- Align the hanger with the beam and header
- Secure the hanger using specified screws and washers
- Verify the connection is secure and compliant

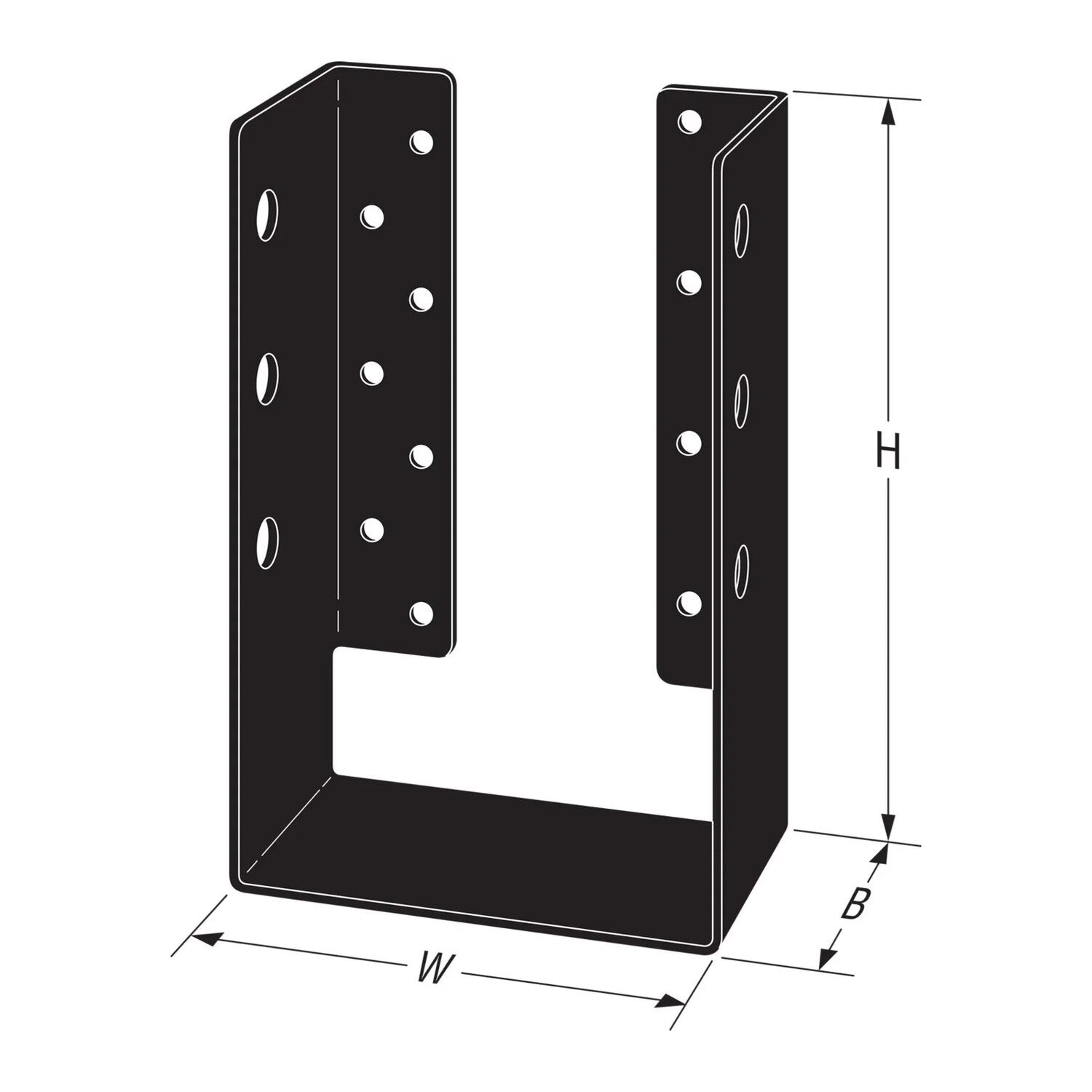

Simpson APHH610R Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | Header: (14) SDS25300 Connector screws Joist: (6) SDWS22312DBB Structural wood screws, (6) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Height | 8-3/8" |
| Joist size | 6" X 10" Rough or 6" X 12" |
| Thickness | 12 Gauge |
| Type | Applicable with Mission Collection and Avant Collection |
| Width | 6" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
