Simpson Anchors | SKU:
APLH210

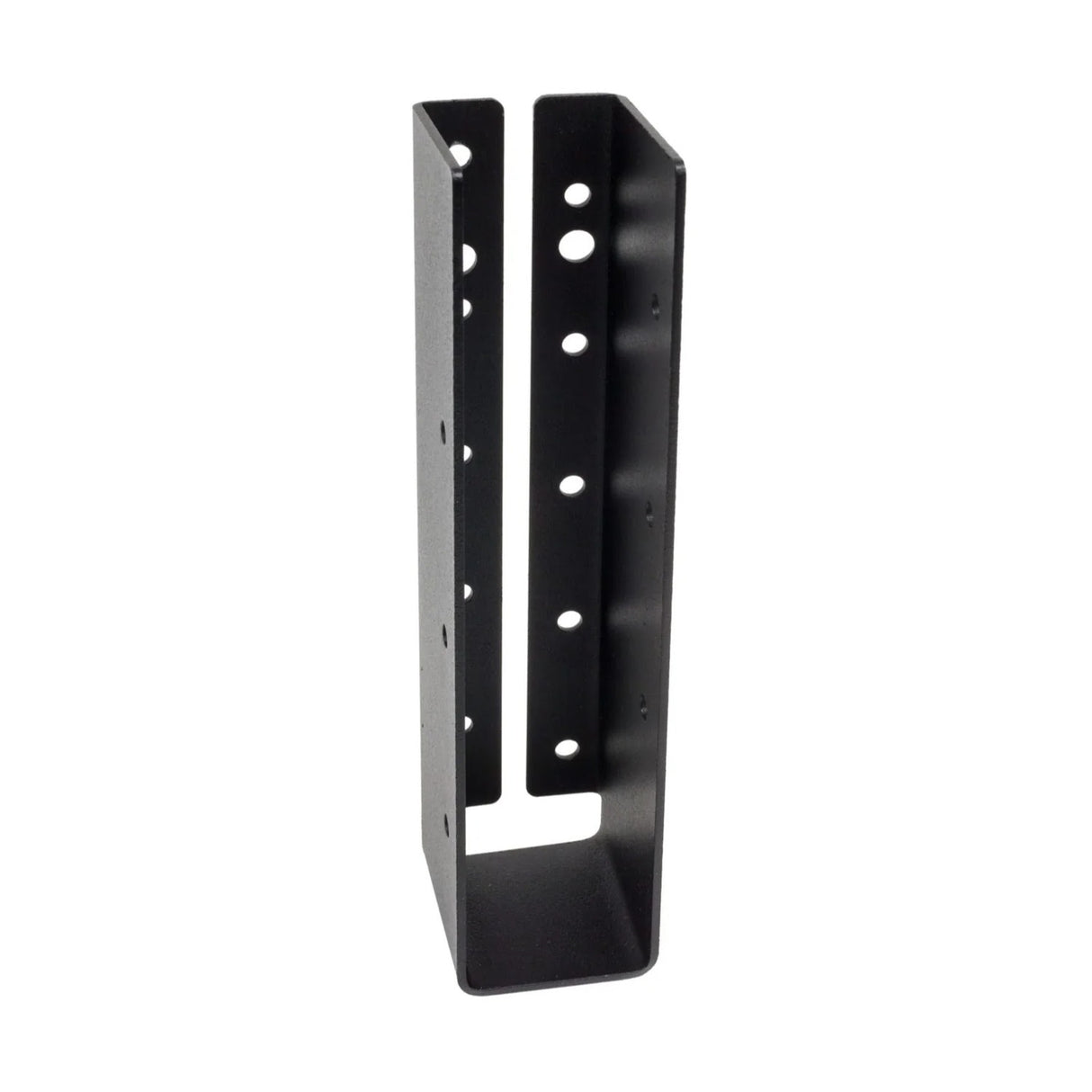

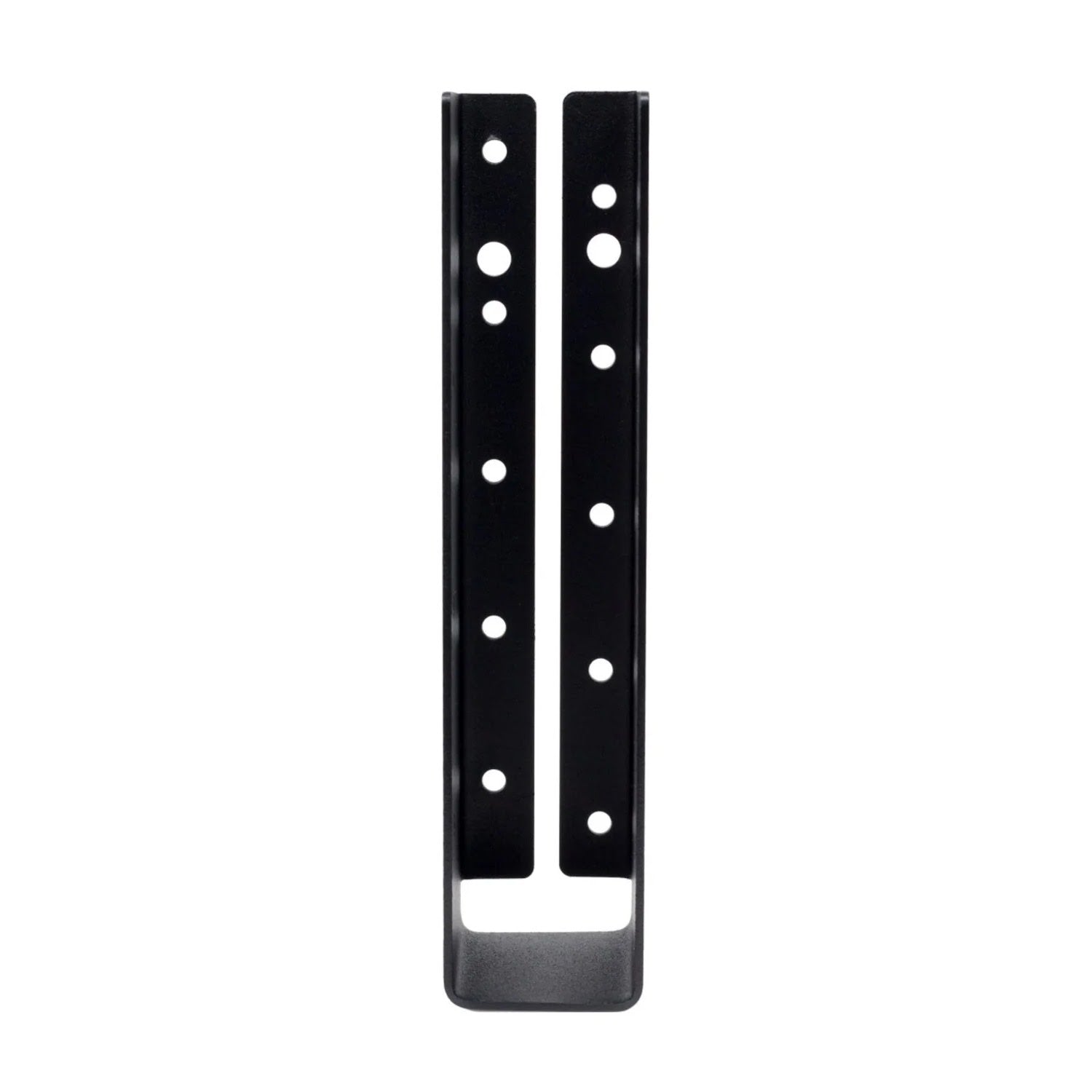

Simpson Strong-Tie APLH210 (1-9/16" x 8") 14Ga Concealed-Flange Light Joist Hanger for 2x10, ZMAX/Black Finish
$5.94
Unit price
/
Unavailable
Description
Description
Simpson APLH210 Description
The Simpson APLH210 Concealed Flange Light Joist Hanger offers strong and discreet support for connecting 2x10 nominal joists to beams, featuring a durable black powder coat finish over ZMAX galvanized steel.
Simpson APLH210 Includes
- (1) Concealed Flange Light Joist Hanger
Simpson APLH210 Features
- Concealed Flange Design for a clean, streamlined appearance
- Durable 14-gauge ZMAX galvanized steel construction
- Black powder-coat finish for enhanced corrosion protection
- Strong and reliable performance
- Versatile applications for outdoor structures
Simpson APLH210 Applications

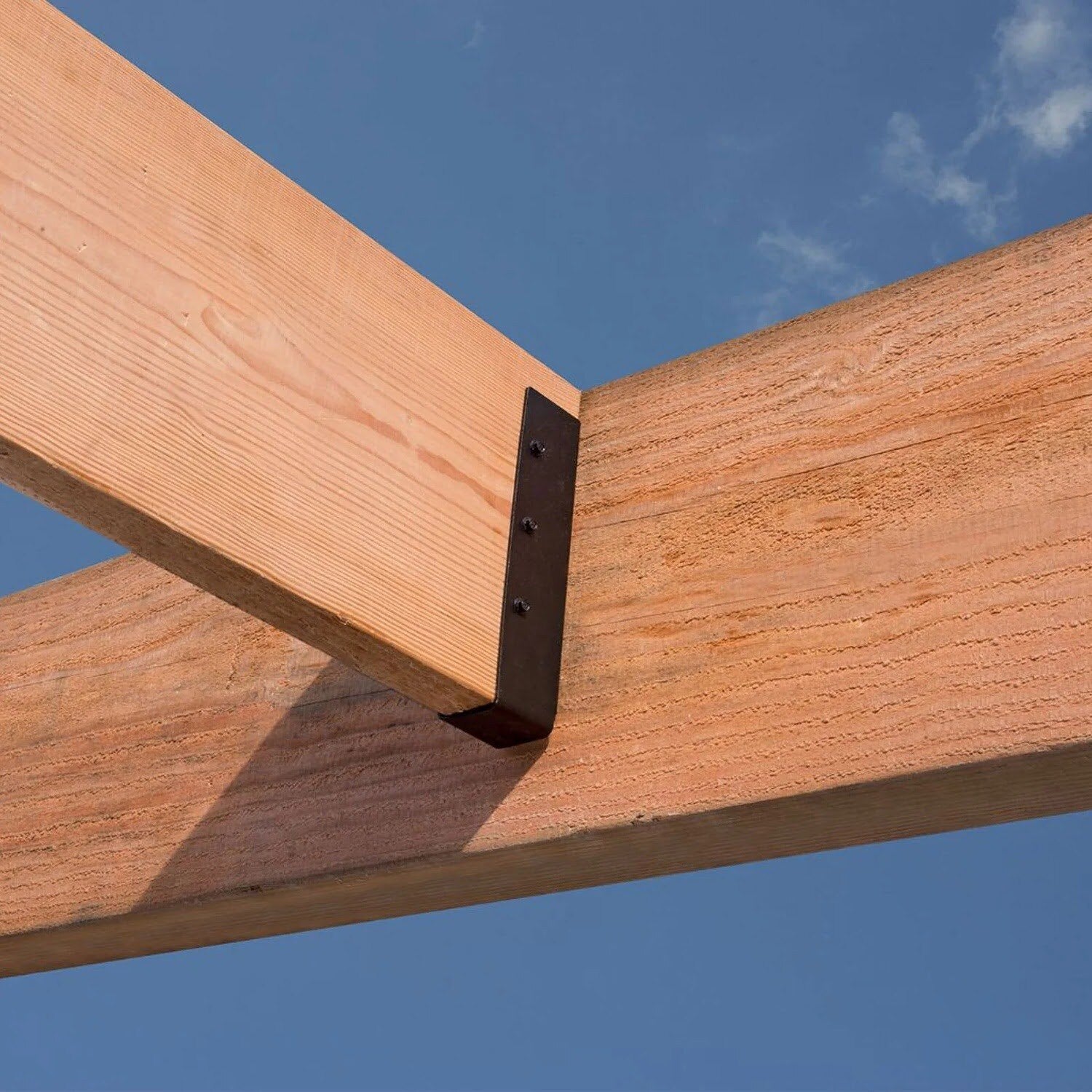

- Pergolas: Provides structural support for joists in pergola construction
- Patios: Ideal for connecting joists in patio covers
- Gazebos: Ensures secure joist connections in gazebo structures
- Pavilions: Suitable for pavilion framing and joist support
- Outdoor living spaces: Enhances structural integrity in various outdoor projects

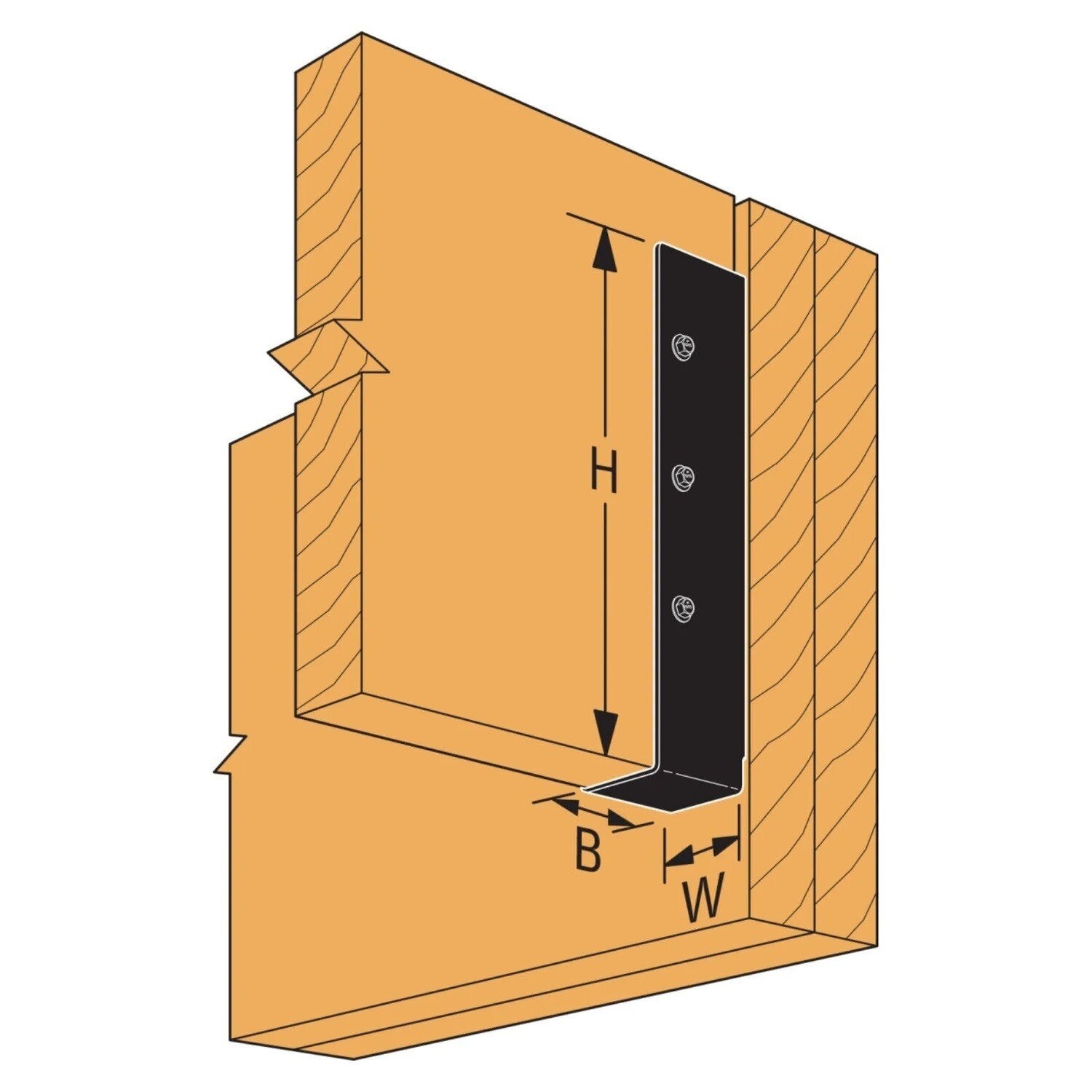

Simpson APLH210 Installation Overview
- Prepare the joist and beam surfaces for installation
- Align the hanger with the beam and mark screw positions
- Secure the hanger using the specified Strong-Drive SD Connector screws
- Insert the joist into the hanger and ensure proper fit
- Verify all screws are tightened and the joist is securely seated

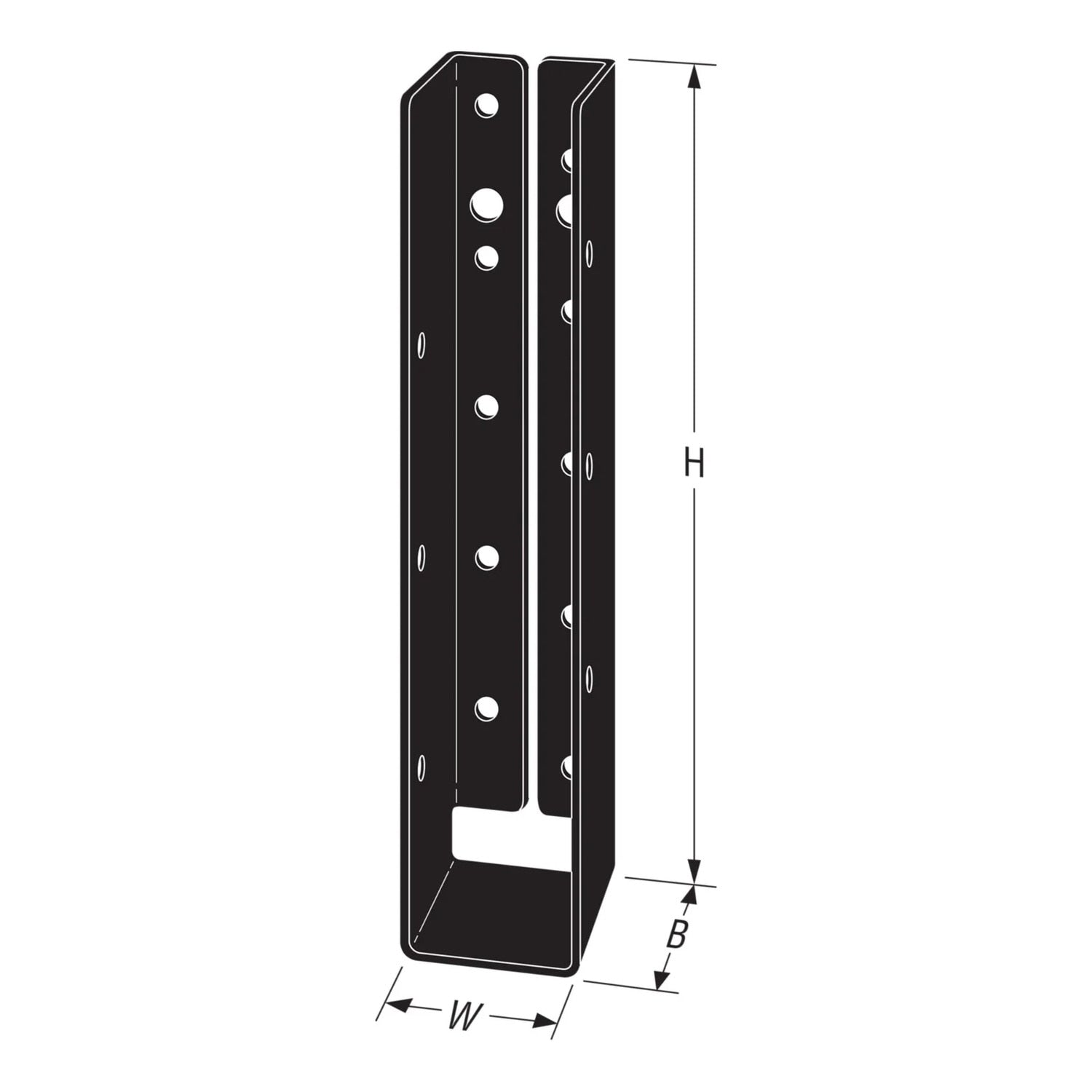

Simpson APLH210 Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | (16) #10 x 1-1/2" SD10112DBB Connector screws |
| For Treated Lumber | Yes |
| Height | 8" |
| Joist size | 2" X 10" or 2" X 12" |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
NOTE: Ensure the correct fasteners are used in the correct positions to achieve published load values
