Simpson Anchors | SKU:
APLH24R

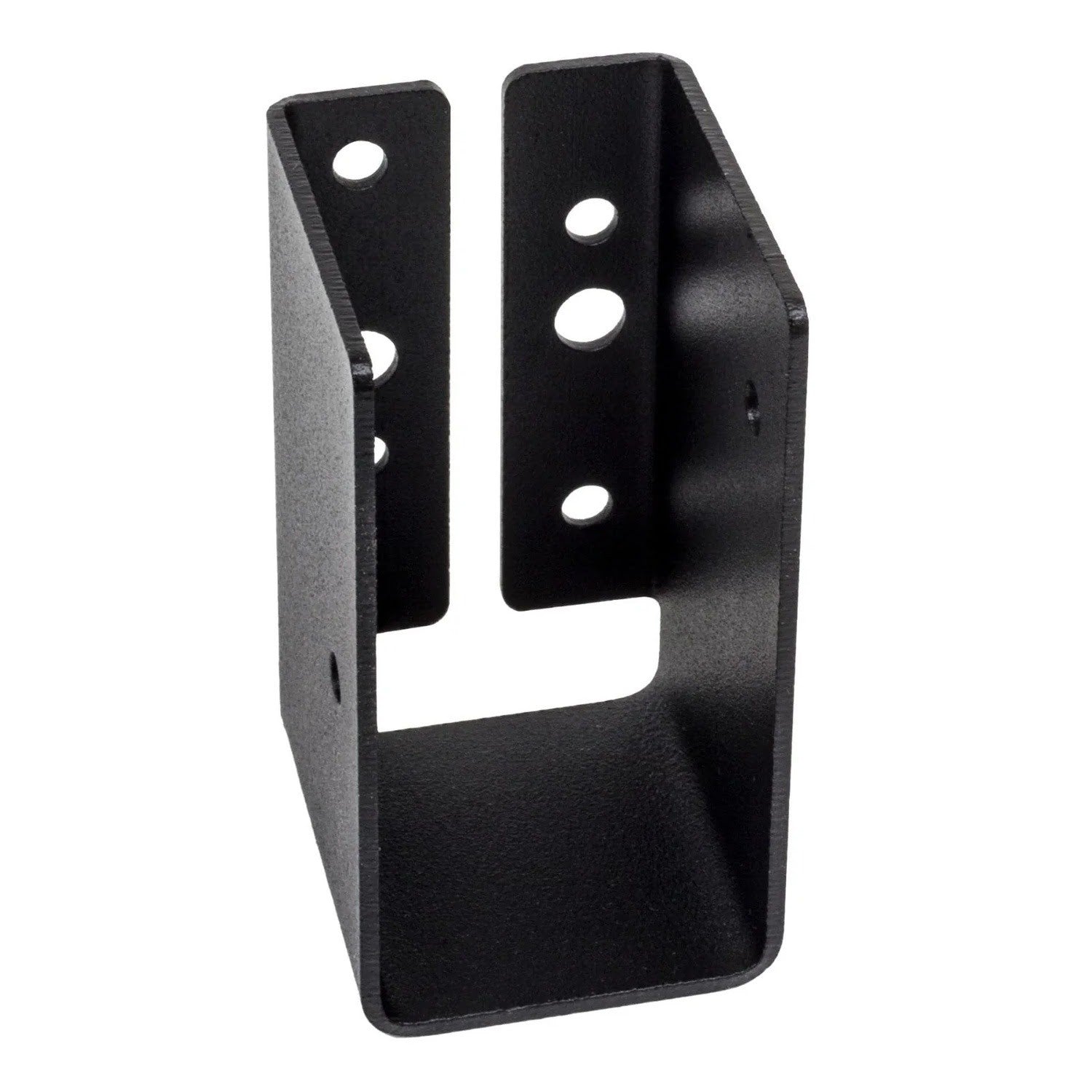

Simpson Strong-Tie APLH24R (2-1/6" x 3-1/16") 14Ga Concealed-Flange Light Joist Hanger for 2x4 Rough, ZMAX/Black Finish
$3.86
Unit price
/
Unavailable
Description
Description
Simpson APLH24R Description

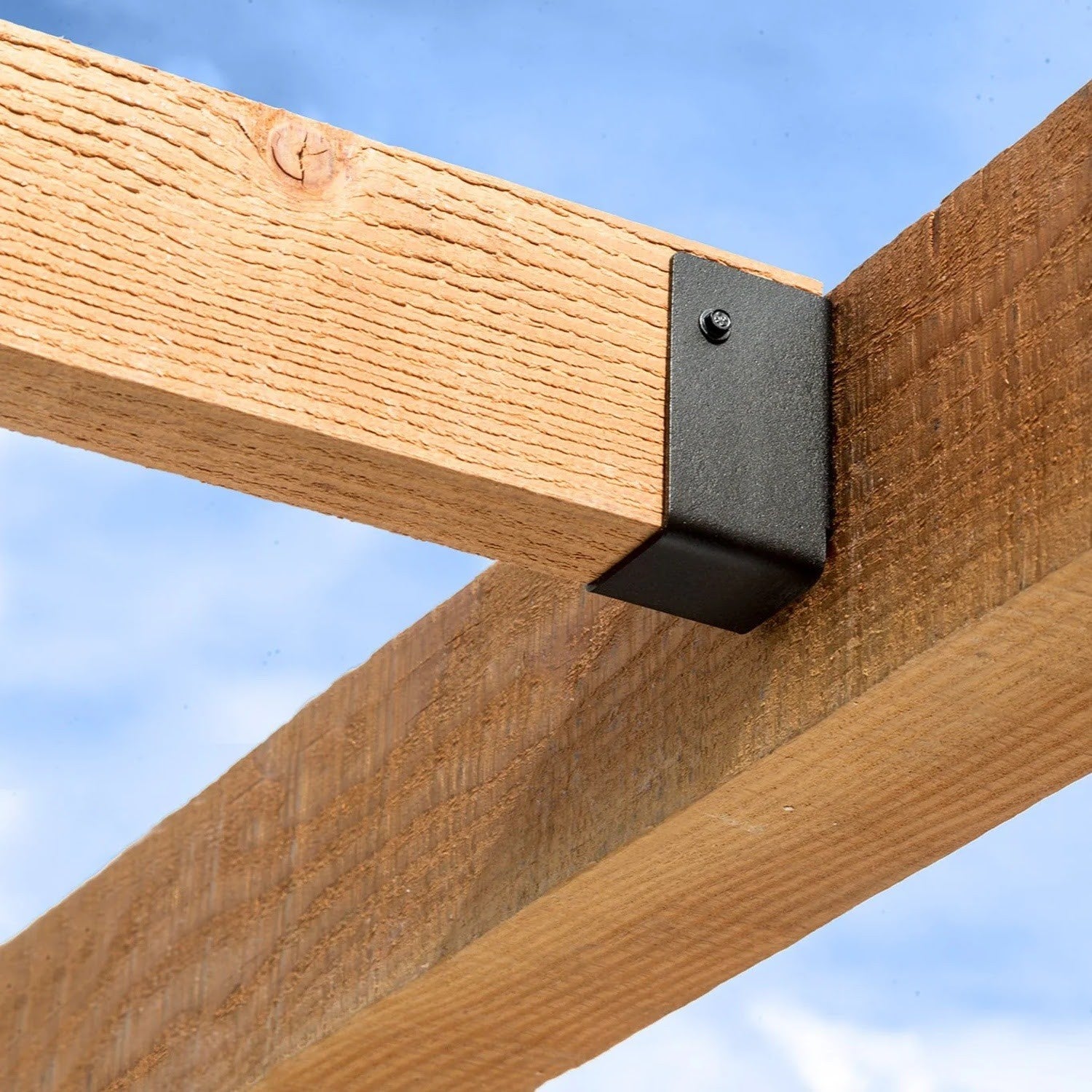

The Simpson Strong-Tie APLH24R Rough Cut 2x4 Concealed Flange Light Joist Hanger is expertly crafted to blend strength and style in outdoor construction projects.
Simpson APLH24R Includes
- (1) Rough Cut 2x4 Concealed Flange Light Joist Hanger
Simpson APLH24R Features
- Concealed Flange Design: Clean appearance with hidden flanges for a professional finish.
- Heavy-Duty Construction: 14-gauge steel with ZMAX coating and black powder coat for superior durability and corrosion resistance.
- Simple Installation: Easily attaches with Outdoor Accents Connector screws (sold separately).
- Outdoor Ready: Designed specifically for rough-cut 2x4 lumber in exterior environments.
Simpson APLH24R Applications
- Pergolas: Provides secure connections for rough-cut 2x4 lumber.
- Patios: Enhances structural integrity with a sleek design.
- Pavilions: Ideal for outdoor construction projects requiring durable joist hangers.
Simpson APLH24R Installation Overview
- Prepare the rough-cut 2x4 lumber for installation.
- Align the joist hanger with the lumber and supporting structure.
- Secure the hanger using the specified connector screws.
- Ensure all connections are tight and properly aligned.
Simpson APLH24R Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | (6) #10 x 1-1/2" SD10112DBB Connector screws |
| For Treated Lumber | Yes |

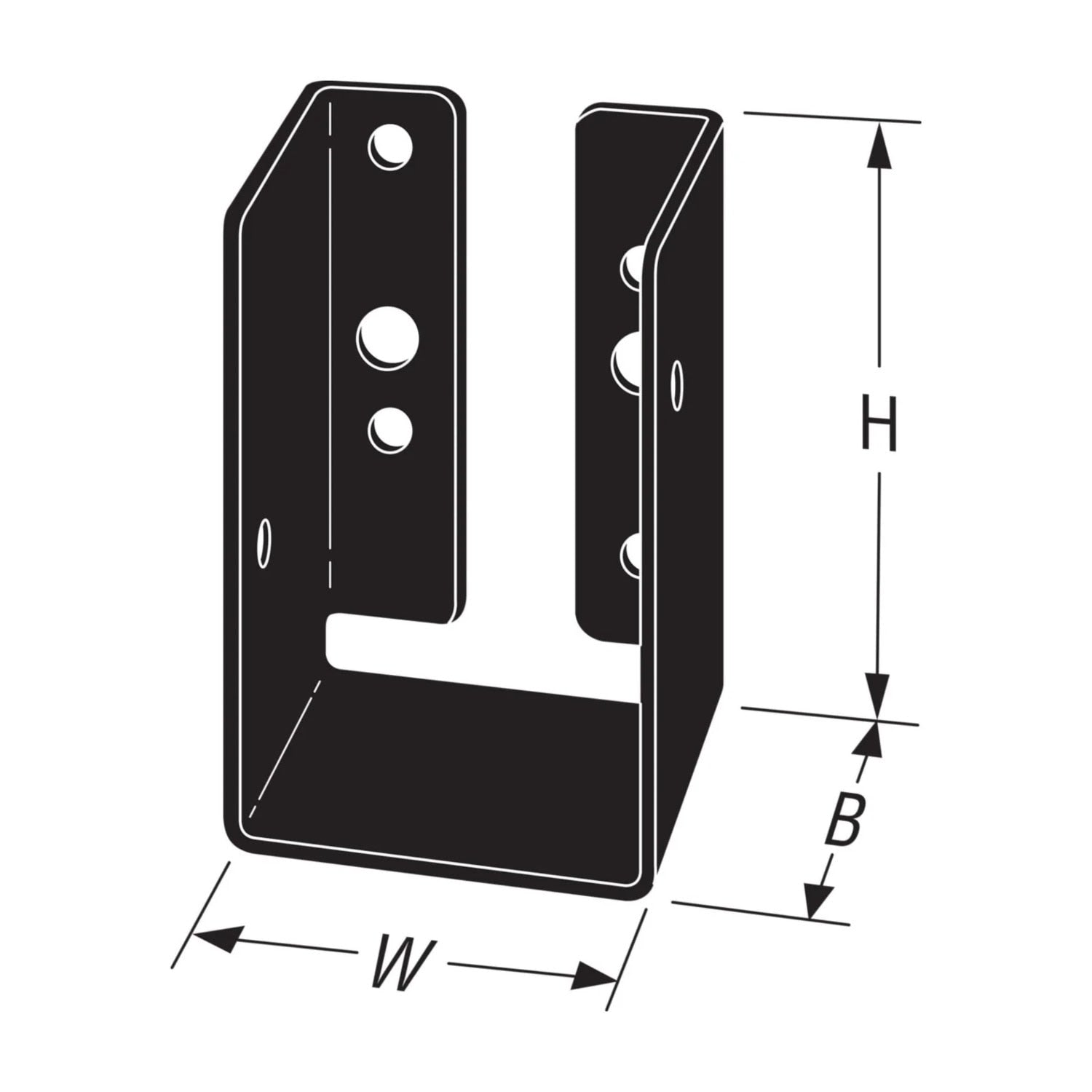

| Height | 3-1/16" |
| Joist size | 2" X 4" Rough |
| Thickness | 14 Gauge |
| Width | 2-1/16" |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 6" x 4".
