Simpson APVB66DSP Description
The ZMAX Black Post Base Side Plate for 6x nominal lumber offers enhanced structural support and aesthetic appeal for outdoor wood constructions.

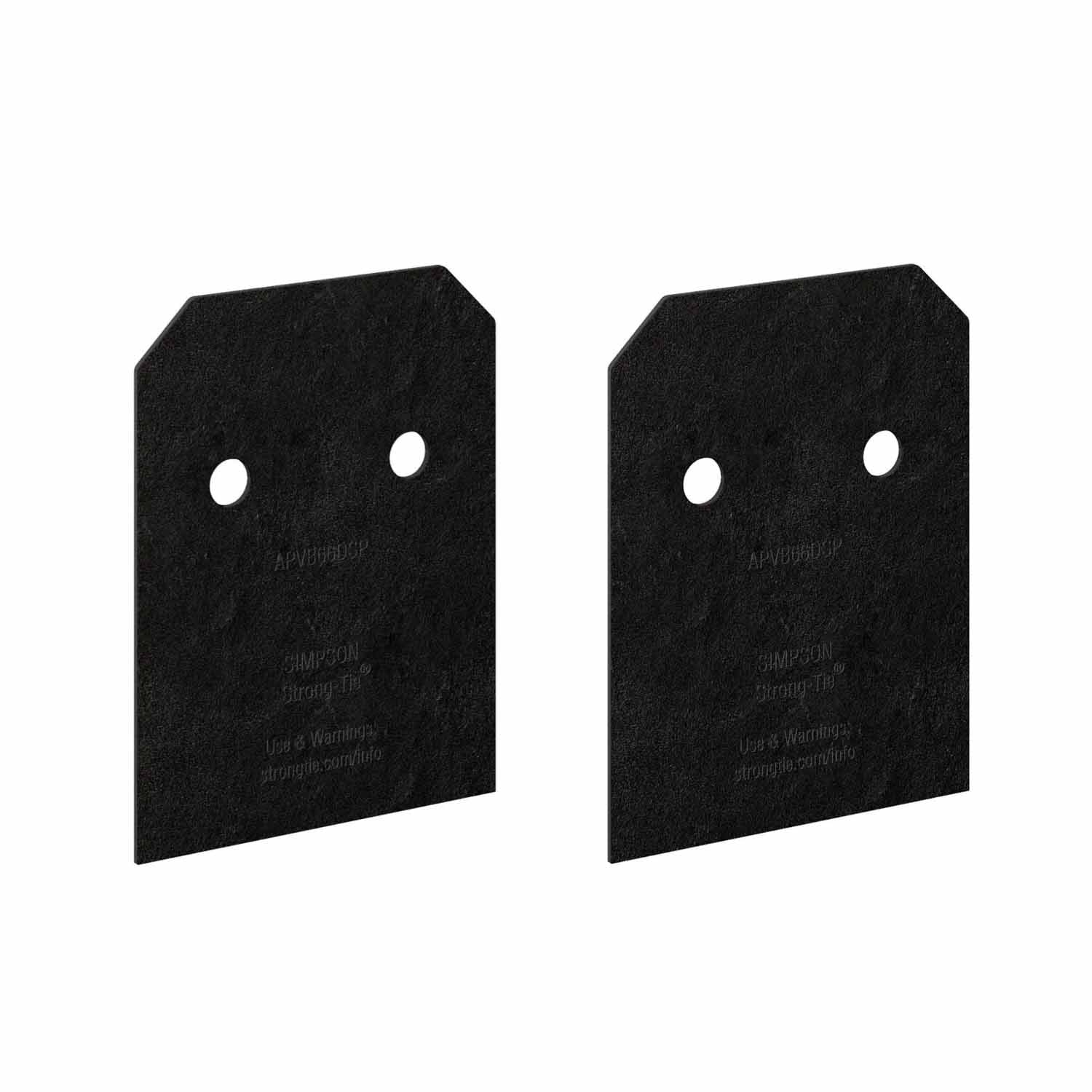

Simpson APVB66DSP Includes
- (2) ZMAX Black Post Base Side Plate
Simpson APVB66DSP Features
- High-strength steel with ZMAX galvanization and black powder-coated finish
- Straight-line styling for a clean, modern look
- Built to perform in outdoor environments
- Works with Outdoor Accents adjustable post bases for wood-to-concrete connections
- Available for a range of standard post sizes
- Simple attachment enhances both aesthetics and structural integrity
Simpson APVB66DSP Applications
- Decks: Provides structural support and aesthetic enhancement for wood posts.
- Patios: Ideal for securing wood posts in outdoor environments.

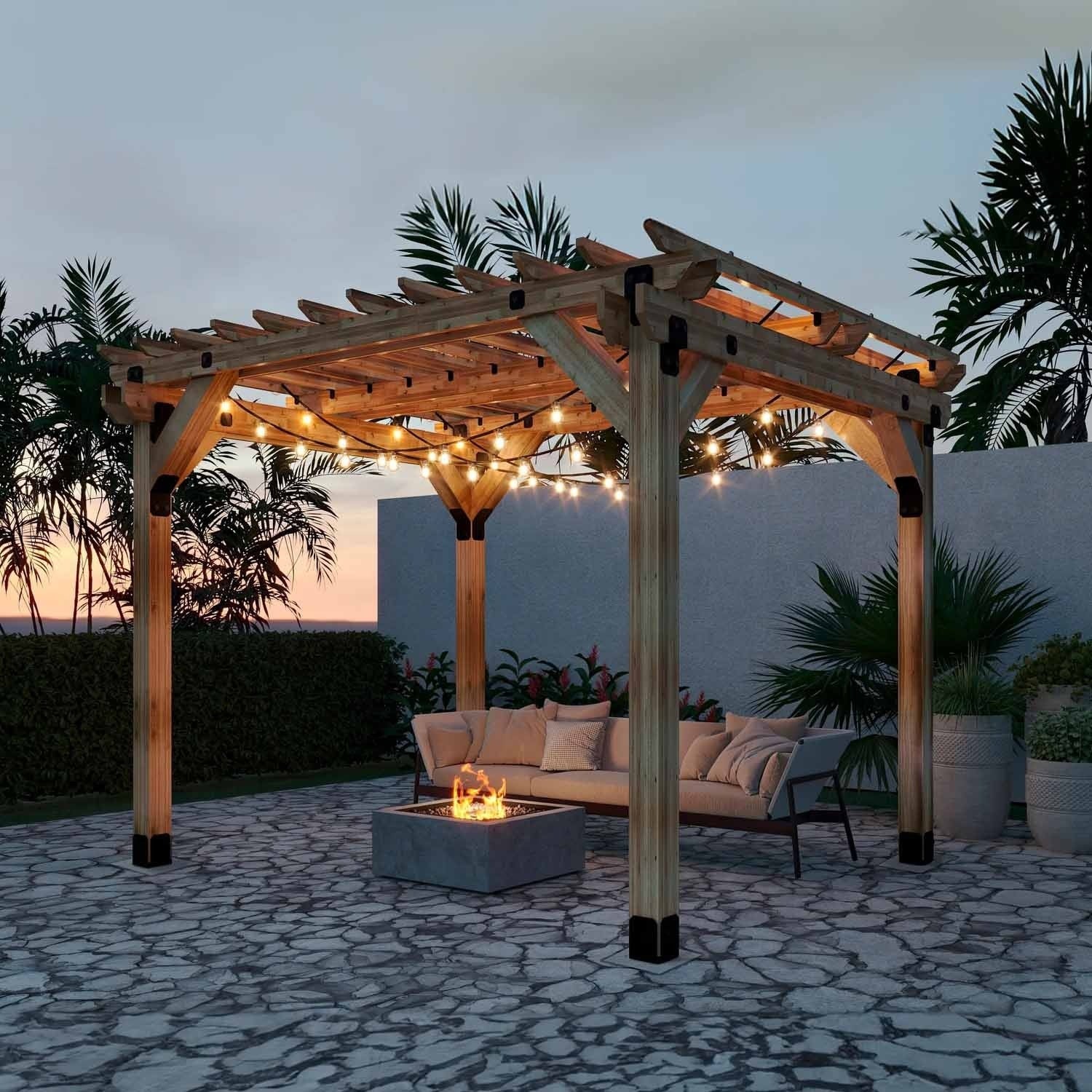

- Pergolas: Enhances the stability and appearance of wood posts.
- Pavilions: Suitable for reinforcing wood posts in outdoor structures.

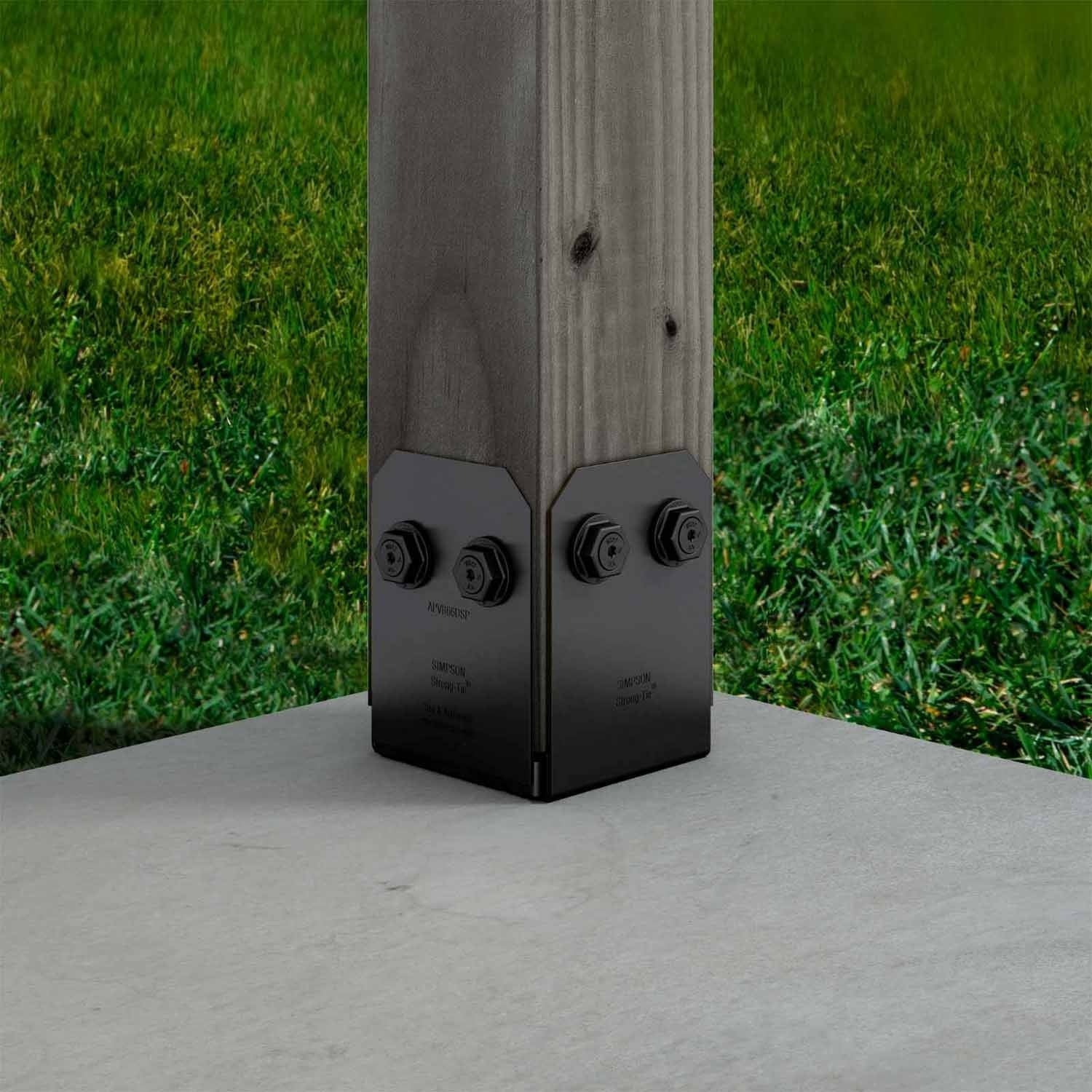

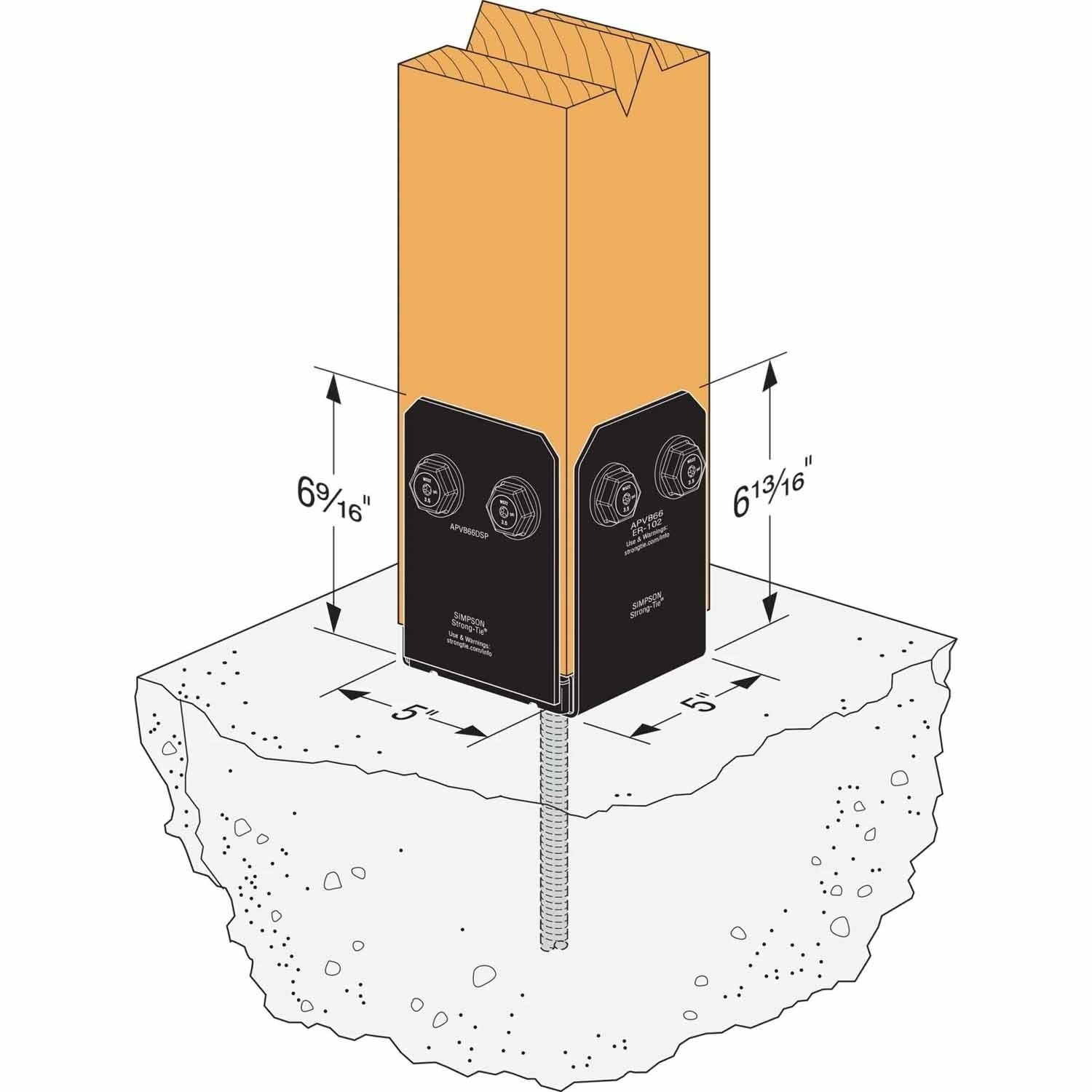

Simpson APVB66DSP Installation Overview
- Align the top of the decorative side plates flush with the top of the post base strap legs.
- Ensure the side plates are raised 1/4" from the bottom of the post base.
- Secure the plates using the specified fasteners (sold separately).

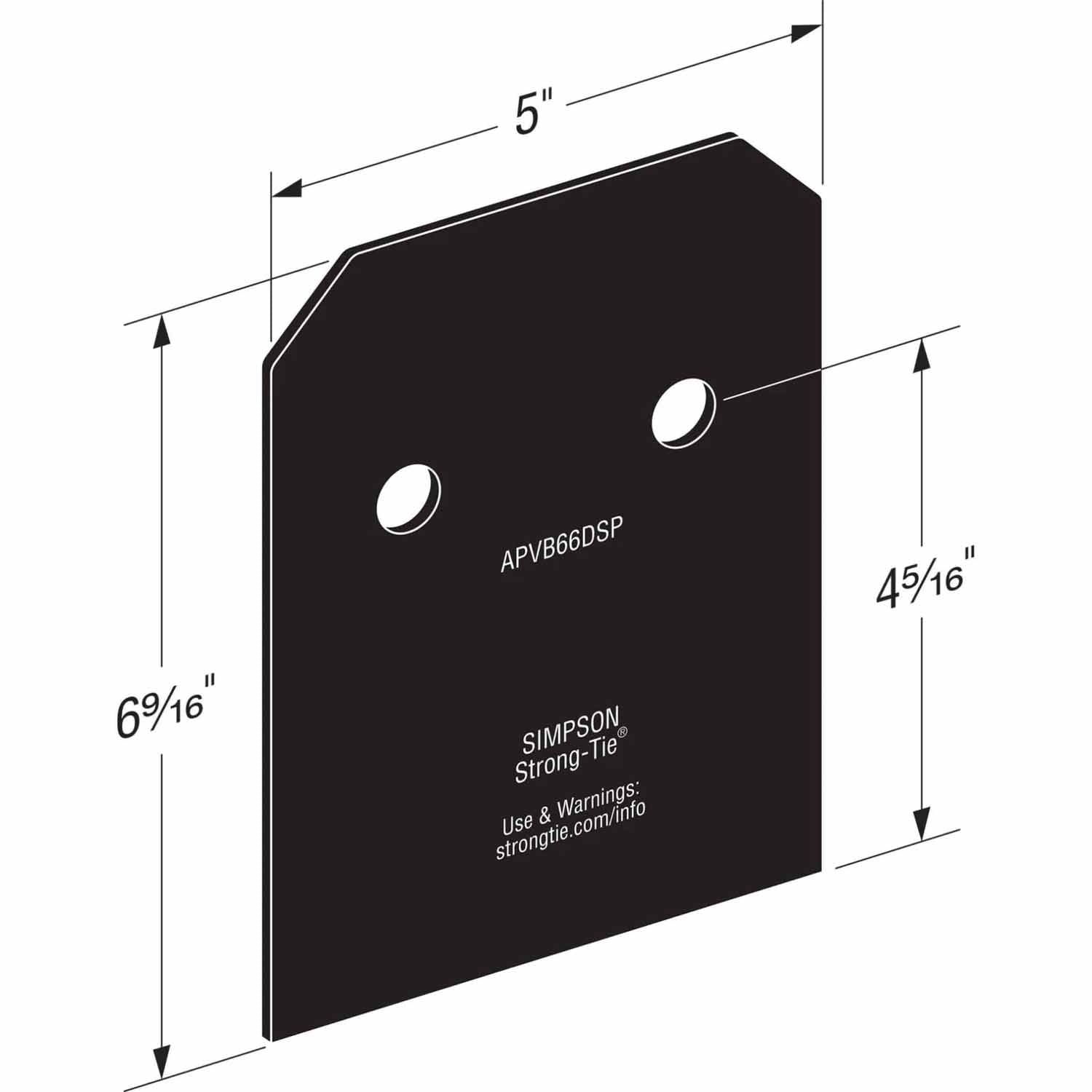

Simpson APVB66DSP Specifications
| Material | 12-gauge steel |
| Finish | ZMAX galvanization with black powder coat |
| Post Size | 6X or 6X Rough |
| Width | 5" |
| Height | 6-9/16" |
| Thickness | 12 Gauge |
| Fasteners Required | (4) SDWS22312DBB Structural wood screws, (4) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Quantity | 2 |
NOTE: Ensure the top of the decorative side plates is flush with the top of the post base strap legs during installation.
Toolup Part # :
820997
