Simpson Anchors | SKU:
APVKB45-6
Simpson Strong-Tie APVKB45-6 (5" x 6x) 12Ga Decorative Knee Brace Connector - ZMAX/Black Powder Coating
$10.49
Unit price
/
Unavailable
Description
Description

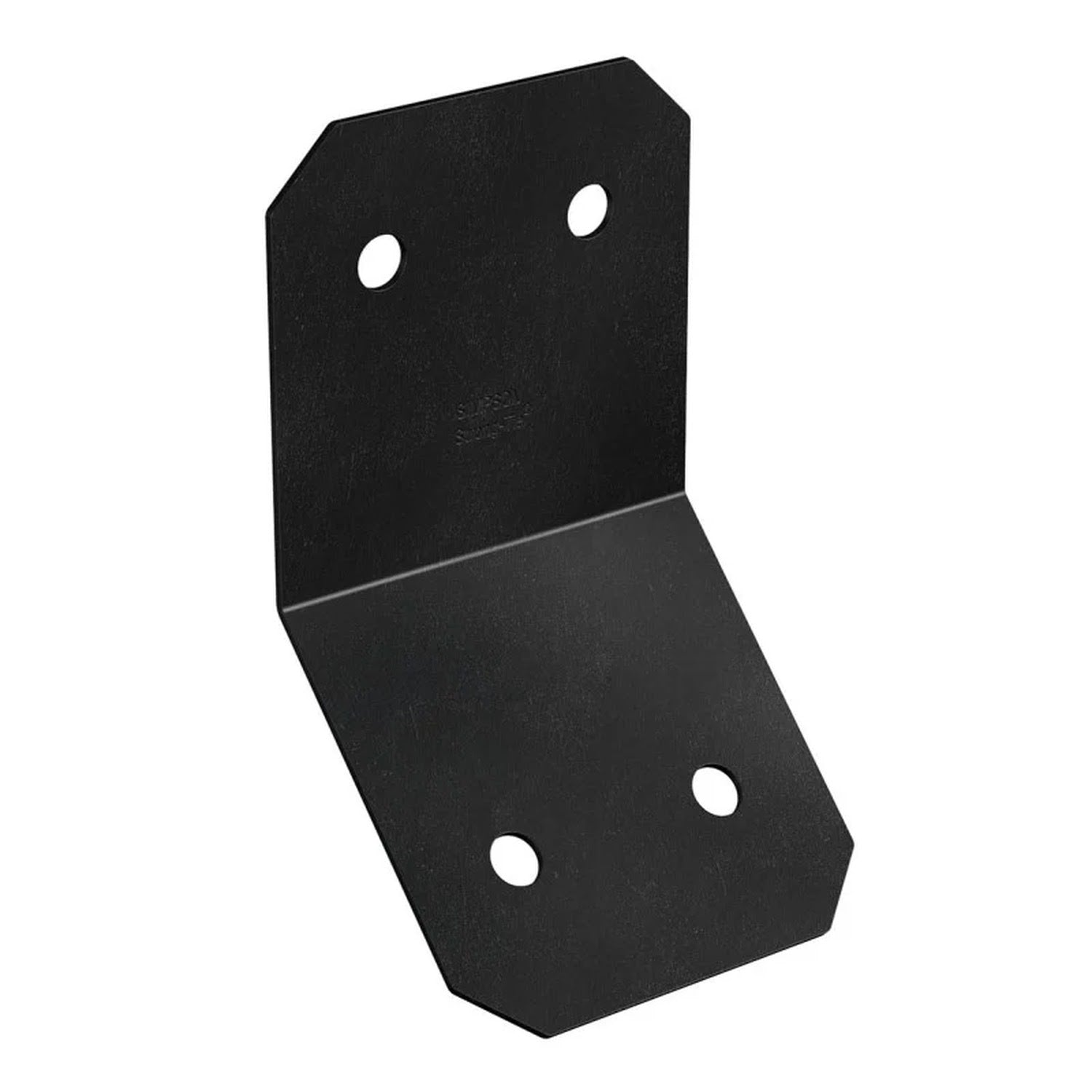

Simpson APVKB45-6 Description

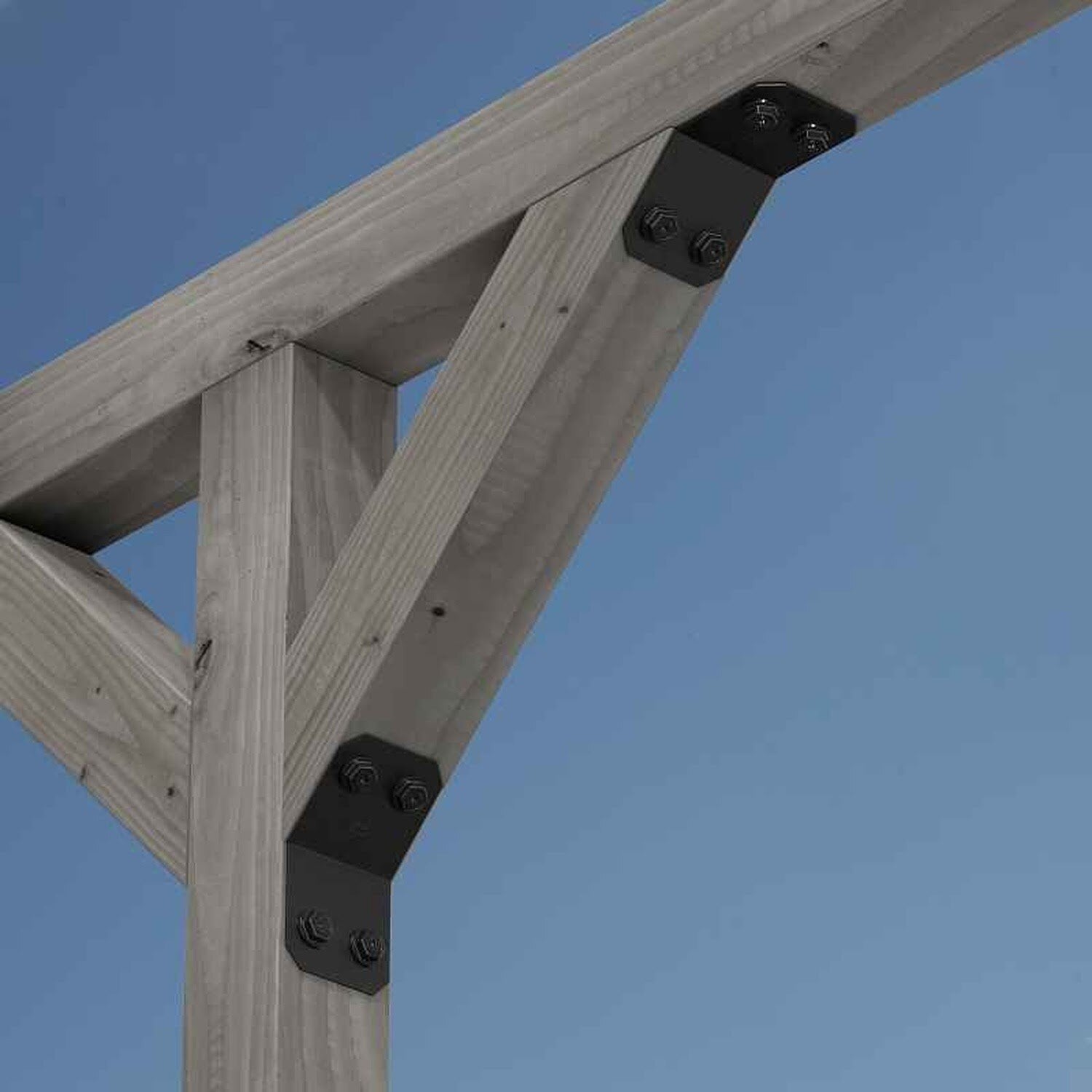

The Simpson Strong-Tie Outdoor Accents APVKB Decorative Knee Brace Connector adds both strength and modern design to your outdoor wood structures. Part of the Avant Collection, this connector is engineered to simplify knee brace installation while enhancing the look of pergolas, pavilions, and patio covers with its clean, straight-line styling.
Simpson APVKB45-6 Includes
- (1) ZMAX Black Powder-Coated Knee Brace Connector
Simpson APVKB45-6 Features
- Heavy-duty steel with ZMAX galvanization and black powder-coated finish
- Saddle-style connector creates a secure, tight-fit joint between brace and beam/post
- Built to endure harsh weather and outdoor conditions
- Straight-line styling matches the Avant Collection for a clean, professional look

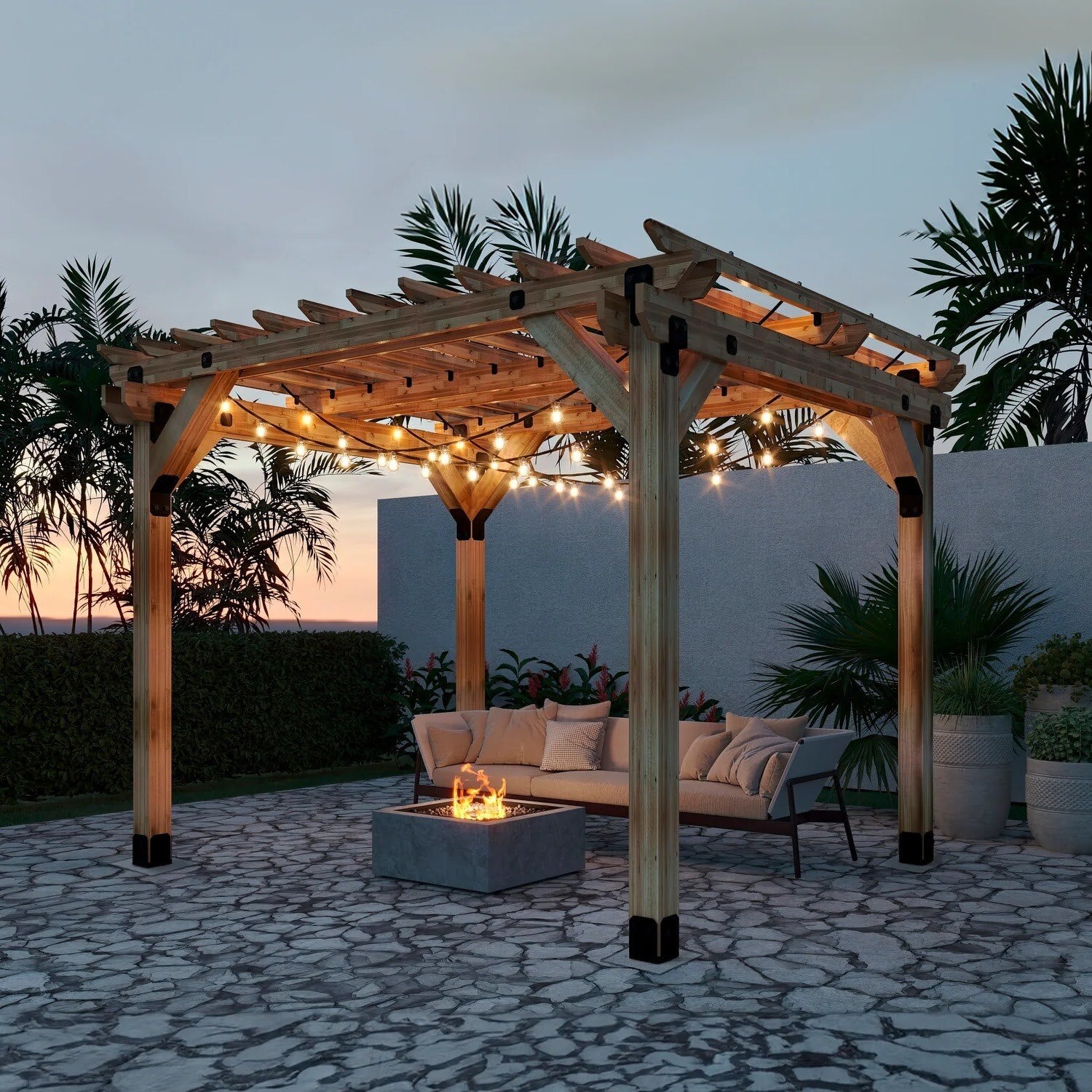

Simpson APVKB45-6 Applications
- Reinforcing decorative knee braces on pergolas
- Strengthening pavilions
- Supporting porches
- Enhancing similar outdoor structures

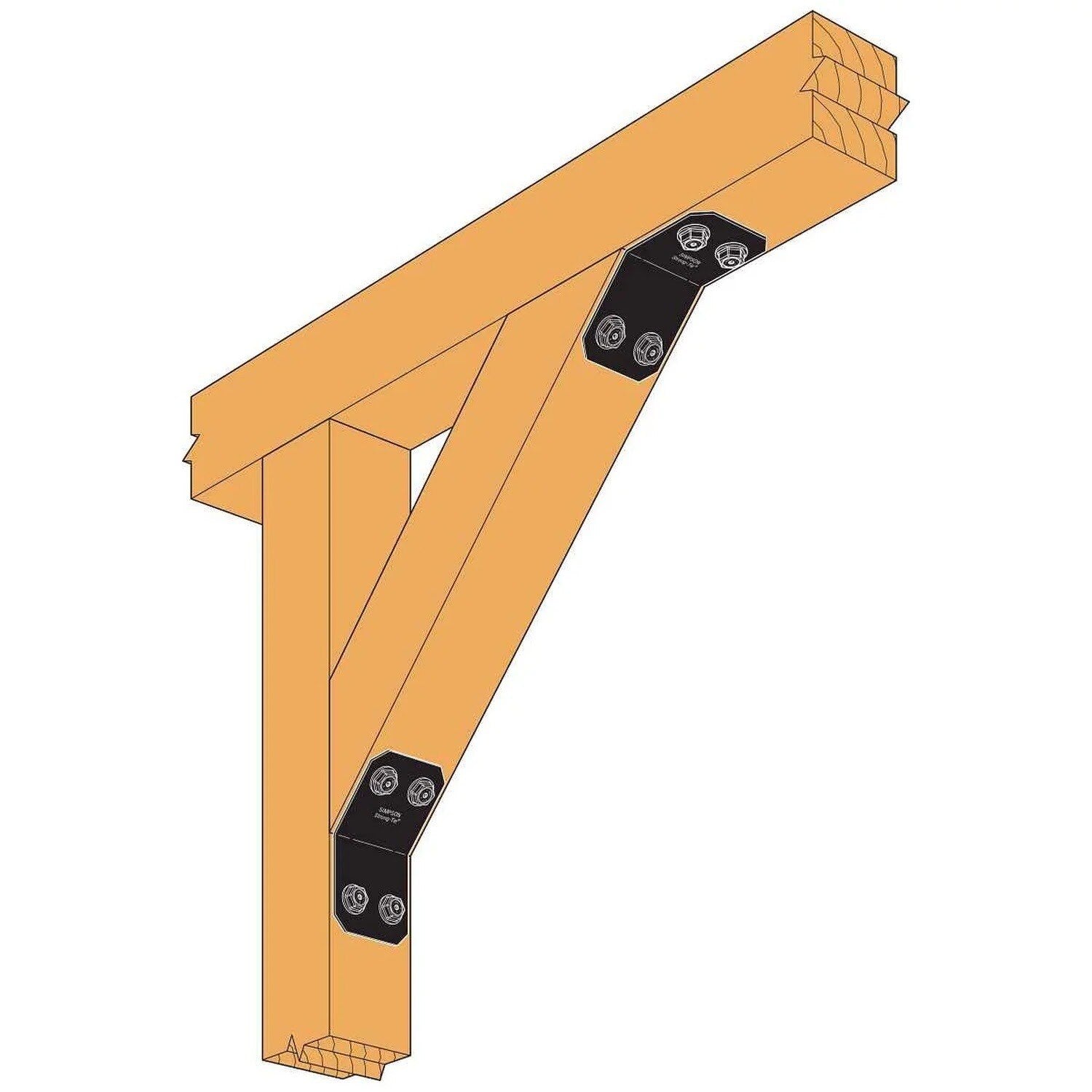

Simpson APVKB45-6 Installation Overview
- Place one APVKB connector at each end of your knee brace.
- Align with the post and beam to form a diagonal brace.
- Secure each connector using Simpson SDWS22312DBB structural wood screws and STN22 hex-head washers.

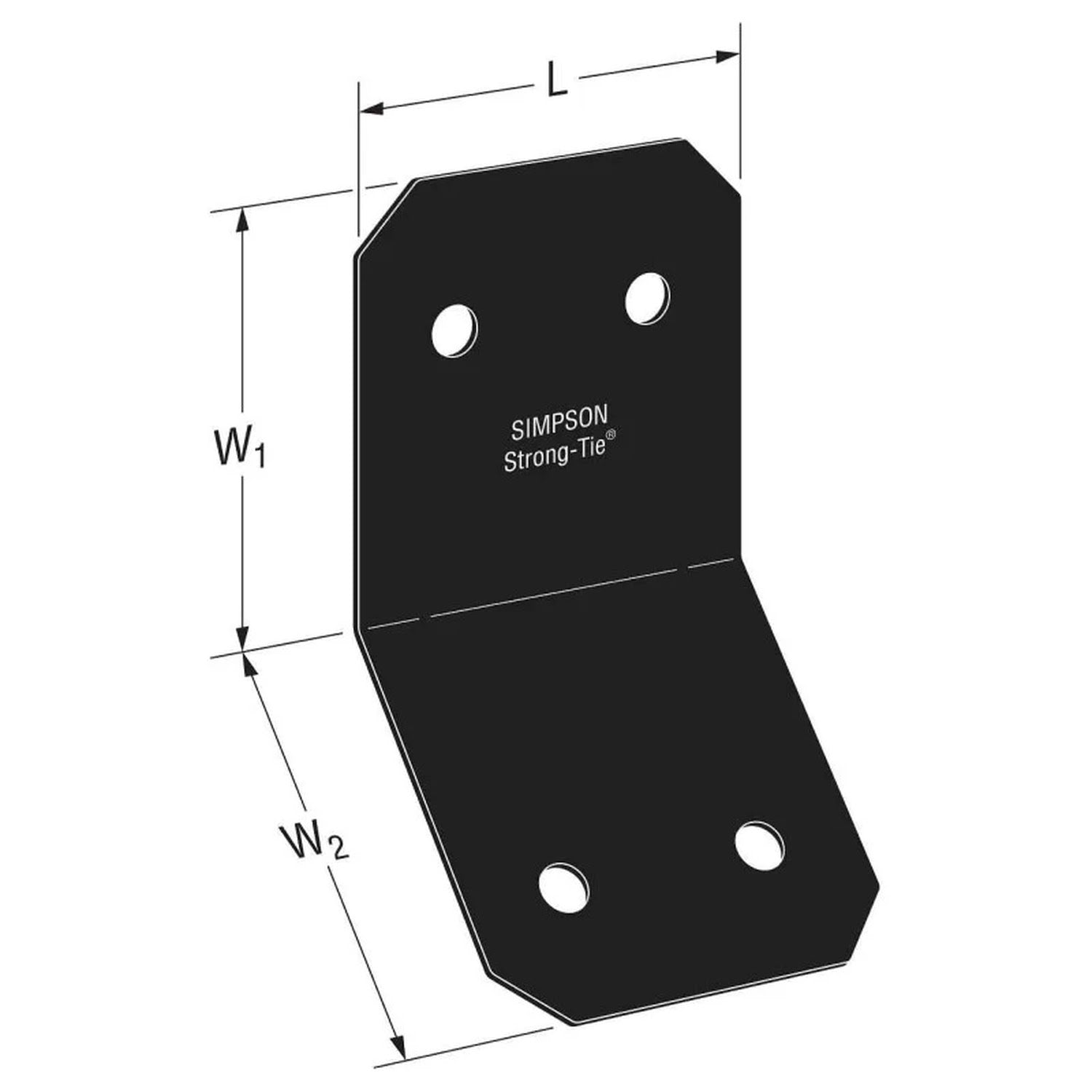

Simpson APVKB45-6 Specifications
| Finish | ZMAX and Black Powder Coat |
| Length | 5" |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | (4) SDWS22312DBB Structural wood screws, (4) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 6X |
| Thickness | 12 Gauge |
| Type | Avant Collection |
| Width | W1: 4-7/8", W2: 4-7/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
