Simpson Anchors | SKU:
AT3G30
Simpson Strong-Tie AT3G30 (28 oz.) High-Strength Acrylic Anchoring Adhesive Cartridge with Nozzle
$39.29
Unit price
/
Unavailable
Description
Description
Simpson AT3G30 Description
The Simpson AT3G30 is a high-strength hybrid acrylic adhesive cartridge designed for anchoring threaded rods and rebar into concrete. It is ideal for cold weather and wet concrete applications, offering fast curing and easy installation.
Simpson AT3G30 Includes

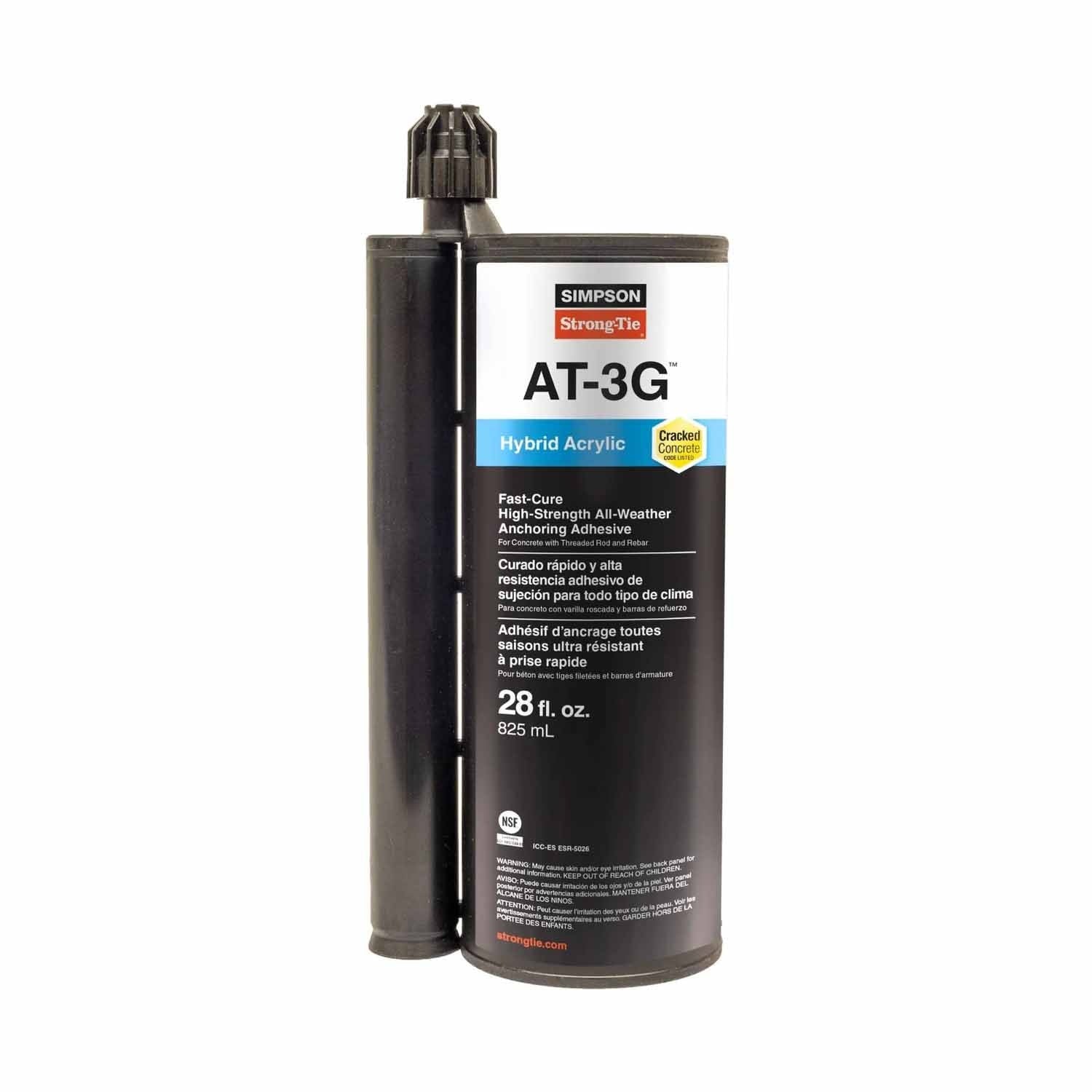

- (1) 28 oz. Side-by-Side Cartridge
- (1) AMN19Q Mixing Nozzle
Simpson AT3G30 Features
- Fast curing for rapid strength development
- Effective in cold weather applications down to 0°F (-18°C)
- Suitable for cracked and uncracked concrete
- Compatible with grout-filled CMU construction
- Easy installation with conventional blow-brush-blow hole cleaning technique
Simpson AT3G30 Applications

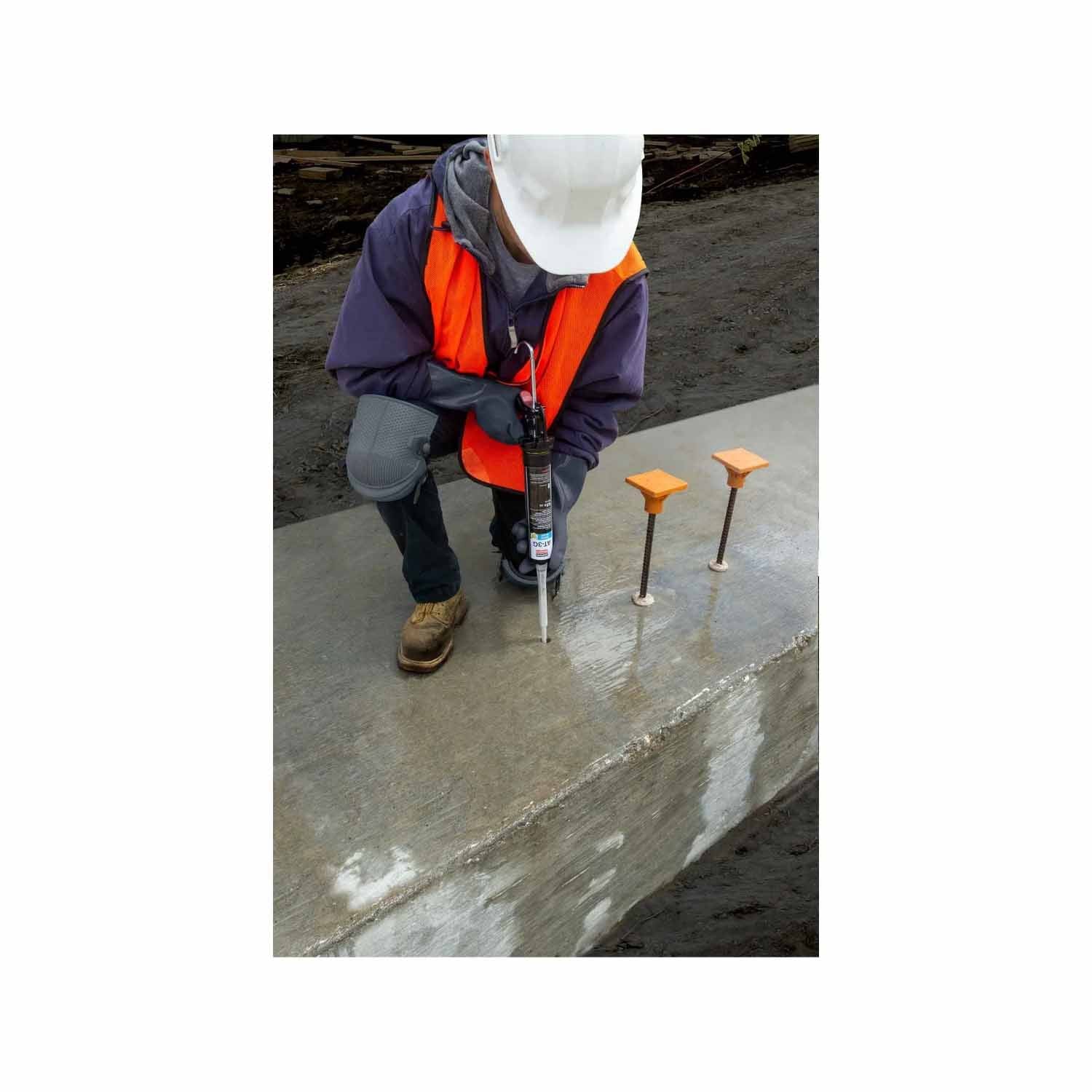

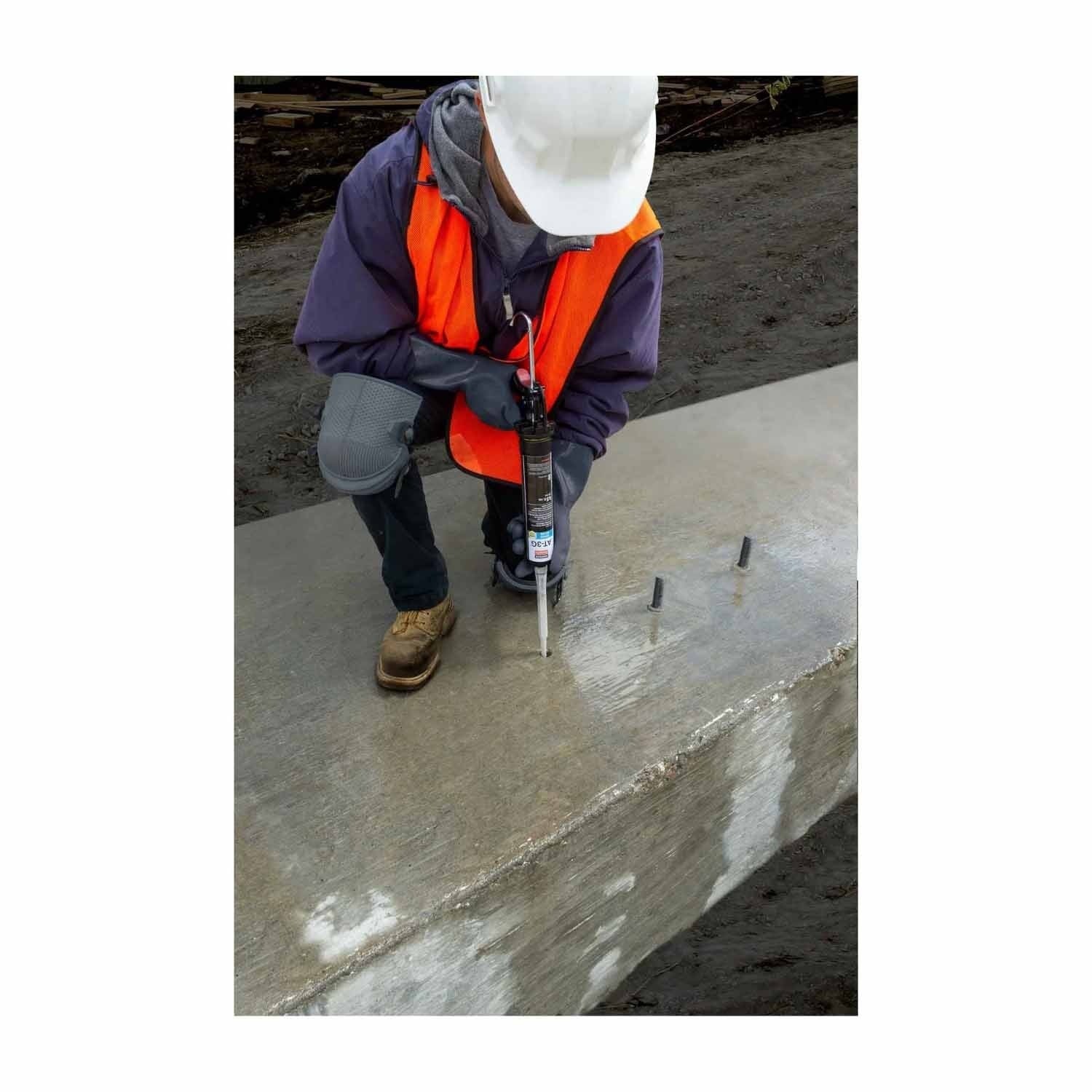

- Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete

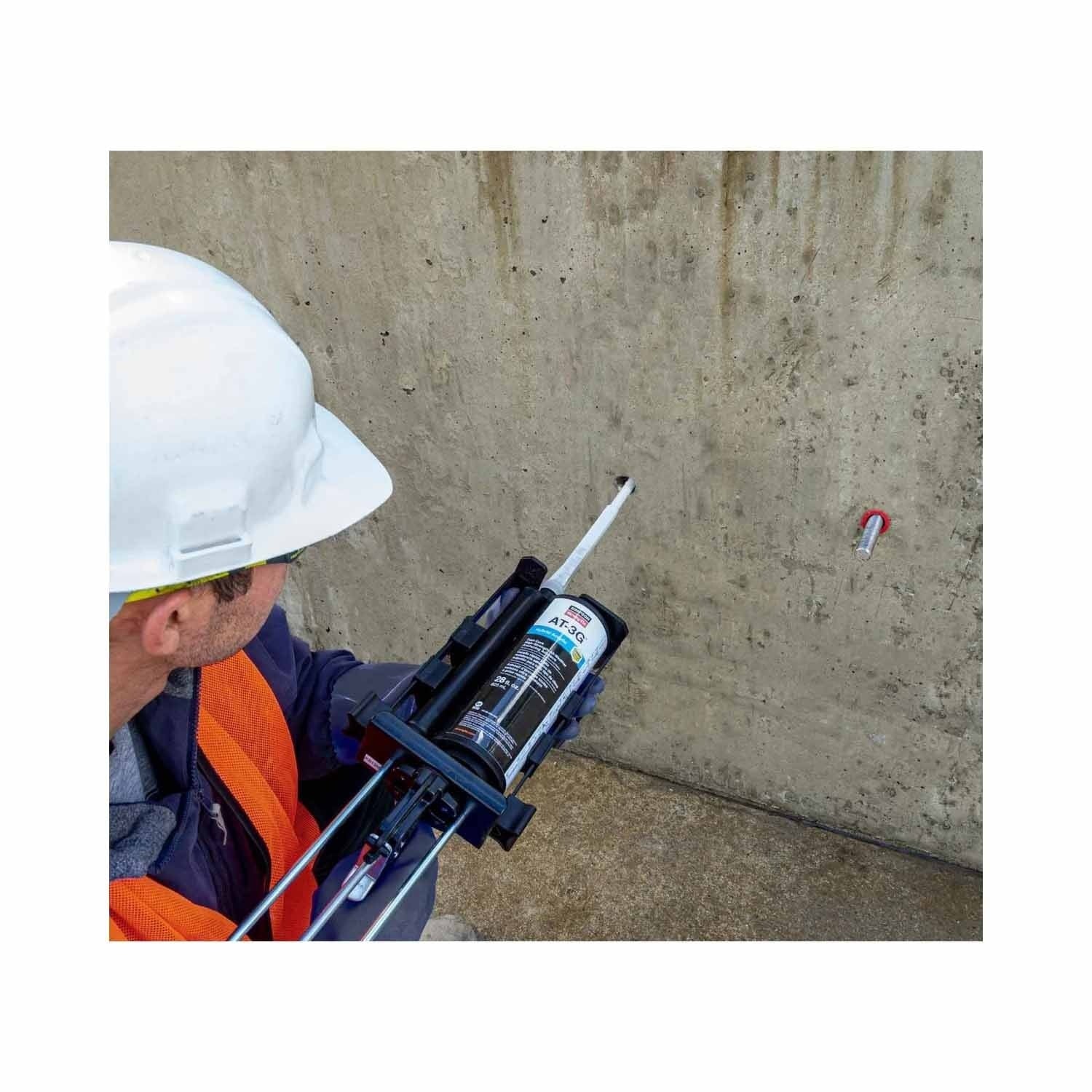

- Installation in downward, horizontal, and upwardly inclined orientations
- Qualified for use in structures assigned to Seismic Design Categories A through F
- Effective in temperatures as low as 0°F (-18°C)
Simpson AT3G30 Installation Overview
- Ensure surfaces are clean using the approved hole cleaning method.
- Condition adhesive cartridges to a minimum temperature of 65°F (18°C) for cold installations.
- Use Simpson Strong-Tie mixing nozzles as per instructions.
- Mixed material in nozzle hardens in 2-3 minutes at temperatures of 70°F (21°C) and above.
- Follow full instructions provided in the adhesive anchoring installation guide.
Simpson AT3G30 Specifications
| Mix Ratio | 10:1 hybrid-acrylic |
| Color | Gray |
| Base Materials | Concrete — cracked and uncracked |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 23°F (-5°C) to 104°F (40°C) |
| In-Service Temperature Range | -40°F (-40°C) to 320°F (160°C) |
| Shelf Life | 18 months |
NOTE: Ensure the adhesive is conditioned to a minimum temperature of 65°F (18°C) for installation in concrete temperatures between 0°F and 23°F (-18°C and -5°C).
