At a Glance
Thread Size
1-1/4 in
Thread Type
UNC
Rod Length
36 in
Grade
A307
Material
Mild Steel
Sold As
Individual
Application
Roofing
Finish
Black Oxide
Description
Description

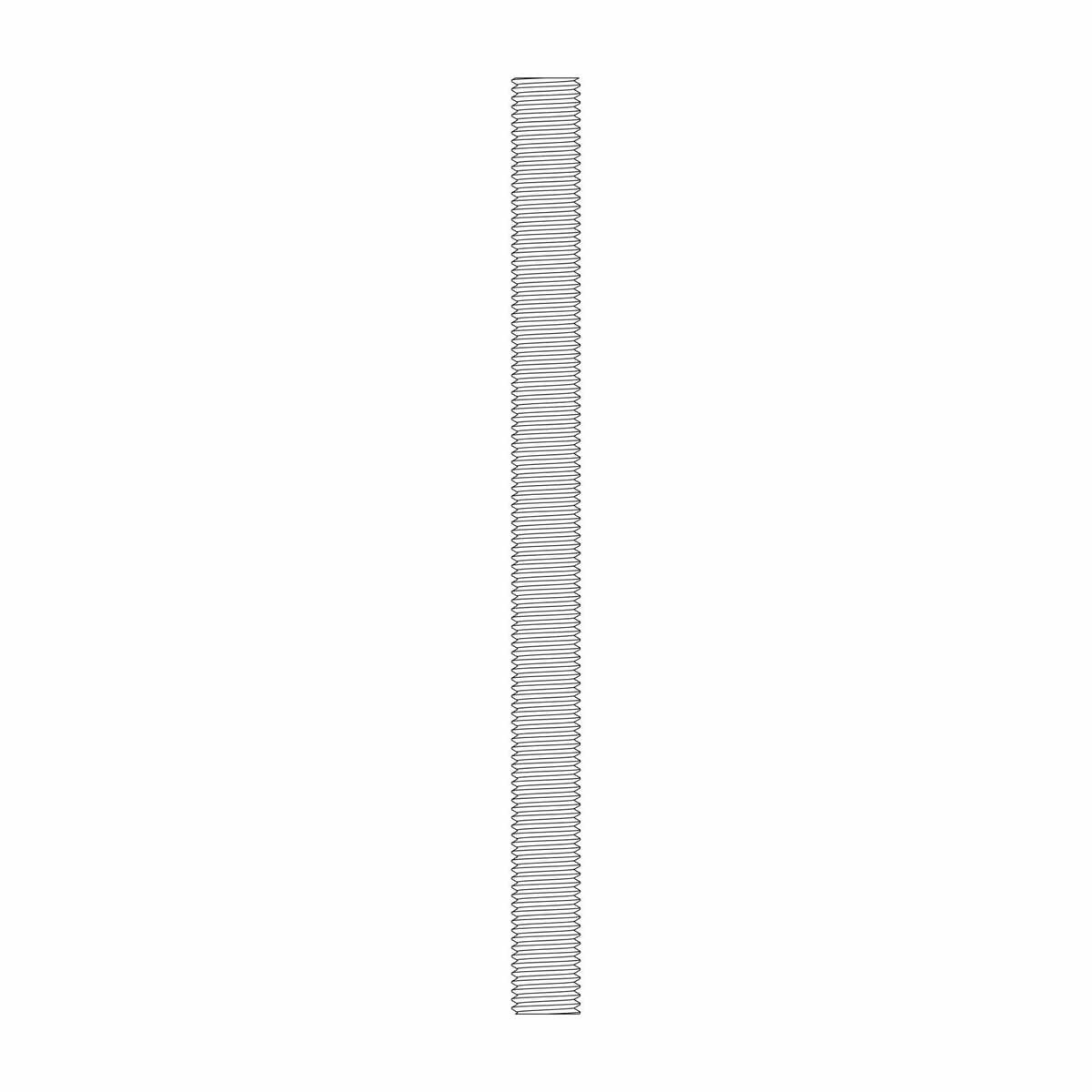

Simpson Strong-Tie ATR1-1/4X36 Description
The Simpson Strong-Tie ATR All-Thread Rod is a fully threaded tension rod designed for structural applications, offering high strength and versatility.
Simpson Strong-Tie ATR1-1/4X36 Includes
- (1) 1-1/4" x 36" All-Thread Rod
Simpson Strong-Tie ATR1-1/4X36 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR1-1/4X36 Applications
- Structural tension transfer in anchoring systems
- Shearwall overturning restraint
- Wind uplift restraint for roofs
- General anchoring and bracing needs
Simpson Strong-Tie ATR1-1/4X36 Installation Overview
- Ensure compatibility of nut and rod material and finish
- Align the rod in the desired position
- Securely fasten using appropriate nuts and washers
Simpson Strong-Tie ATR1-1/4X36 Specifications
| Diameter | 1-1/4" |
| Length | 36" |
| Material | Low carbon steel |
| Finish | Plain |
| Thread type | Coarse |
| Tension Capacity | 26,690 lbs |
| Standards | ASTM F1554 Grade 36, A36, A307 |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
Toolup Part # :
819565
