At a Glance
Thread Size
1 in
Thread Type
UNC
Rod Length
12 in
Grade
A307
Material
Steel
Sold As
Individual
Application
Structural Bonding
Finish
Zinc Plated
Description
Description
Simpson Strong-Tie ATR1-1/8X12 Description

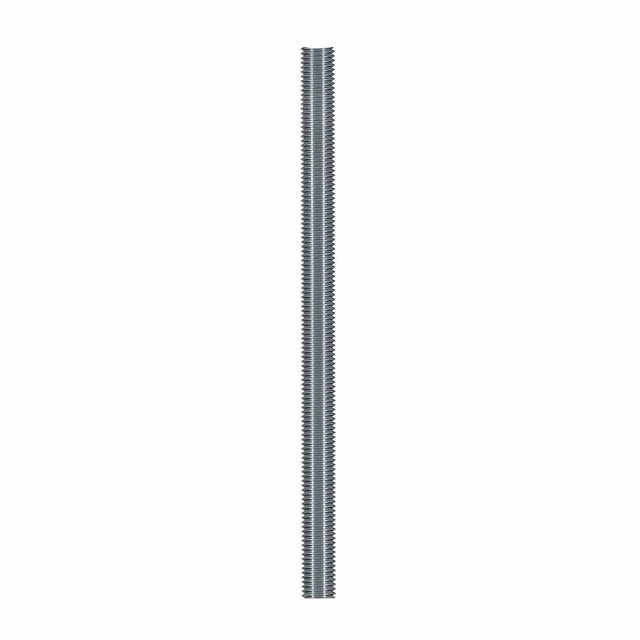

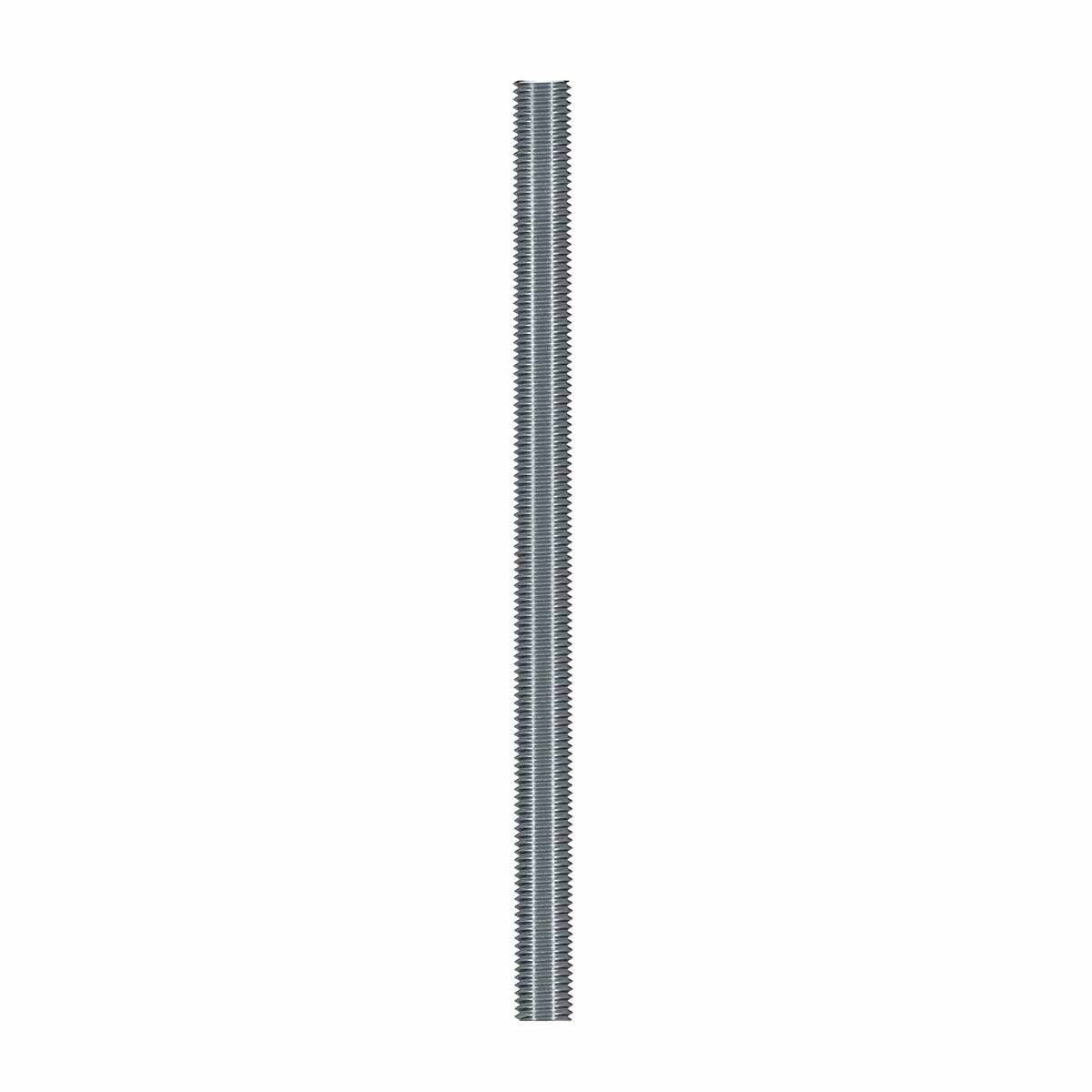

The Simpson Strong-Tie ATR All-Thread Rod is designed for high-strength anchoring and structural applications, featuring a fully threaded design and corrosion-resistant finish.
Simpson Strong-Tie ATR1-1/8X12 Includes
- (1) Fully Threaded Rod
Simpson Strong-Tie ATR1-1/8X12 Features
- Precut for convenience
- Models available in standard-strength material
- UNC Class 2A or 1A thread specifications
- Fully threaded design for flexible installation
- Corrosion-resistant zinc-plated finish
Simpson Strong-Tie ATR1-1/8X12 Applications
- Multi-story high-wind structural tension transfer
- General anchoring and structural applications
- Shearwall overturning restraint
- Wind uplift restraint system

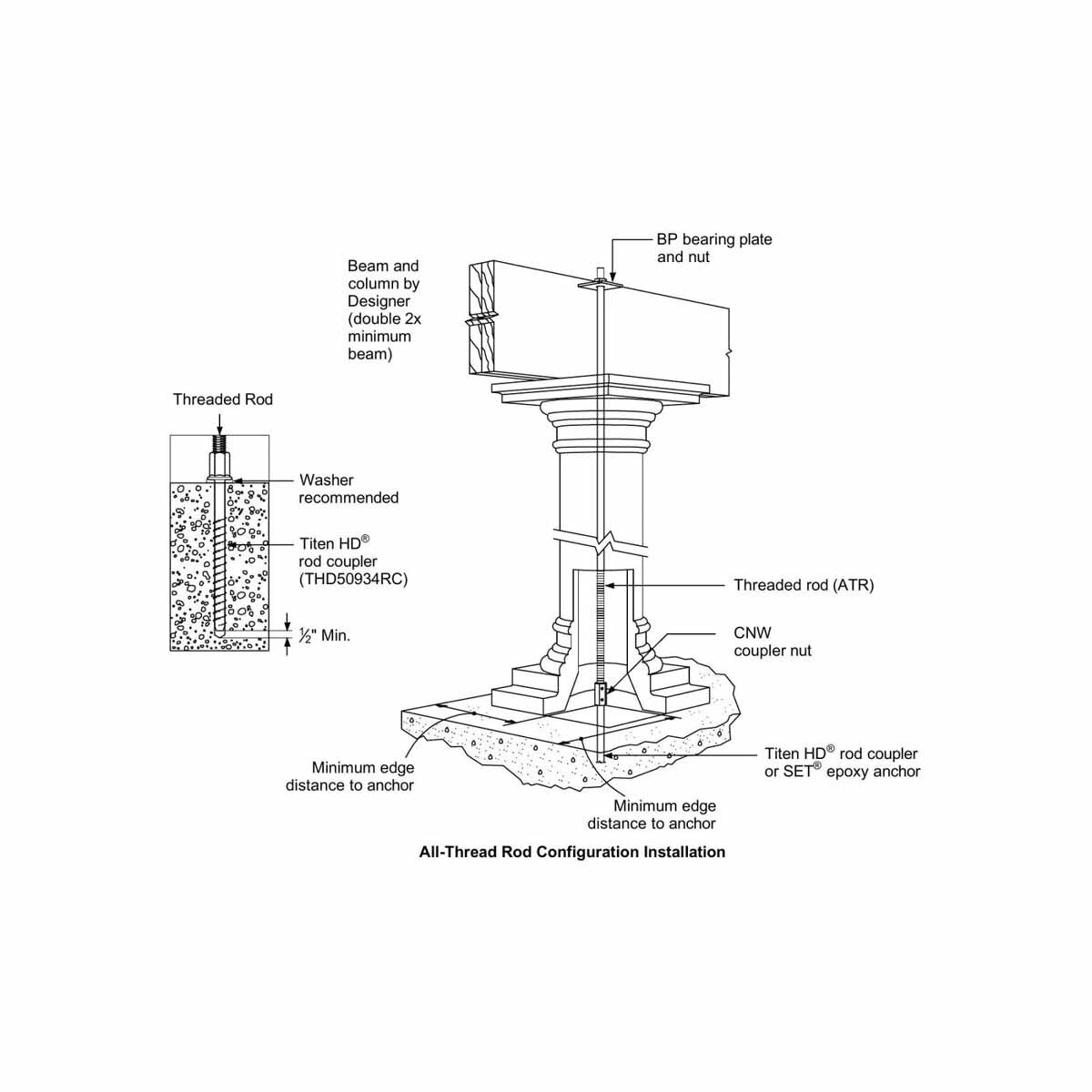

Simpson Strong-Tie ATR1-1/8X12 Installation Overview
- Drop or push the rod through drilled holes in the flooring system after framing is completed.
- Drill holes 1/4" larger than the rod diameter.
- Ensure drilled holes through the sole plate and flooring system are completed with one continuous drilling action.
Simpson Strong-Tie ATR1-1/8X12 Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A |
| Finish | Uncoated black steel |
| Diameter | 1-1/8" |
| Length | 12" |
| Thread Type | Coarse |
NOTE: Ensure the material and finish of the nut match the threaded rod to avoid compatibility issues.
Toolup Part # :
819562
