Simpson Anchors | SKU:
ATR1/2X120

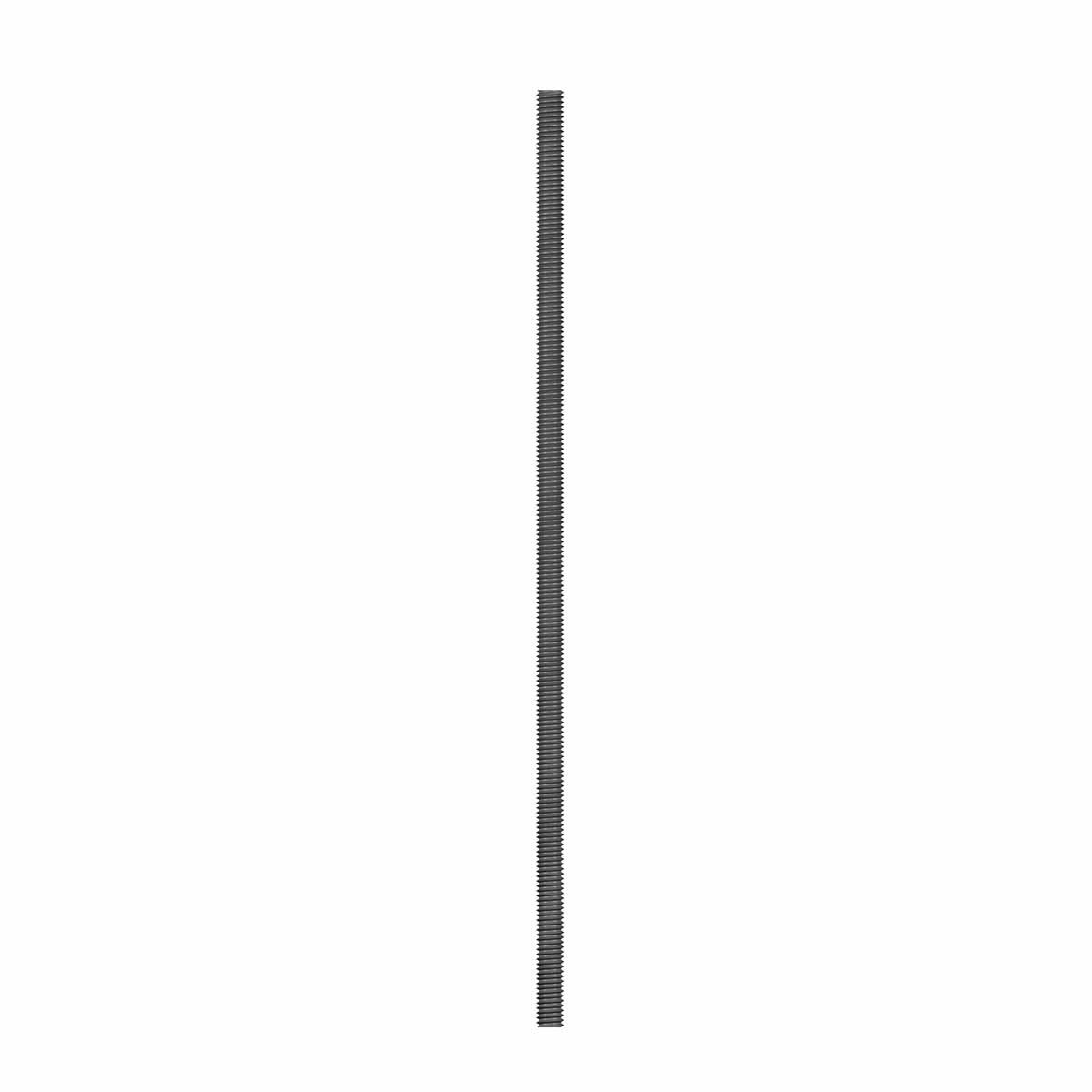

Simpson Strong-Tie ATR1/2X120 (1/2" x 120") Strong-Rod Fully Threaded All-Thread Rod for Tension Transfer
$20.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR1/2X120 Description
The ATR1/2X120 is a fully threaded rod designed for tension transfer in multi-story high-wind applications. Made from ASTM F1554 Grade 36 or ASTM A307 Grade A material, it ensures reliable performance.
Simpson Strong-Tie ATR1/2X120 Includes
- (1) Fully Threaded Rod
Simpson Strong-Tie ATR1/2X120 Features
- Precut for convenience
- Models available in standard-strength material
- UNC Class 2A or 1A thread specifications
Simpson Strong-Tie ATR1/2X120 Applications
- Multi-story high-wind applications
- Shearwall overturning restraint
Simpson Strong-Tie ATR1/2X120 Installation Overview
- Drop the rod through drilled holes in the flooring system after framing is completed
- Drill holes 1/4" larger than the rod diameter
- Complete drilled holes through the sole plate and flooring system with one continuous drilling action
Simpson Strong-Tie ATR1/2X120 Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A |
| Finish | Uncoated black steel |
| Size | 1/2 in. x 120 in. |
| Packaging Quantity | 1 |
