Simpson Strong-Tie ATR1/2X96 Description
The ATR1/2X96 Fully Threaded Rod is designed for tension transfer in multi-story high-wind applications, offering convenience and reliability.
Simpson Strong-Tie ATR1/2X96 Includes
- (1) Fully Threaded Rod
Simpson Strong-Tie ATR1/2X96 Features
- Precut for convenience
- Models available in standard-strength material
- UNC Class 2A or 1A thread specifications
Simpson Strong-Tie ATR1/2X96 Applications
- Multi-story high-wind applications
- Shearwall overturning restraint

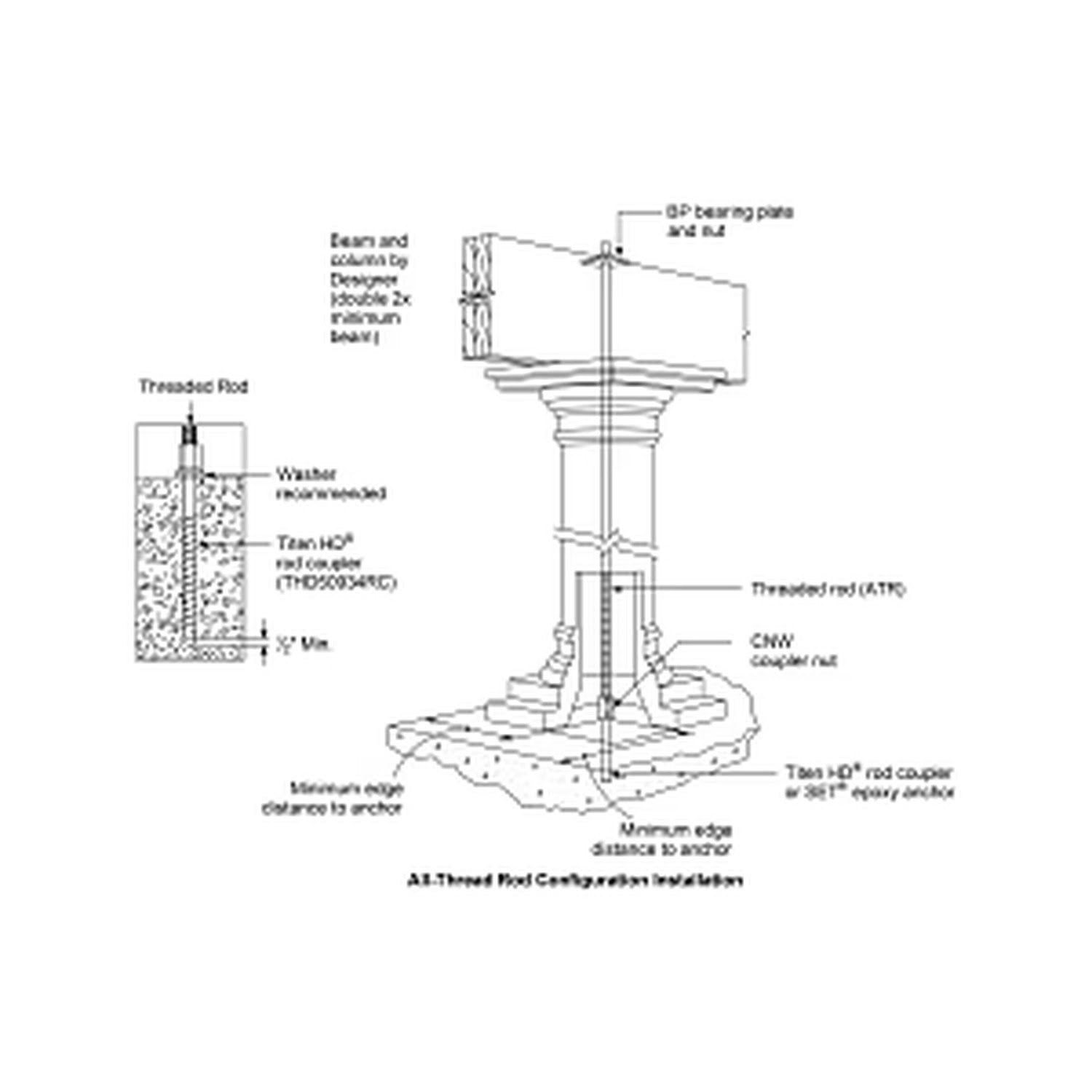

Simpson Strong-Tie ATR1/2X96 Installation Overview
- Drop the rod through drilled holes in the flooring system after framing is completed
- Drill holes 1/4" larger than the rod diameter
- Ensure drilled holes through the sole plate and flooring system are completed with one continuous drilling action
Simpson Strong-Tie ATR1/2X96 Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A; Fu = 58 ksi |
| Finish | Uncoated black steel |
| Size | 1/2 in. x 96 in. |
| Packaging Qty. | 1 |
Toolup Part # :
819545
