Simpson Anchors | SKU:
ATR1X144

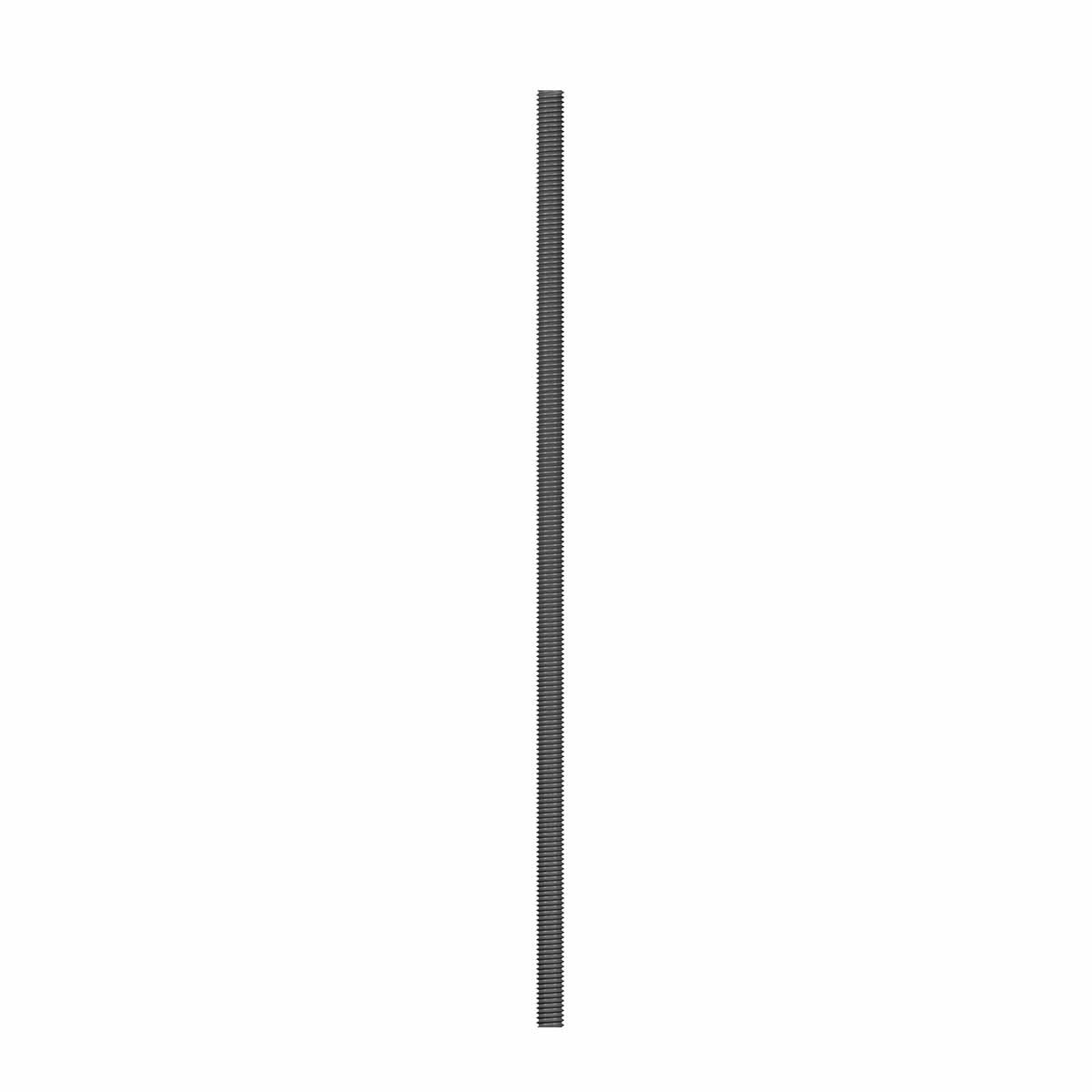

Simpson Strong-Tie ATR1X144 (1" x 144") Strong-Rod Fully Threaded Uncoated Steel Rod for Tension Transfer
$141.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR1X144 Description
The ATR1X144 is a fully threaded steel rod designed for tension transfer in structural applications. It features a durable uncoated finish and complies with ASTM standards.
Simpson Strong-Tie ATR1X144 Includes
- (1) 1 in. x 144 in. Fully Threaded Uncoated Steel Rod
Simpson Strong-Tie ATR1X144 Features
- Precut for convenience
- Models available in standard-strength material
- UNC Class 2A or 1A thread specifications
Simpson Strong-Tie ATR1X144 Applications
- Multi-Story High-Wind: Provides structural support in high-wind areas
Simpson Strong-Tie ATR1X144 Installation Overview
- Drop or push the rod through drilled holes in the flooring system after framing is completed
- Drill holes 1/4" larger than the rod diameter
- Ensure drilled holes through the sole plate and flooring system are completed in one continuous action
Simpson Strong-Tie ATR1X144 Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A; Fu = 58 ksi |
| Finish | Uncoated black steel |
| Size | 1 in. x 144 in. |
