Simpson Anchors | SKU:
ATR1X18HDG

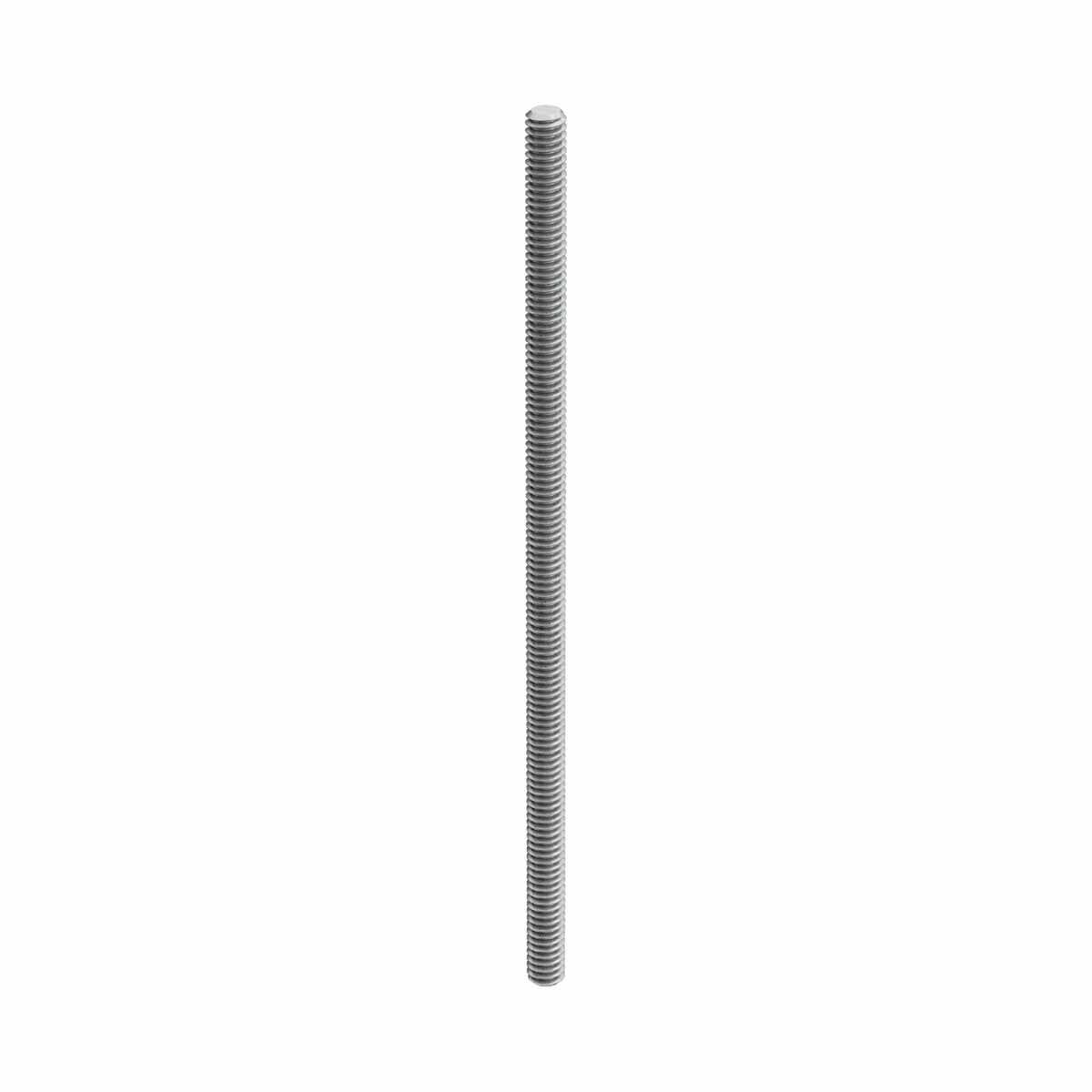

Simpson Strong-Tie ATR1X18HDG (1" x 18") Hot-Dip Galvanized All-Thread Rod for Anchoring and Structural Connections
$23.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR1X18HDG Description
The Simpson Strong-Tie ATR Hot-Dip Galvanized All Thread Rod is a fully threaded, high-strength rod designed for tension transfer in various construction applications.
Simpson Strong-Tie ATR1X18HDG Includes
- (1) 1" x 18" Hot-Dip Galvanized All-Thread Rod
Simpson Strong-Tie ATR1X18HDG Features
- Fully threaded design for easy cutting and adaptation
- High-strength material meeting ASTM A307 specifications
- Hot-dip galvanized finish for enhanced corrosion resistance
- Versatile applications for anchoring systems and structural connections
Simpson Strong-Tie ATR1X18HDG Applications
- Anchoring systems in concrete and masonry
- Suspension systems for pipes and conduits
- Structural connections in wood, steel, and concrete constructions
Simpson Strong-Tie ATR1X18HDG Specifications
| Material | Carbon Steel |
| Finish | Hot-Dip Galvanized |
| Thread Type | UNC Class 2A or 1A |
| Diameter | 1" |
| Length | 18" |
| Allowable Tension Capacity | 17,080 lbs |
NOTE: Ensure the nut material and finish match the threaded rod to avoid fitting issues.
