At a Glance
Thread Size
1 in
Thread Type
UNC
Rod Length
24 in
Grade
A307
Material
Steel
Sold As
Individual
Application
Concrete Anchoring
Finish
Galvanized
Description
Description
Simpson Strong-Tie ATR1X24HDG Description

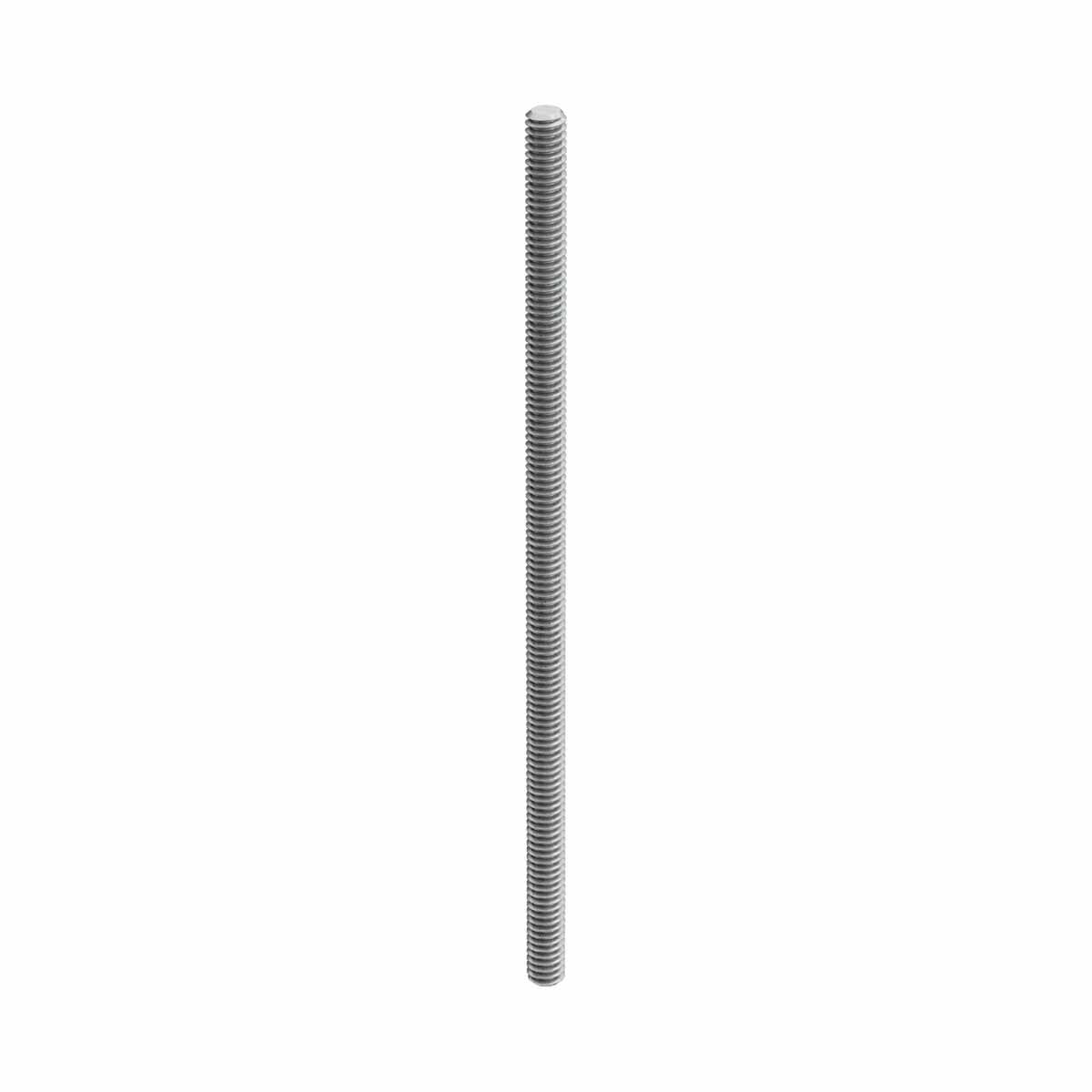

The Simpson Strong-Tie ATR Hot-Dip Galvanized All Thread Rod is a fully threaded, high-strength rod designed for tension transfer in various construction applications.
Simpson Strong-Tie ATR1X24HDG Includes
- (1) Hot-Dip Galvanized All-Thread Rod
Simpson Strong-Tie ATR1X24HDG Features
- Fully threaded design for easy cutting and adaptation
- High-strength material meeting ASTM A307 specifications
- Hot-dip galvanized finish for enhanced corrosion resistance
- Versatile applications in anchoring systems and structural connections
Simpson Strong-Tie ATR1X24HDG Applications
- Anchoring systems: Compatible with Simpson Strong-Tie adhesive anchoring systems in concrete and masonry
- Suspension systems: Supports the hanging of pipes, conduits, and other fixtures
- Structural connections: Facilitates the joining of structural elements in wood, steel, and concrete constructions
Simpson Strong-Tie ATR1X24HDG Specifications
| Diameter | 1" |
| Finish | Hot Dip Galvanized |
| Length | 2' |
| Material | Carbon Steel |
| Thread Type | UNC Class 2A or 1A |
| Allowable Tension Capacity | 17,080 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
Toolup Part # :
819536
