Simpson Anchors | SKU:
ATR1X24ZP

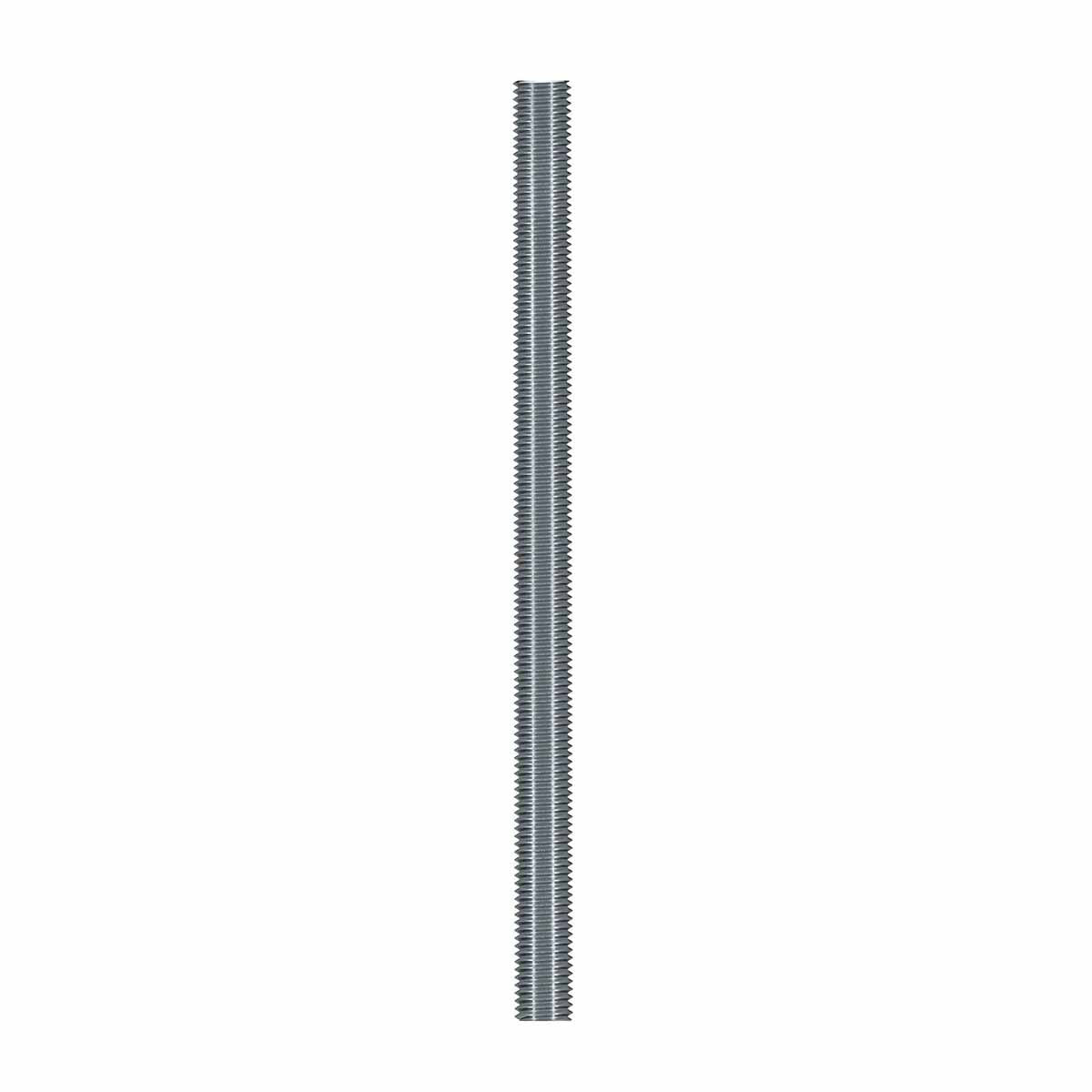

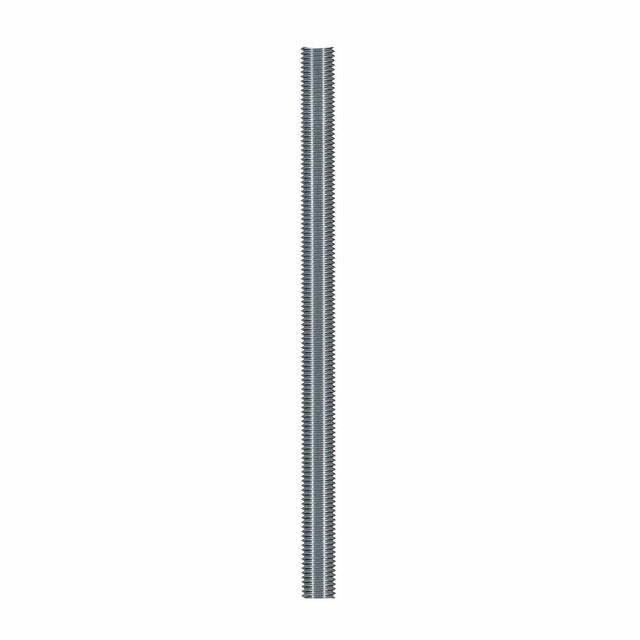

Simpson Strong-Tie ATR1X24ZP (1" x 24") Zinc-Plated All-Thread Rod for Structural Anchoring
$29.78
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR1X24ZP Description
The Simpson Strong-Tie ATR All-Thread Rod is designed for high-strength anchoring and structural applications, featuring a zinc-plated finish for corrosion resistance.
Simpson Strong-Tie ATR1X24ZP Includes
- (1) 1" x 24" Zinc-Plated All-Thread Rod
Simpson Strong-Tie ATR1X24ZP Features
- Precut for convenience
- Fully threaded
- UNC Class 2A or 1A thread specifications
- Meets ASTM F1554 Grade 36, A36, or A307 standards
- Zinc-plated finish for corrosion resistance
Simpson Strong-Tie ATR1X24ZP Applications
- Structural anchoring in construction projects
- Shearwall overturning restraint in Simpson Strong-Tie’s Anchor Tiedown System (ATS)
- Wind Uplift Restraint System (URS)
- General anchoring and structural applications
Simpson Strong-Tie ATR1X24ZP Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A |
| Finish | Zinc-plated |
| Diameter | 1" |
| Length | 24" |
| Thread type | Coarse |
| Tension Capacity | 17,080 lbs |
NOTE: Ensure the nut material and finish match the threaded rod to avoid compatibility issues.
