Simpson Anchors | SKU:
ATR1X36ZP

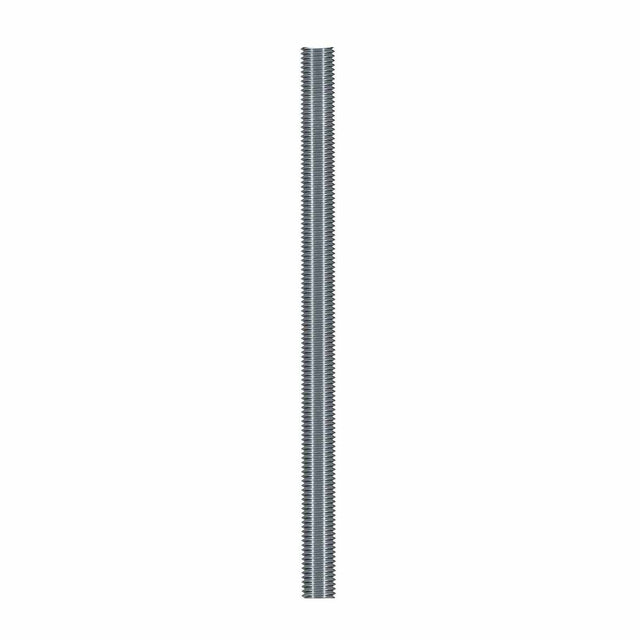

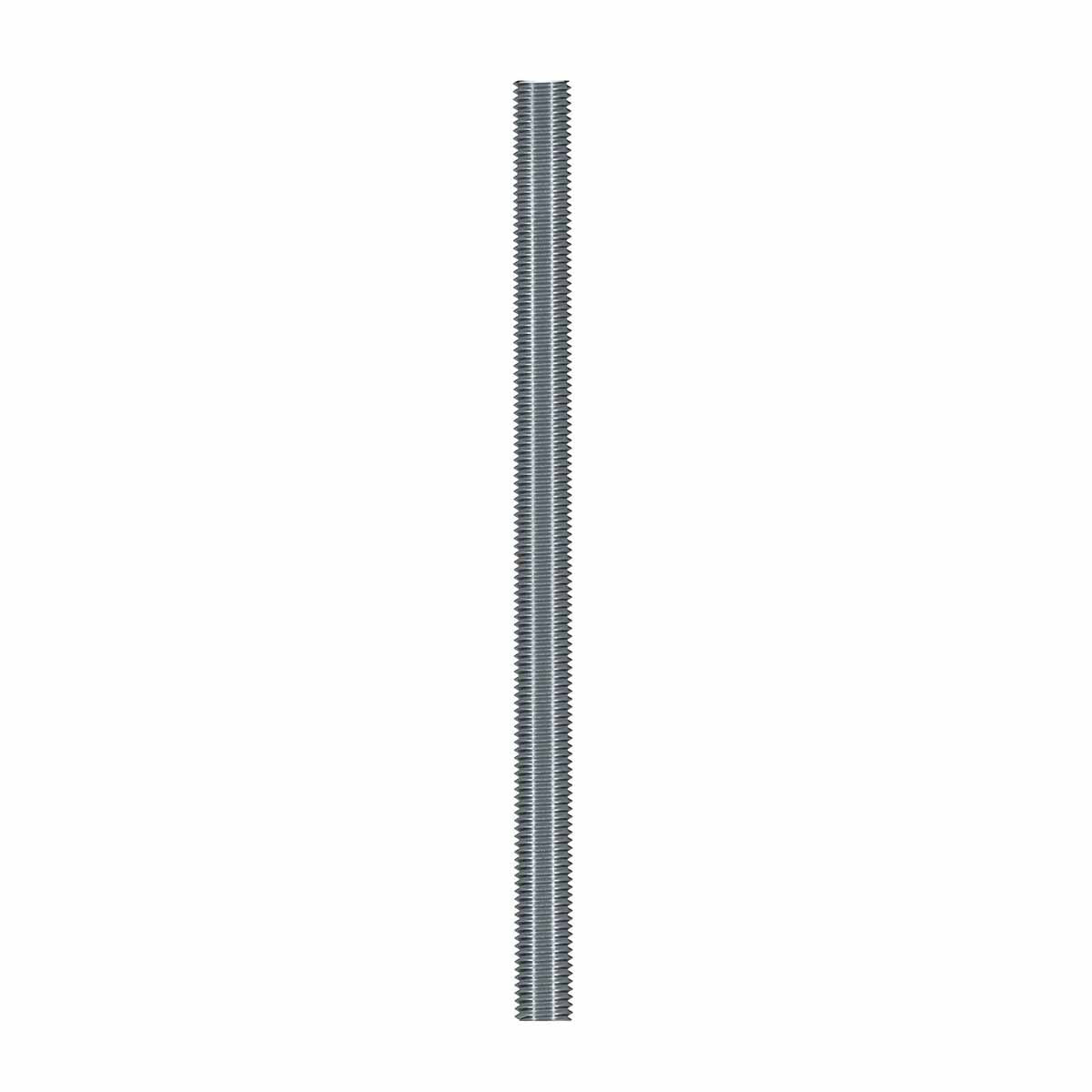

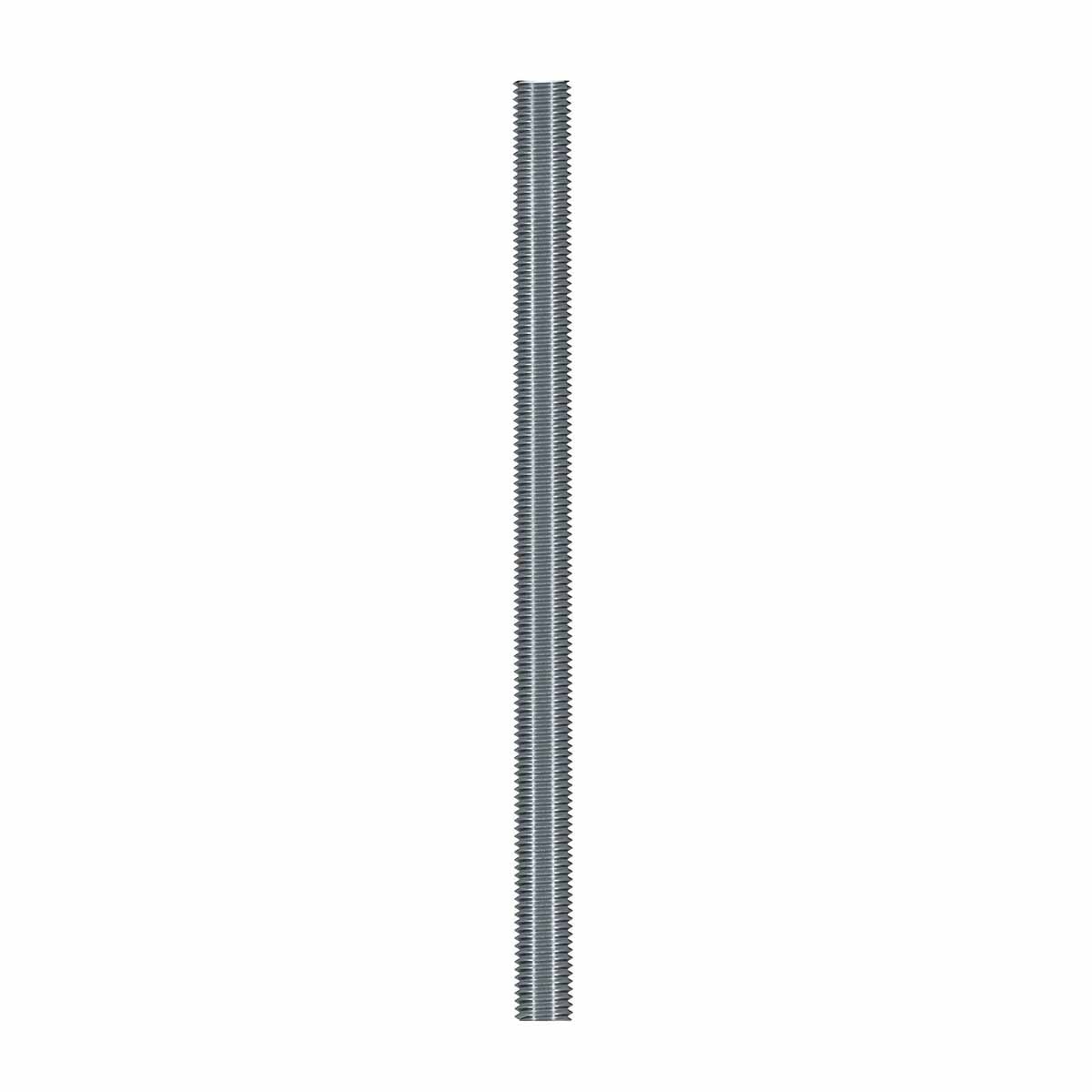

Simpson Strong-Tie ATR1X36ZP (1" x 36") Zinc-Plated All-Thread Rod for High-Strength Anchoring
$44.17
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR1X36ZP Description
The Simpson Strong-Tie ATR All-Thread Rod is engineered for high-strength anchoring and structural applications, featuring a zinc-plated finish for corrosion resistance.
Simpson Strong-Tie ATR1X36ZP Includes
- (1) 1" x 36" Zinc-Plated All-Thread Rod
Simpson Strong-Tie ATR1X36ZP Features
- Meets ASTM F1554 Grade 36, A36, or A307 standards with 36 ksi yield strength
- Fully threaded design for flexible installation
- Zinc-plated finish enhances durability
- Suitable for ATS, URS, and general structural applications
- Available in various diameters and lengths to meet specific project requirements
Simpson Strong-Tie ATR1X36ZP Applications
- High-strength anchoring in structural applications
- Use in Simpson Strong-Tie’s Anchor Tiedown System (ATS) for shearwall overturning restraint
- Wind Uplift Restraint System (URS)
- General anchoring and structural applications
Simpson Strong-Tie ATR1X36ZP Specifications
| Diameter | 1" |
| Finish | Zinc |
| Length | 3' |
| Material | Carbon Steel |
| Additional Info | Standard – ATSM F1554 Grade 36, A36 or A307, Allowable Tension Capacity: 17,080 lbs |
| Thread type | Coarse |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
