Simpson Anchors | SKU:
ATR1X72HDG

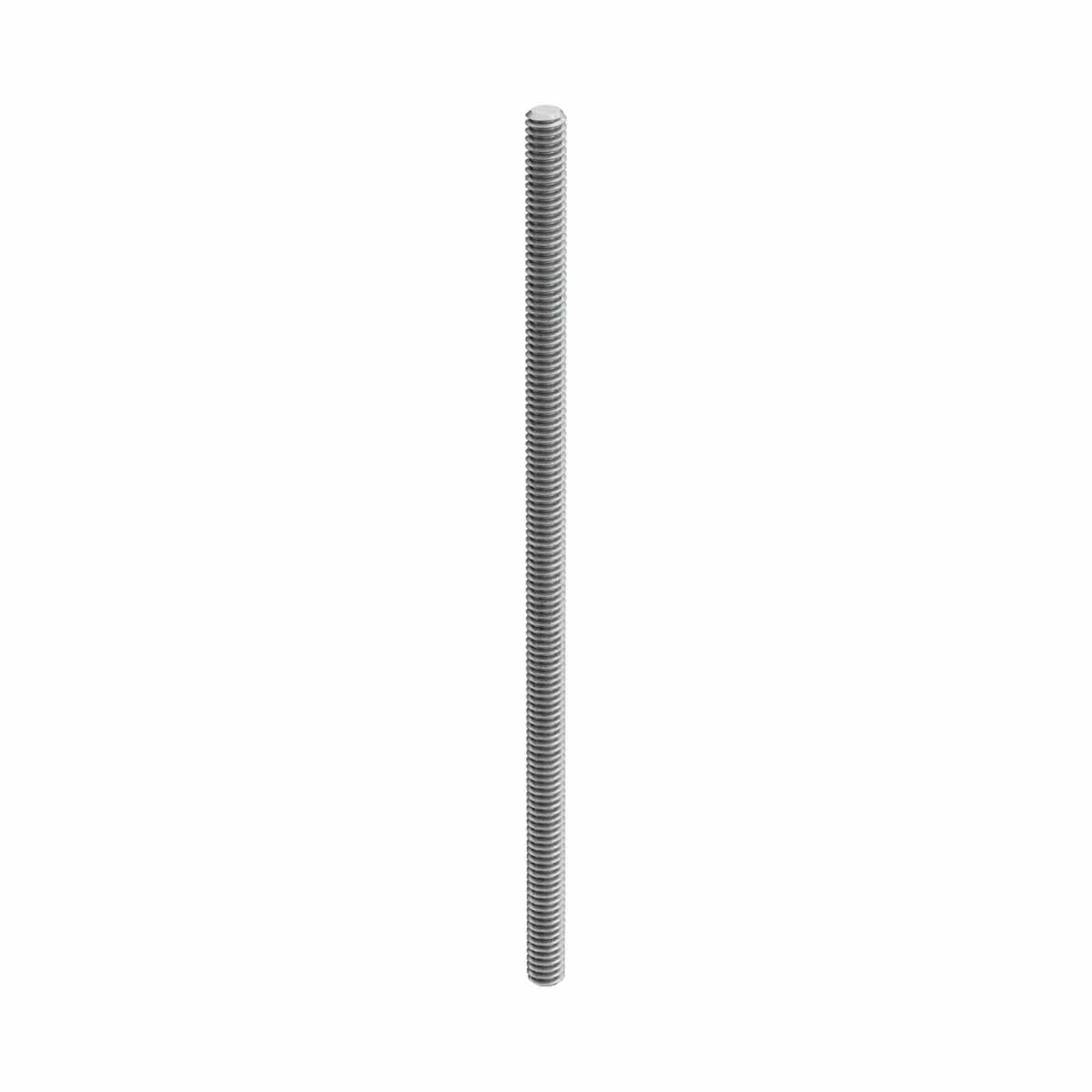

Simpson Strong-Tie ATR1X72HDG (1" x 72") Hot-Dip Galvanized All-Thread Rod for Tension Transfer and Anchoring
$100.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR1X72HDG Description
The Simpson Strong-Tie ATR Hot-Dip Galvanized All Thread Rod is a fully threaded, high-strength rod designed for tension transfer in various construction applications.
Simpson Strong-Tie ATR1X72HDG Includes
- (1) 1" x 72" Hot-Dip Galvanized All-Thread Rod
Simpson Strong-Tie ATR1X72HDG Features
- Fully threaded design for easy cutting and adaptation
- High-strength material meeting ASTM A307 specifications
- Hot-dip galvanized finish for enhanced corrosion resistance
- Versatile applications in anchoring systems and structural connections
Simpson Strong-Tie ATR1X72HDG Applications
- Anchoring systems: Compatible with adhesive anchoring systems in concrete and masonry
- Suspension systems: Supports the hanging of pipes, conduits, and other fixtures
- Structural connections: Facilitates the joining of structural elements in wood, steel, and concrete constructions
Simpson Strong-Tie ATR1X72HDG Specifications
| Material | Carbon Steel |
| Finish | Hot-Dip Galvanized |
| Thread Type | UNC Class 2A or 1A |
| Diameter | 1" |
| Length | 72" |
| Allowable Tension Capacity | 17,080 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
