Simpson Anchors | SKU:
ATR3/4X12HDG

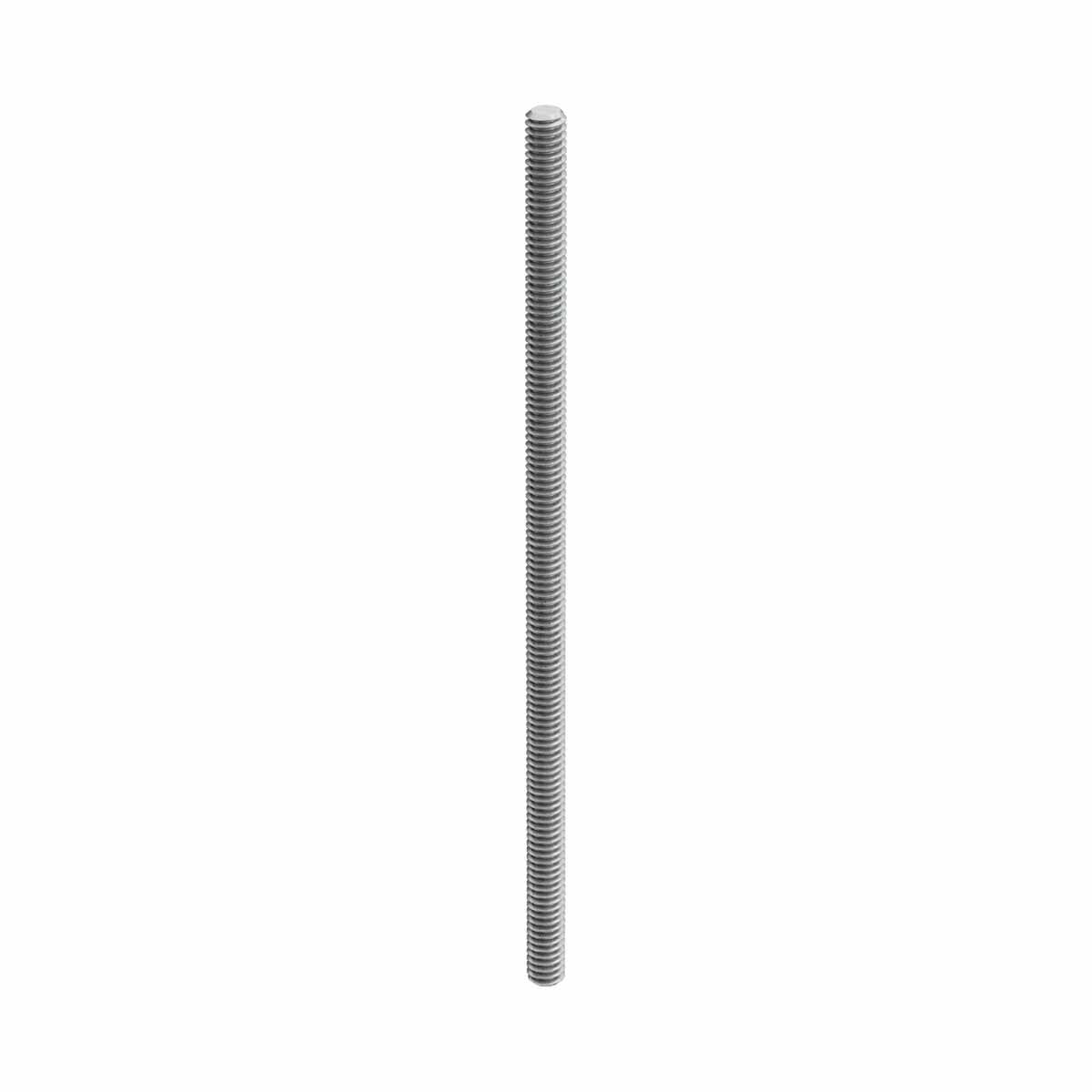

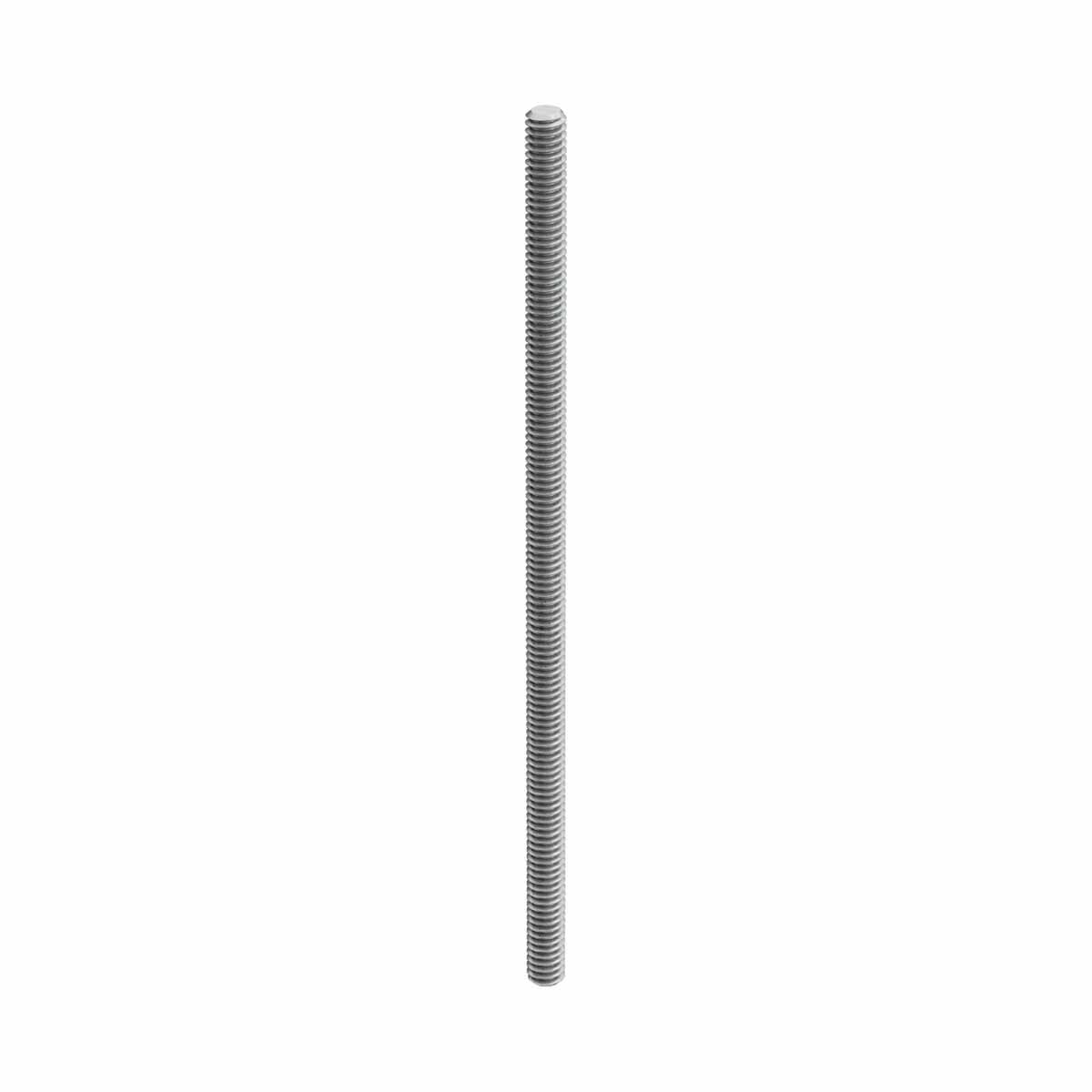

Simpson Strong-Tie ATR3/4X12HDG (3/4" x 12") Hot-Dip Galvanized All-Thread Rod for Anchoring and Structural Connections
$9.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR3/4X12HDG Description
The Simpson Strong-Tie ATR Hot-Dip Galvanized All Thread Rod is a fully threaded, high-strength rod designed for tension transfer in various construction applications.
Simpson Strong-Tie ATR3/4X12HDG Includes
- (1) 3/4" x 12" Hot-Dip Galvanized All-Thread Rod
Simpson Strong-Tie ATR3/4X12HDG Features
- Fully threaded design for easy cutting and adaptation to various lengths
- High-strength material meeting ASTM A307 specifications
- Hot-dip galvanized finish for enhanced corrosion resistance
- Versatile applications in anchoring systems, suspension, and structural connections
Simpson Strong-Tie ATR3/4X12HDG Applications
- Anchoring systems: Compatible with Simpson Strong-Tie adhesive anchoring systems in concrete and masonry
- Suspension systems: Supports the hanging of pipes, conduits, and other fixtures
- Structural connections: Facilitates the joining of structural elements in wood, steel, and concrete constructions
Simpson Strong-Tie ATR3/4X12HDG Specifications
| Material | Carbon Steel |
| Finish | Hot-Dip Galvanized |
| Thread Type | UNC Class 2A or 1A |
| Diameter | 3/4" |
| Length | 12" |
| Tension Capacity | 9,610 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
