Simpson Anchors | SKU:
ATR3/8X72

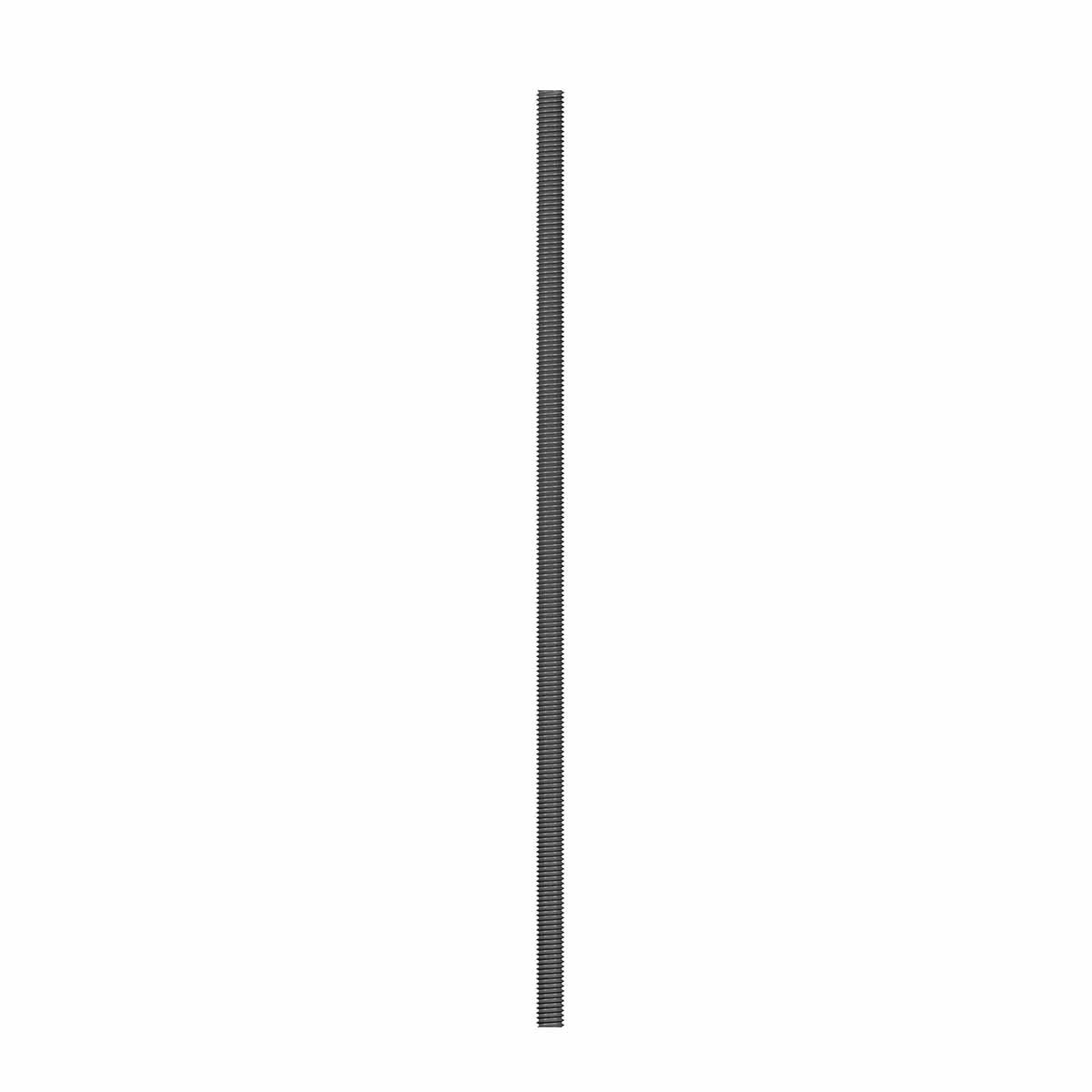

Simpson Strong-Tie ATR3/8X72 (3/8" x 72") Fully Threaded All-Thread Rod for Anchoring and Structural Connections
$8.95
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR3/8X72 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for anchoring systems, offering reliable performance in structural applications.
Simpson Strong-Tie ATR3/8X72 Includes
- (1) Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR3/8X72 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR3/8X72 Applications
- Anchoring systems for shearwall overturning restraint
- Wind uplift restraint systems for roofs
- General structural connections requiring tension transfer
Simpson Strong-Tie ATR3/8X72 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through drilled holes in the flooring system
- Ensure continuous drilling through sole plate and flooring system
Simpson Strong-Tie ATR3/8X72 Specifications
| Diameter | 3/8" |
| Length | 72" |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Tension Capacity | 2,400 lbs |
NOTE: Ensure the material and finish of the nut match the threaded rod to avoid compatibility issues.
