Simpson Anchors | SKU:
ATR5/8X12ZP
Simpson Strong-Tie ATR5/8X12ZP (5/8" x 12") Zinc-Plated All-Thread Rod for Structural Anchoring
$4.72
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR5/8X12ZP Description

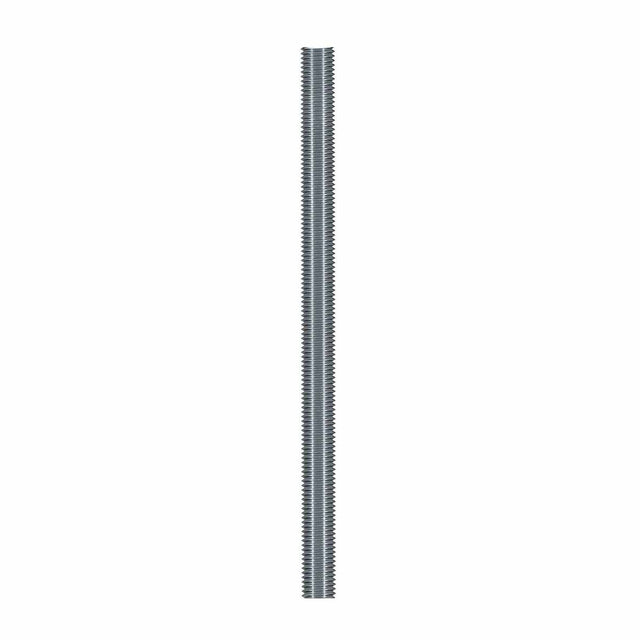

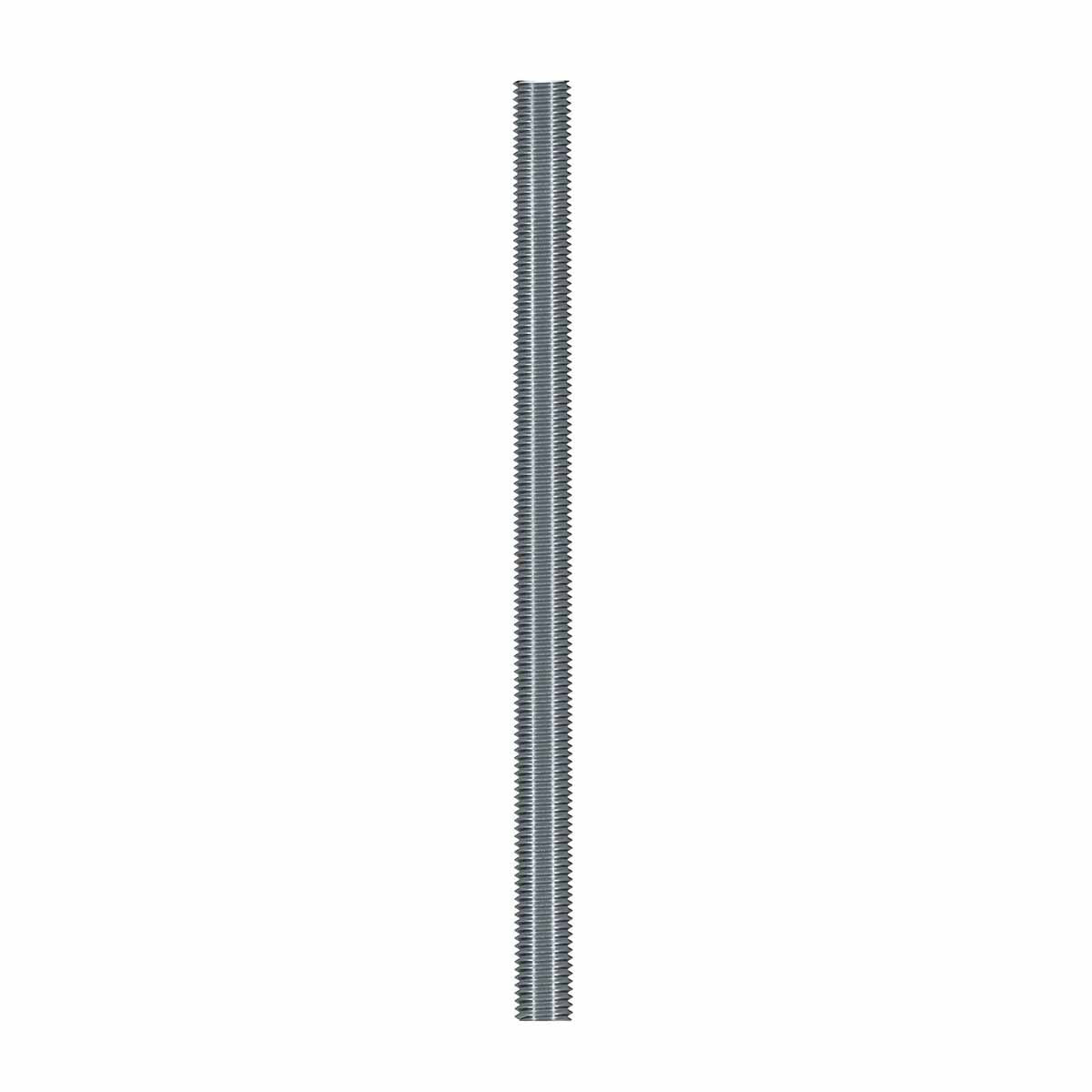

The Simpson Strong-Tie ATR All-Thread Rod is engineered for high-strength anchoring and structural applications, featuring a zinc-plated finish for corrosion resistance.
Simpson Strong-Tie ATR5/8X12ZP Includes
- (1) Zinc-Plated 5/8 in. x 12 in. All-Thread Rod
Simpson Strong-Tie ATR5/8X12ZP Features
- Precut for convenience
- Fully threaded
- UNC Class 2A or 1A thread specifications
- Meets ASTM F1554 Grade 36, A36, or A307 standards
- Zinc-plated finish for corrosion resistance
Simpson Strong-Tie ATR5/8X12ZP Applications
- Structural anchoring in construction projects
- Use in Simpson Strong-Tie’s Anchor Tiedown System (ATS) for shearwall overturning restraint
- Wind Uplift Restraint System (URS)
- General anchoring and structural applications
Simpson Strong-Tie ATR5/8X12ZP Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A |
| Finish | Zinc-plated |
| Diameter | 5/8 in. |
| Length | 12 in. |
| Thread type | Coarse |
| Tension Capacity | 6,675 lbs. |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
