At a Glance
Thread Size
1 in
Thread Type
UNC
Rod Length
18 in
Grade
A307
Material
Mild Steel
Sold As
Individual
Application
Structural Bonding
Finish
Black Oxide
Description
Description
Simpson Strong-Tie ATR5/8X18 Description

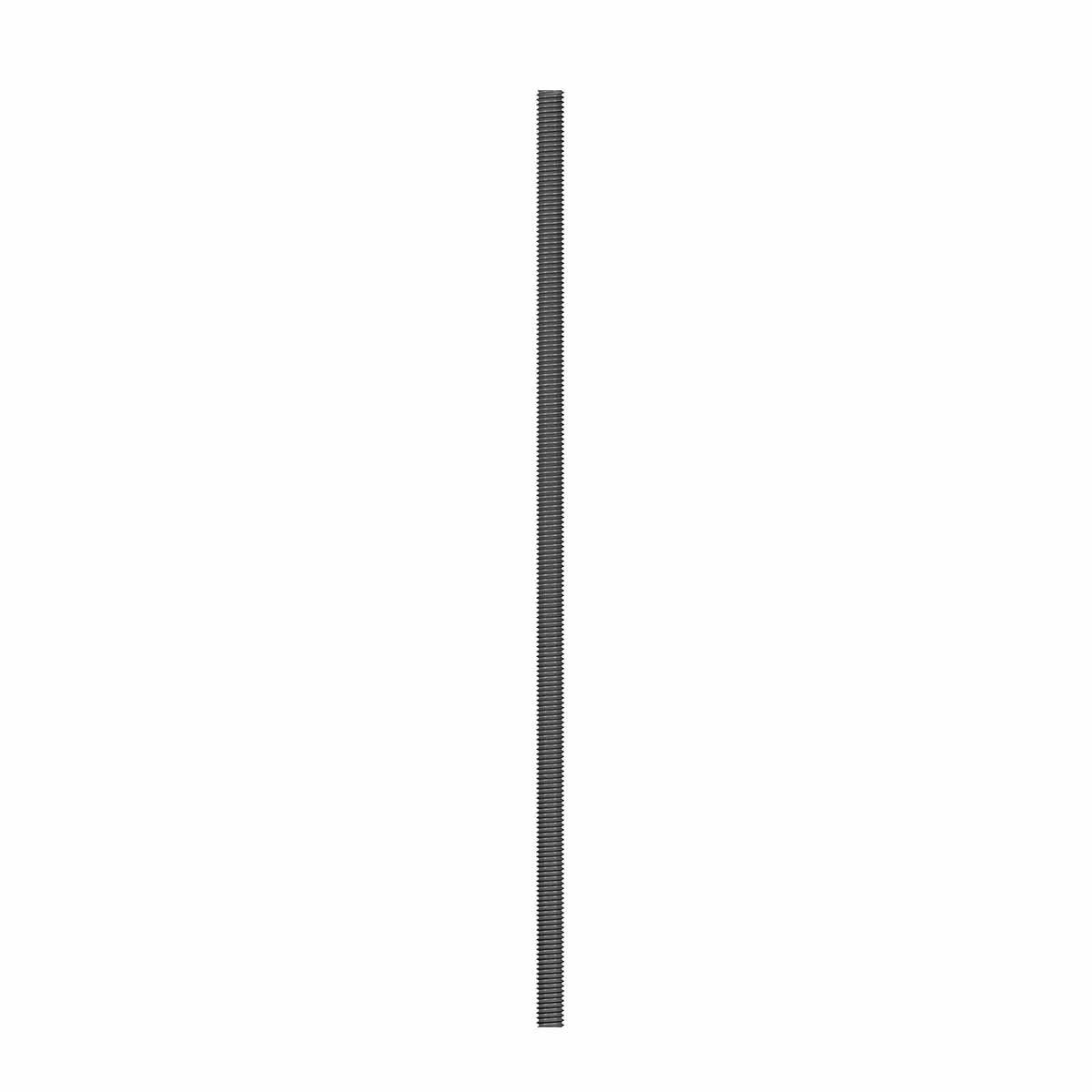

The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in anchoring systems, providing reliable performance in structural applications.
Simpson Strong-Tie ATR5/8X18 Includes
- (1) Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR5/8X18 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR5/8X18 Applications
- Anchoring and bracing in structural connections
- Use in Simpson Strong-Tie anchoring systems like ATS and URS
- Tension transfer in various structural applications

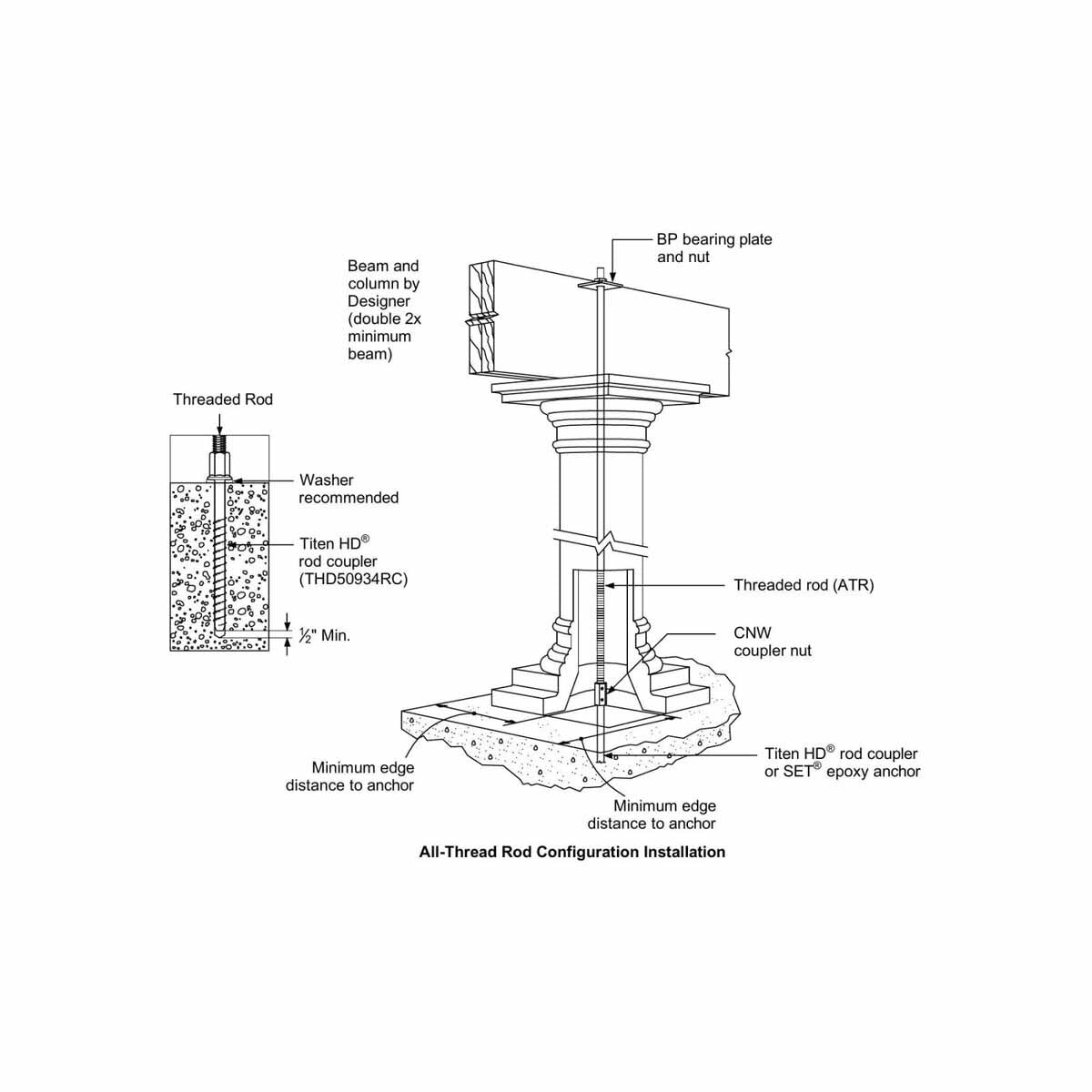

Simpson Strong-Tie ATR5/8X18 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through the drilled holes in the flooring system
- Ensure continuous drilling action through the sole plate and flooring system
Simpson Strong-Tie ATR5/8X18 Specifications
| Diameter | 5/8" |
| Length | 18" |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Tension Capacity | 6,675 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
Toolup Part # :
819505
