At a Glance
Thread Size
1 in
Thread Type
UNC
Rod Length
24 in
Grade
A307
Material
Mild Steel
Sold As
Individual
Application
Structural Bonding
Finish
Black Oxide
Description
Description
Simpson Strong-Tie ATR5/8X24 Description

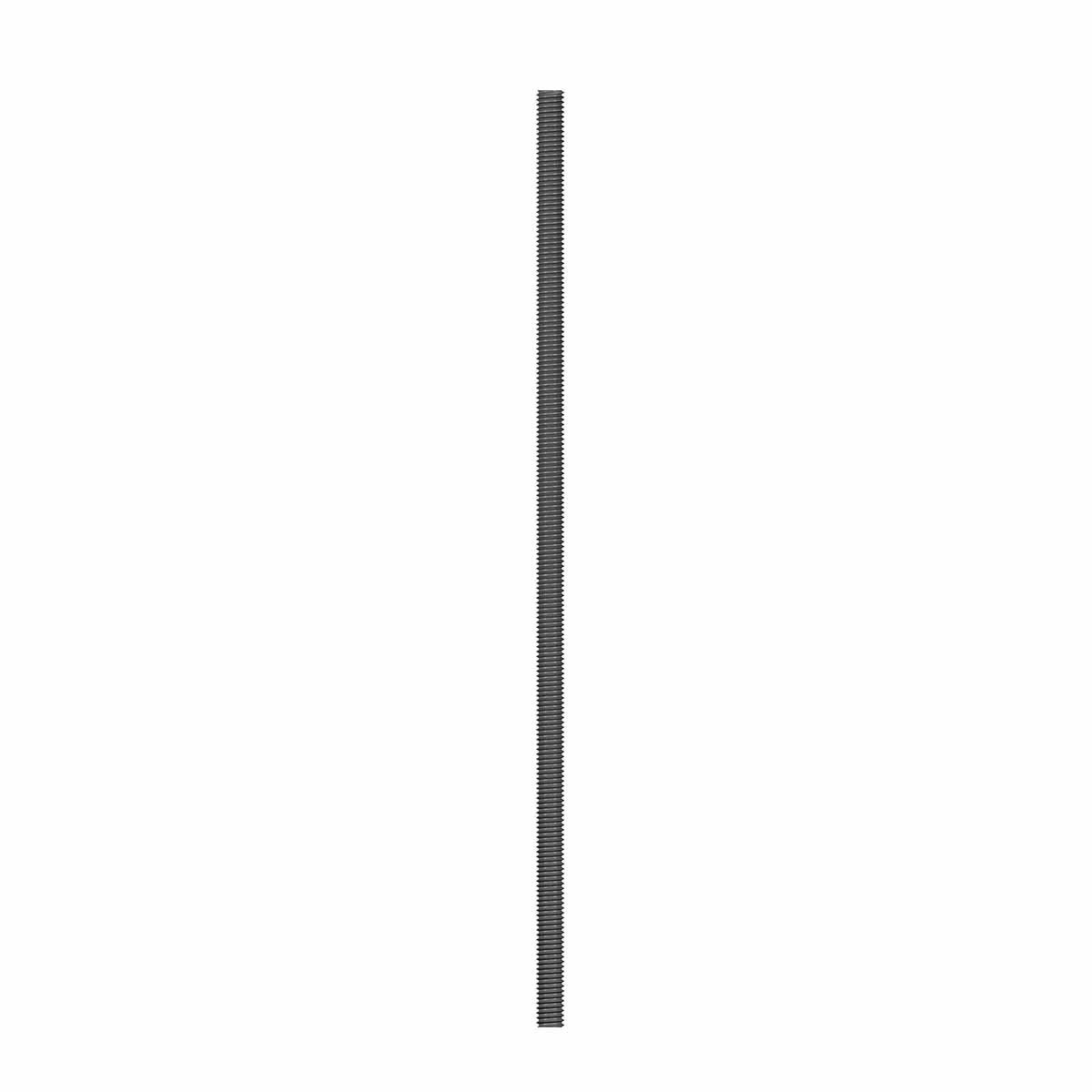

The ATR5/8X24 Simpson Strong-Tie All-Thread Rod is a fully threaded tension rod designed for structural applications, offering reliable performance and adjustability.
Simpson Strong-Tie ATR5/8X24 Includes
- (1) Fully Threaded Tension Rod
Simpson Strong-Tie ATR5/8X24 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
- Suitable for ATS and URS systems
Simpson Strong-Tie ATR5/8X24 Applications
- Anchoring and bracing in structural systems
- Shearwall overturning restraint
- Wind uplift restraint for roofs
- General structural connections

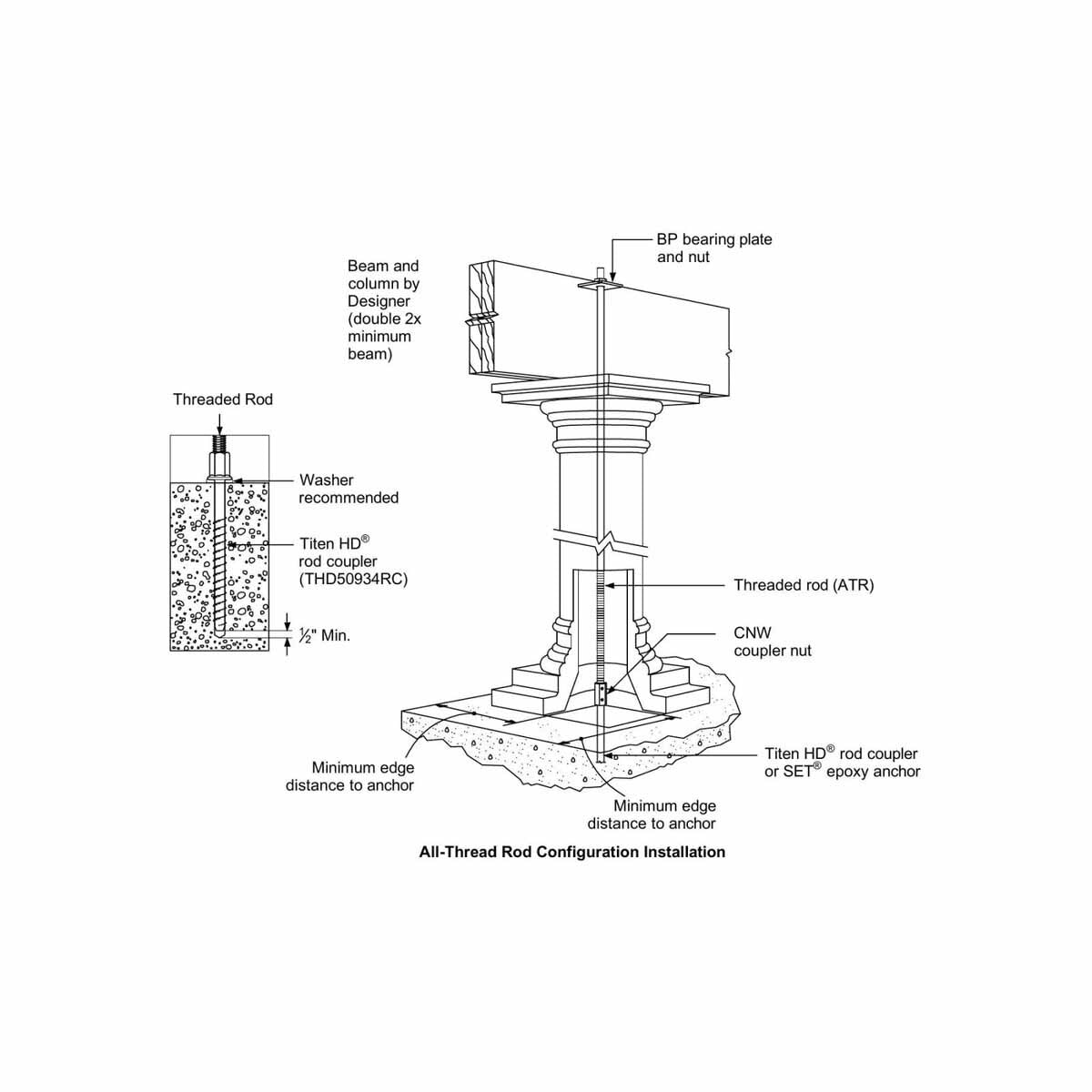

Simpson Strong-Tie ATR5/8X24 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through drilled holes in the flooring system
- Ensure continuous drilling through sole plate and flooring system
- Follow installation video for detailed guidance
Simpson Strong-Tie ATR5/8X24 Specifications
| Diameter | 5/8" |
| Length | 24" |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | UNC Class 2A or 1A |
| Tension Capacity | 6,675 lbs |
NOTE: Ensure the material and finish of the nut match the threaded rod to avoid compatibility issues.
Toolup Part # :
819503
