Simpson Anchors | SKU:
ATR5/8X48

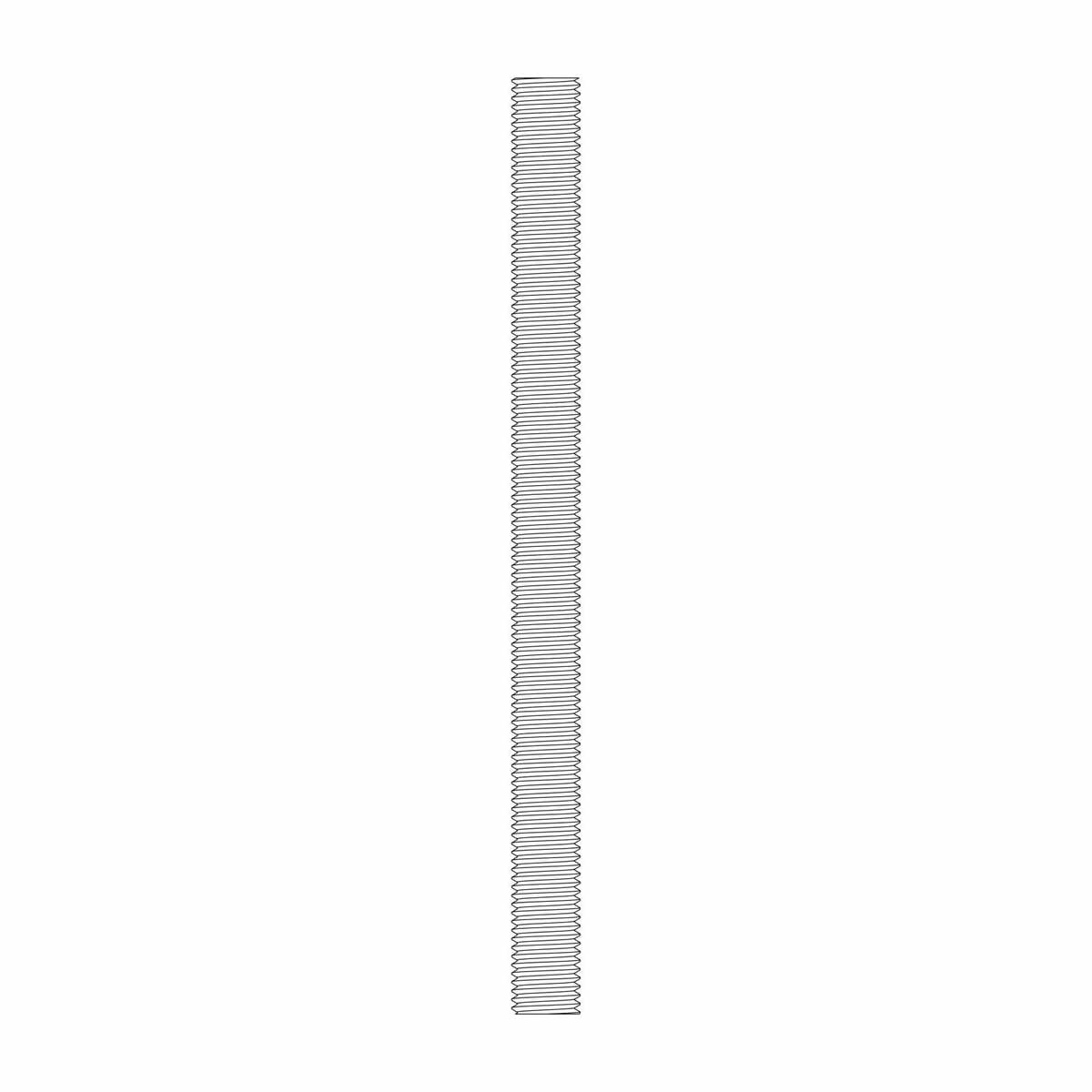

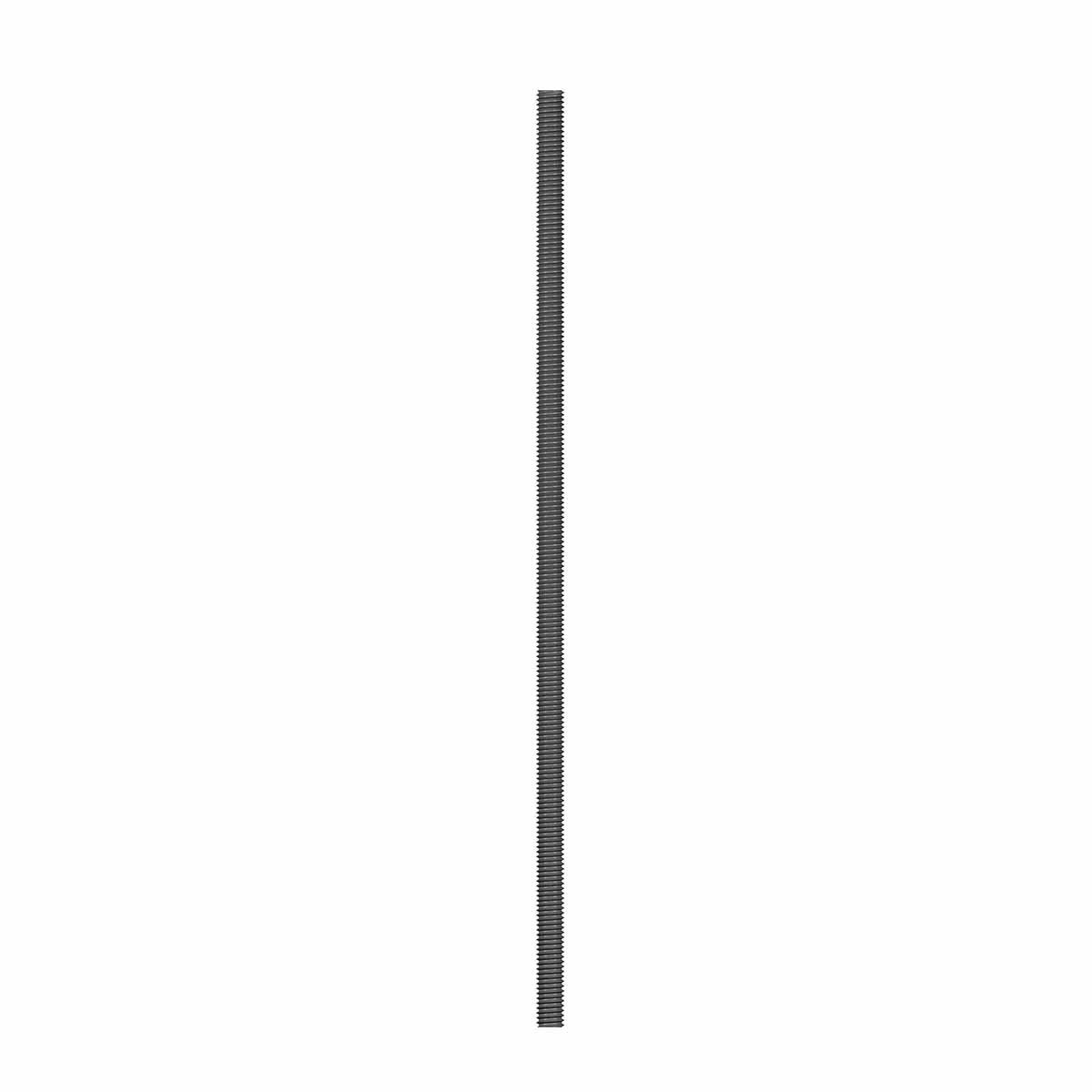

Simpson Strong-Tie ATR5/8X48 (5/8" x 48") All-Thread Rod for Structural Anchoring and Bracing
$13.11
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR5/8X48 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in Simpson Strong-Tie anchoring systems, including the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS) for roofs.
Simpson Strong-Tie ATR5/8X48 Includes
- (1) 5/8" x 48" All-Thread Rod
Simpson Strong-Tie ATR5/8X48 Features
- Fully Threaded Design: Provides maximum adjustability and ease of installation in various configurations.
- Standard Strength Material: Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards.
- Plain Finish: Cost-effective solution for applications where corrosion resistance is not critical.
- Versatile Applications: Suitable for use in ATS and URS systems, as well as general anchoring and bracing needs.
Simpson Strong-Tie ATR5/8X48 Applications
- Anchoring: Provides secure tension transfer for structural connections.
- Bracing: Ensures stability in structural frameworks.
- Structural Connections: Used in Simpson Strong-Tie anchoring systems for shearwall overturning restraint and wind uplift restraint.

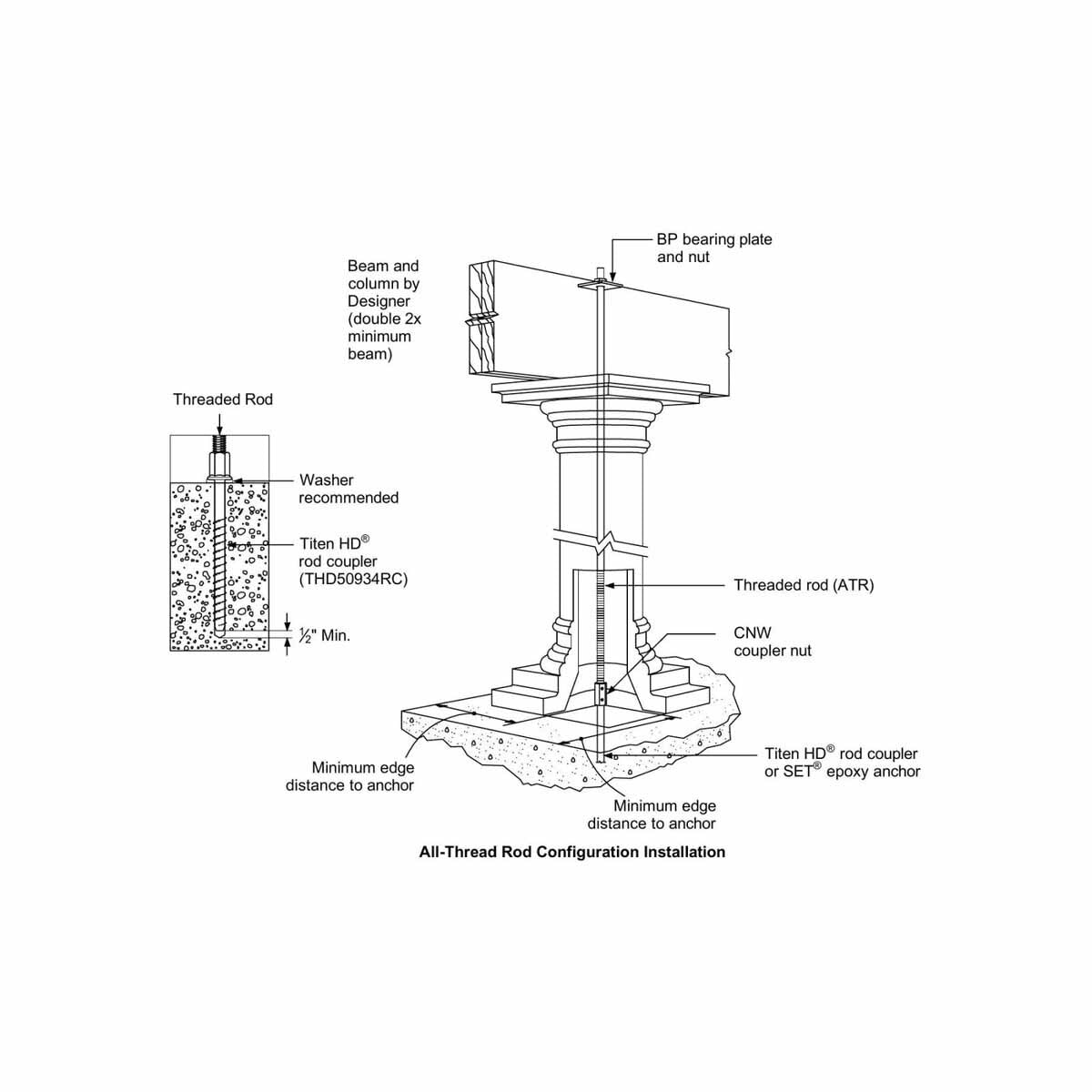

Simpson Strong-Tie ATR5/8X48 Installation Overview
- Ensure compatibility of the nut and threaded rod material and finish.
- Position the rod in the desired location.
- Secure the rod using compatible nuts and washers.
- Verify the tension and alignment of the rod.
Simpson Strong-Tie ATR5/8X48 Specifications
| Diameter | 5/8" |
| Finish | Plain |
| Length | 4' |
| Material | Uncoated Black Steel |
| Additional Info | Standard – ATSM F1554 Grade 36, A36 or A307, Tension Capacity: 6,675 lbs. |
| Thread type | Coarse |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
