Simpson Anchors | SKU:
ATR7/8X12

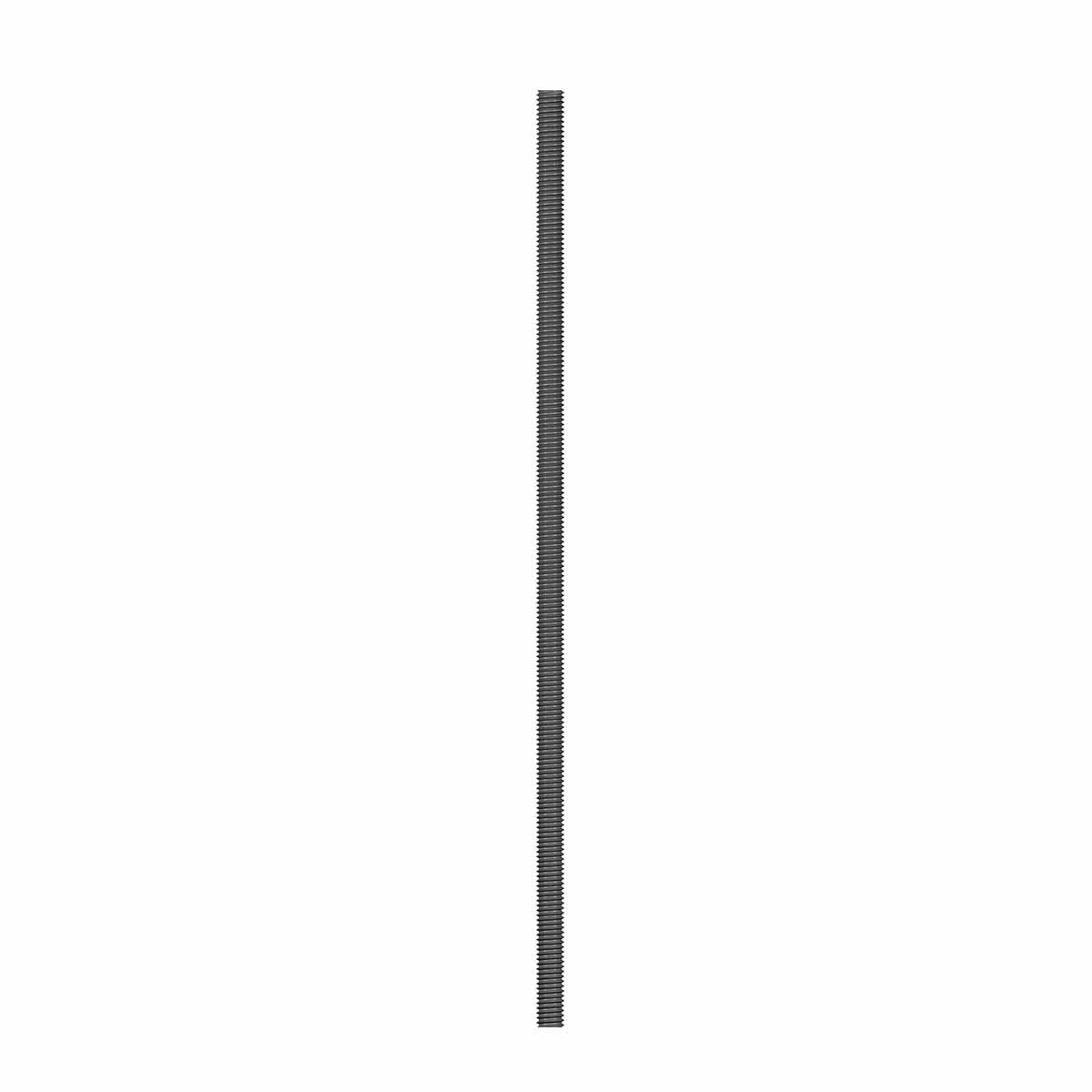

Simpson Strong-Tie ATR7/8X12 (7/8" x 12") Strong-Rod All-Thread Rod for Structural Anchoring and Bracing
$8.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR7/8X12 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in Simpson Strong-Tie anchoring systems, including the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS) for roofs.
Simpson Strong-Tie ATR7/8X12 Includes
- (1) 7/8" x 12" All-Thread Rod
Simpson Strong-Tie ATR7/8X12 Features
- Fully Threaded Design: Provides maximum adjustability and ease of installation in various configurations.
- Standard Strength Material: Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards.
- Plain Finish: Cost-effective solution for applications where corrosion resistance is not critical.
- Versatile Applications: Suitable for use in ATS and URS systems, as well as general anchoring and bracing needs.
Simpson Strong-Tie ATR7/8X12 Applications
- Anchoring: Provides secure tension transfer for structural connections.
- Bracing: Ensures stability in structural applications.
- Structural Connections: Suitable for use in ATS and URS systems.
Simpson Strong-Tie ATR7/8X12 Specifications
| Diameter | 7/8" |
| Finish | Plain |
| Length | 1' |
| Material | Uncoated Black Steel |
| Additional Info | Standard – ATSM F1554 Grade 36, A36 or A307 |
| Tension Capacity | 13,080 lbs. |
| Thread type | Coarse |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
